Mercedes Benz Actros MBI 110-1,2/S-1-635

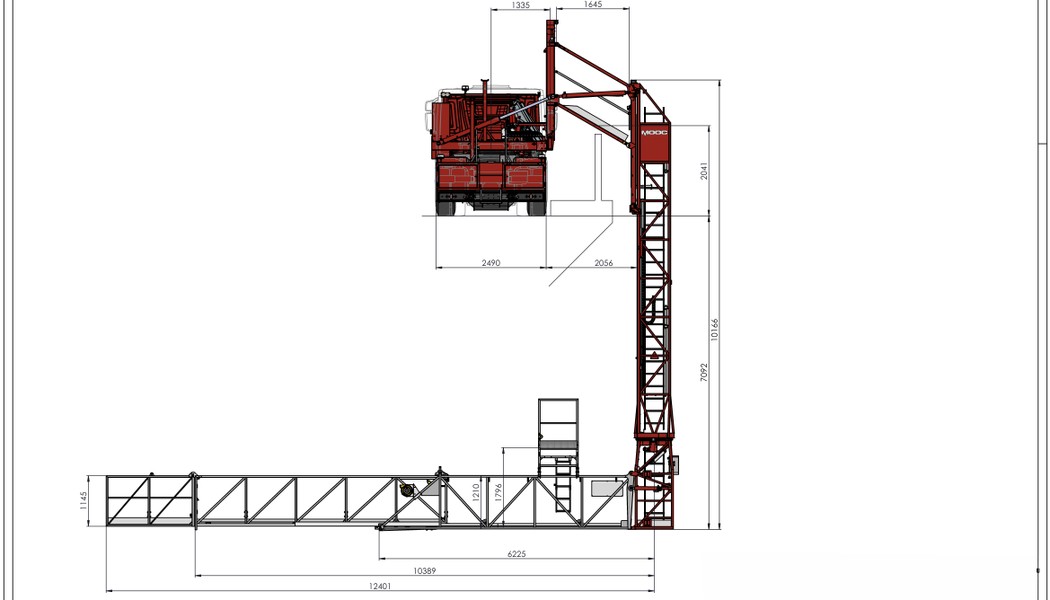

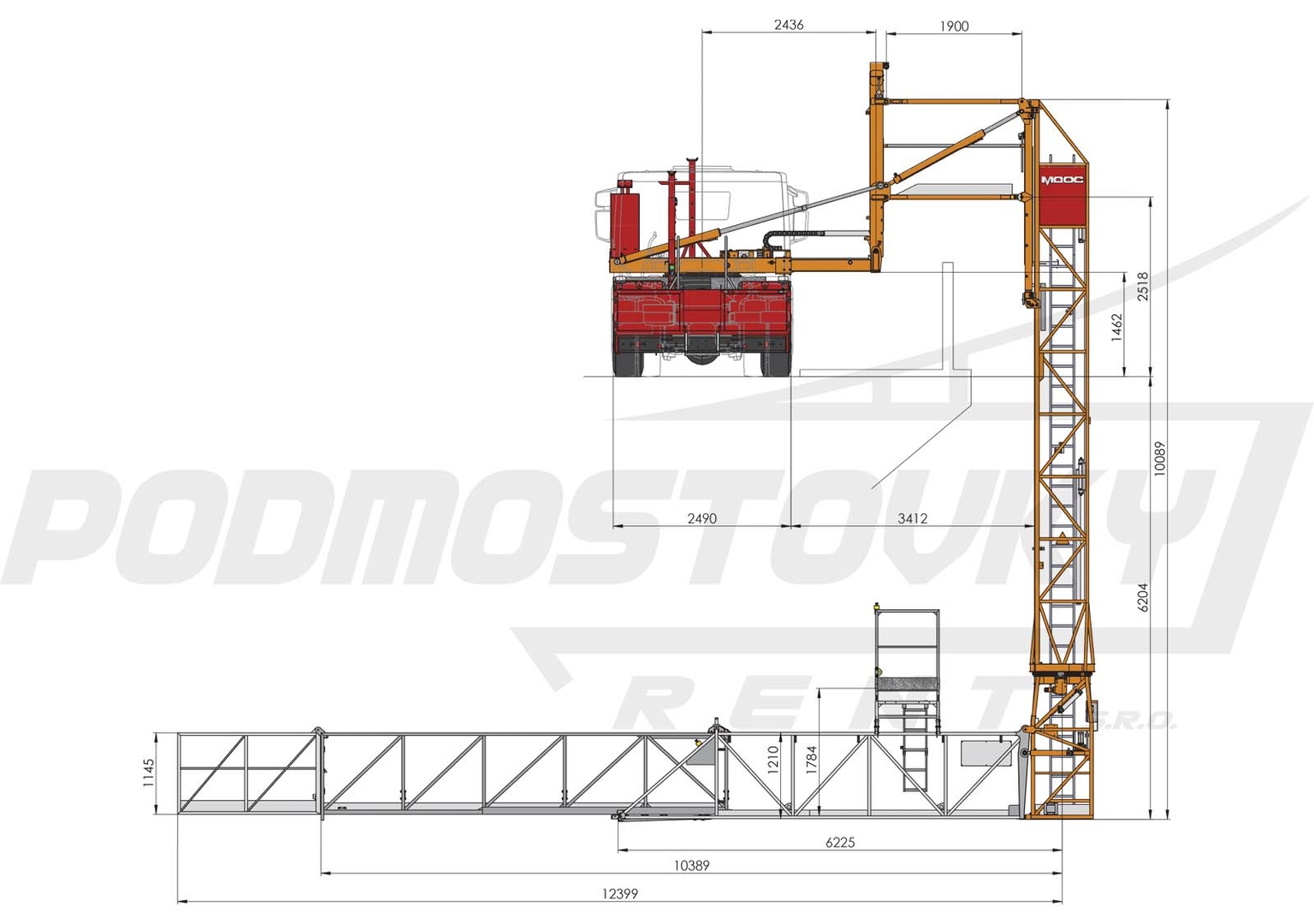

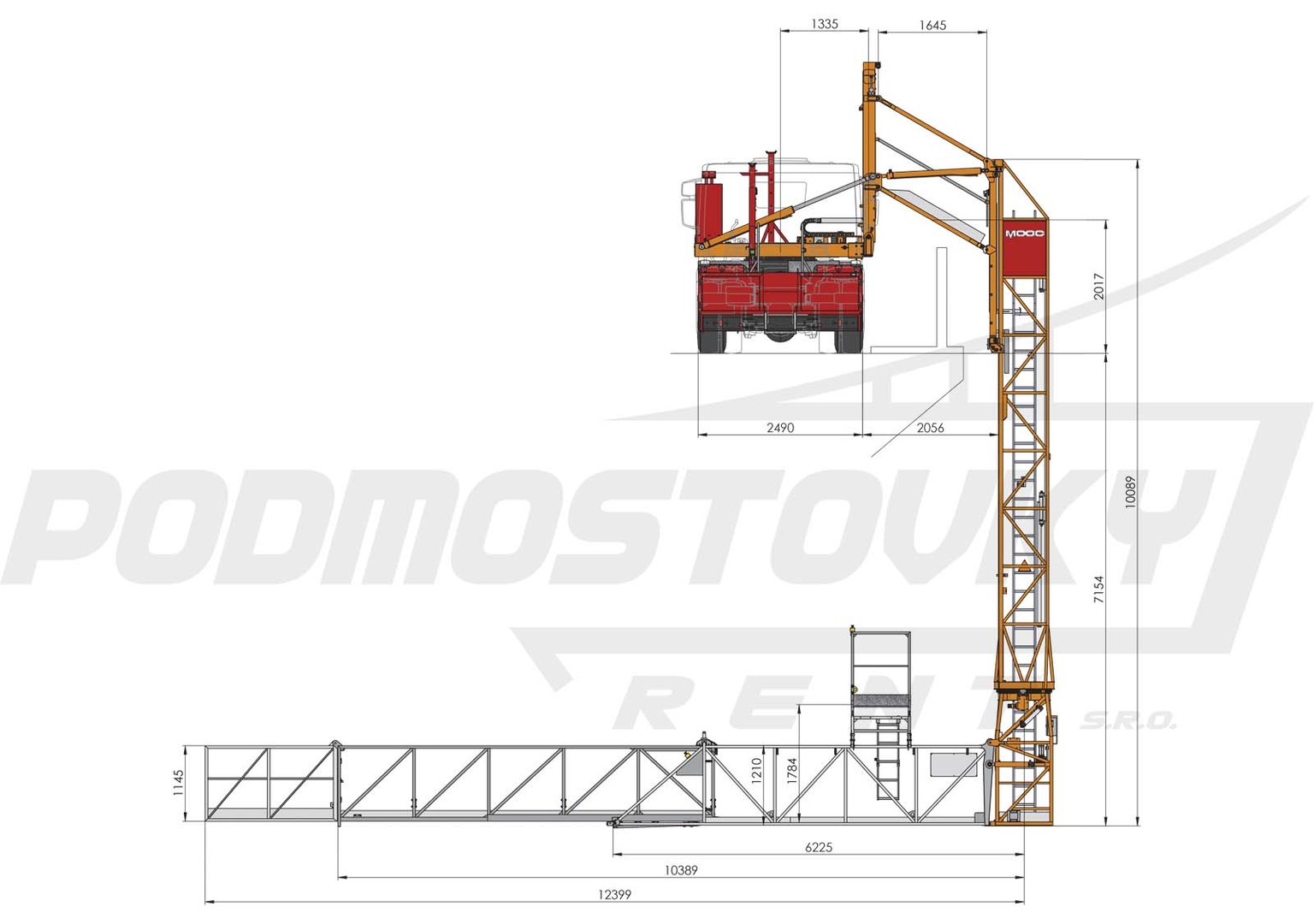

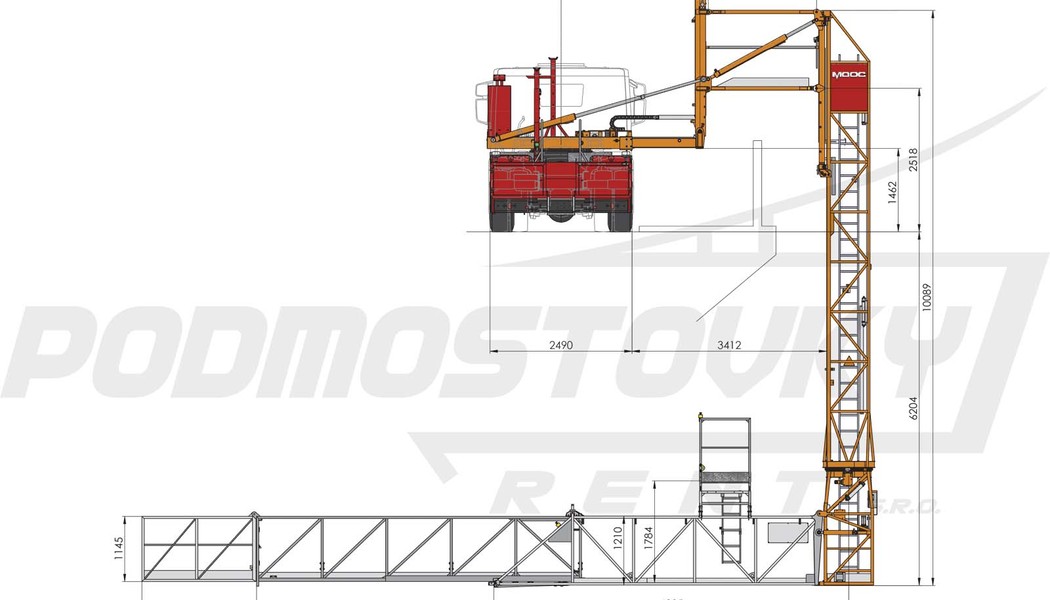

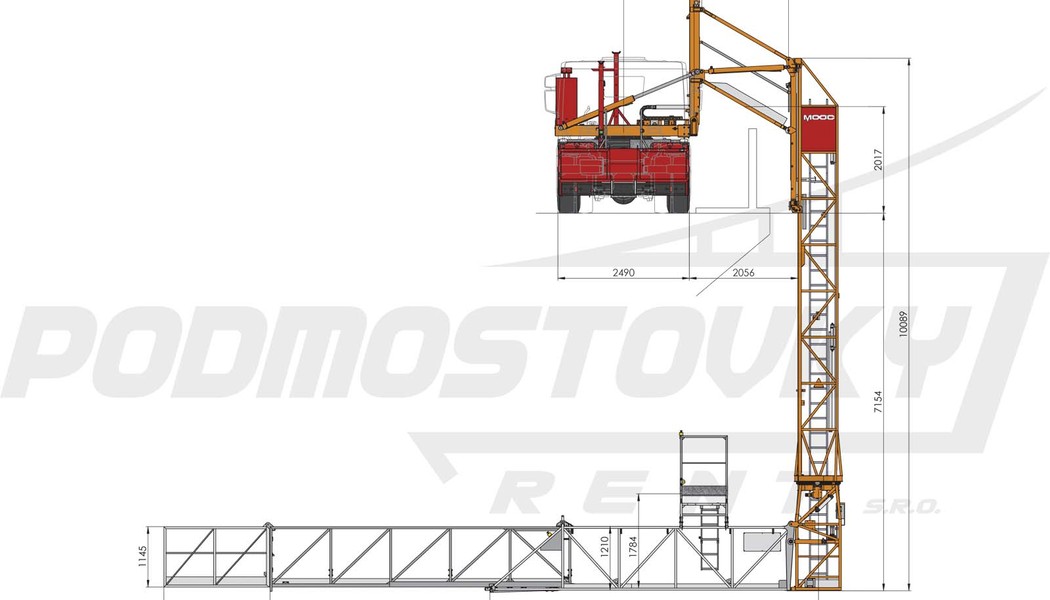

Universal machine for bridge constructions of 1st class roads. Footbridge length up to 12,39 m, lowering depth up to 7,15 m and load capacity 500 kg.

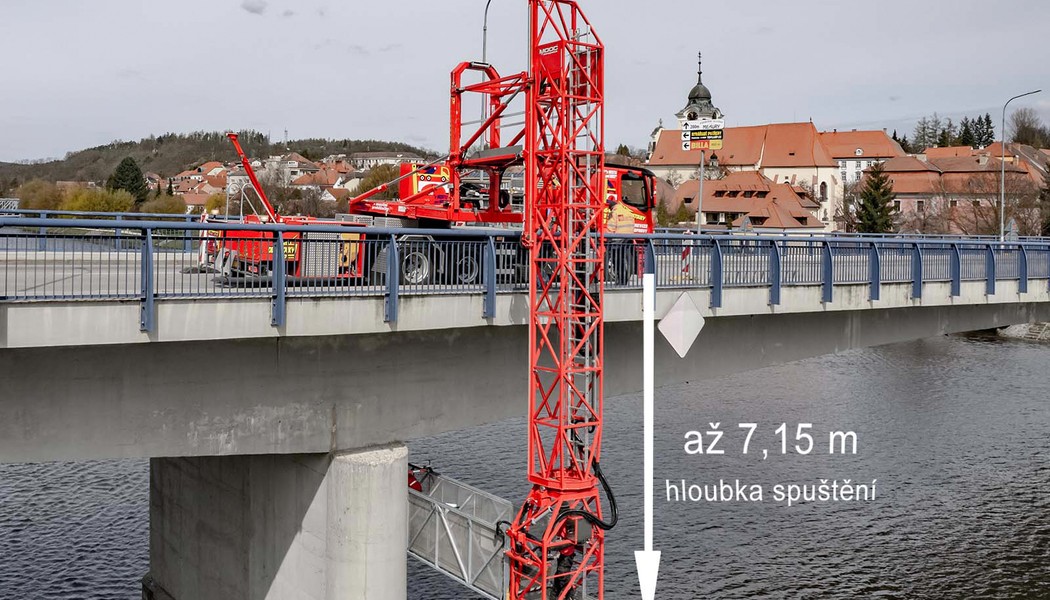

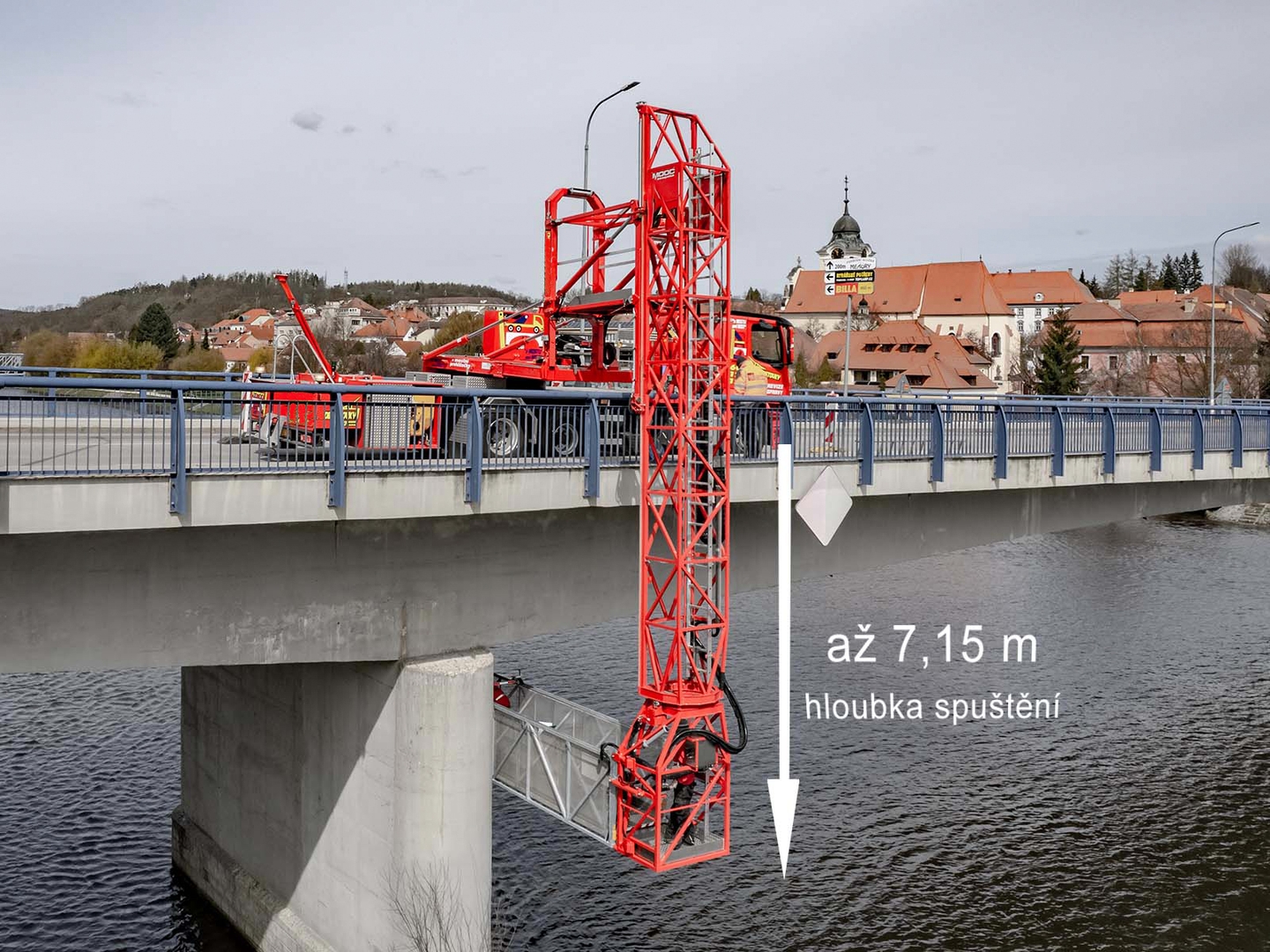

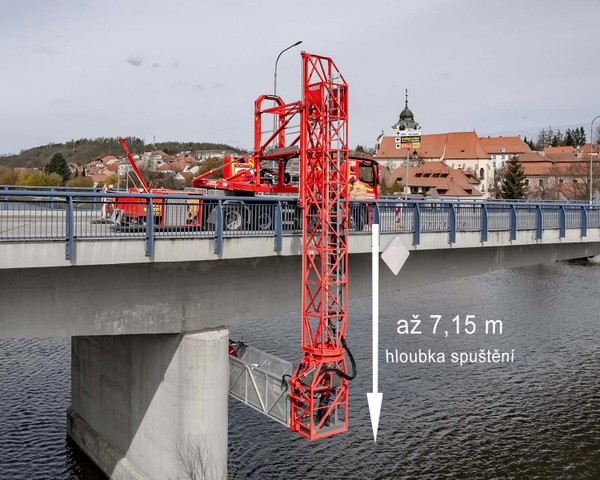

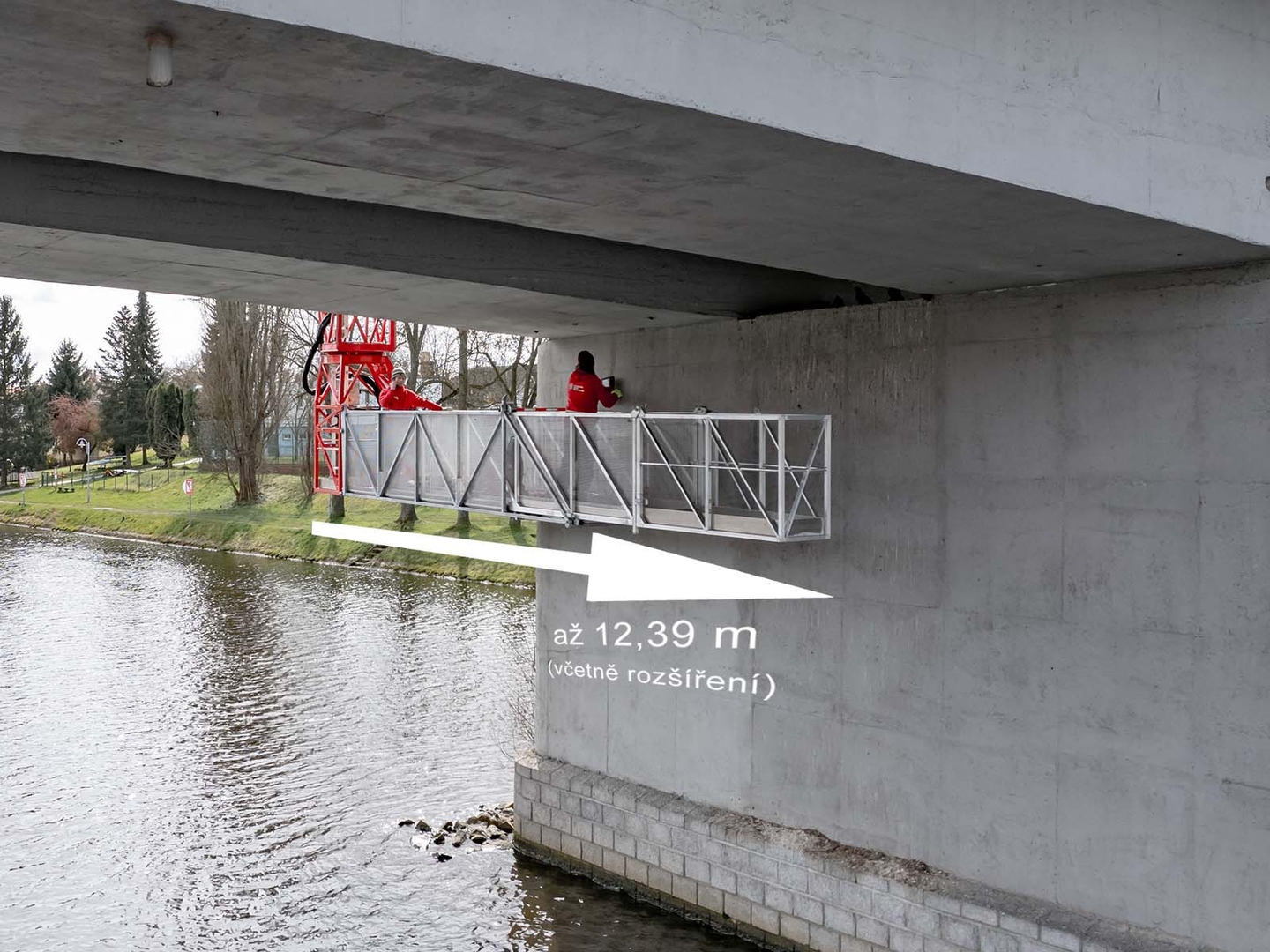

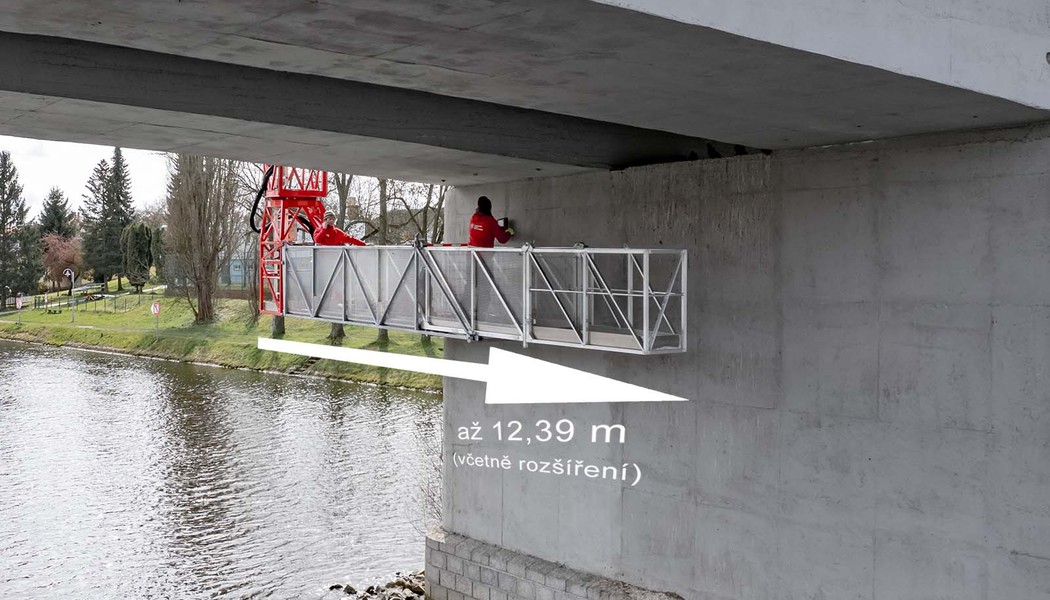

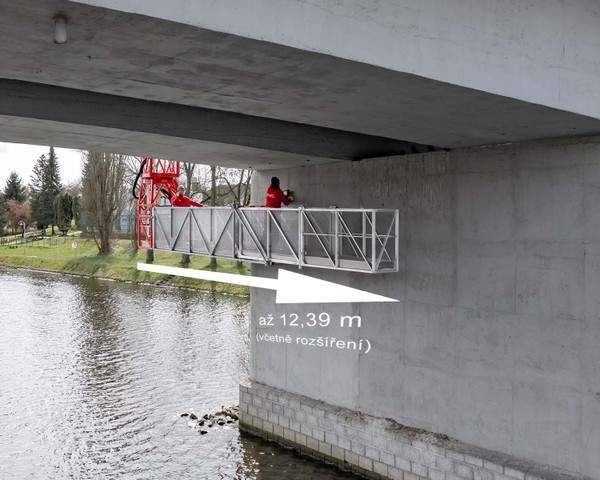

The MOOG MBI 110 underbridge platform unit is equipped with a crane with a load capacity of up to 500 kilograms for easy material loading, a telescopic swivel frame for bridging a sidewalk up to 3.3 meters wide and also an additional extension that can easily extend the footbridge length by 2 meters to 12.39. meter. Together with a sufficient lowering depth of up to 7.15 meters, the inspection bridge will cover a large area under the bridge. Smooth hydraulic travel will allow movement on the bridge deck with the footbridge in the working position, the generator will provide electricity (voltage 230V) for the use of hand tools on the footbridge. The technical solution meets all safety requirements for the design and operation of dedicated lifting equipment.
