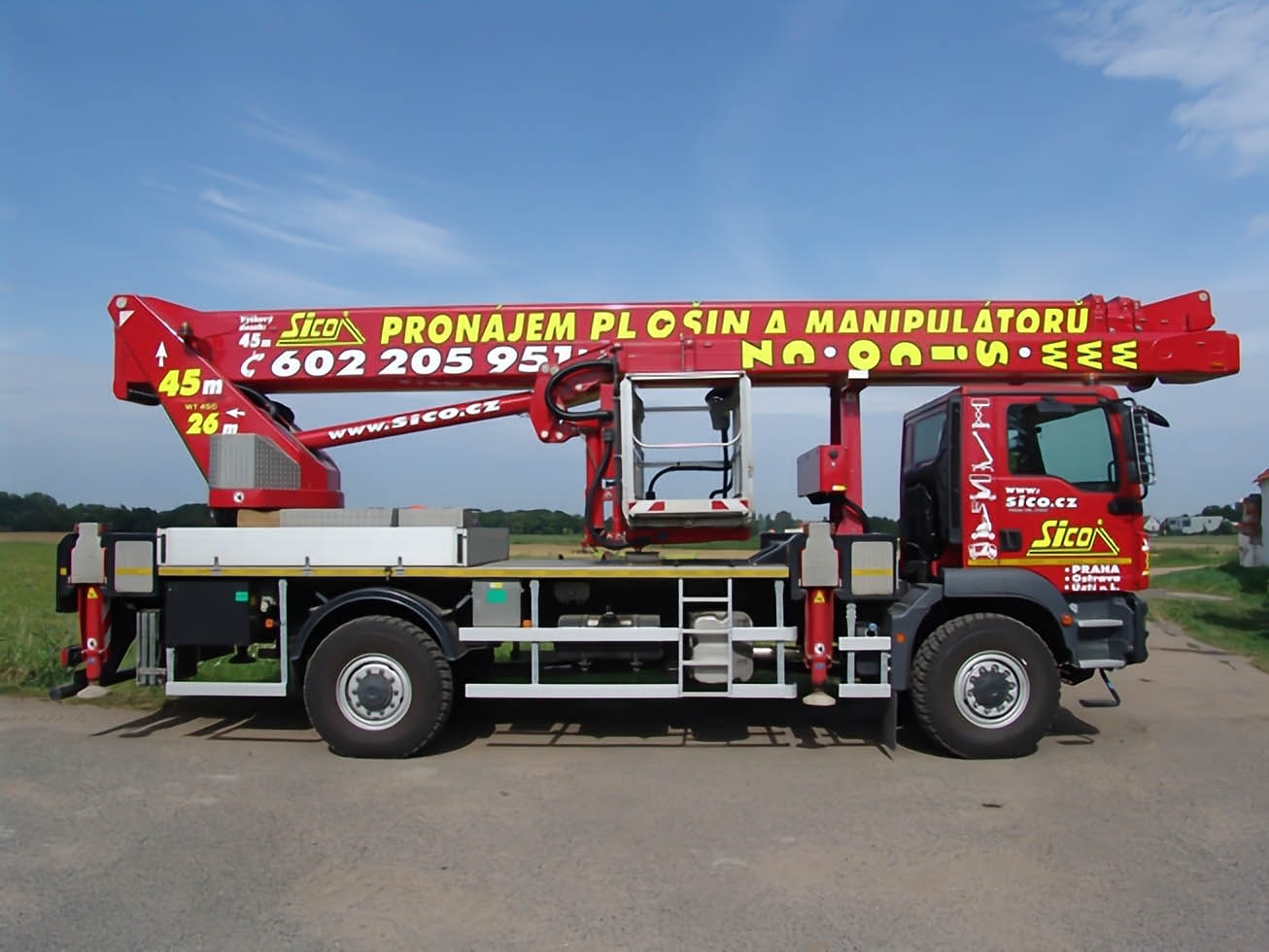

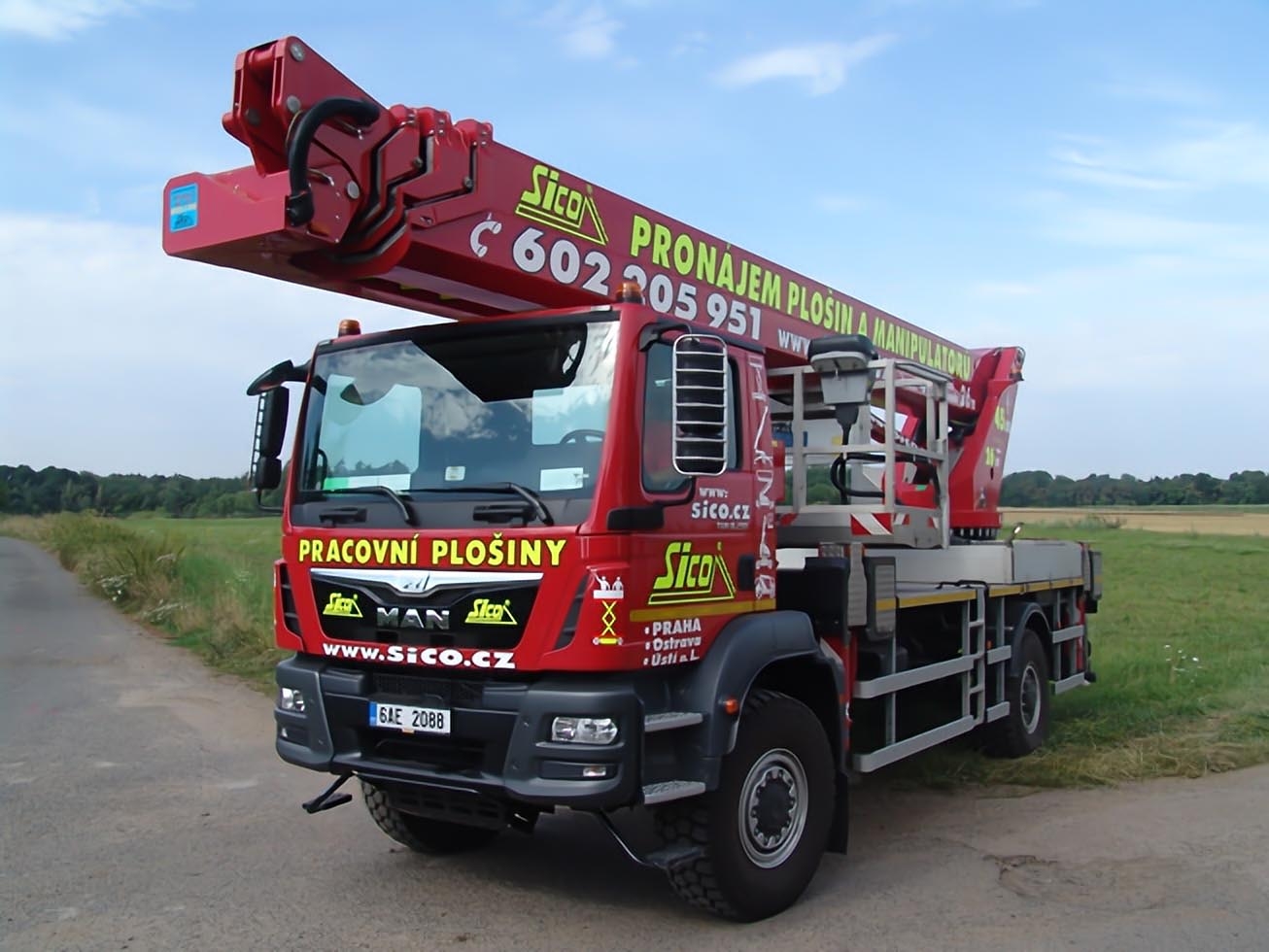

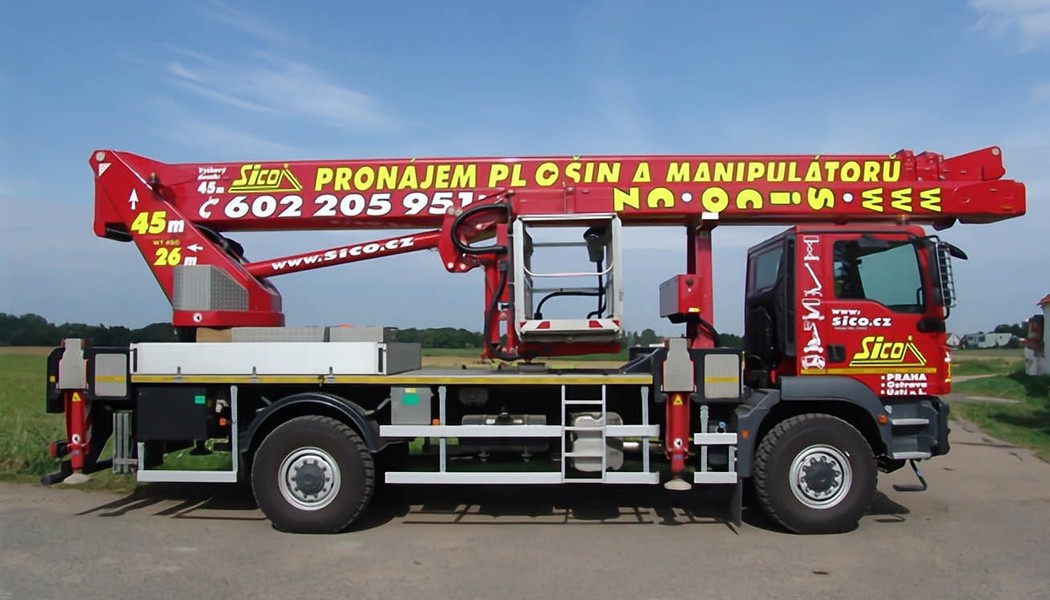

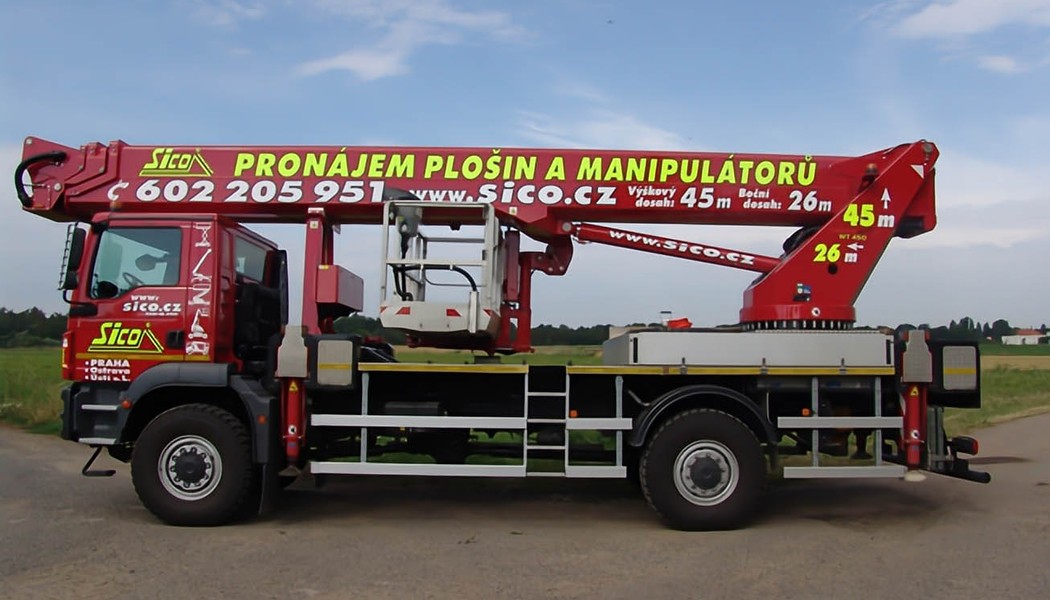

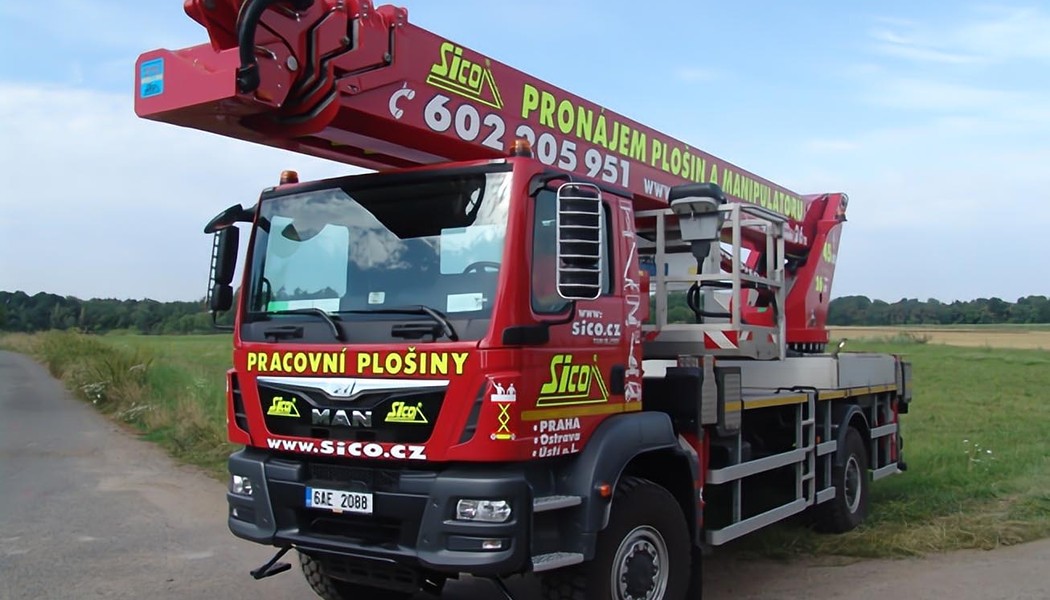

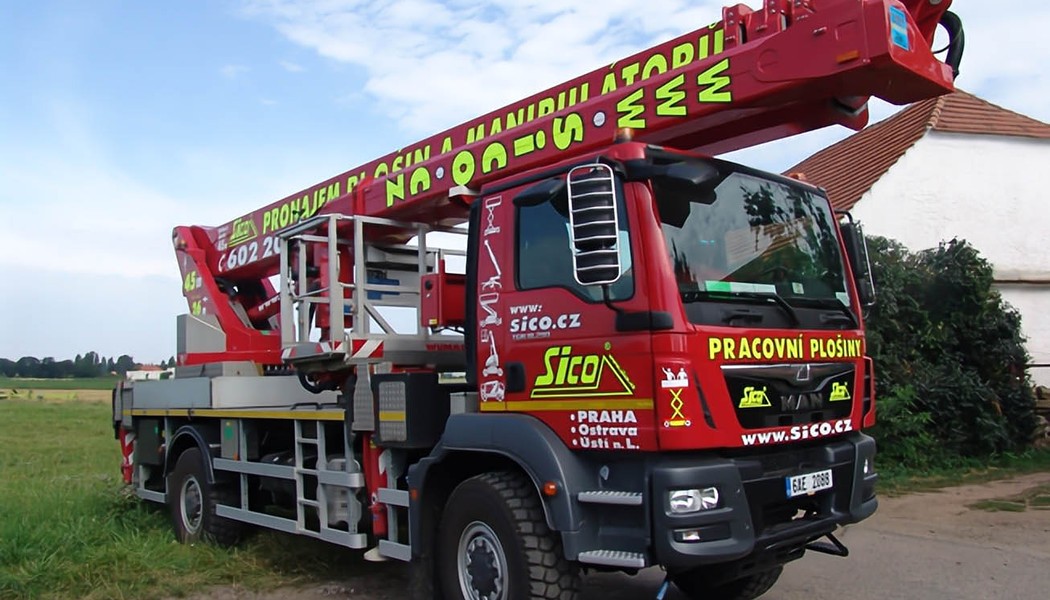

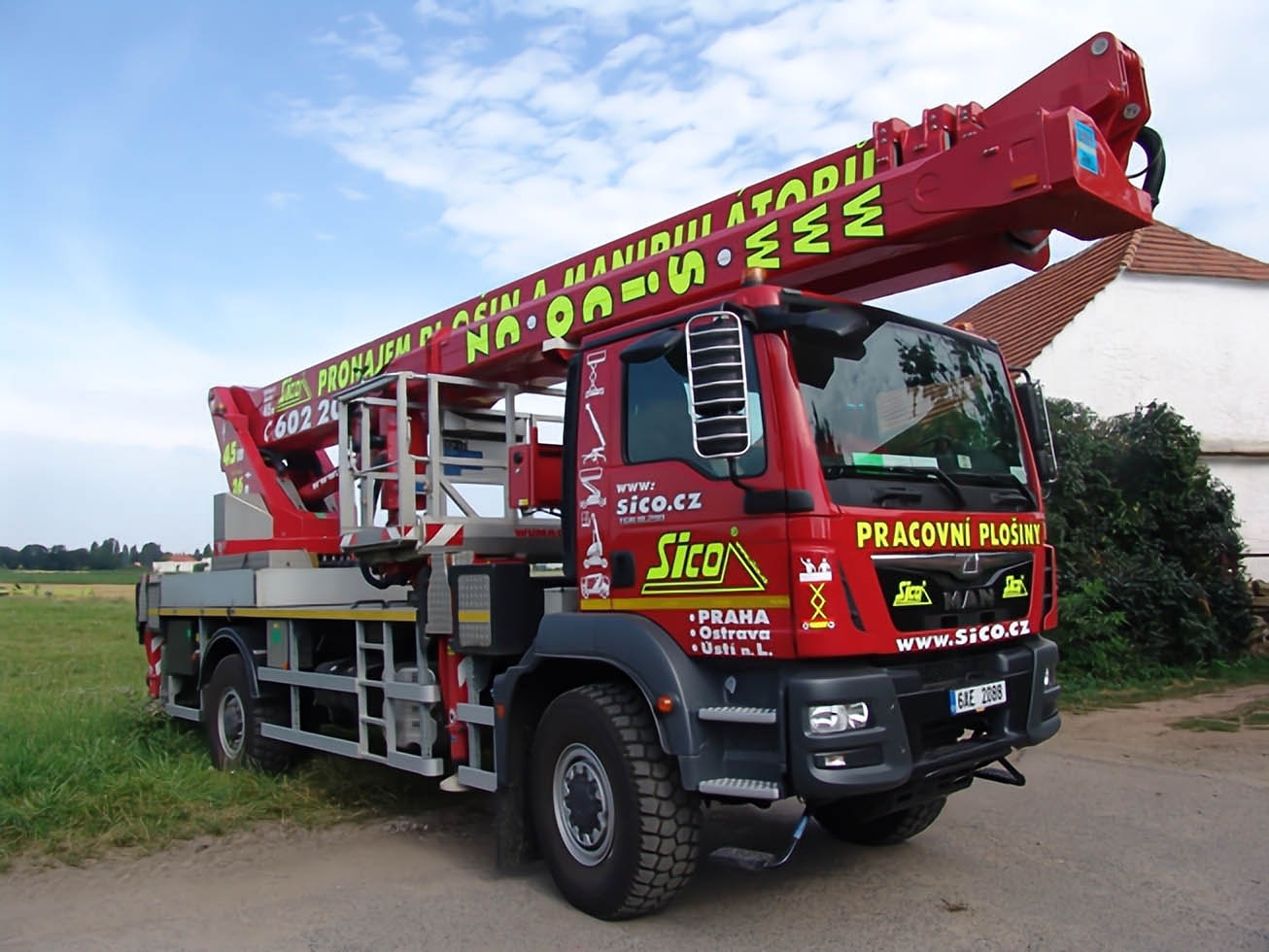

WT450 MAN TGM II 4x4

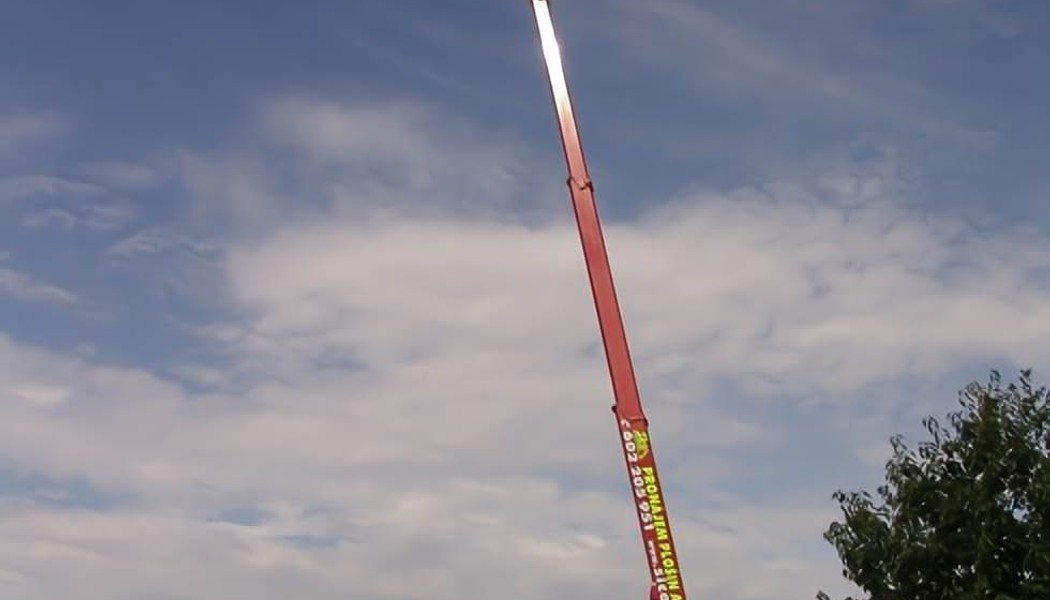

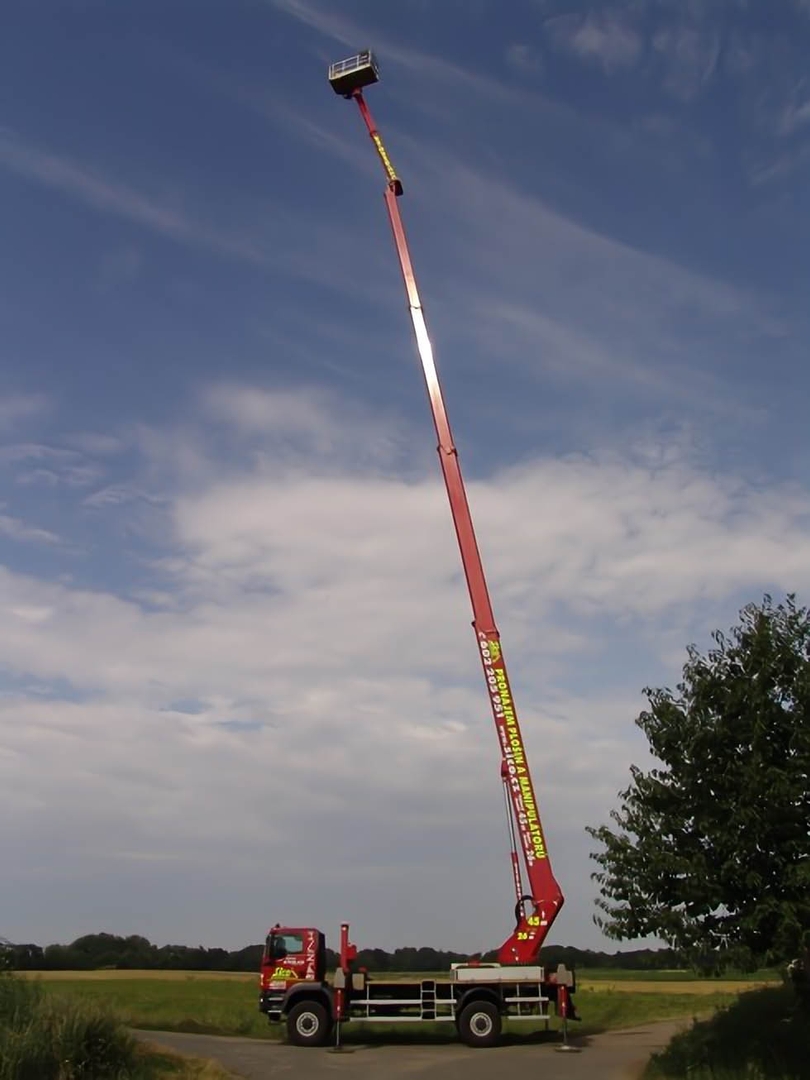

Working height 45 meters, lateral reach up to 26 meters, platform load capacity 600 kilograms and even a negative reach 6 meters below the level of the chassis, this is our WT450!

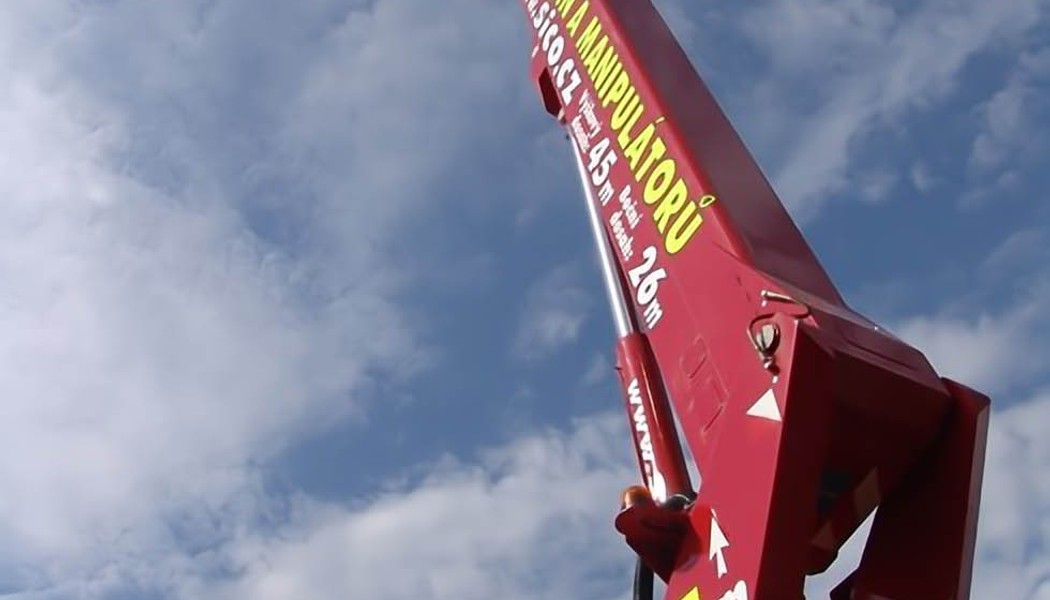

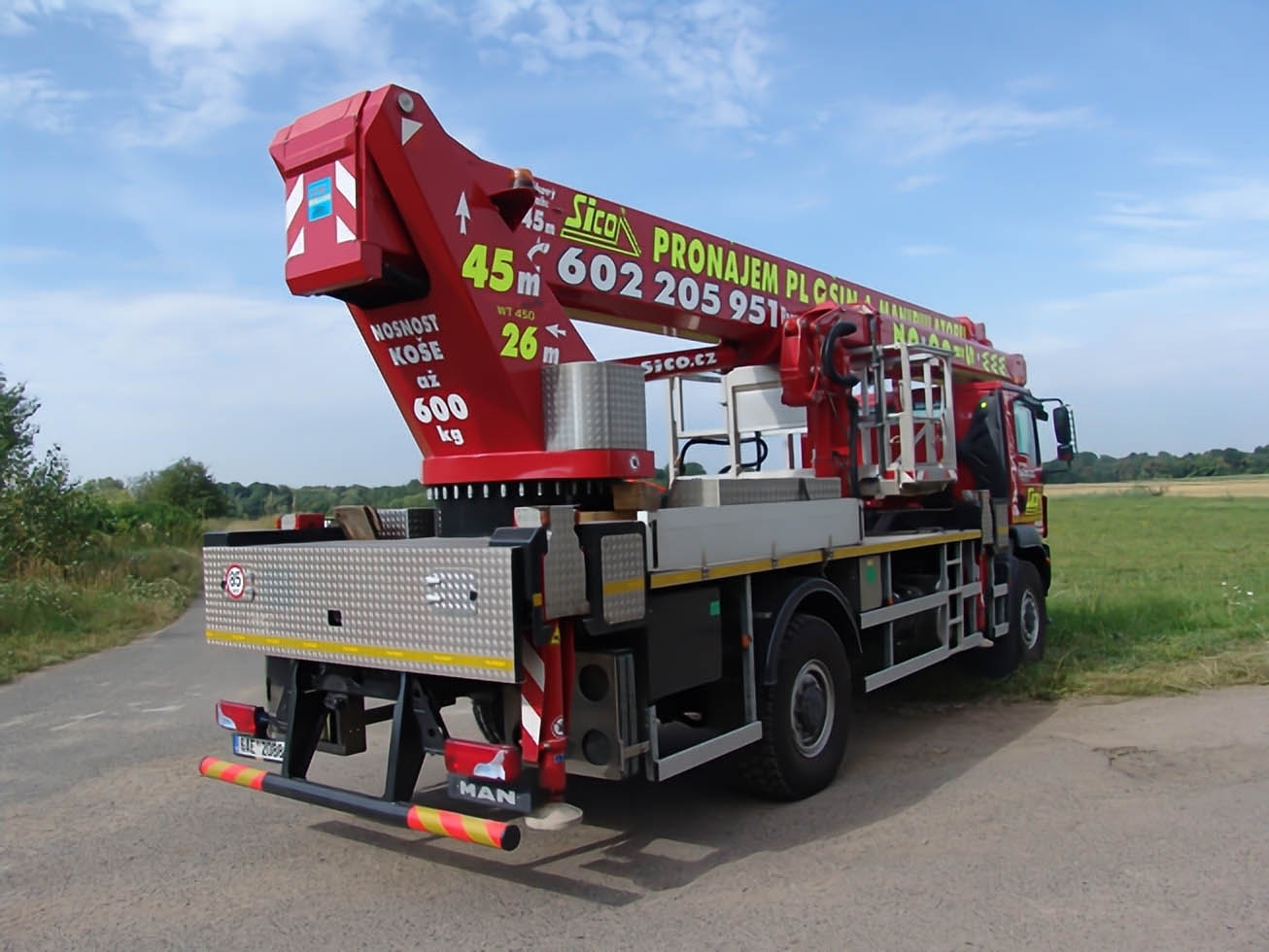

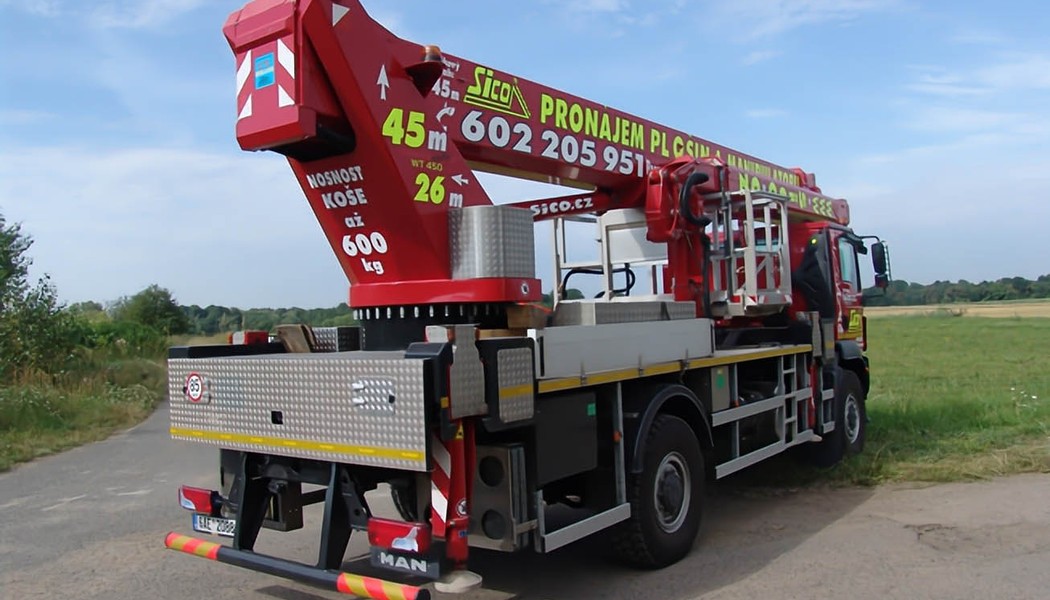

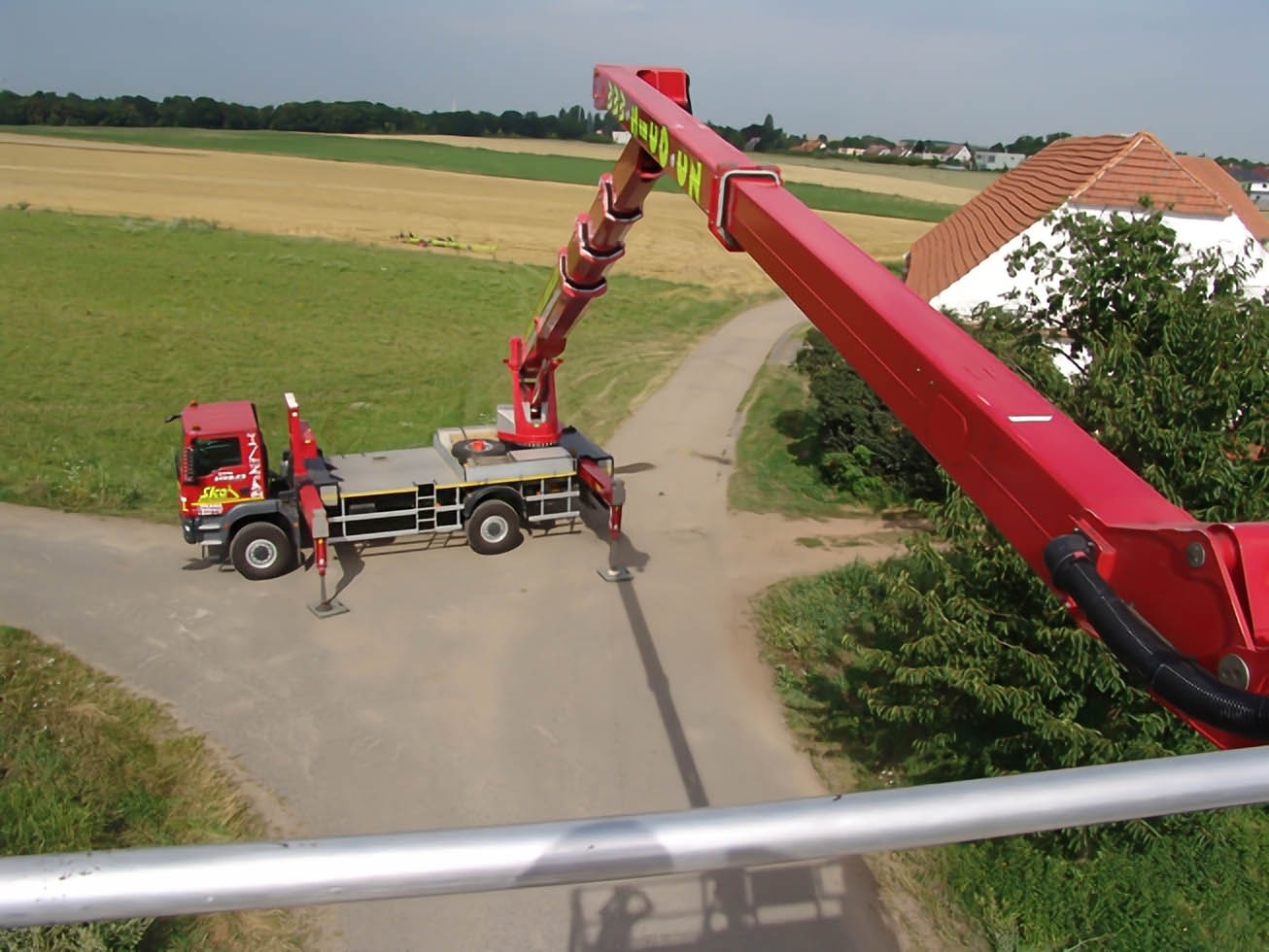

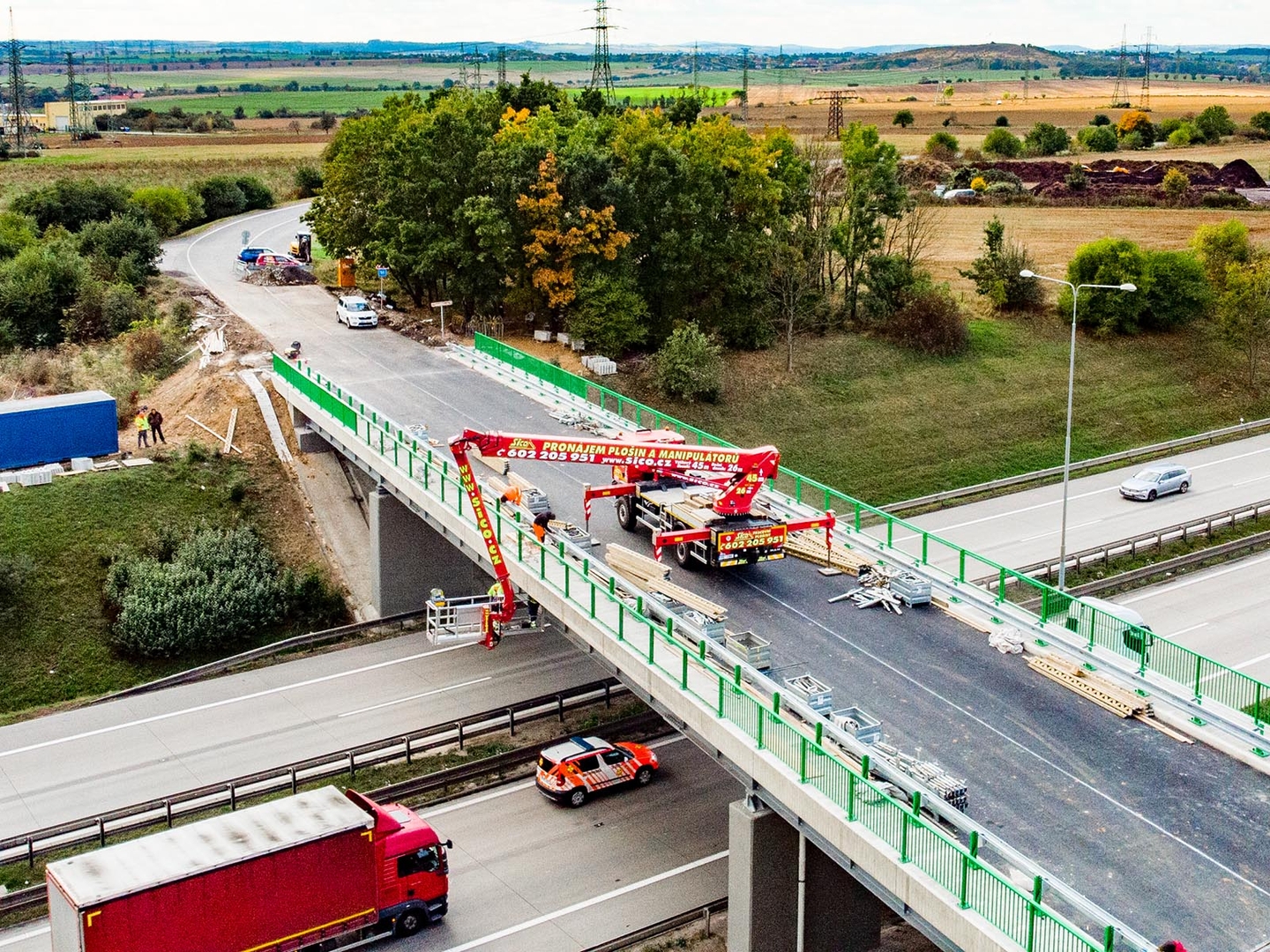

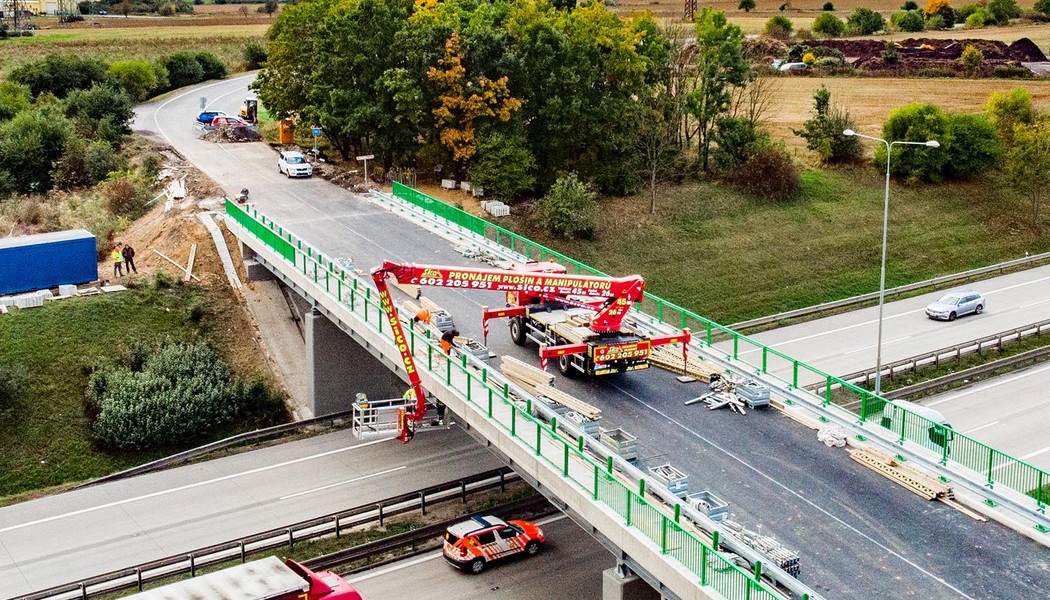

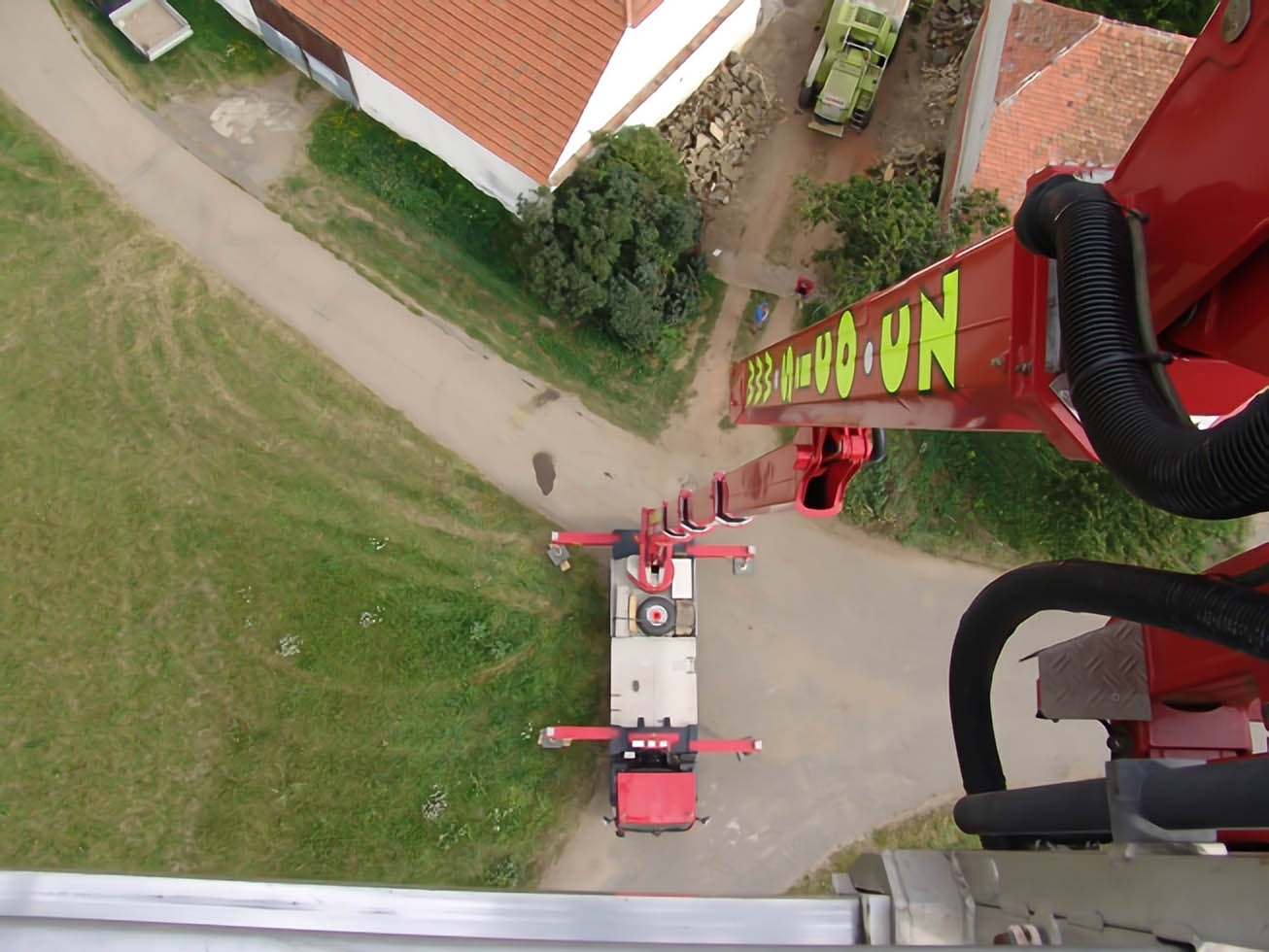

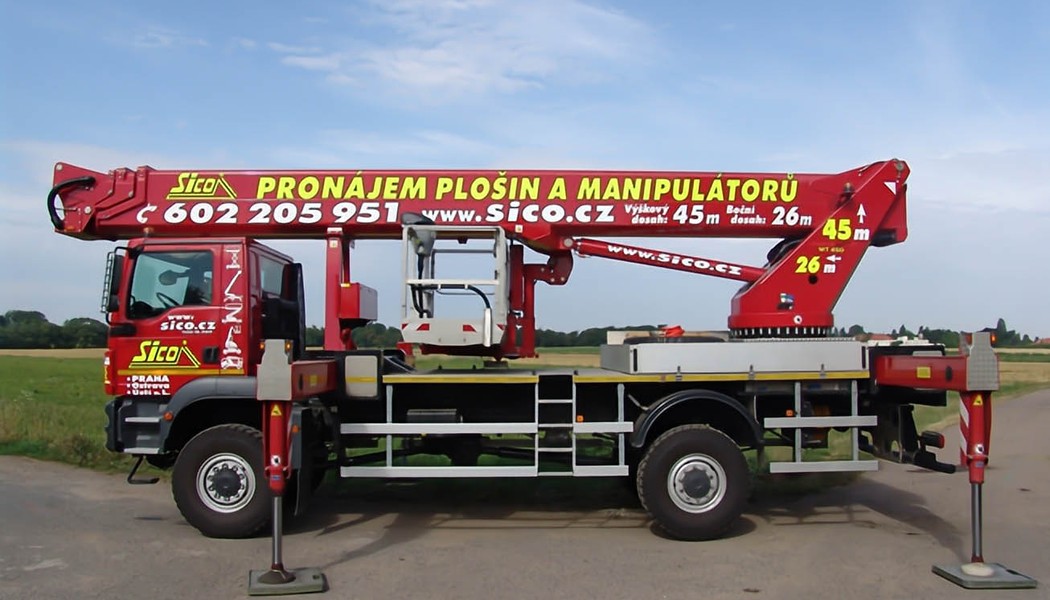

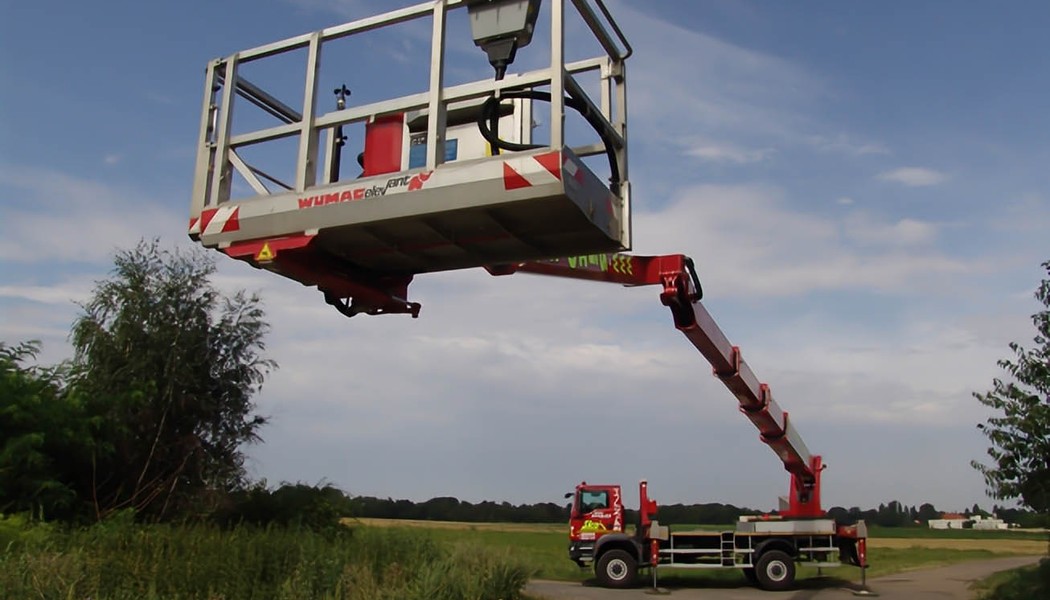

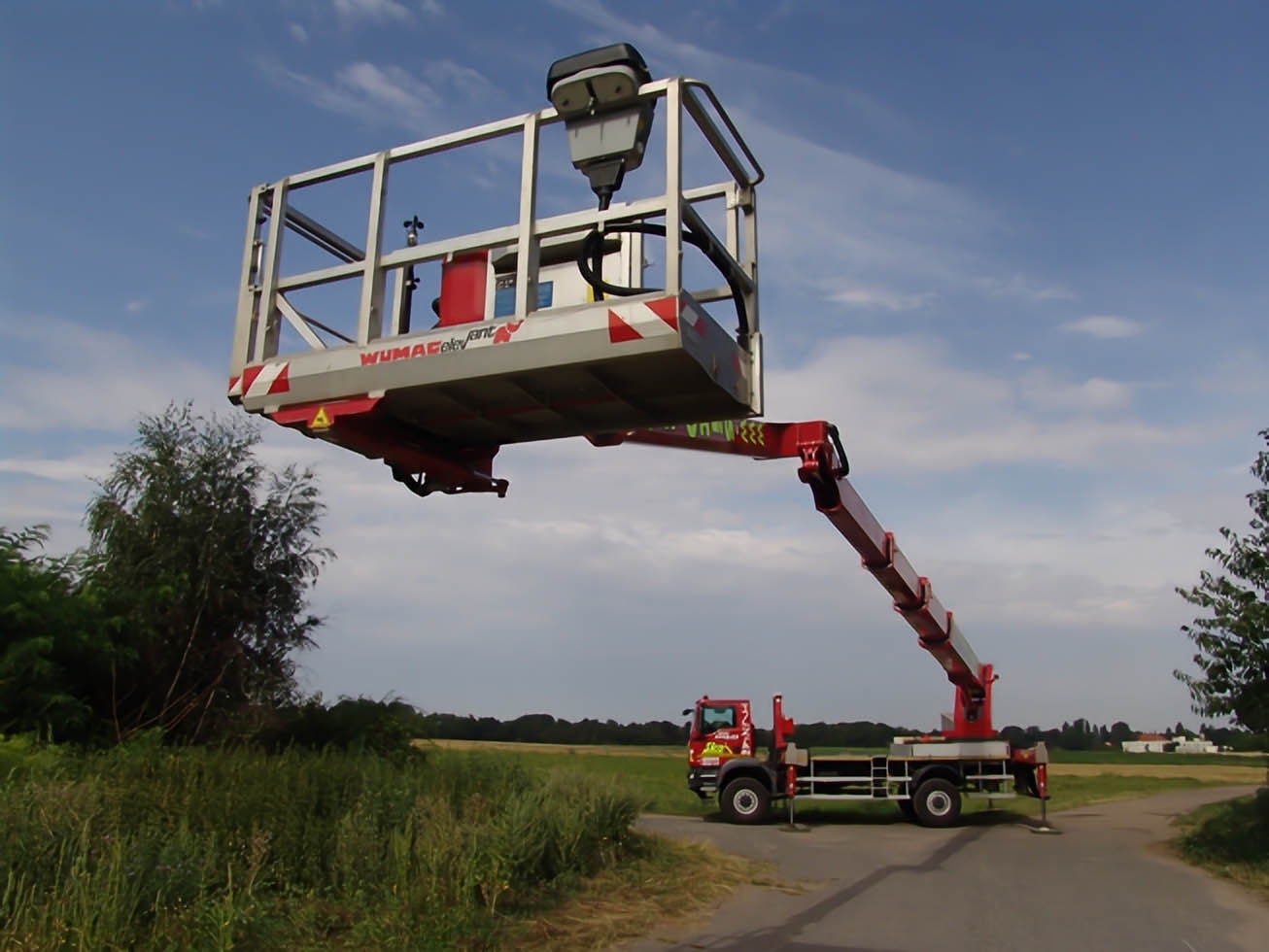

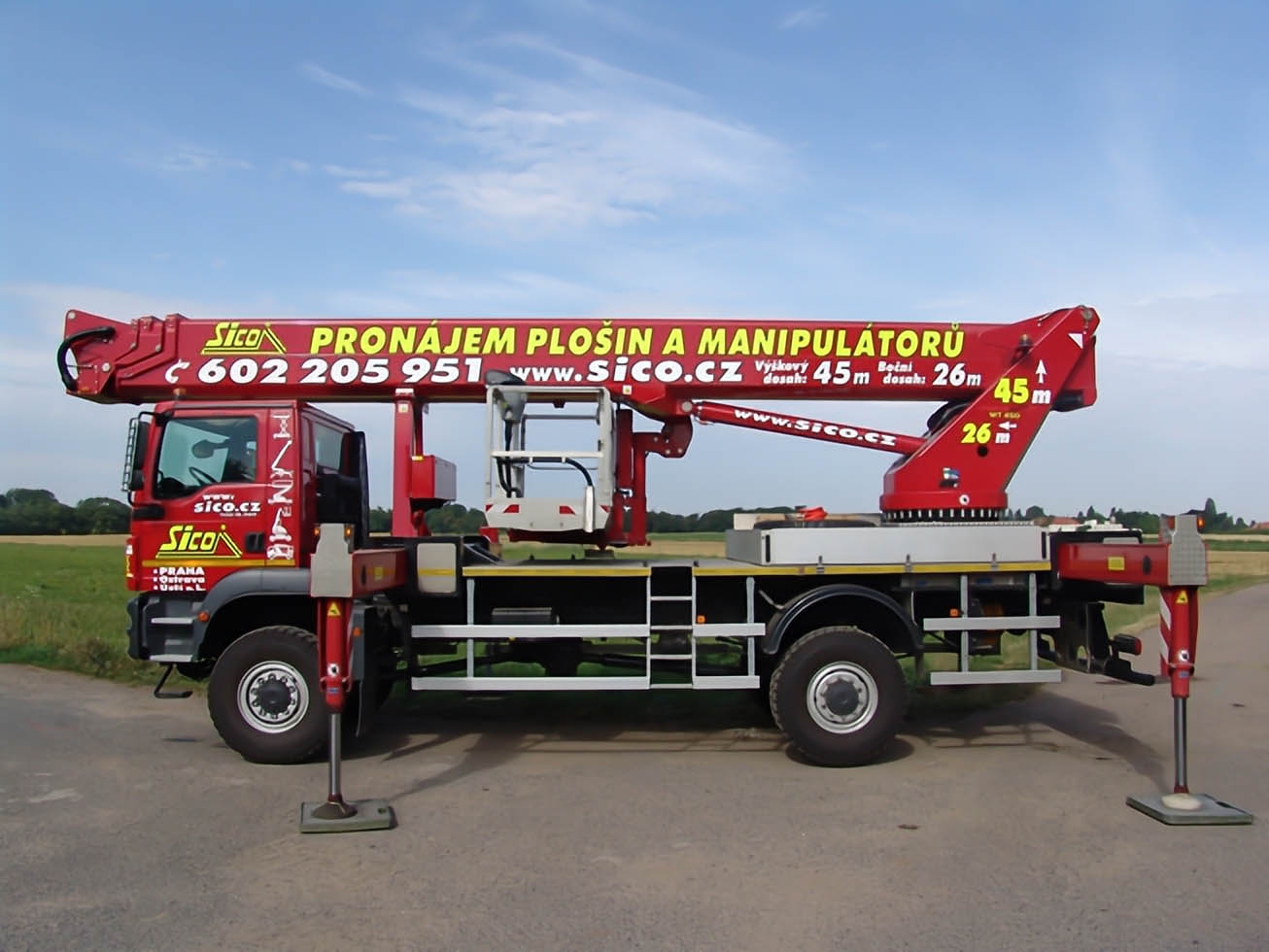

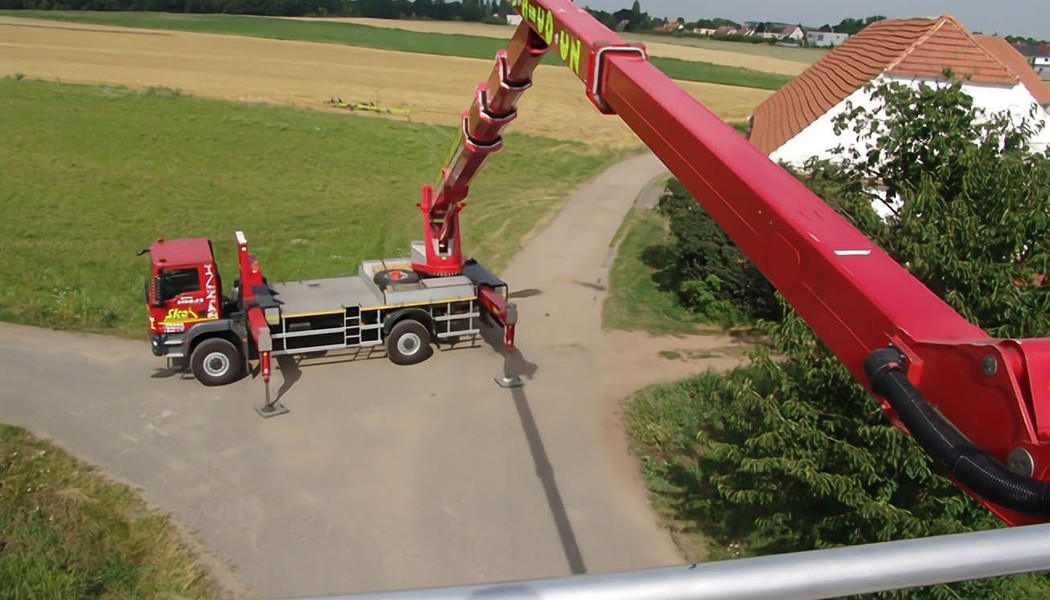

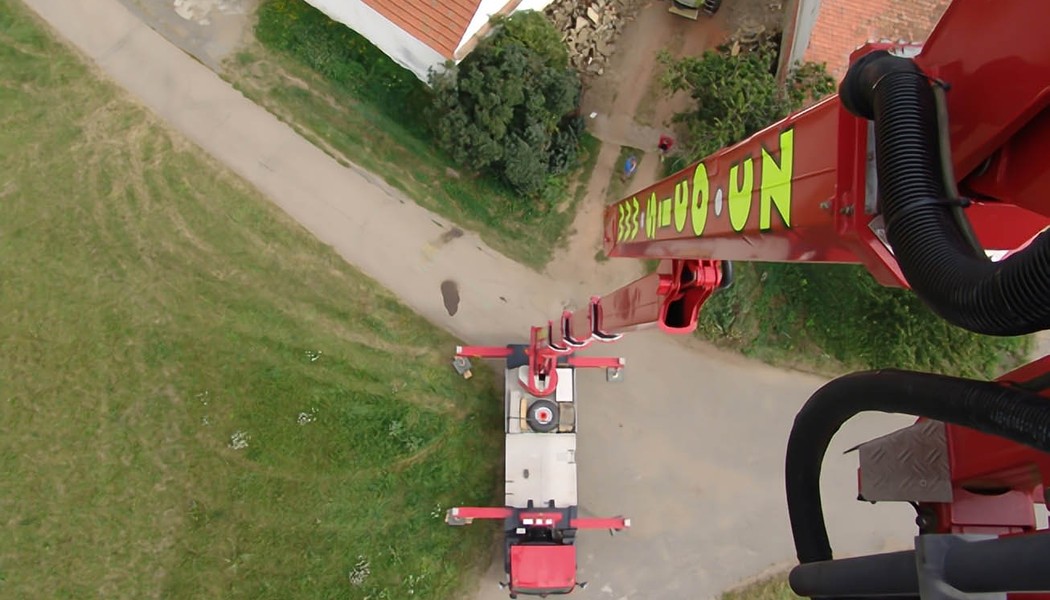

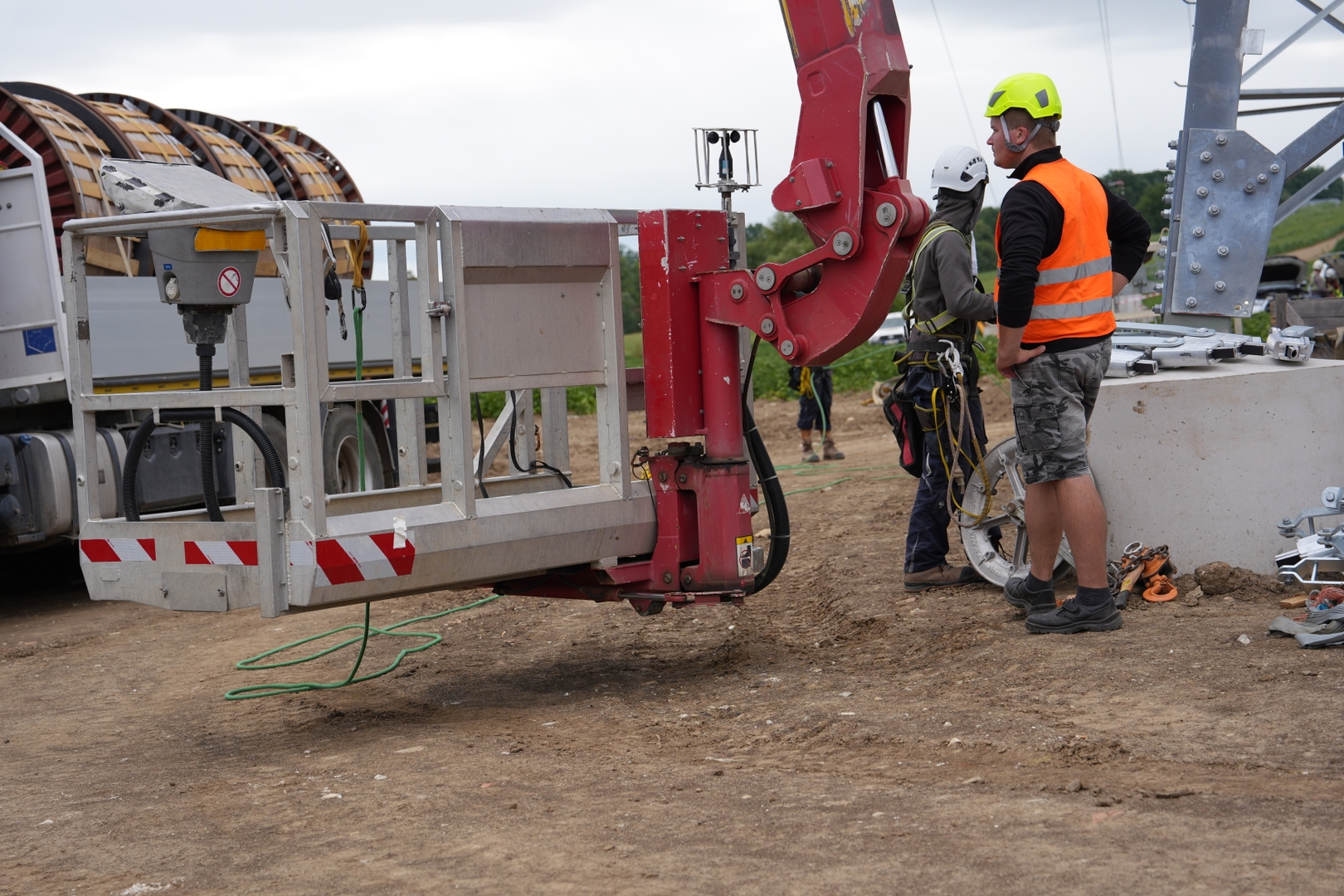

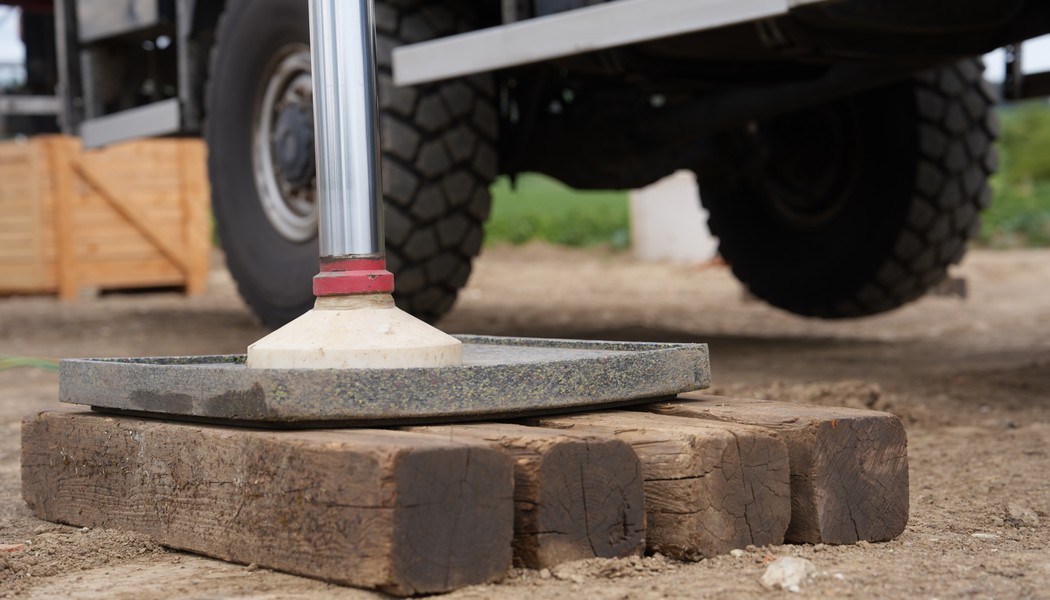

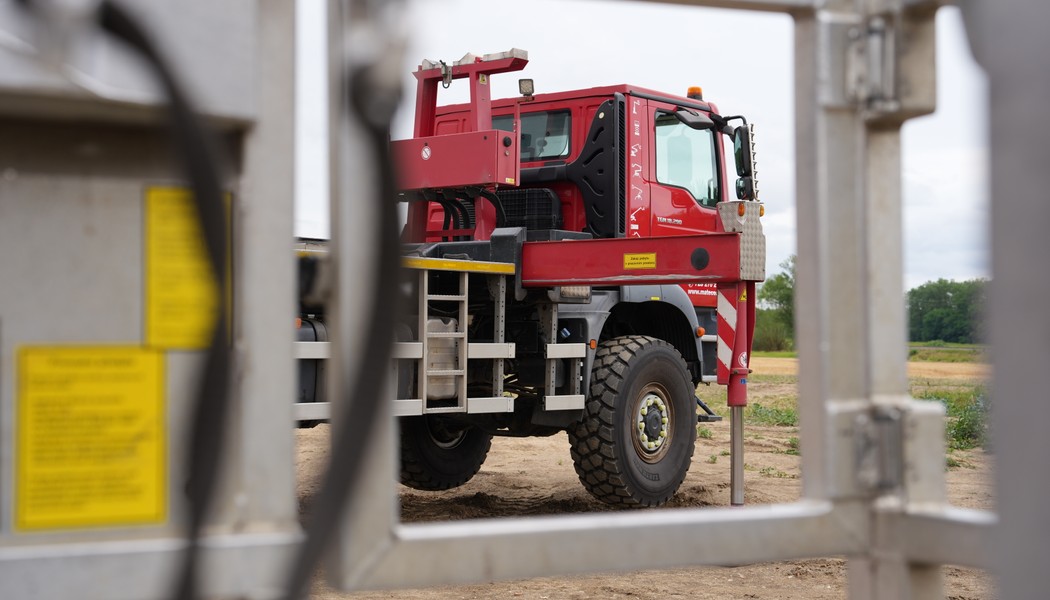

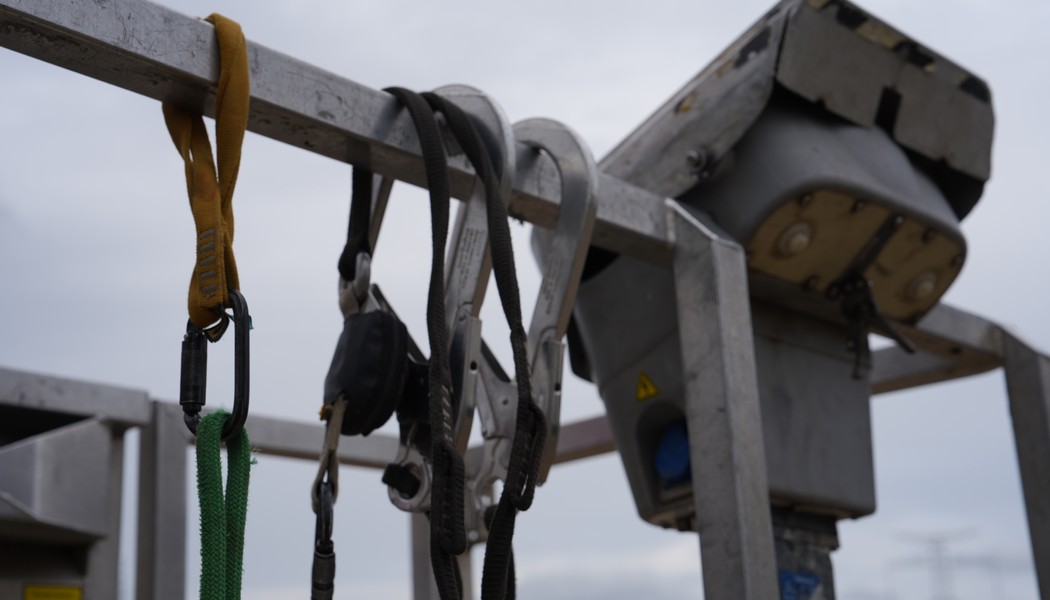

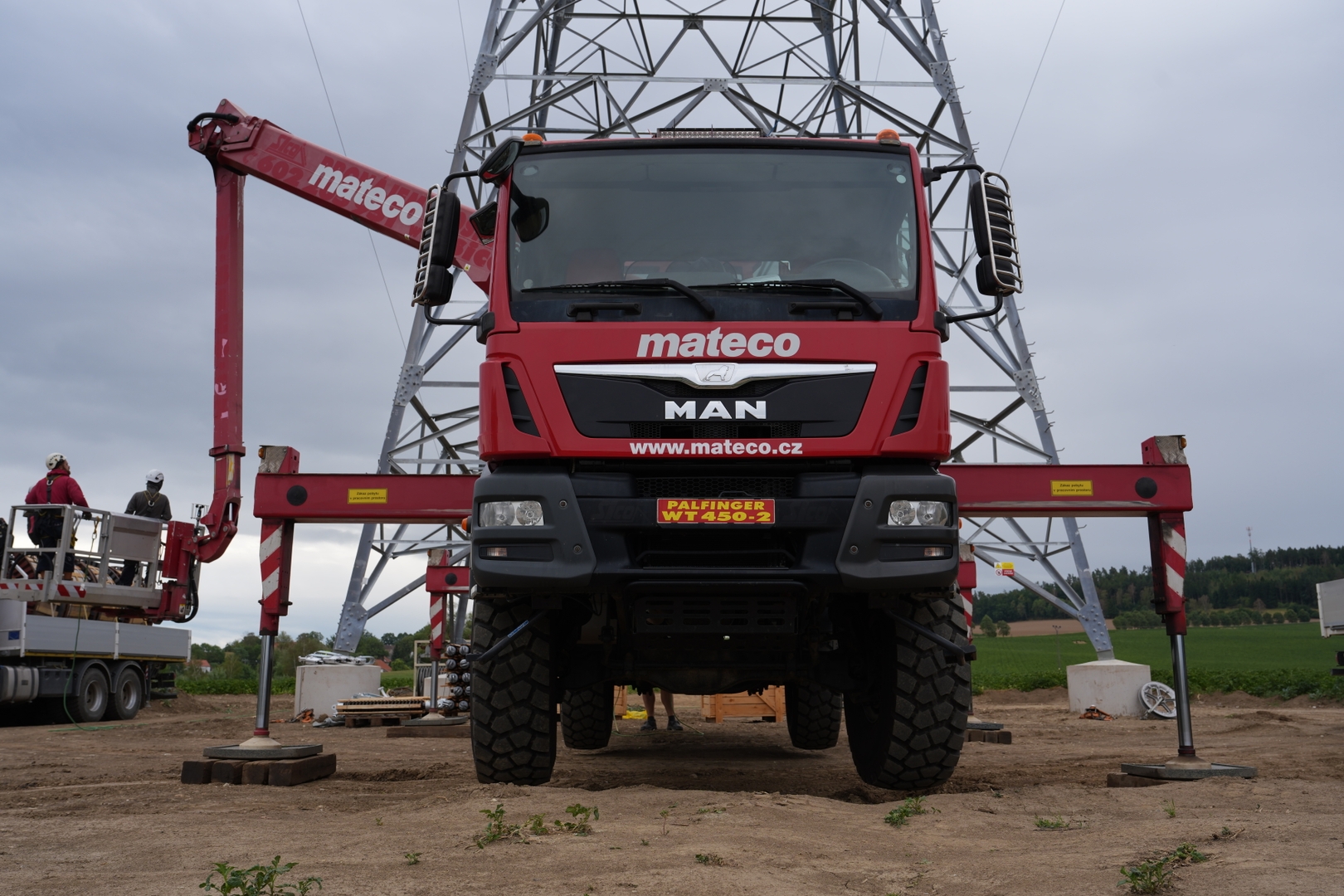

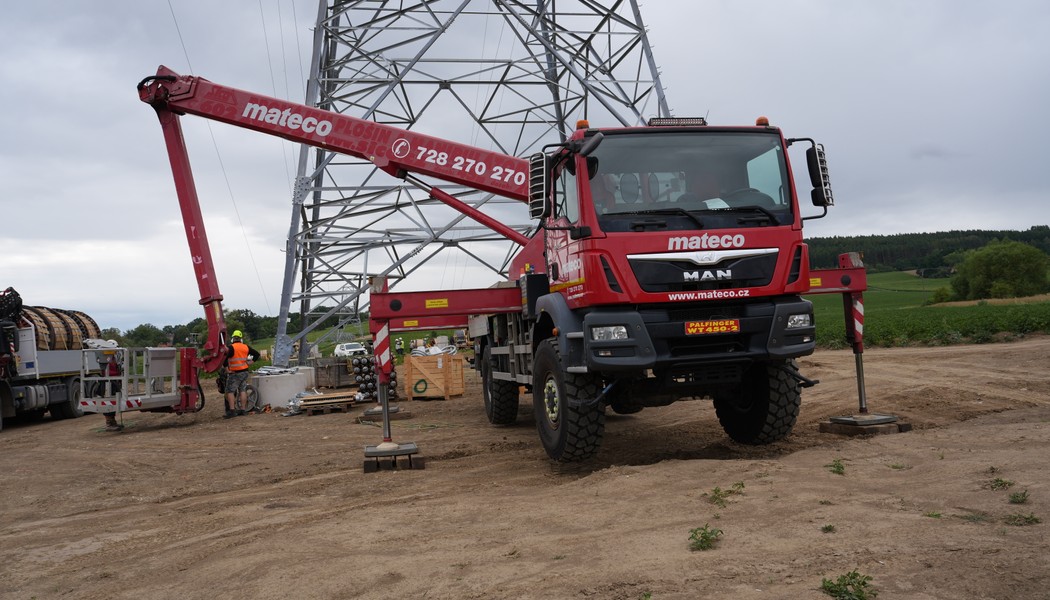

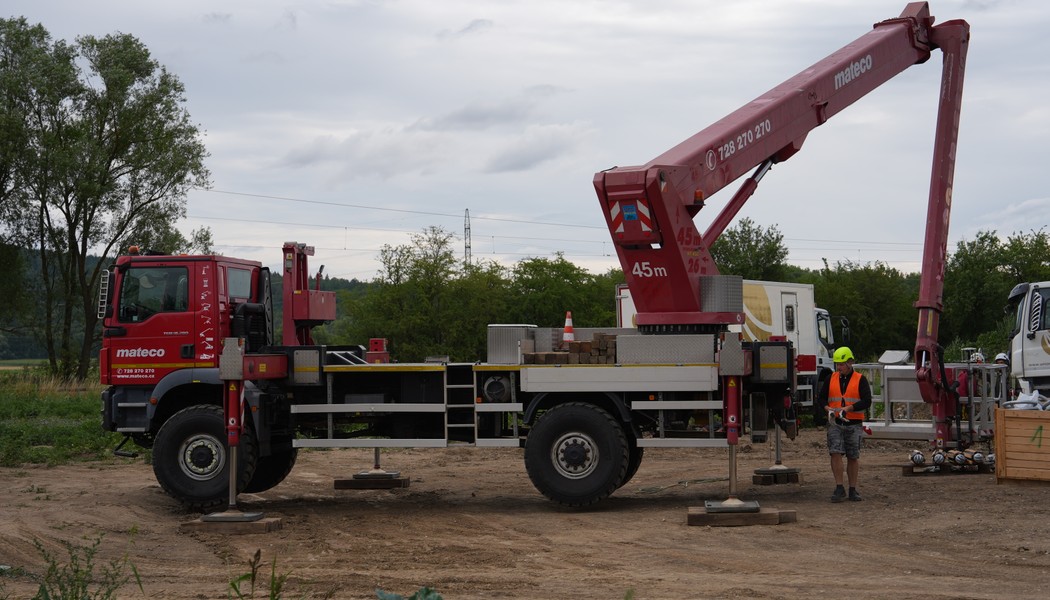

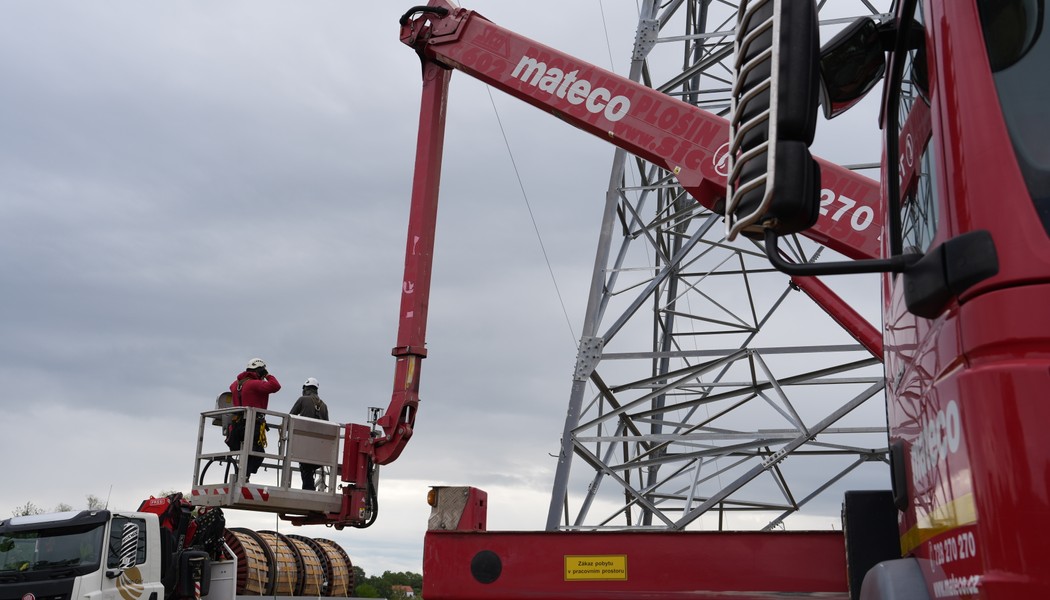

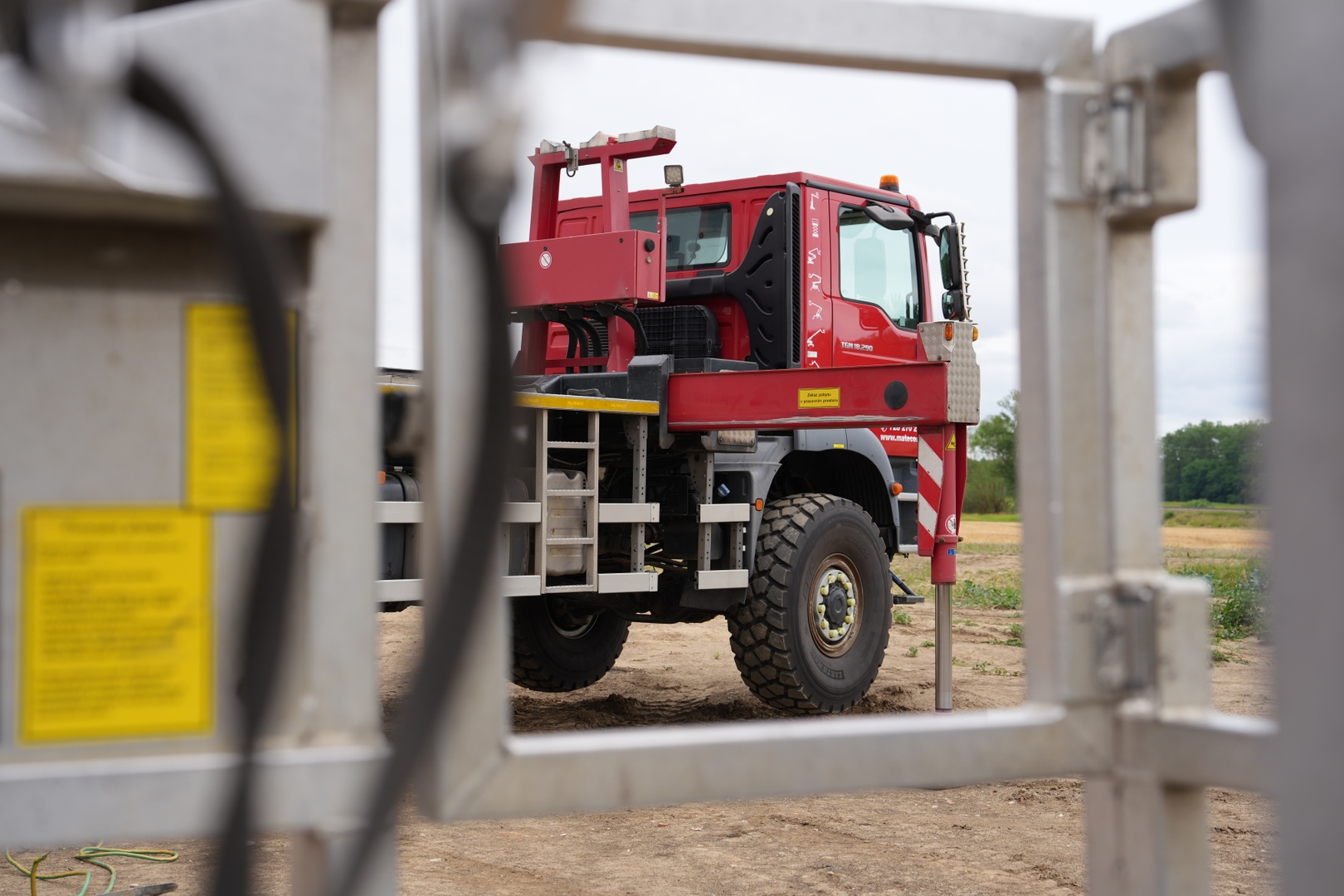

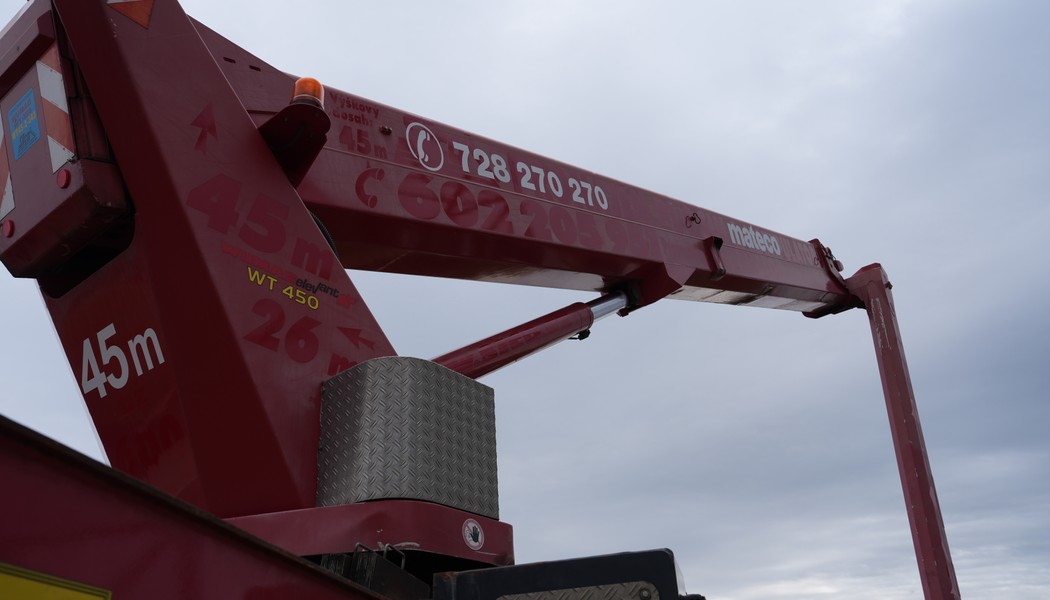

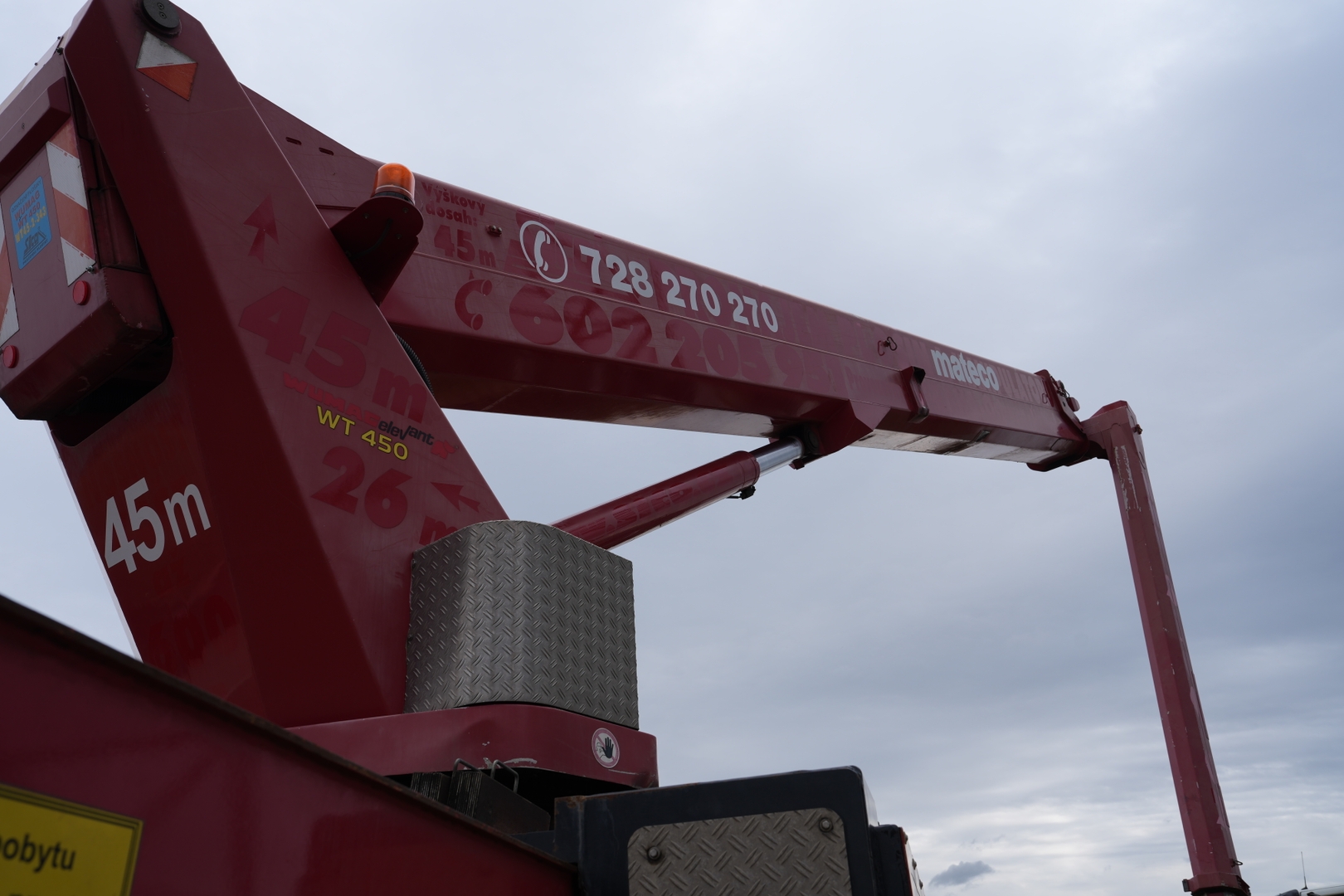

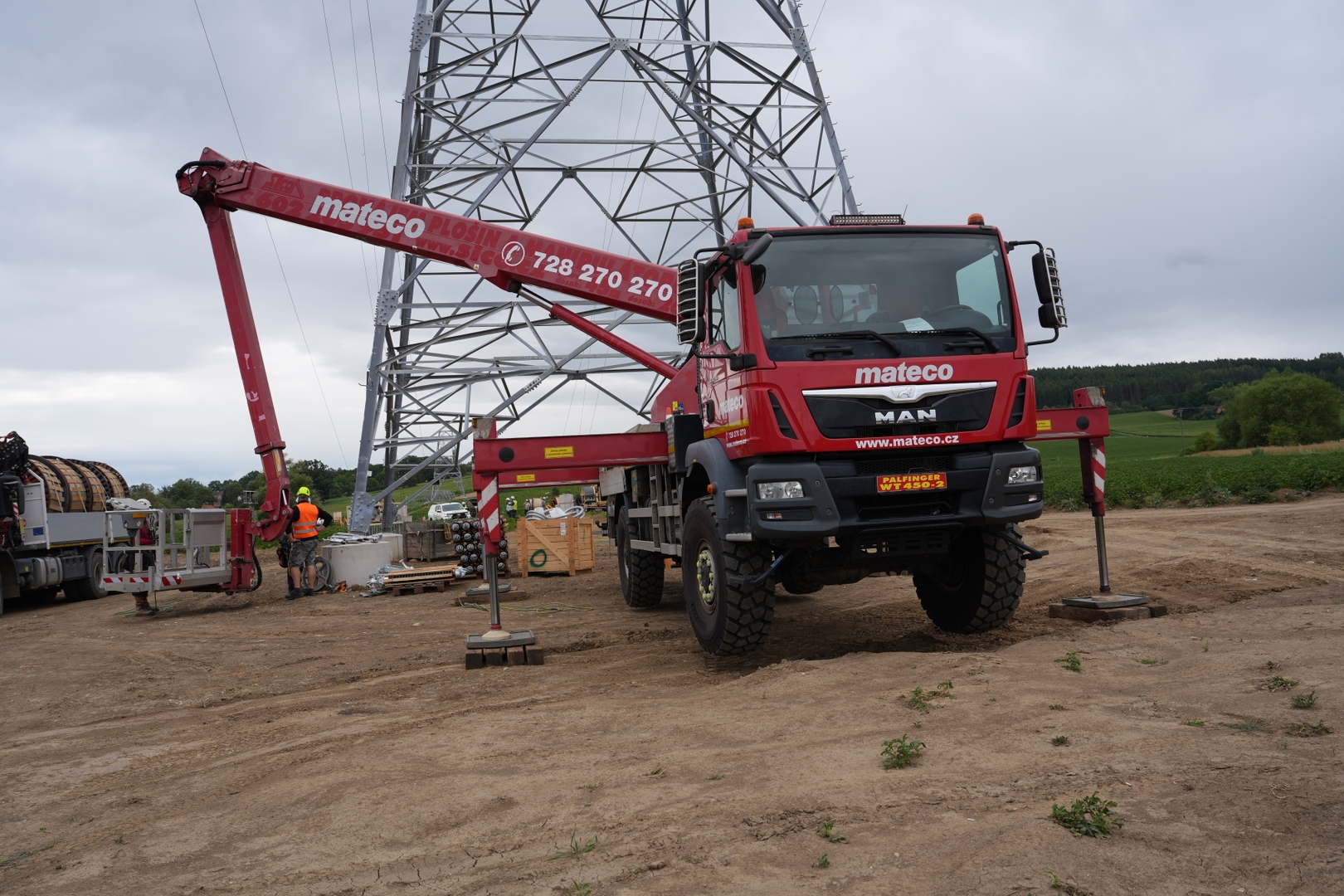

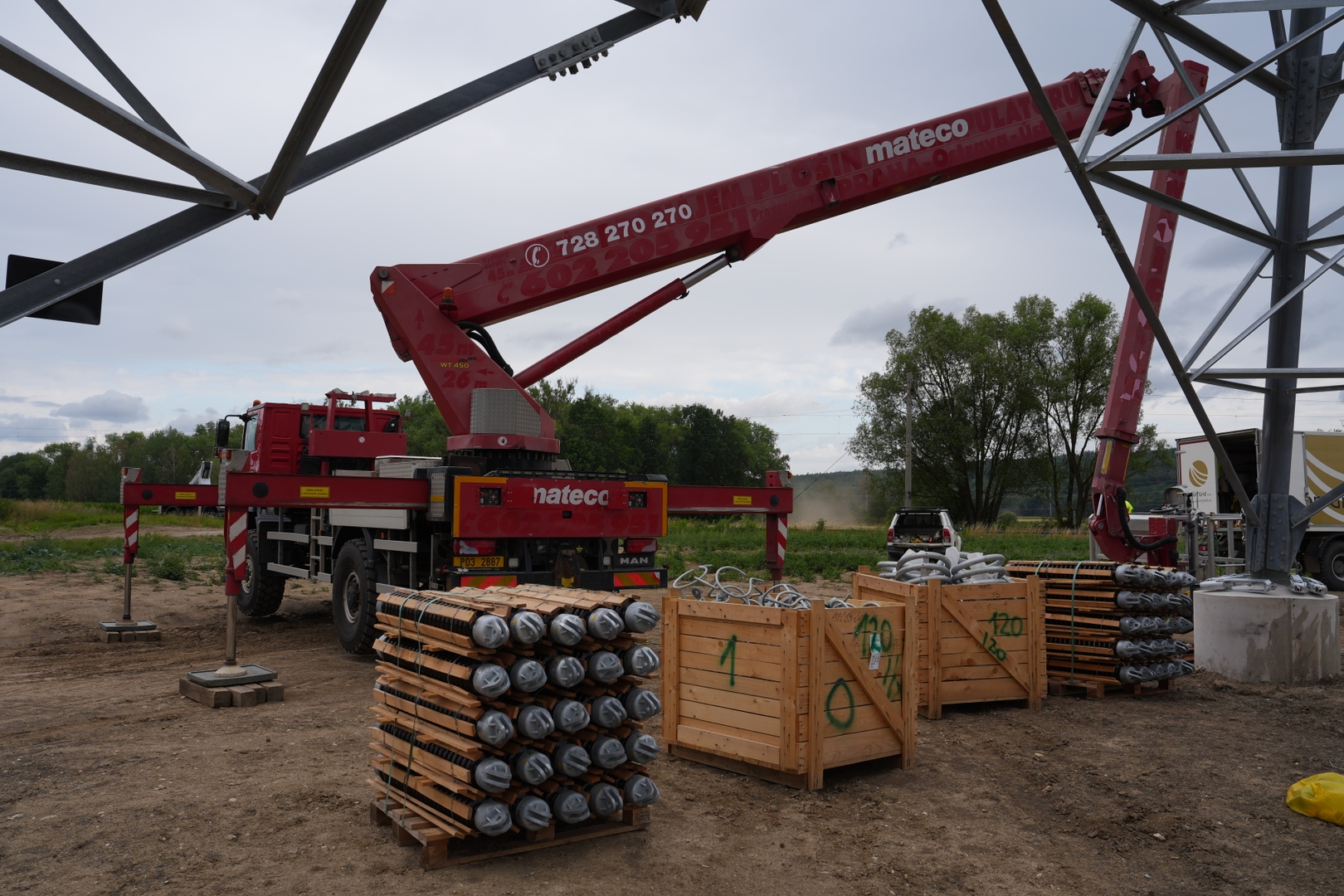

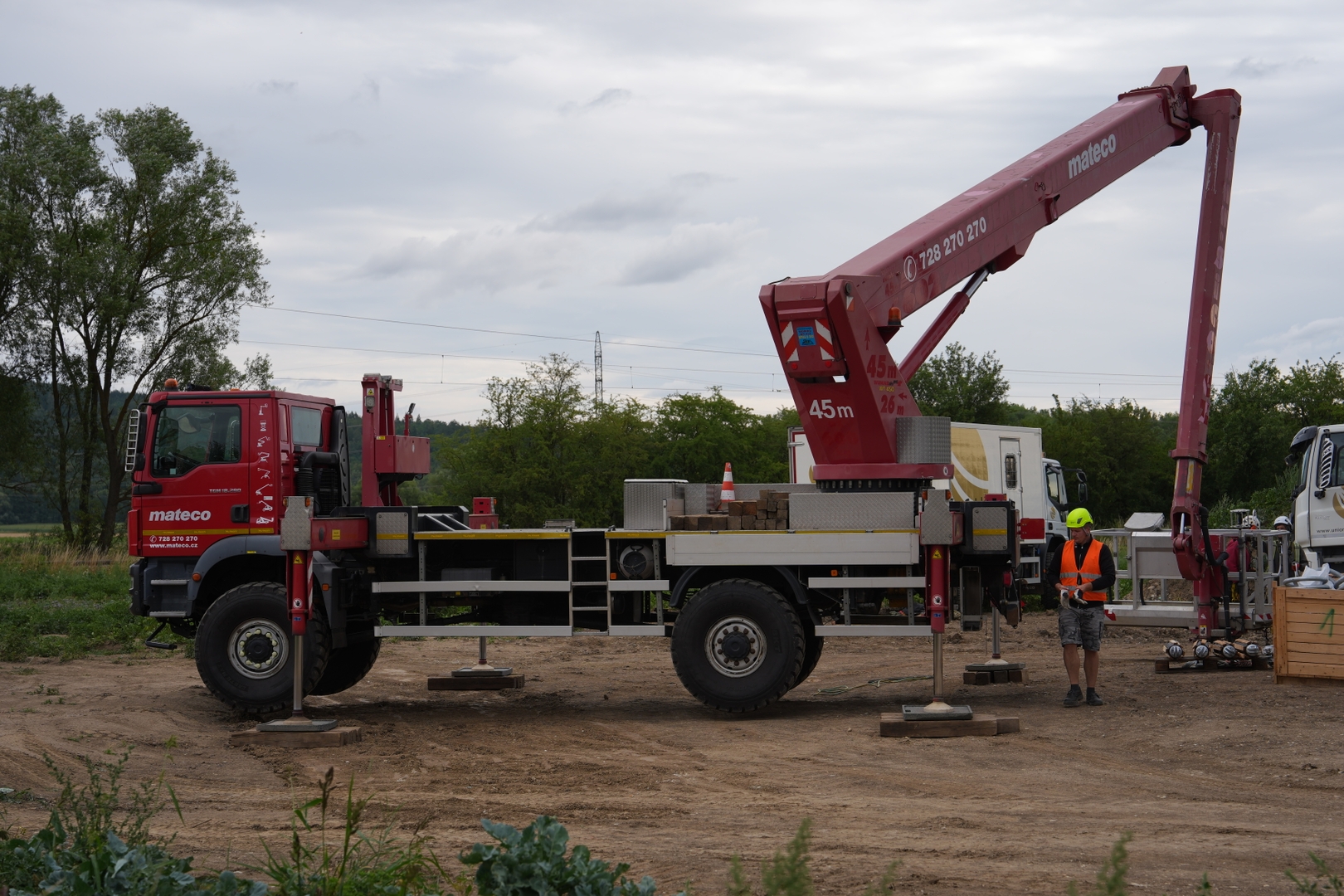

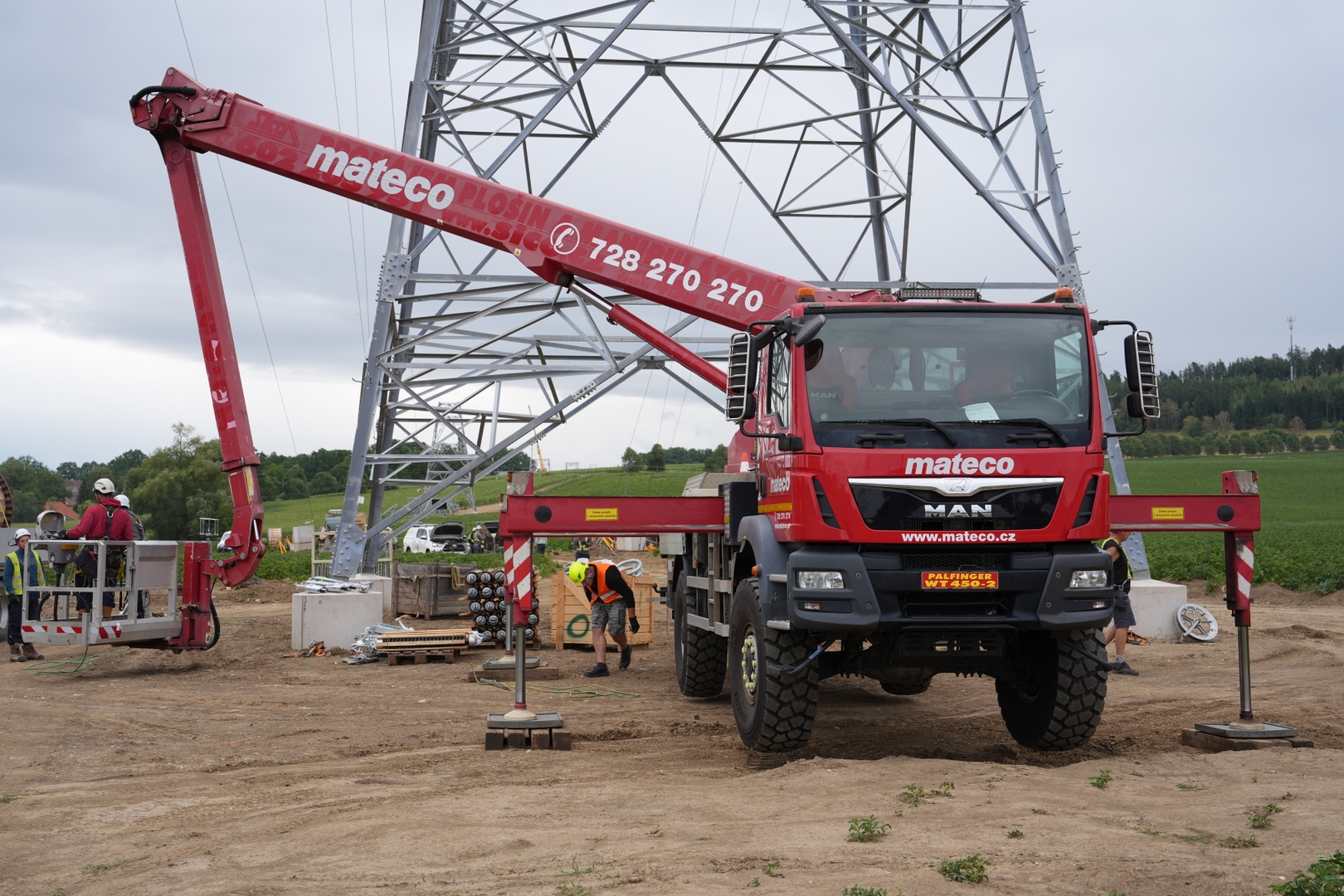

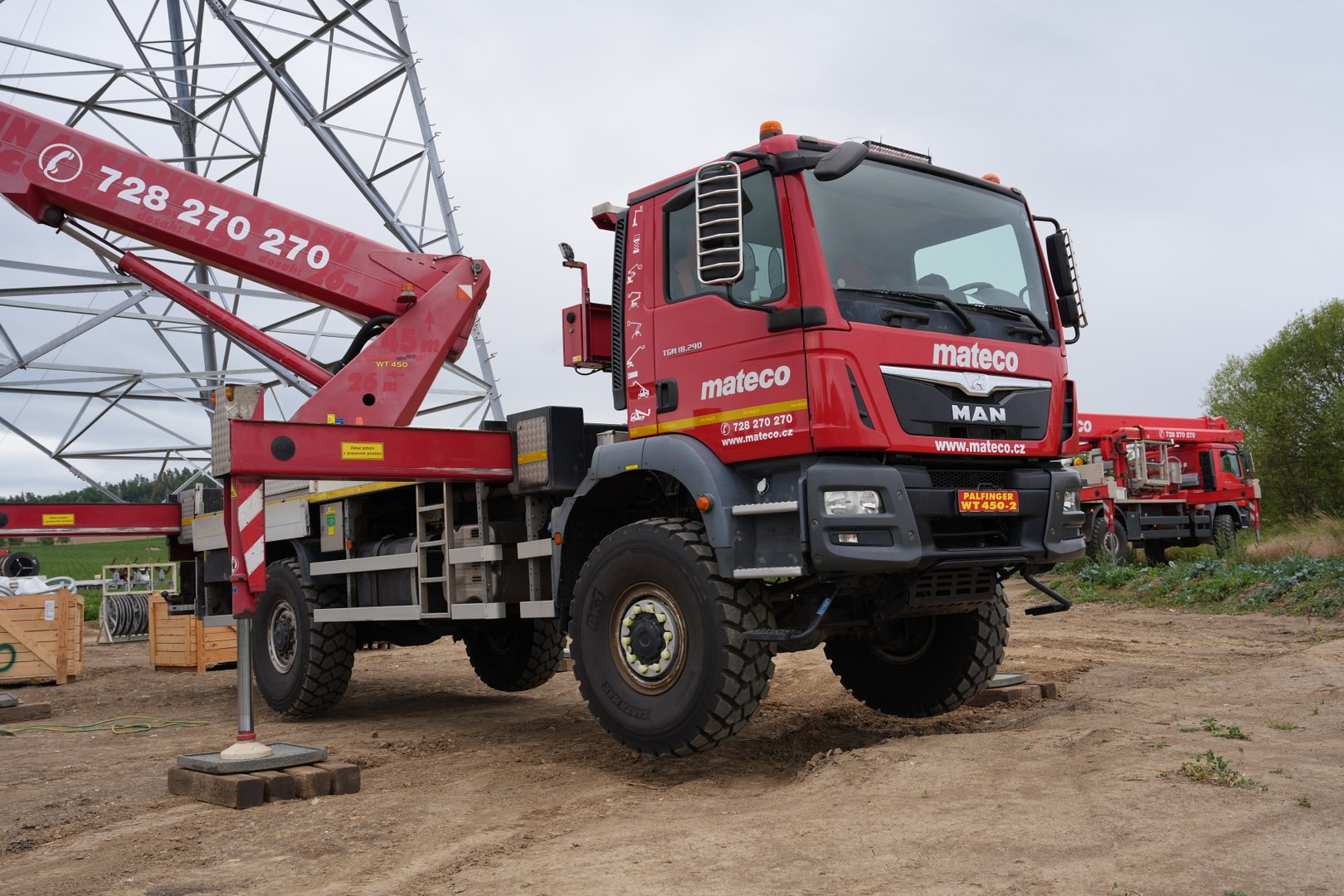

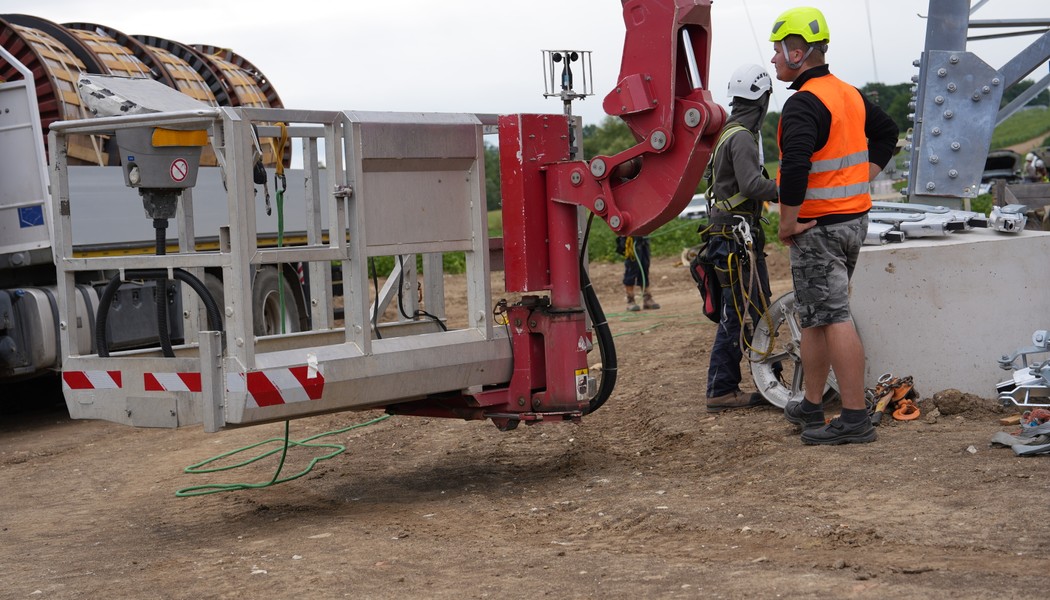

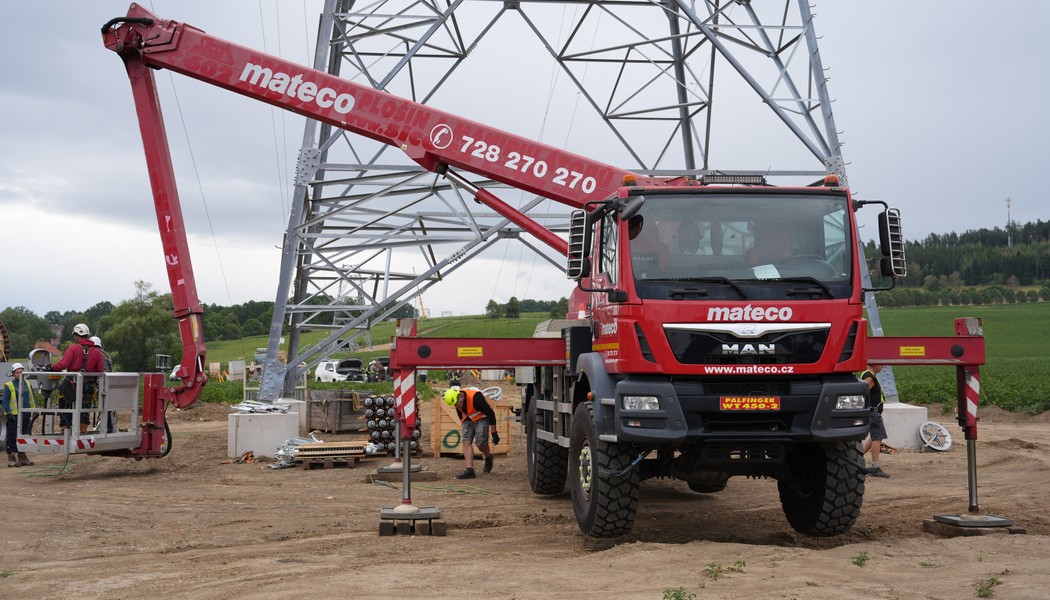

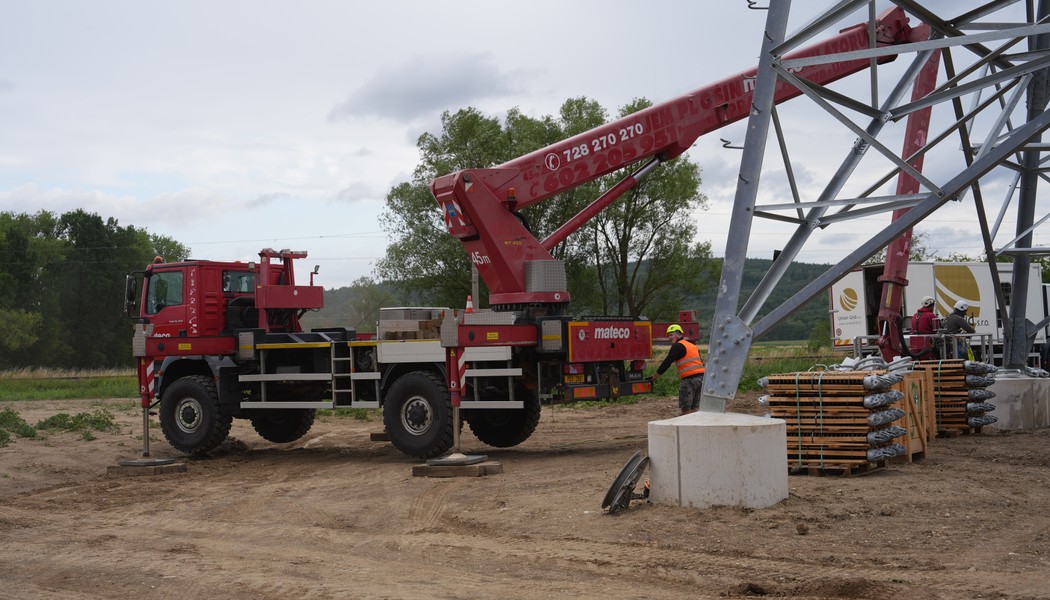

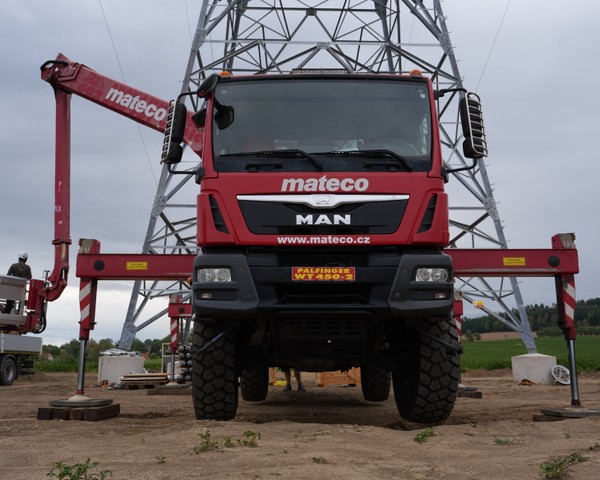

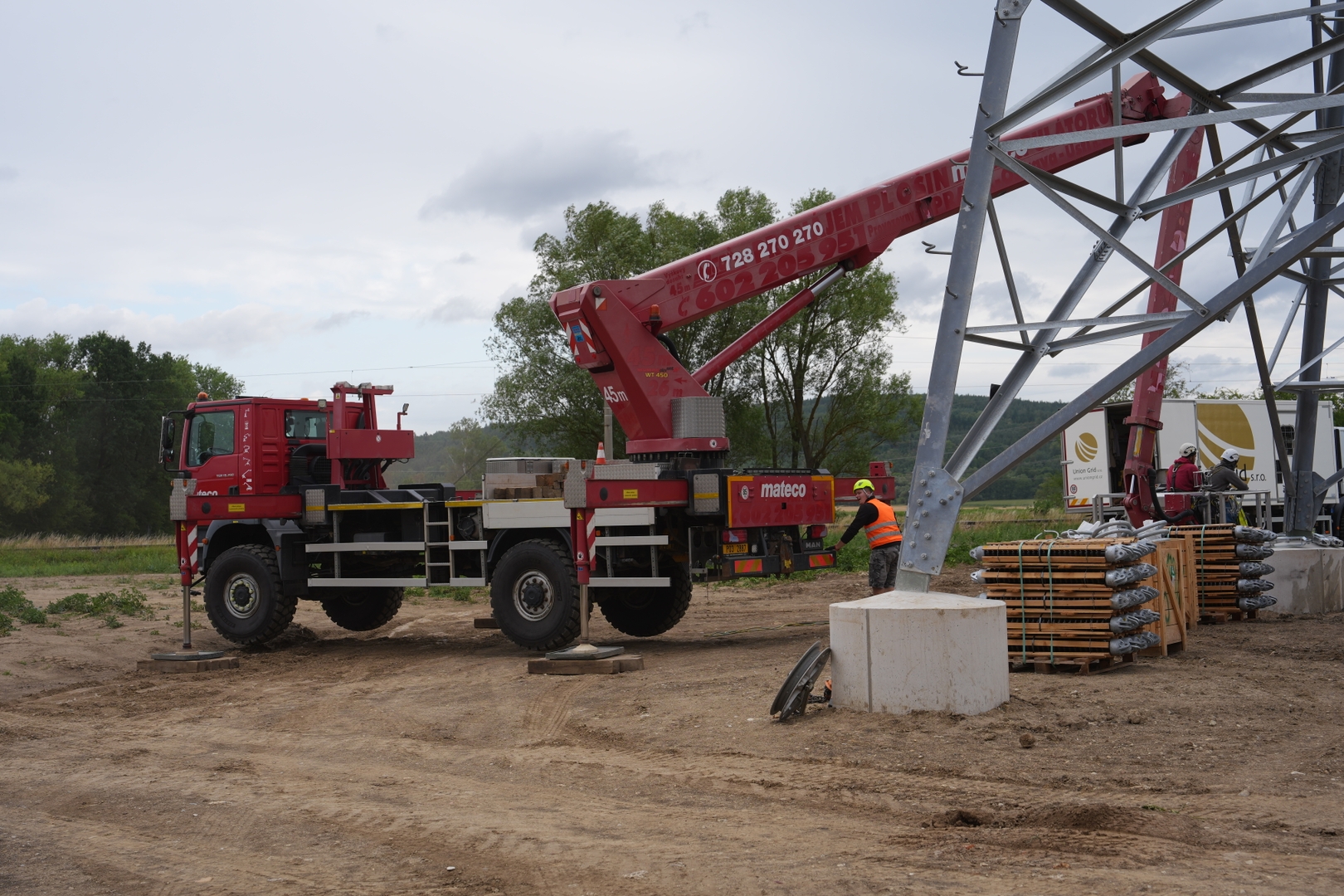

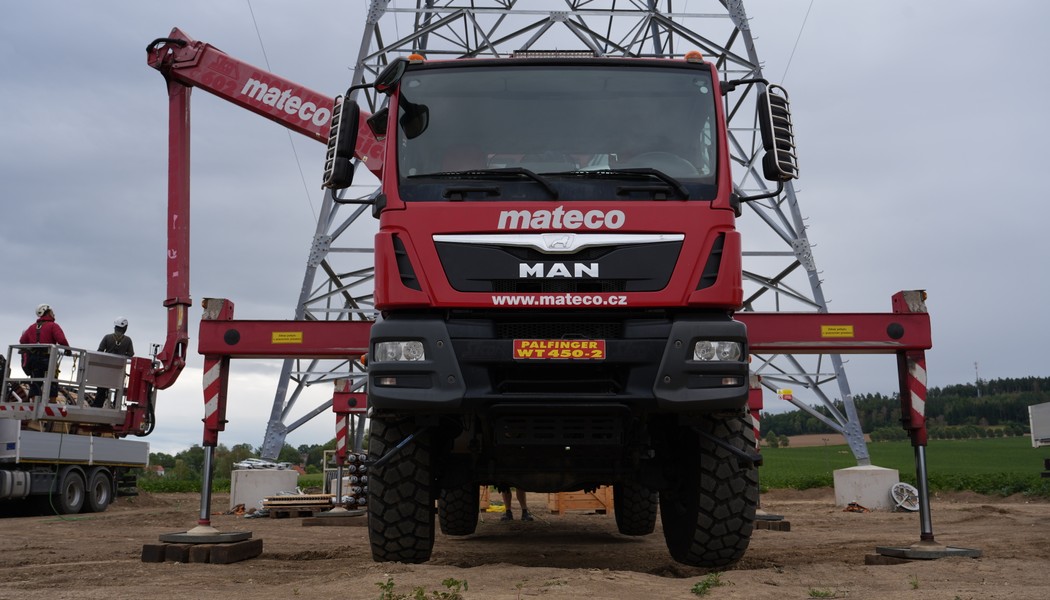

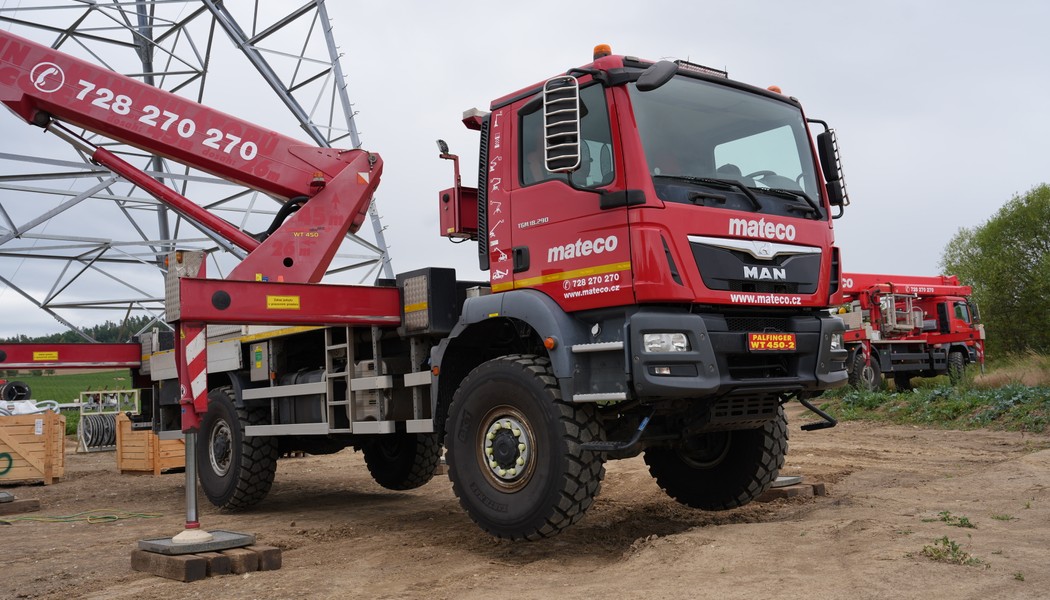

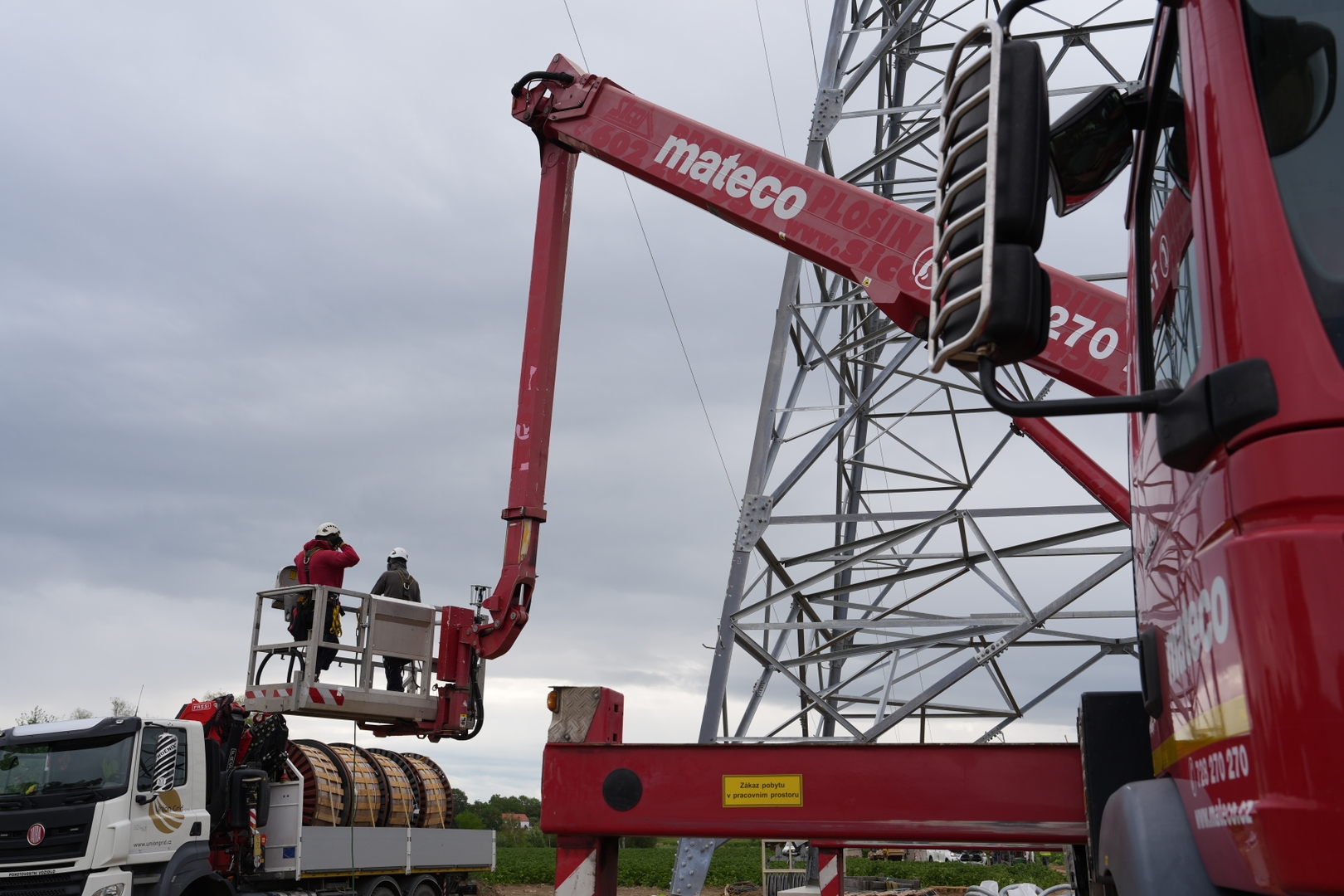

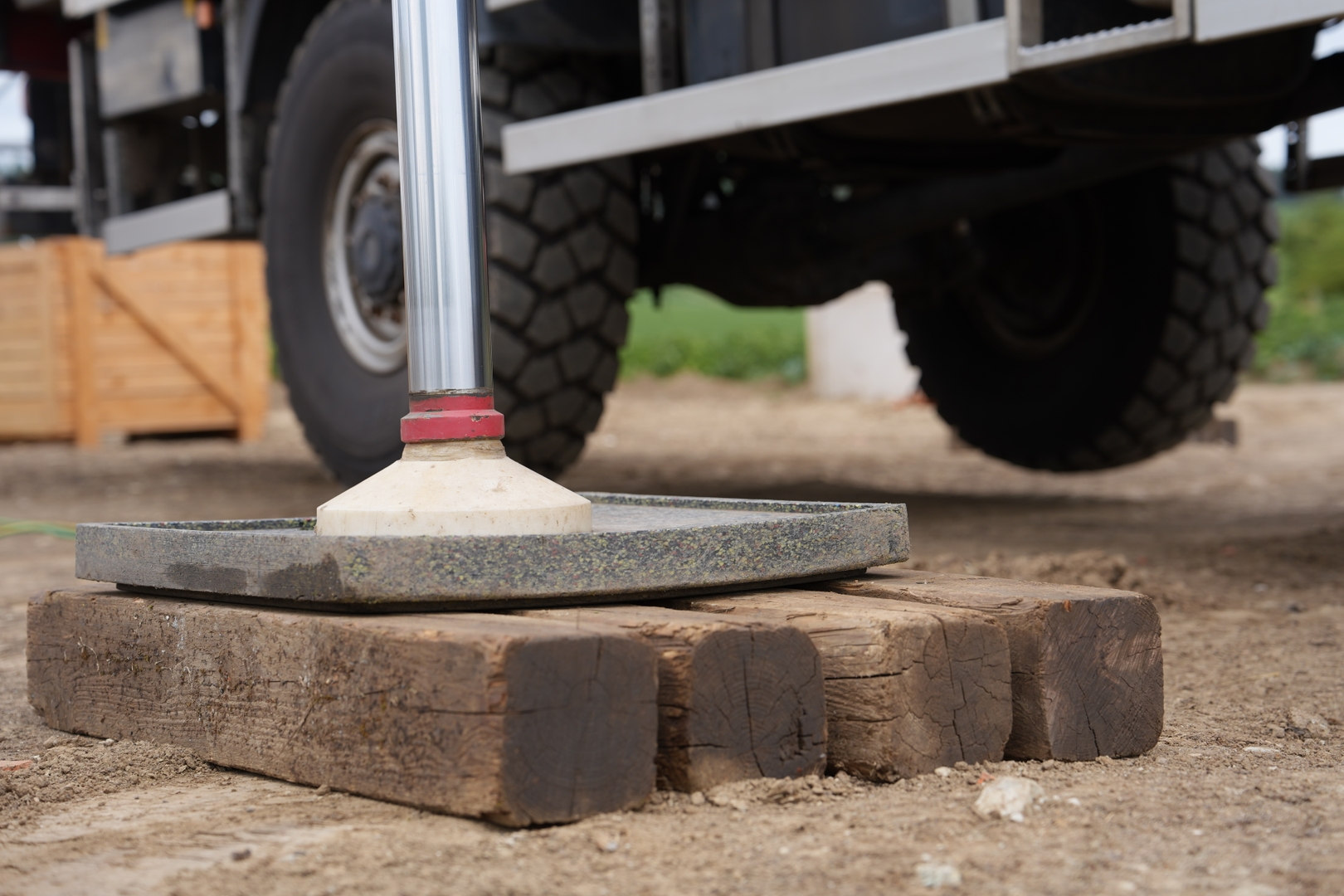

The construction of two telescopic arms - the first 4 section and the second 2 section, will allow a lateral reach of more than 20 meters at a height of up to 35 meters (with a platform load of 100 kg out of a total of 600 kg). The 4×4 drive and robust chassis with good approach angles allow the machine to move in the field and 4 supports ensure the necessary stability when working. The Wumag superstructure is designed to allow a range of 6 meters below the level of the chassis. The WT450 can therefore be used to inspect smaller bridge structures. When using the lateral reach to only one side, it is possible to place the platform on 2 extended and 2 retracted supports and thus reduce the space required for the set machine by approximately 2 meters. The work platform can be equipped with board material holders with a load capacity of 350 kg. The truck platform meets strict safety regulations and international standards.
