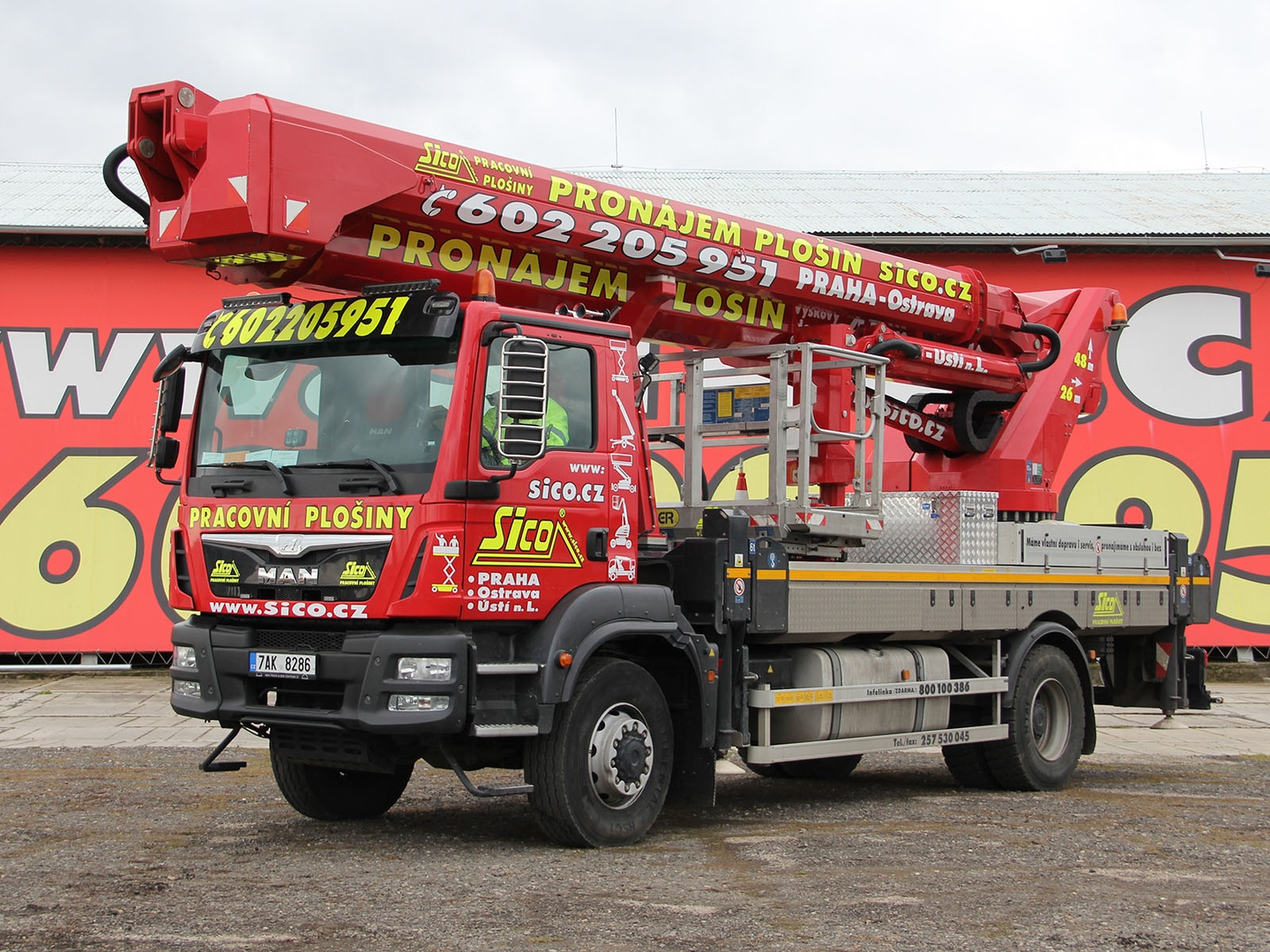

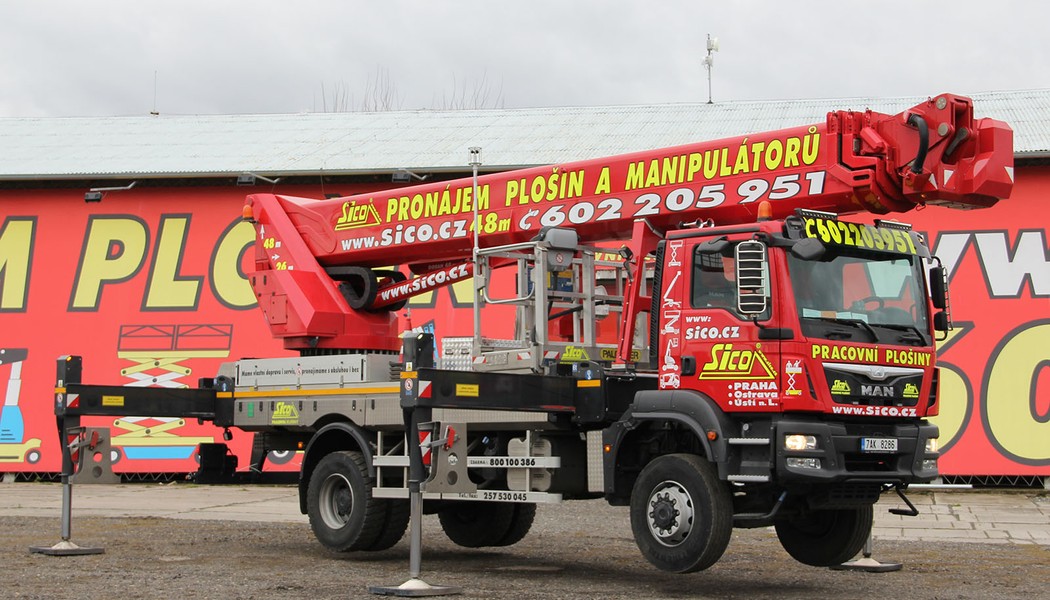

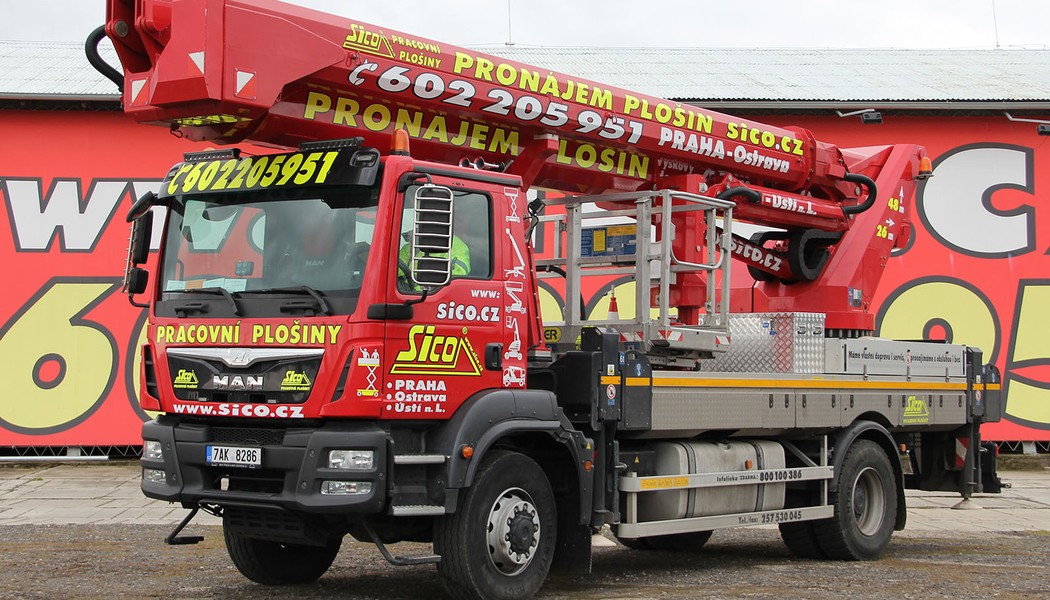

P480 MAN TGM 4x4

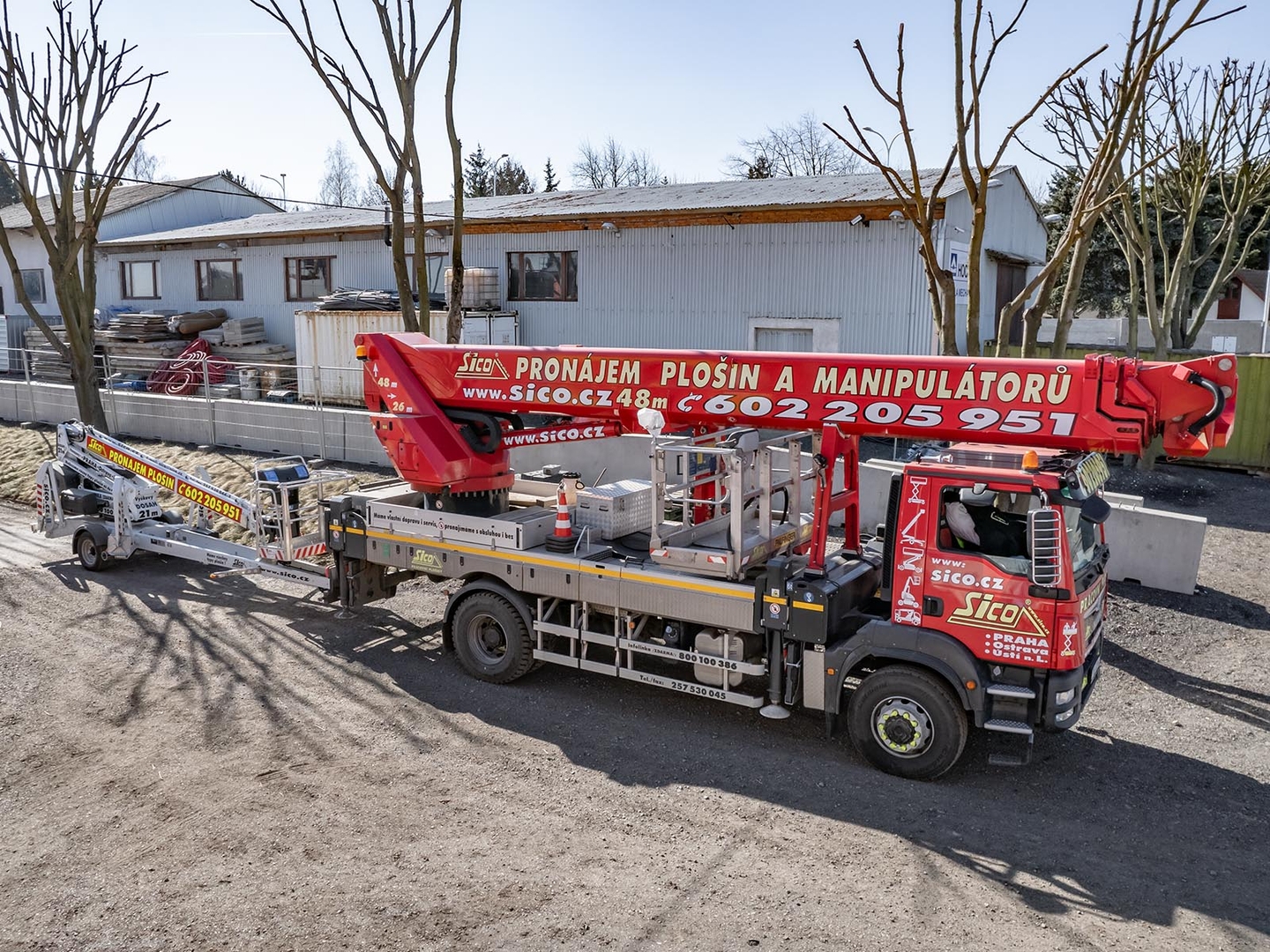

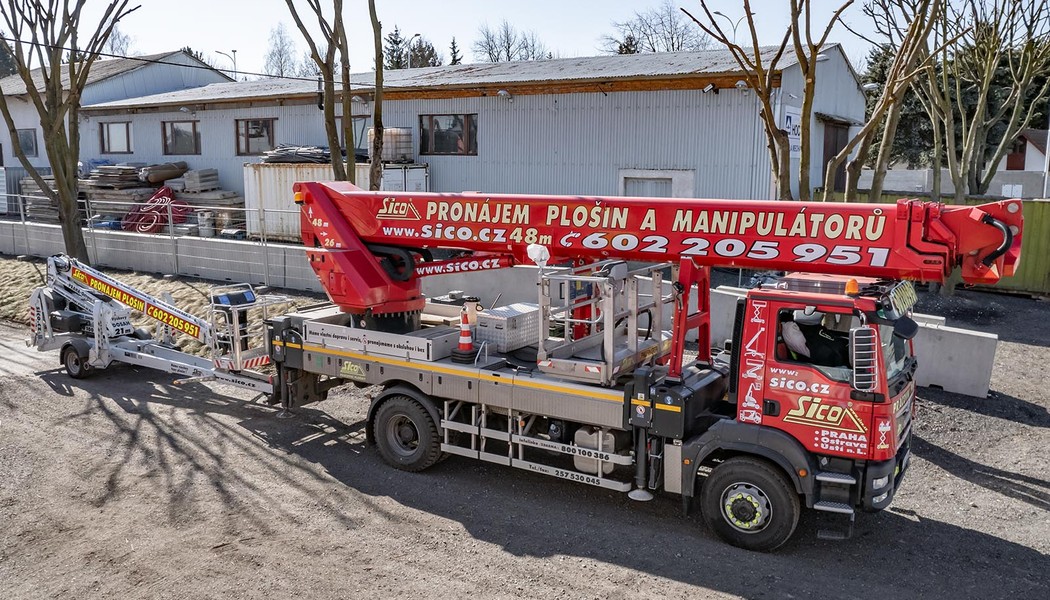

Truck mounted Palfinger P480 superstructure allows you to work safely at a height of up to 48 meters. Extensive equipment and perfect performance, that's our "48"!

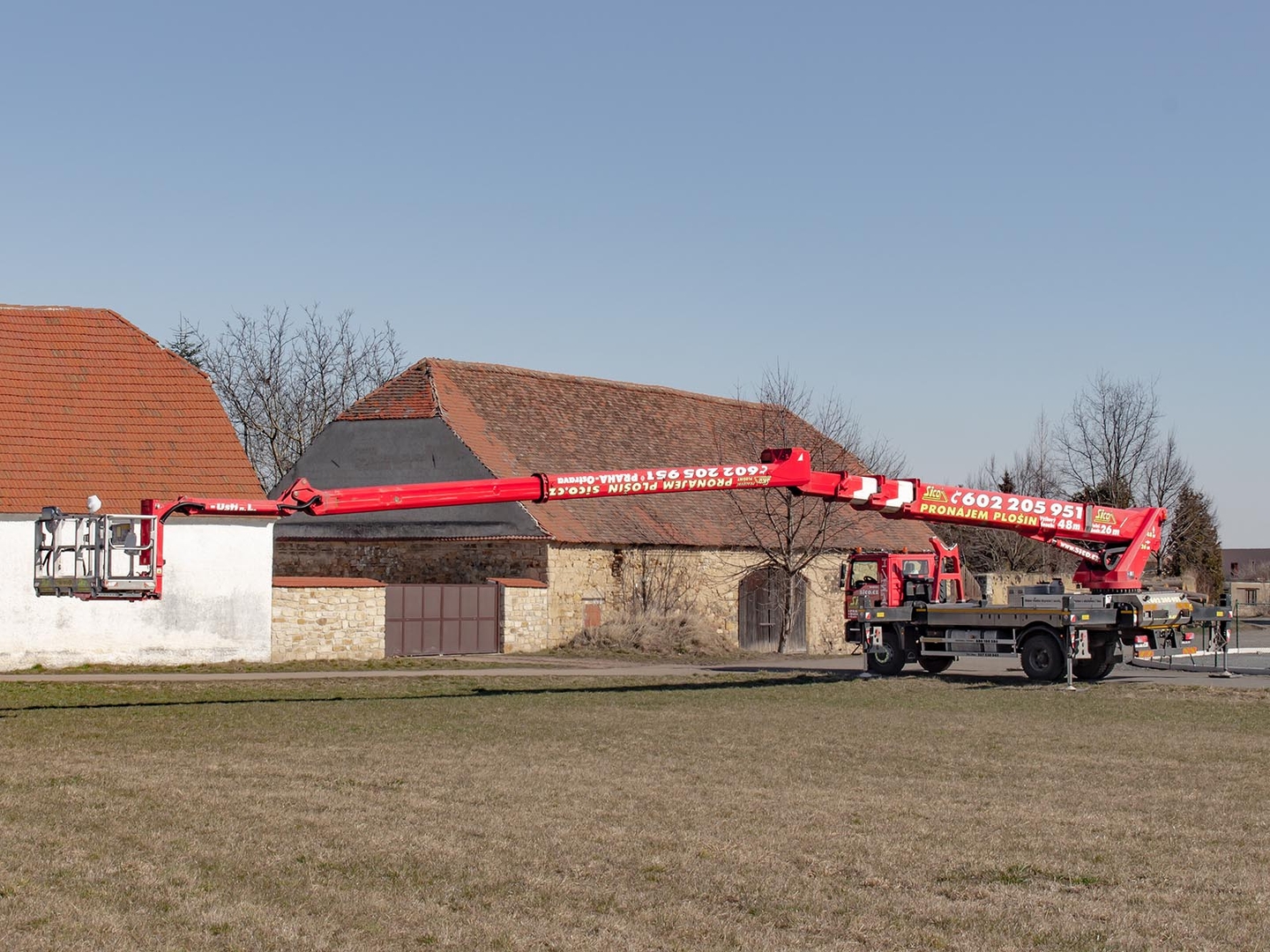

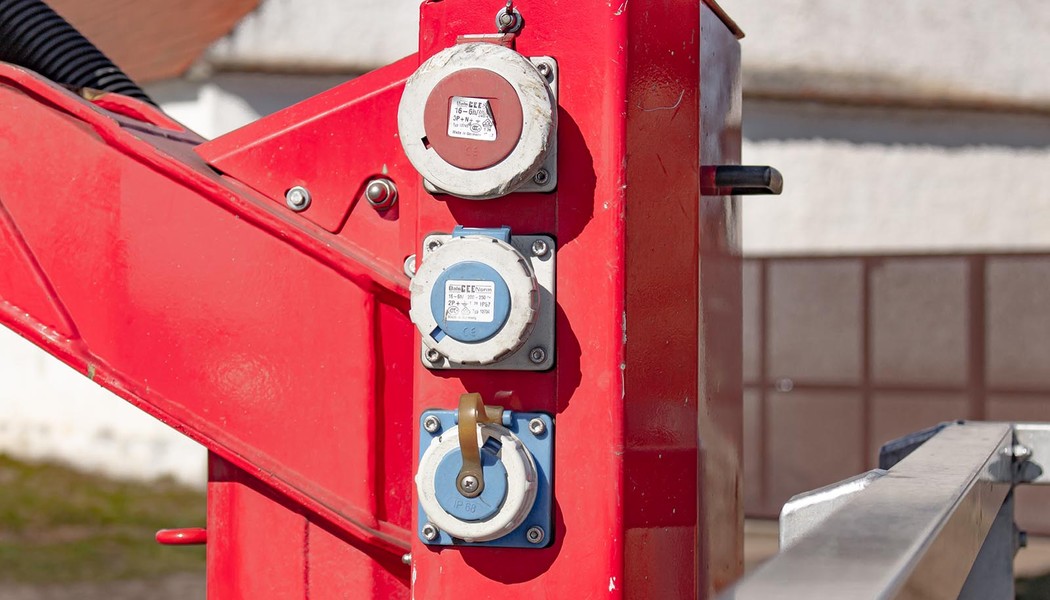

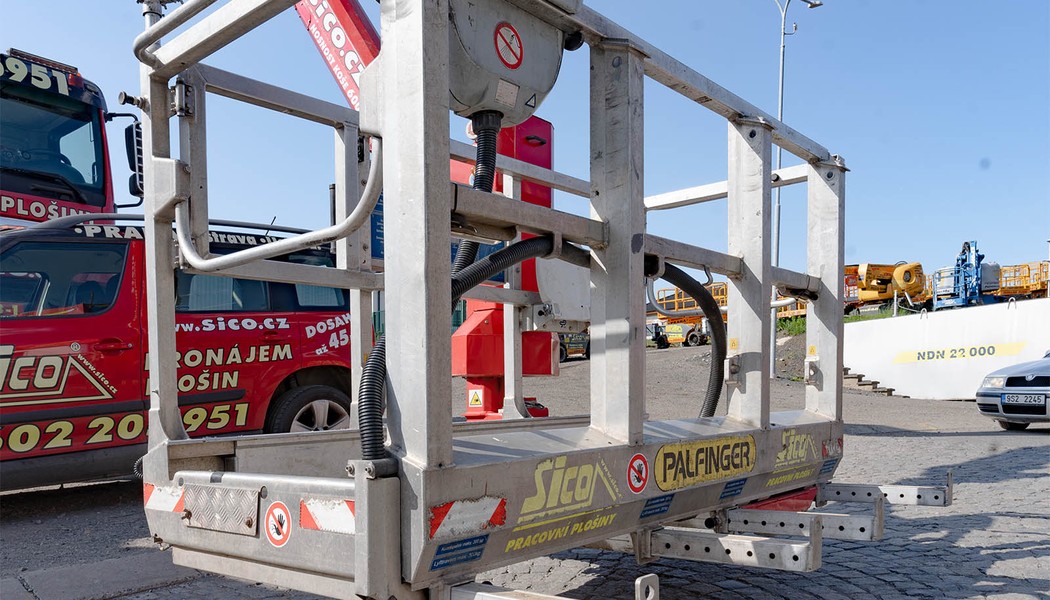

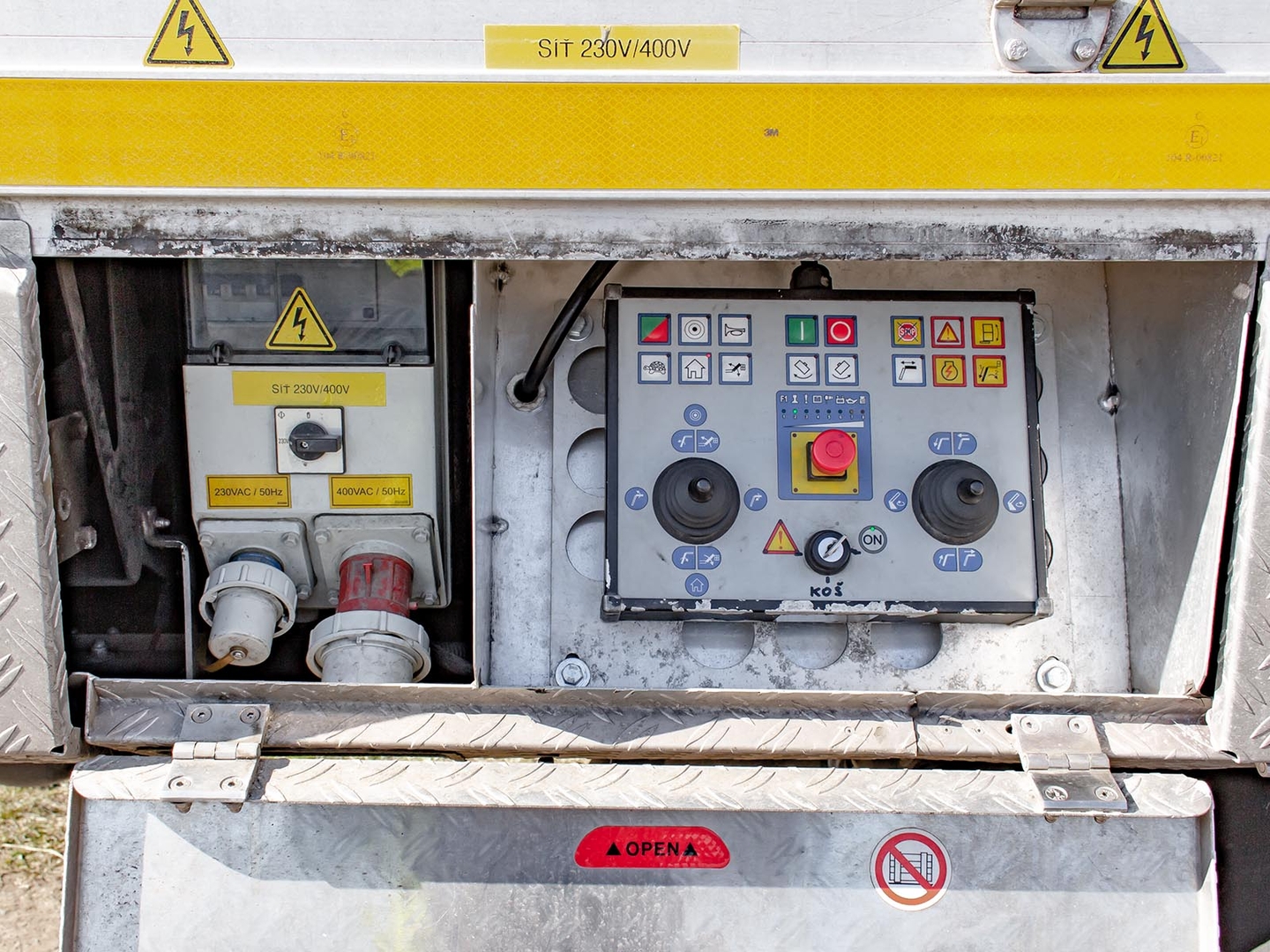

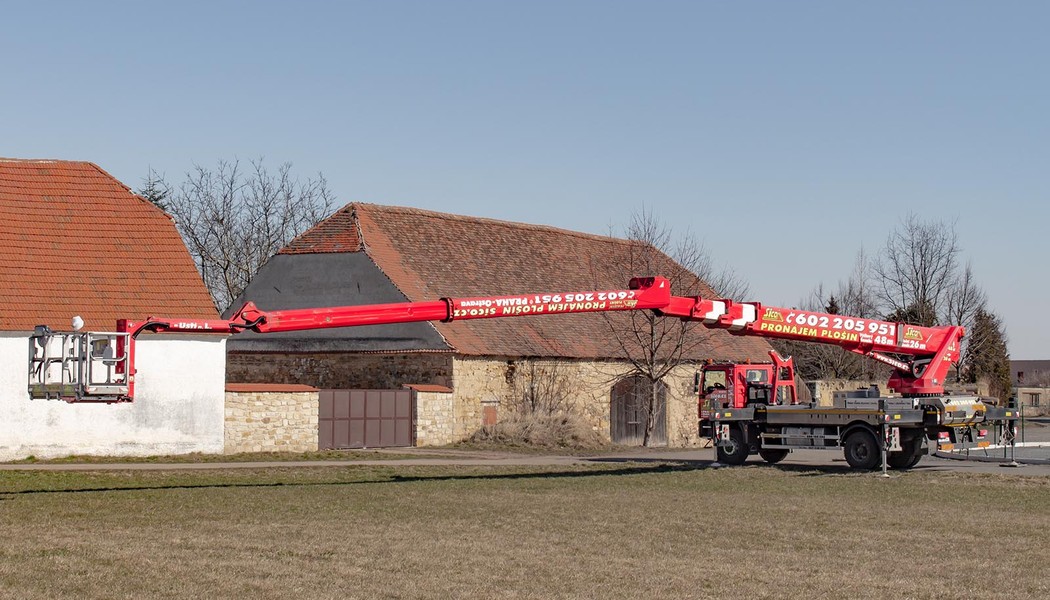

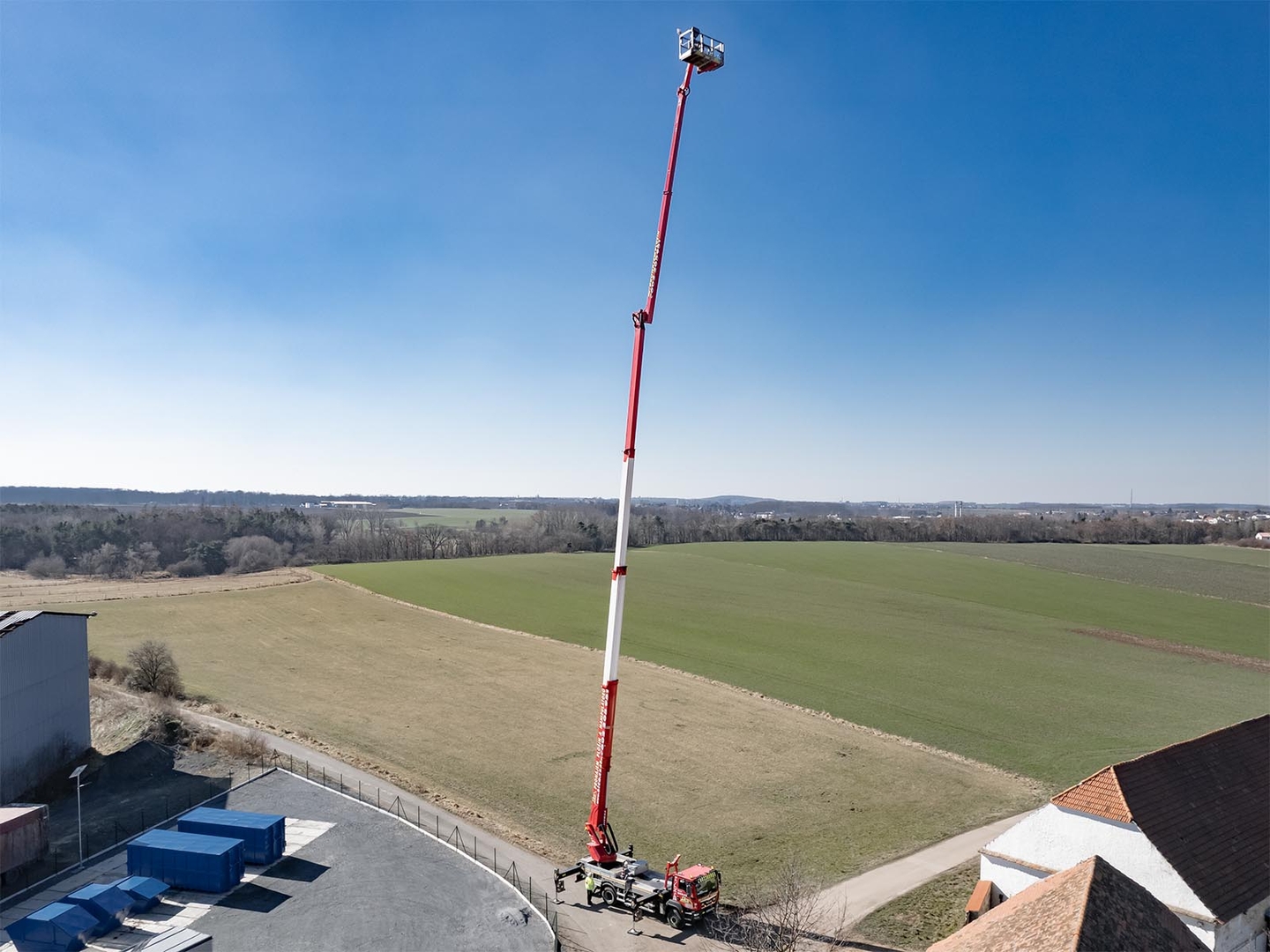

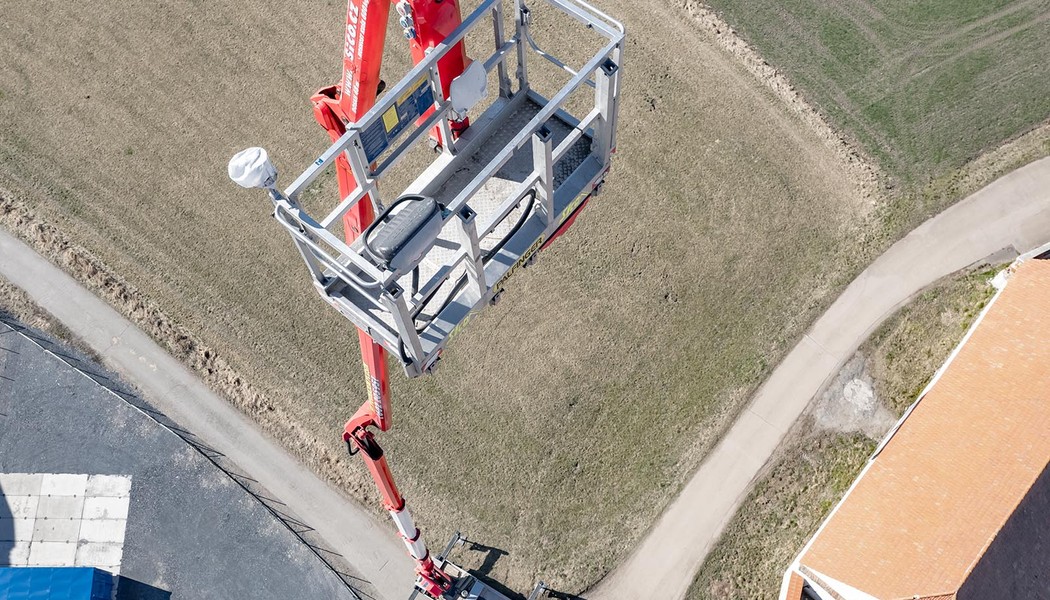

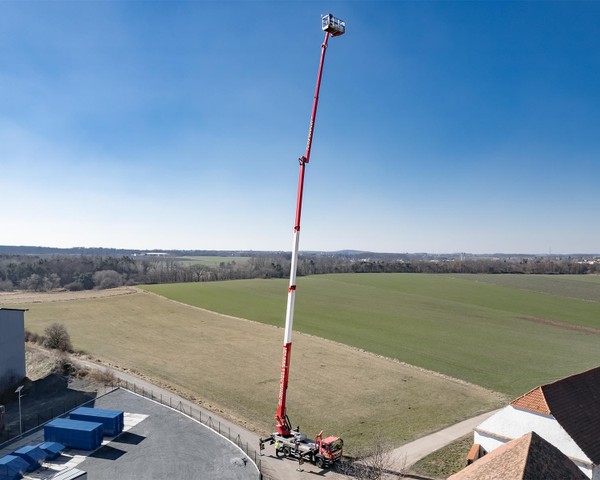

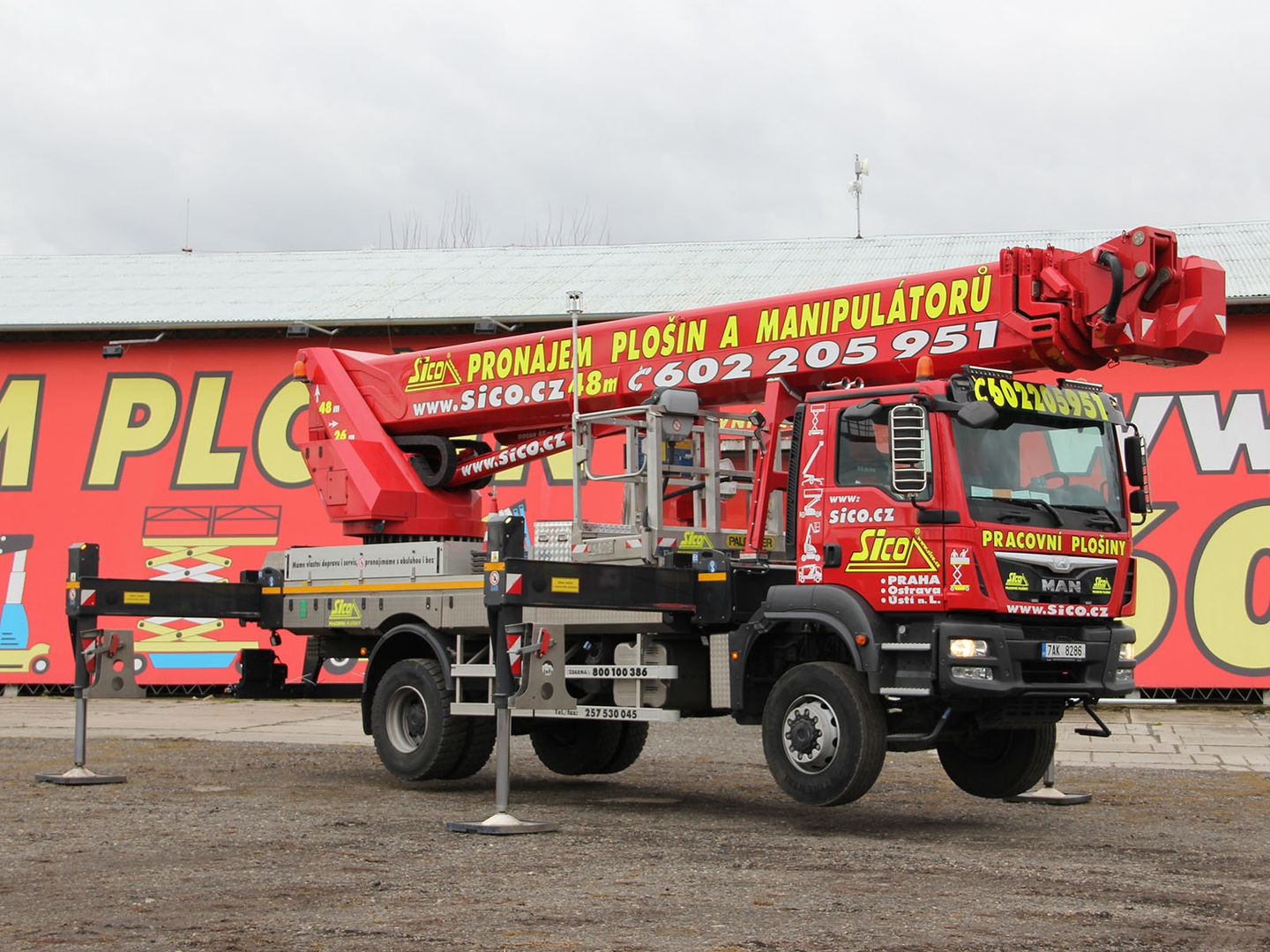

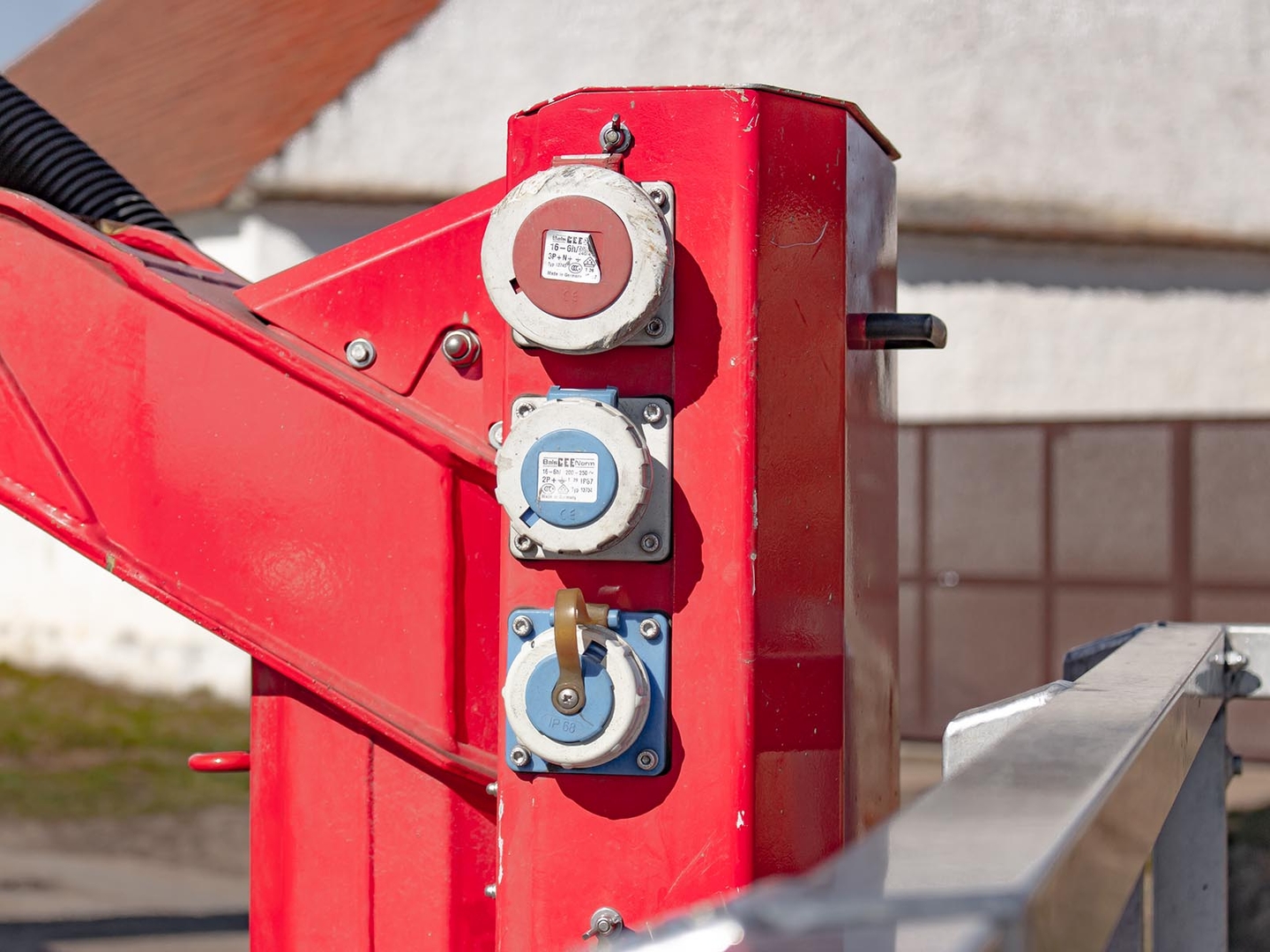

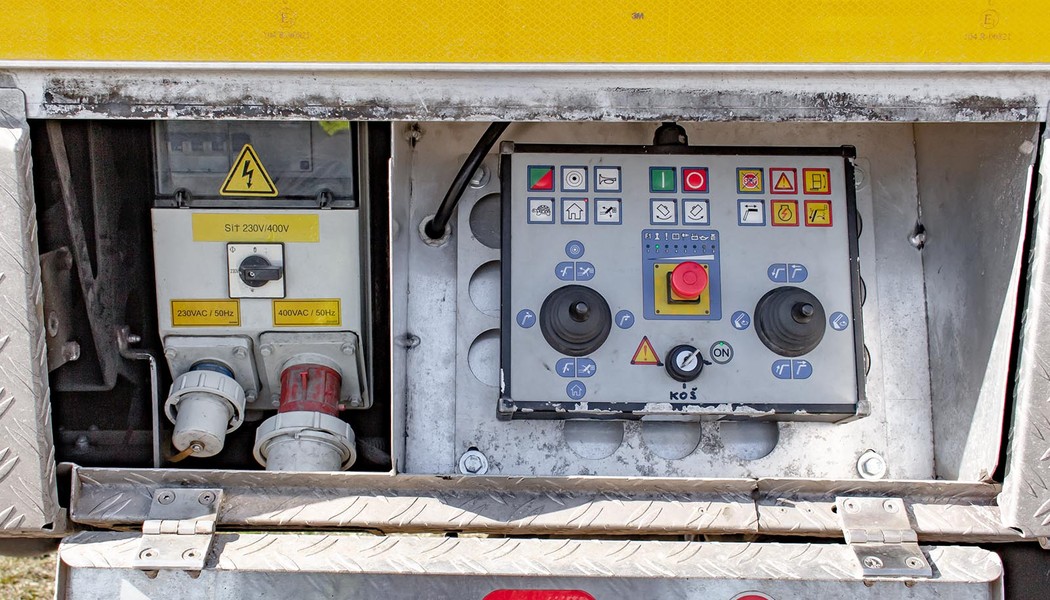

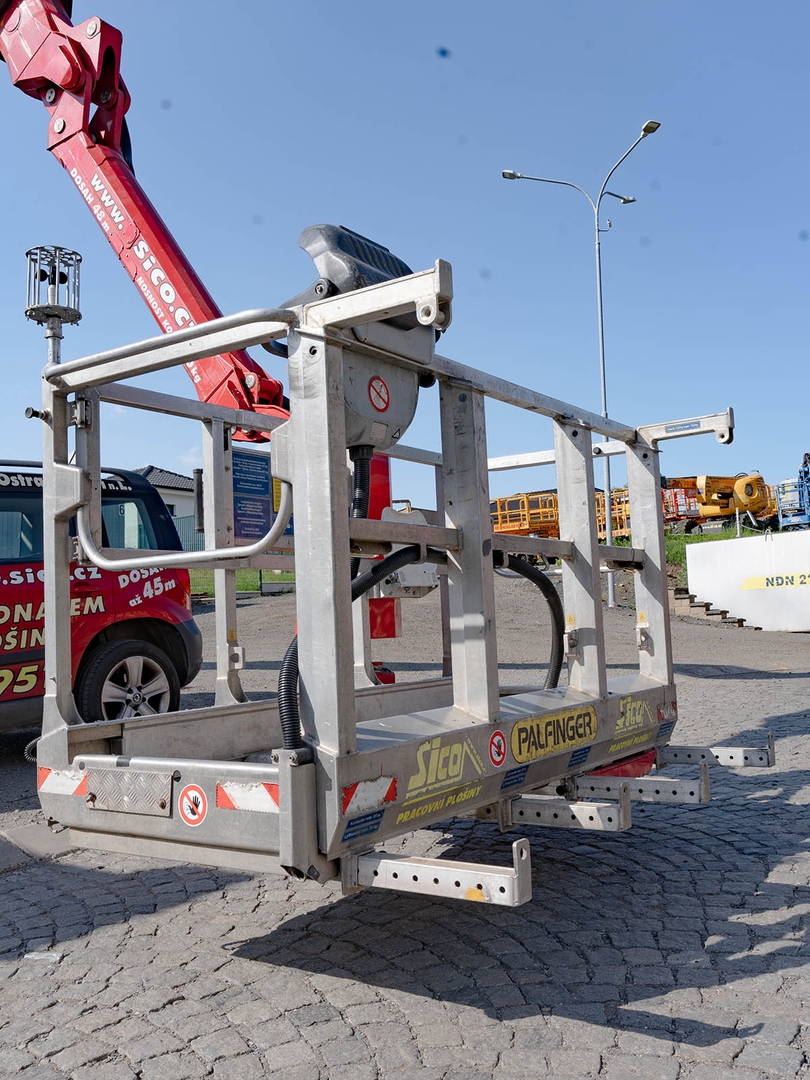

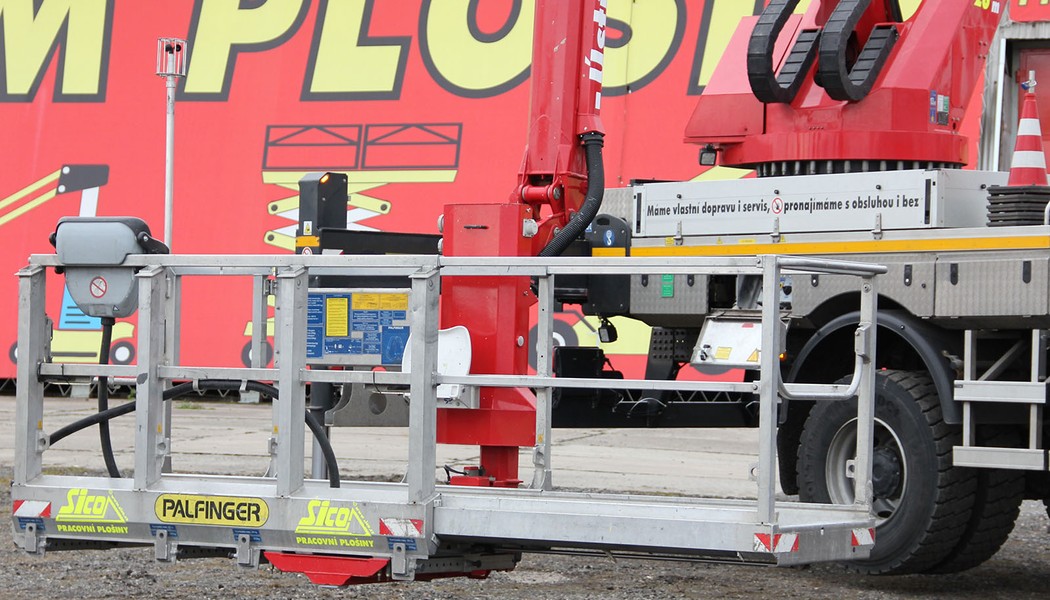

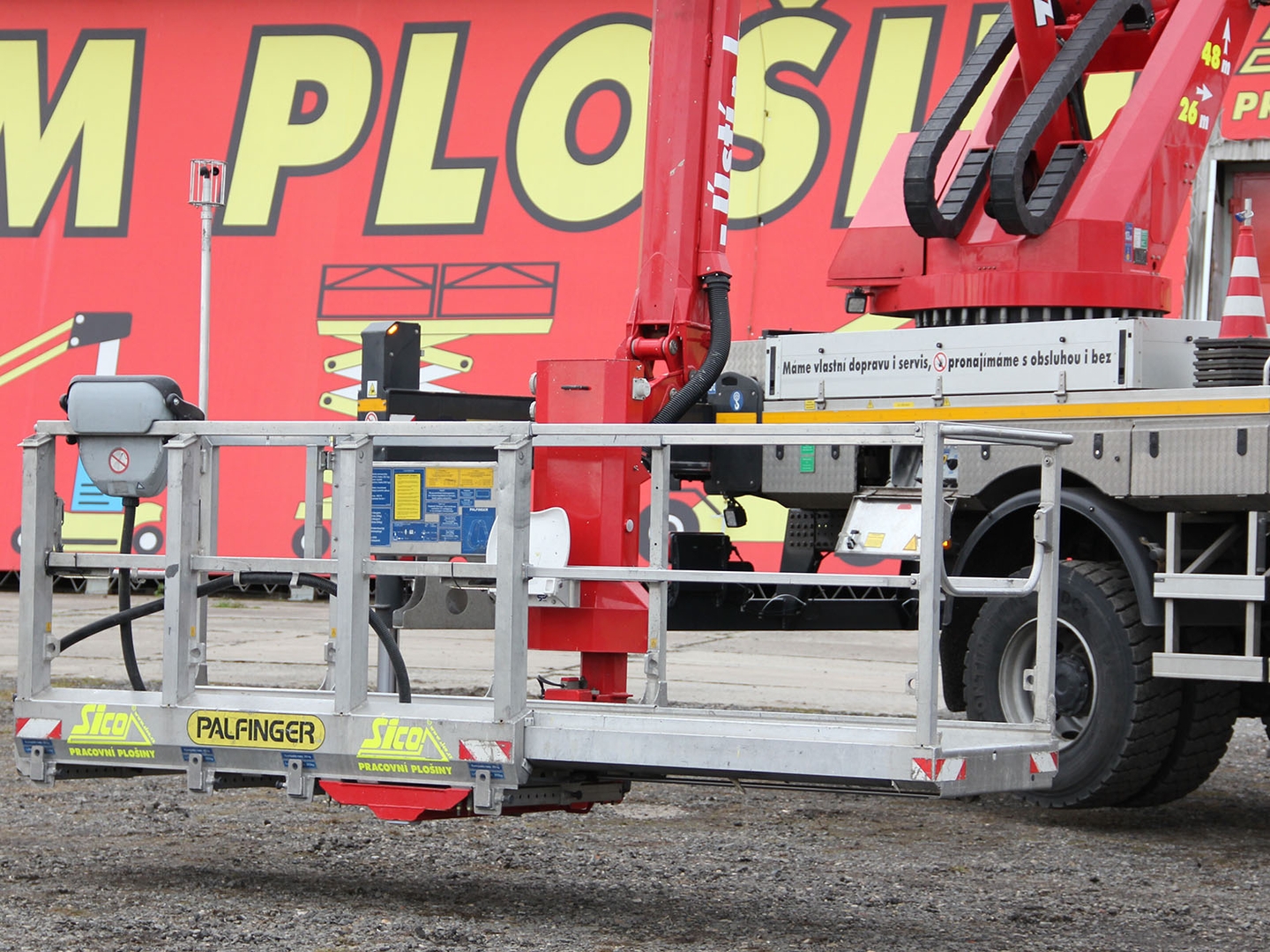

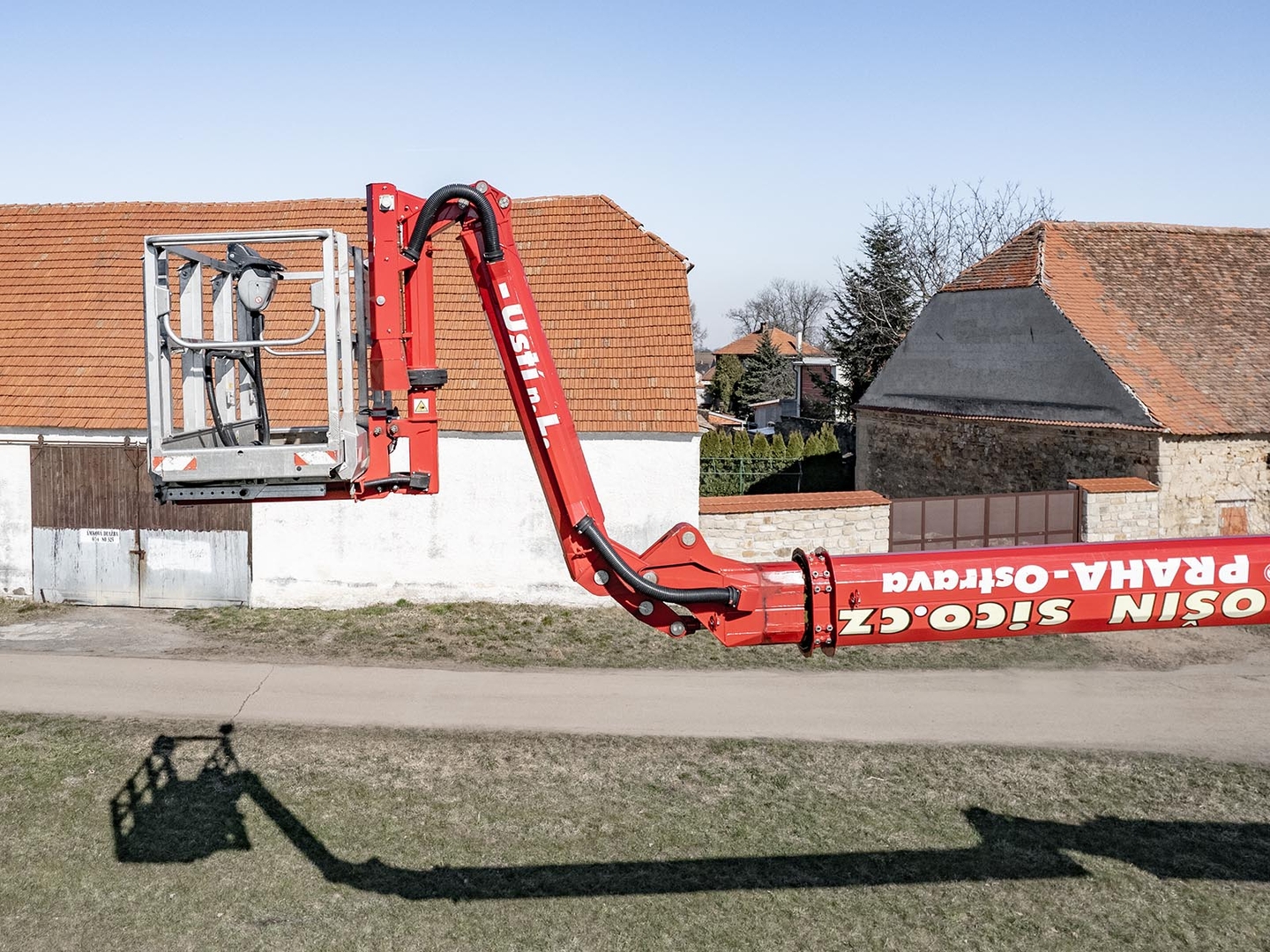

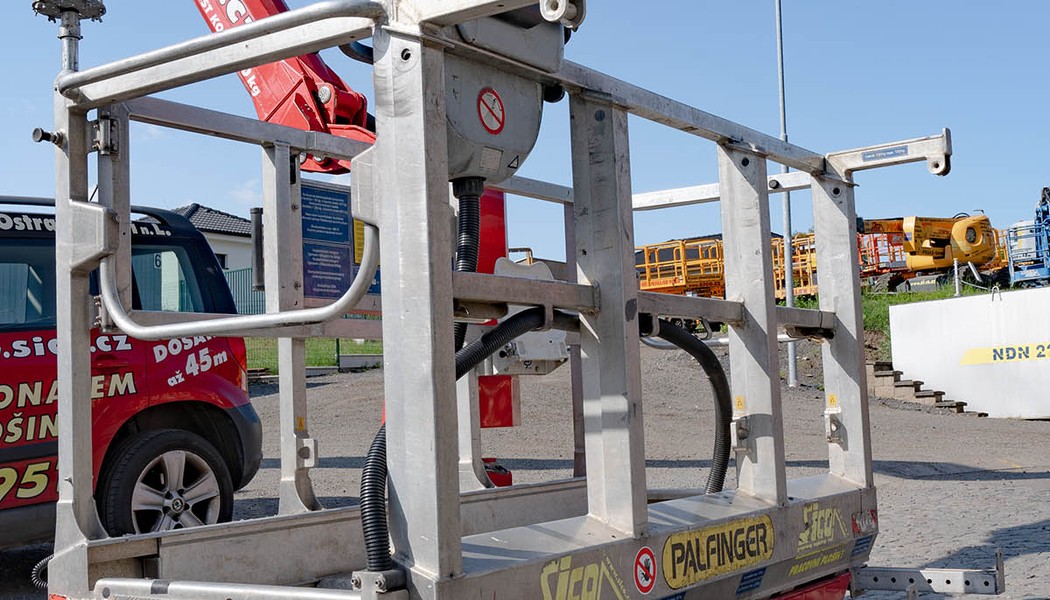

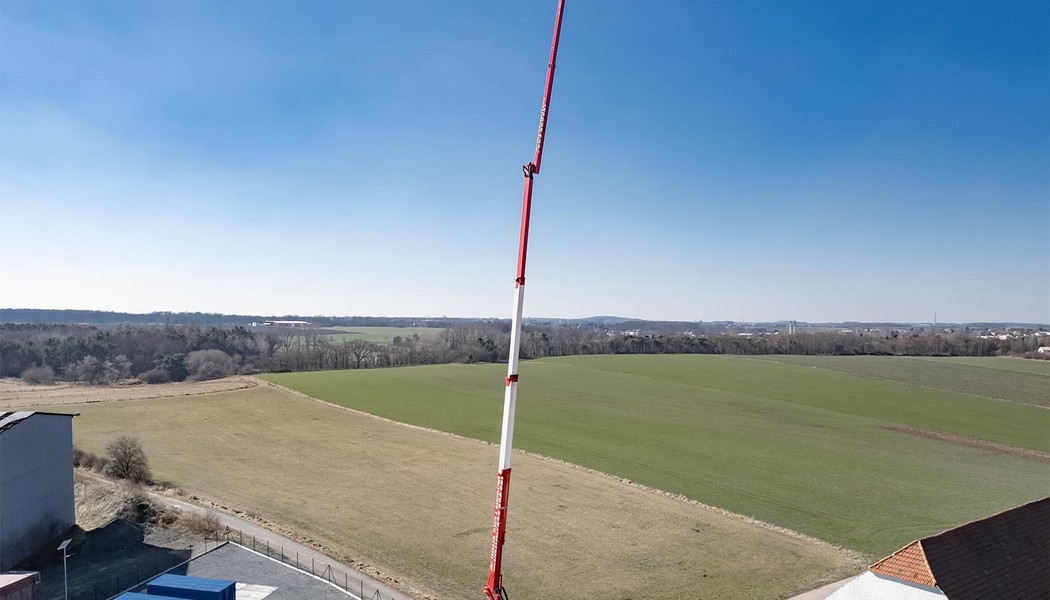

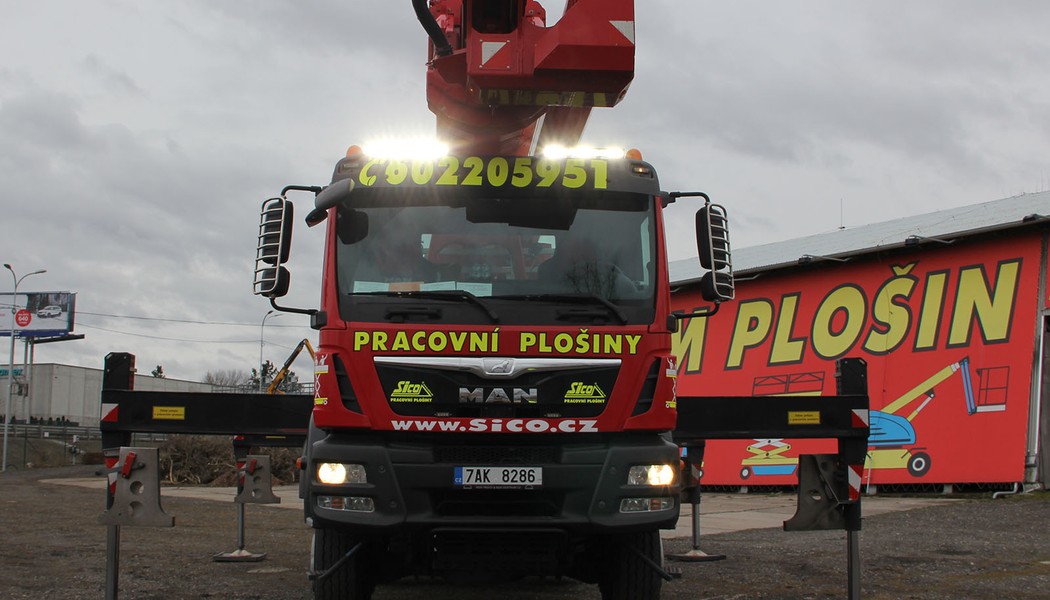

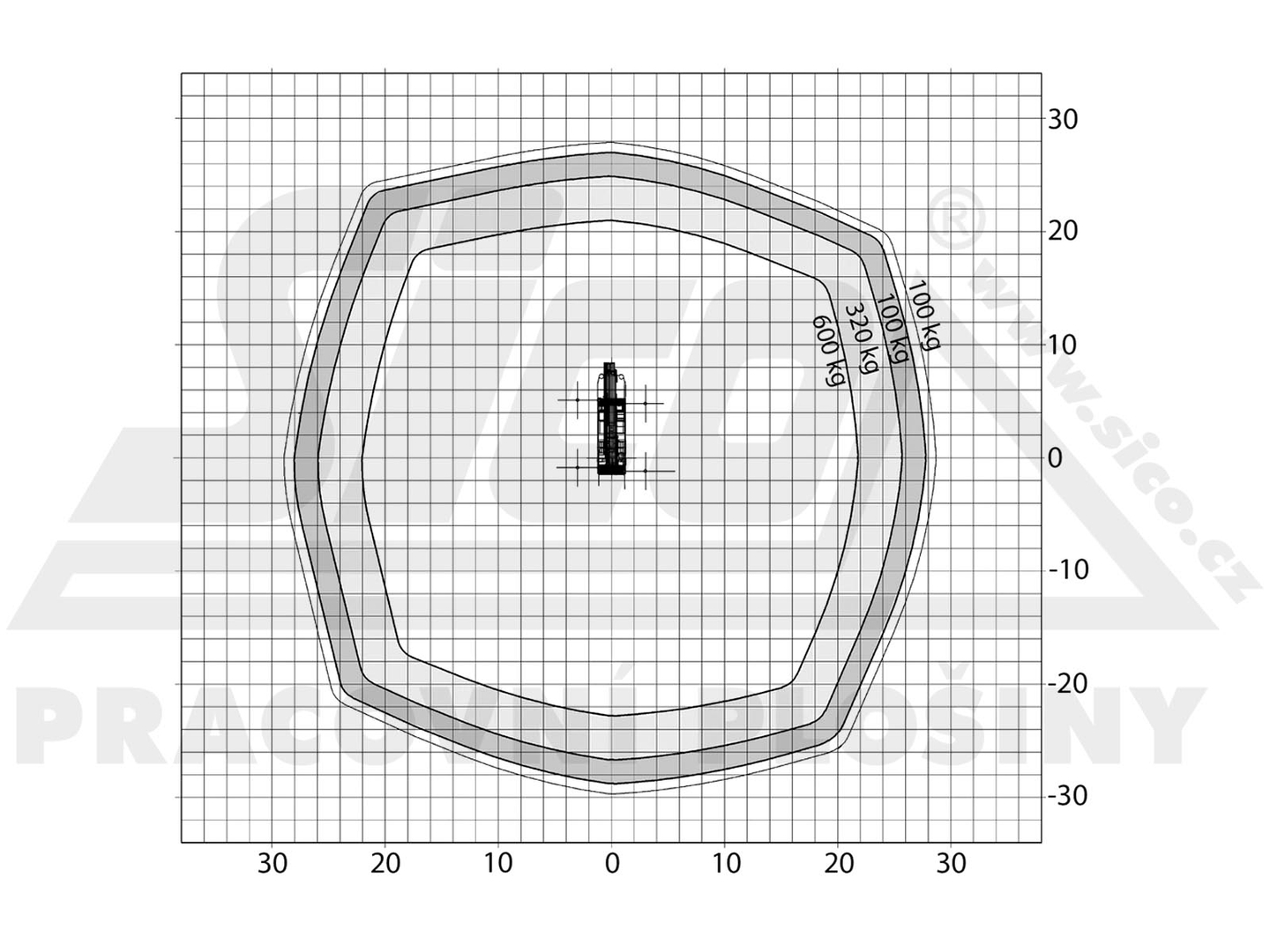

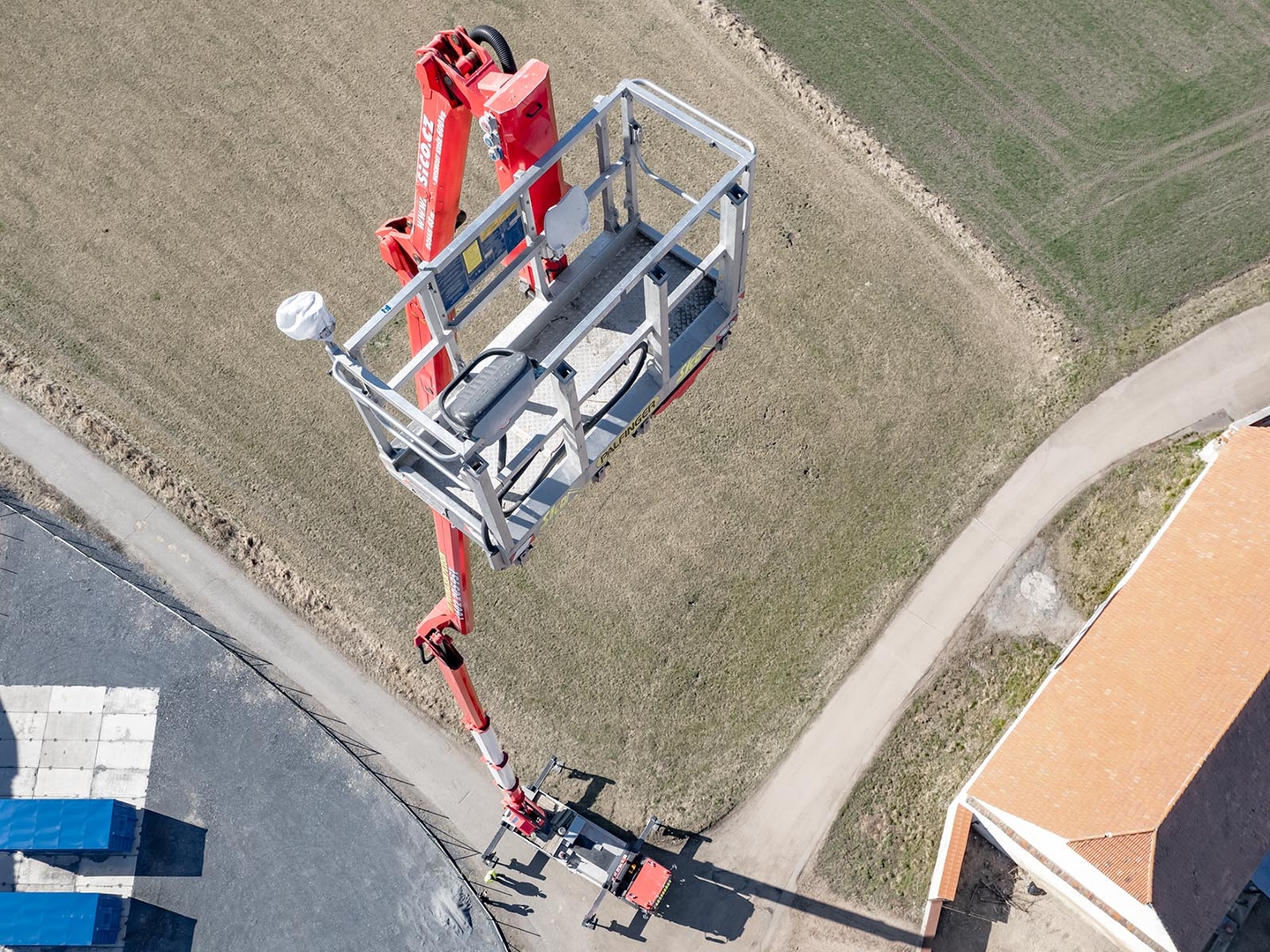

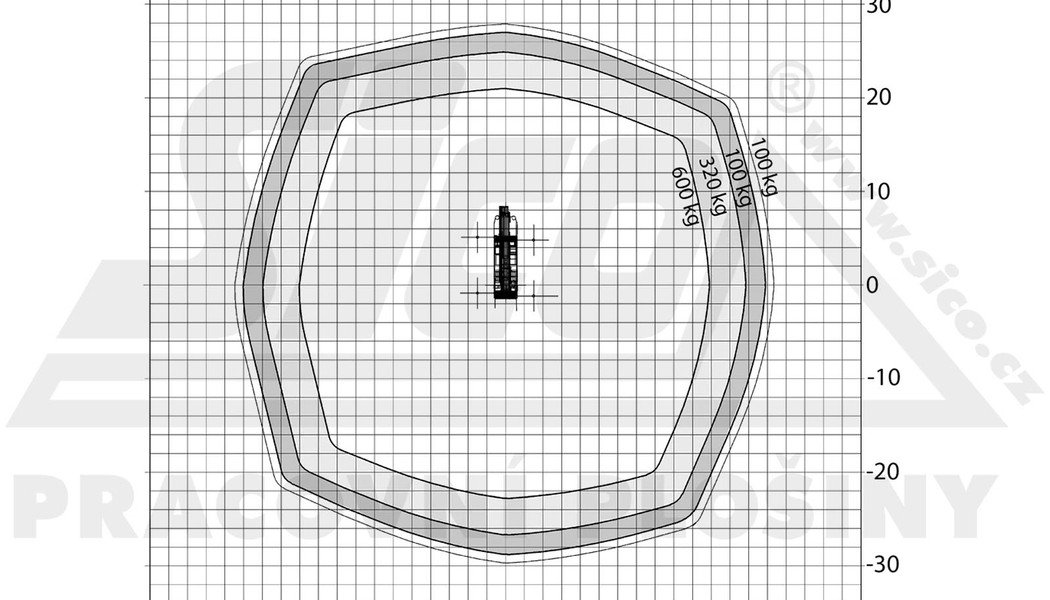

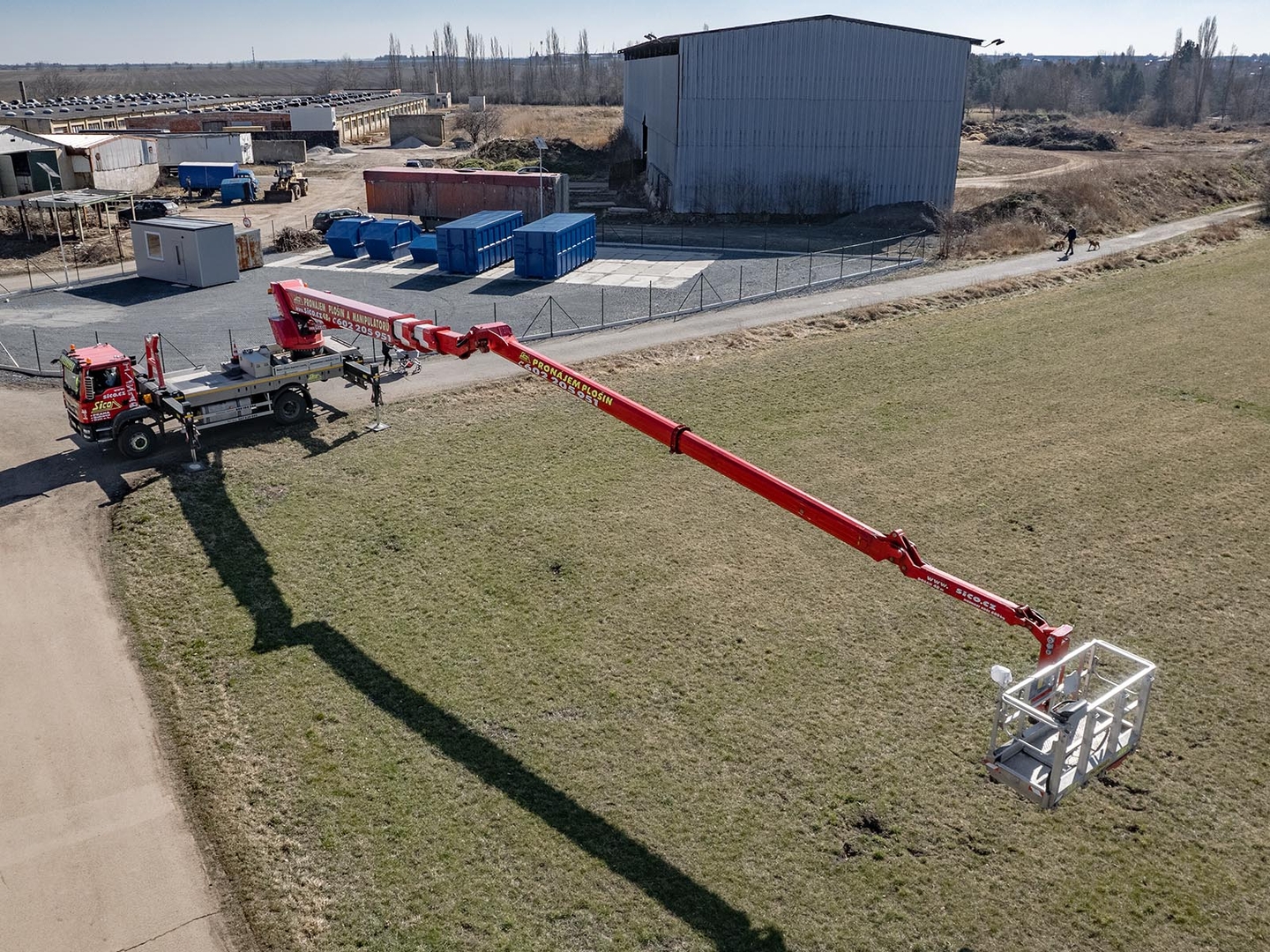

The platform has an electric current generator and a large work platform with a load capacity of up to 600 kg is equipped with sockets with a voltage of 230V and 380V. The machine can be equipped with plate material holders, which you can use, for example, when glazing buildings. The MAN TGM 18 chassis has all-wheel drive, so it can move in lighter terrain. The construction of the car allows for quick adjustment and the platform is thus suitable for work where frequent relocation is required. The platform consists of a turntable on the chassis, a boom with an articulated telescope and a work platform on the so-called JIB arm, which moves at an angle of 240°. This makes it possible to get the work platform even in hard-to-reach places. The machine has a negative working range. The maximum range is 48 meters in height and 28 meters to the side. The truck platform meets strict safety regulations and international standards. The stability of the platform is ensured by the subframe of the vehicle with four retractable supports that absorb the load of the platform.
