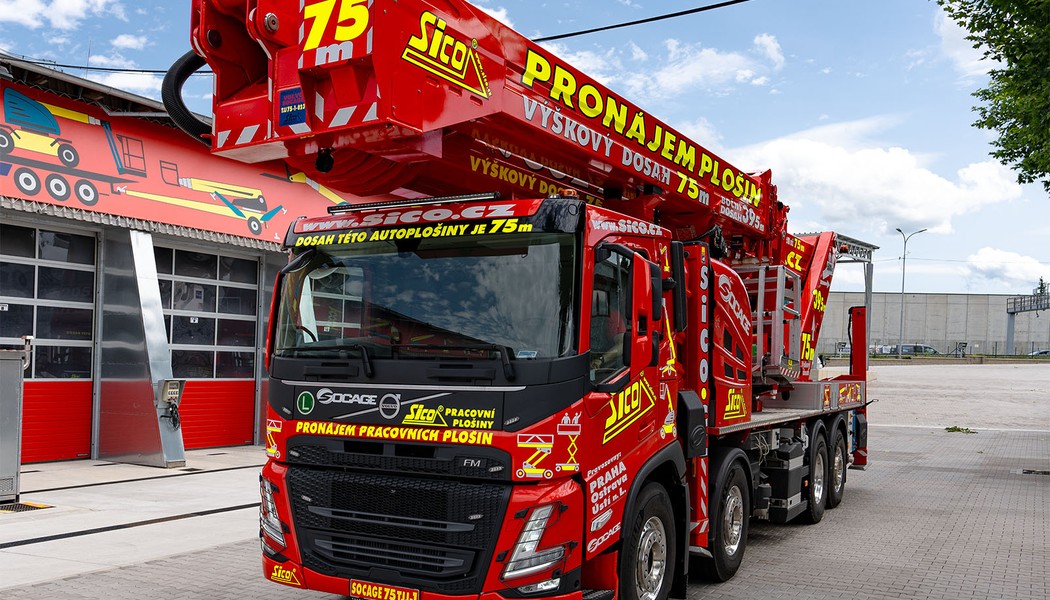

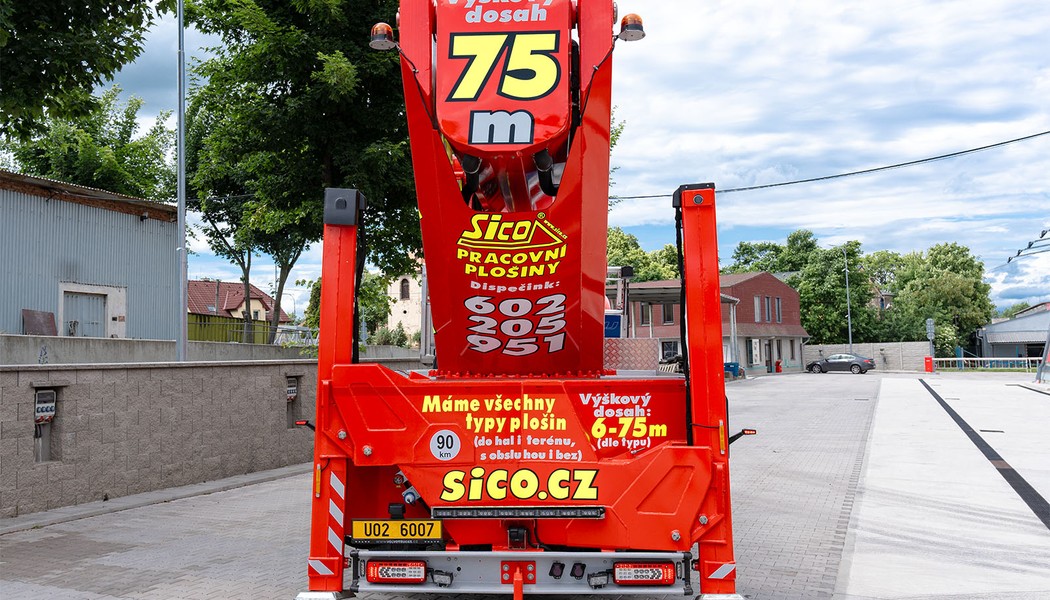

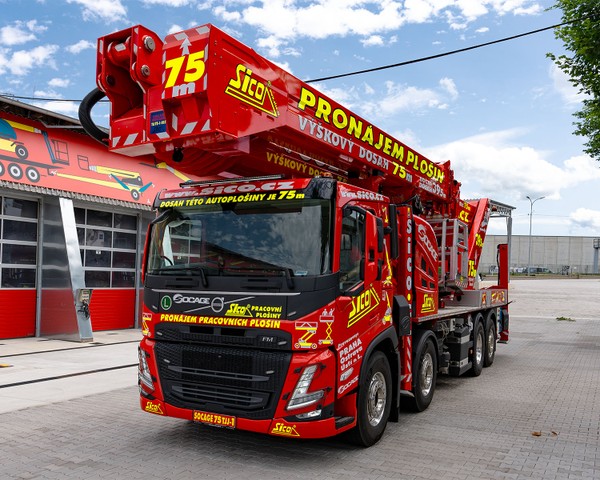

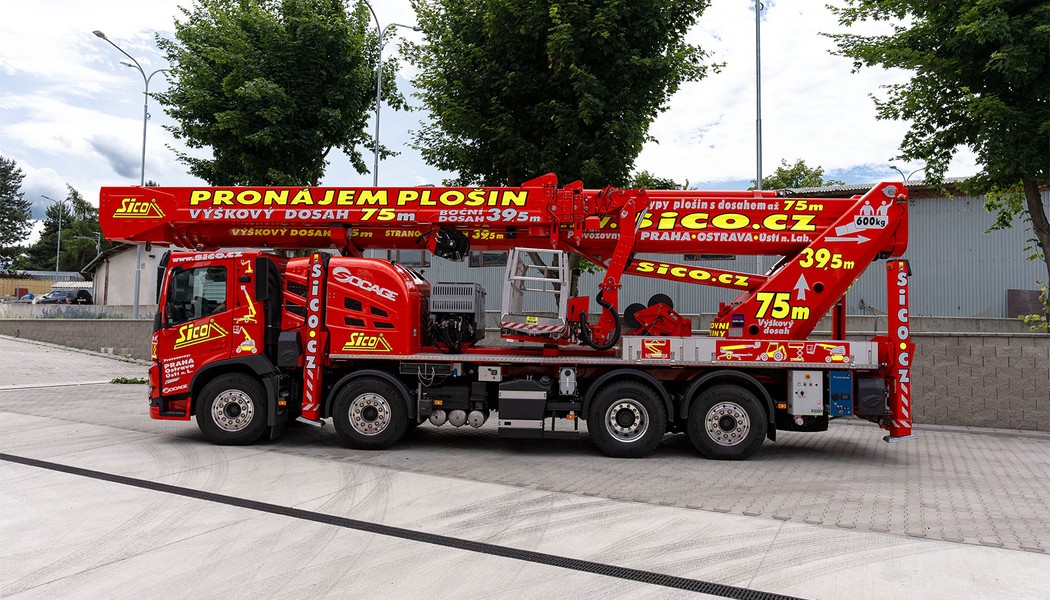

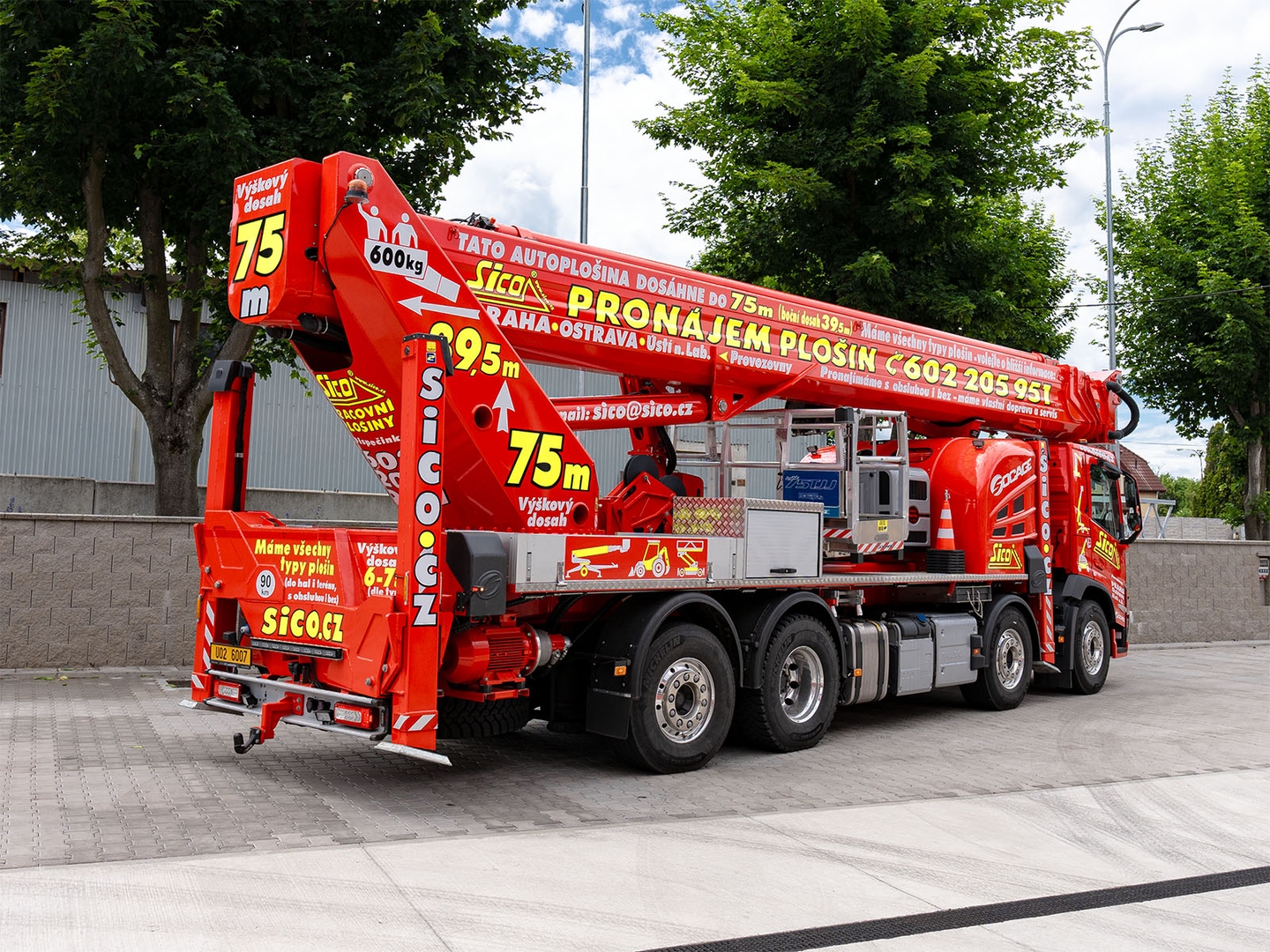

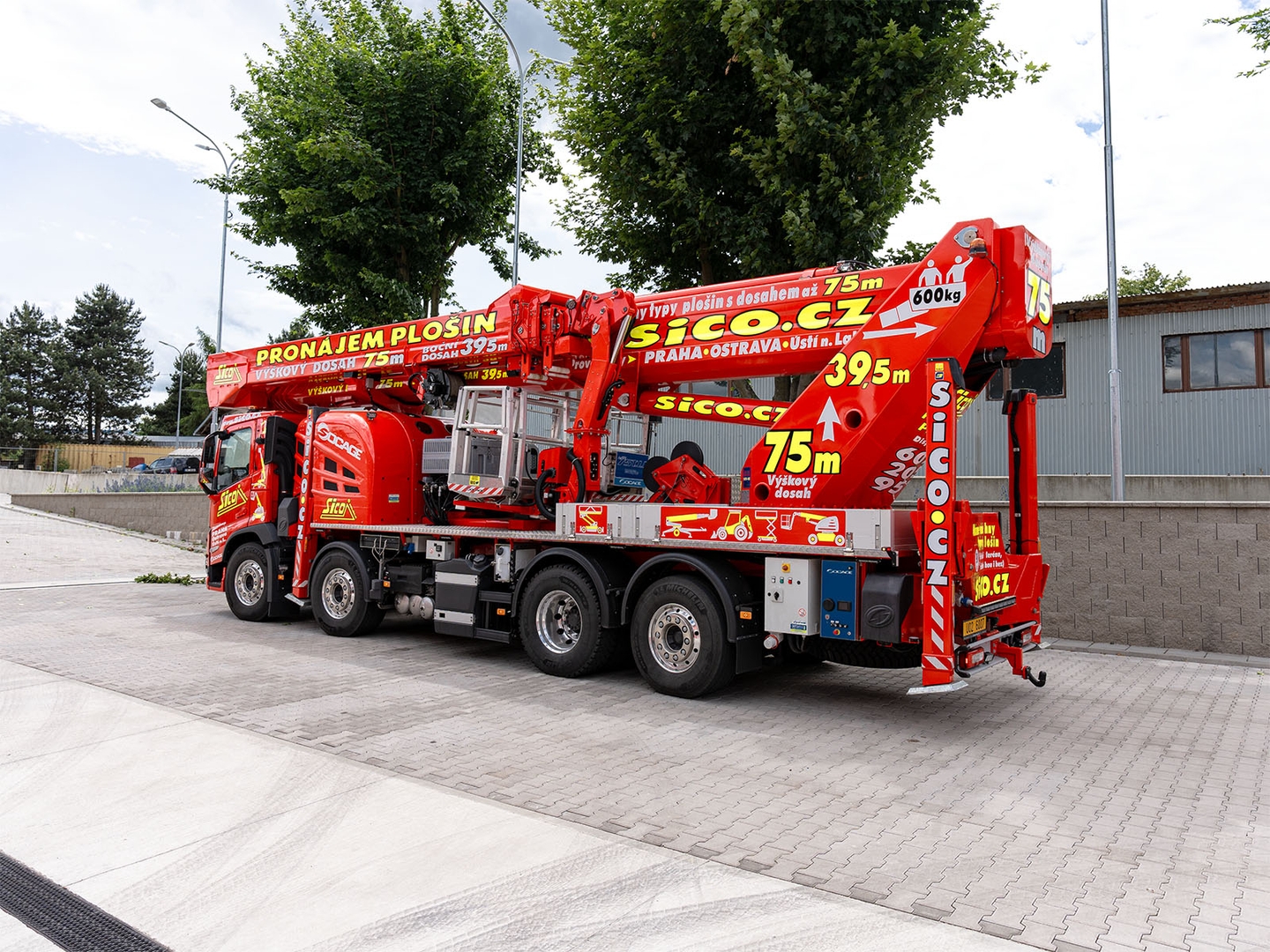

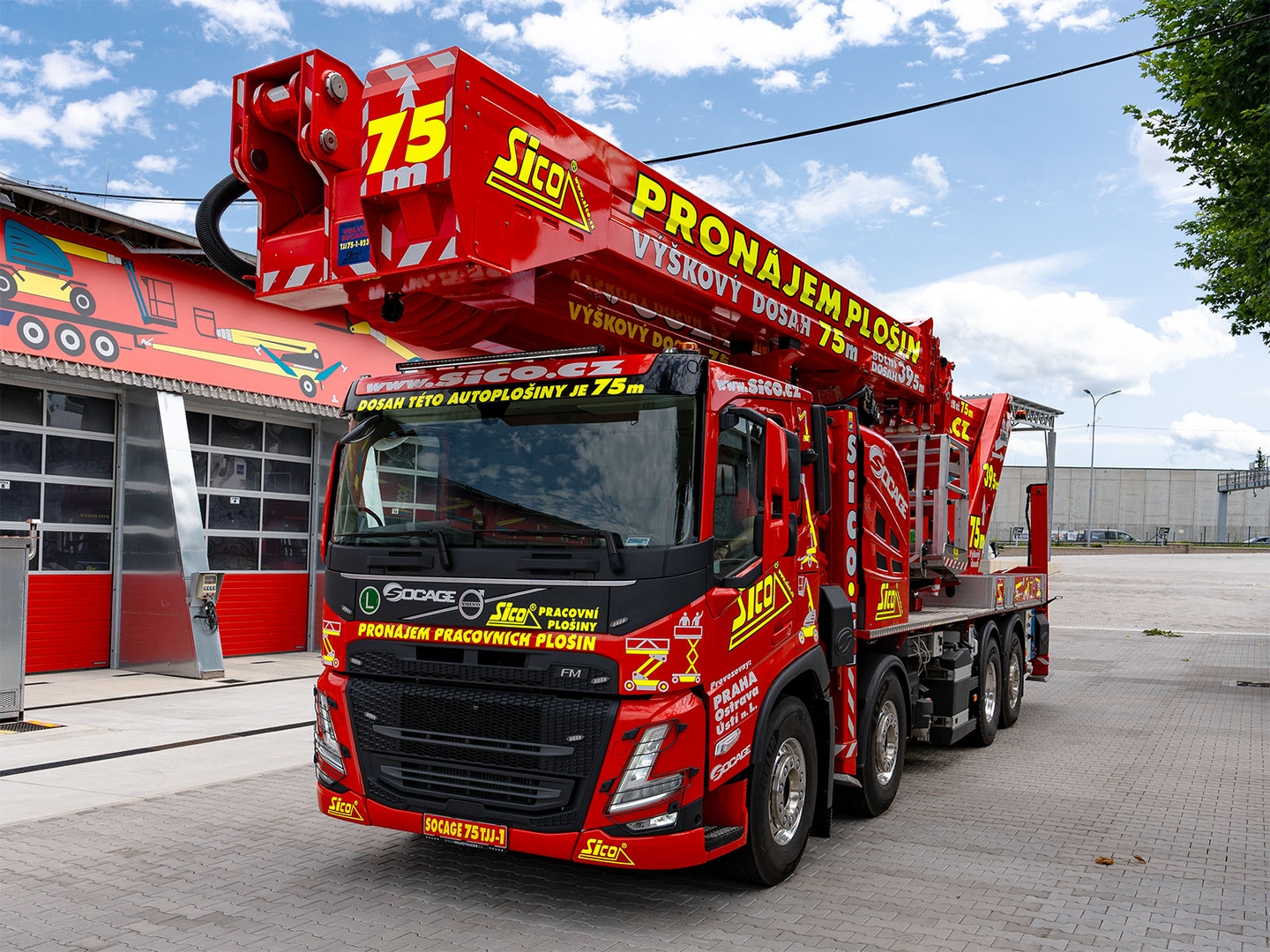

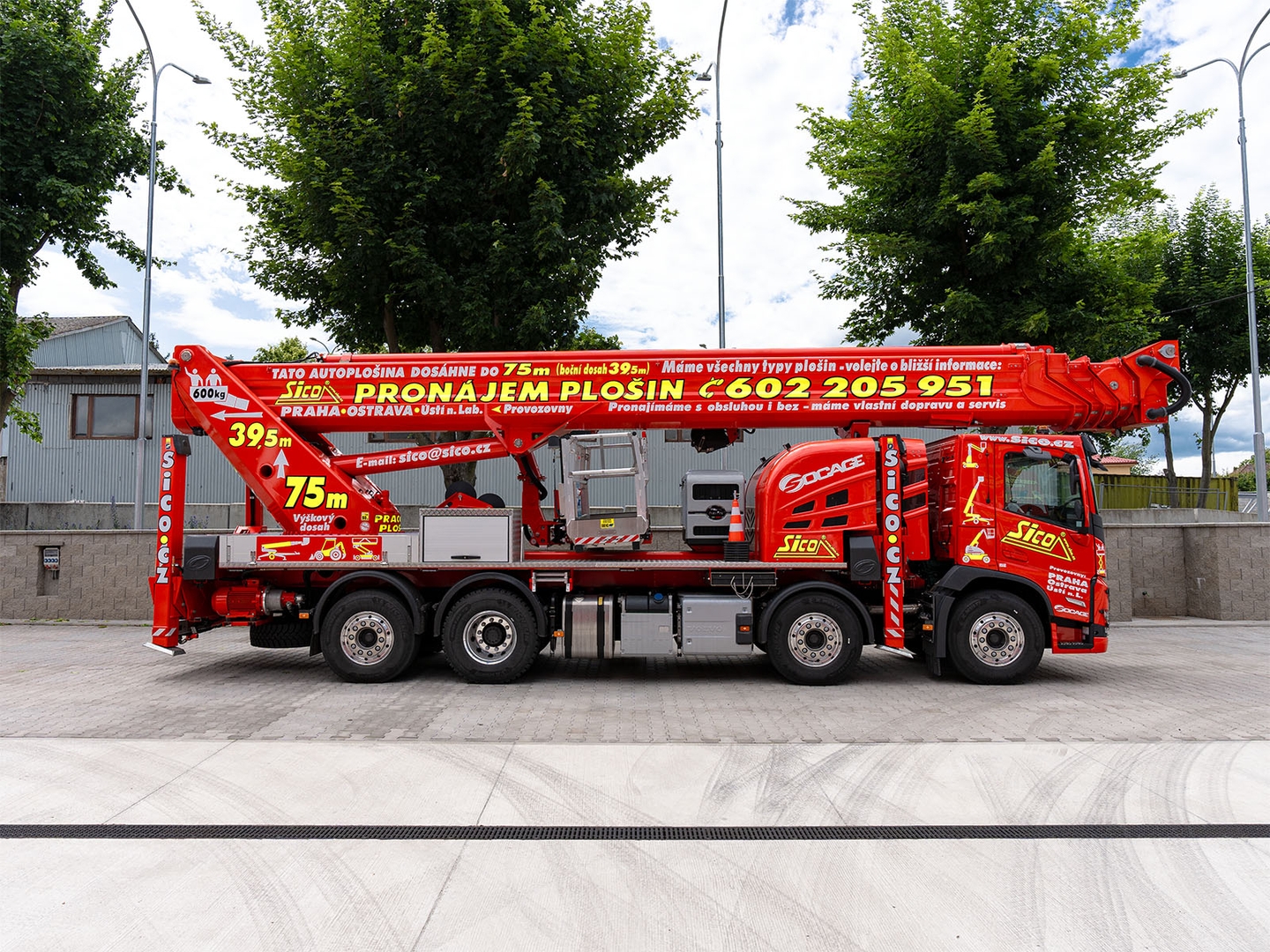

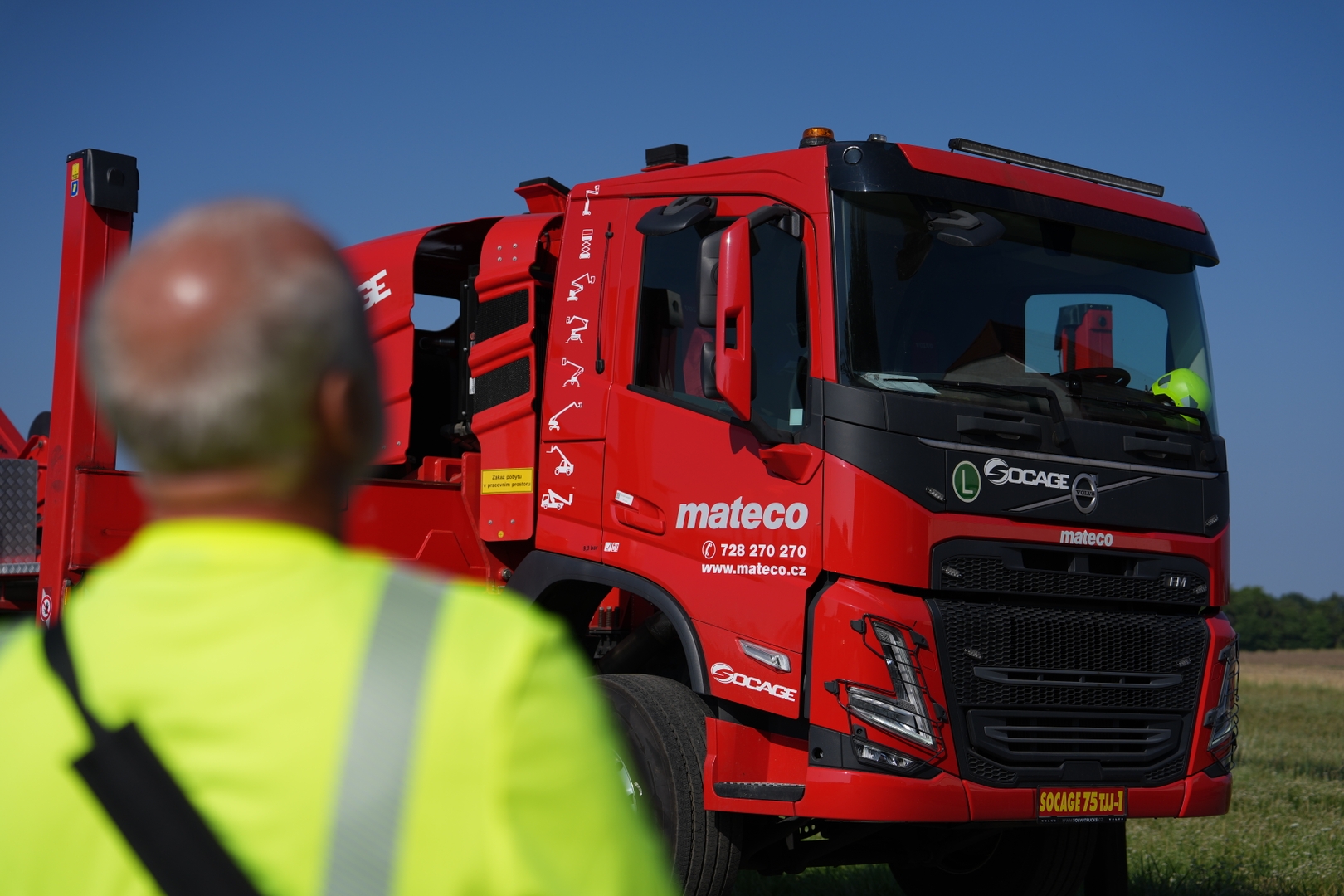

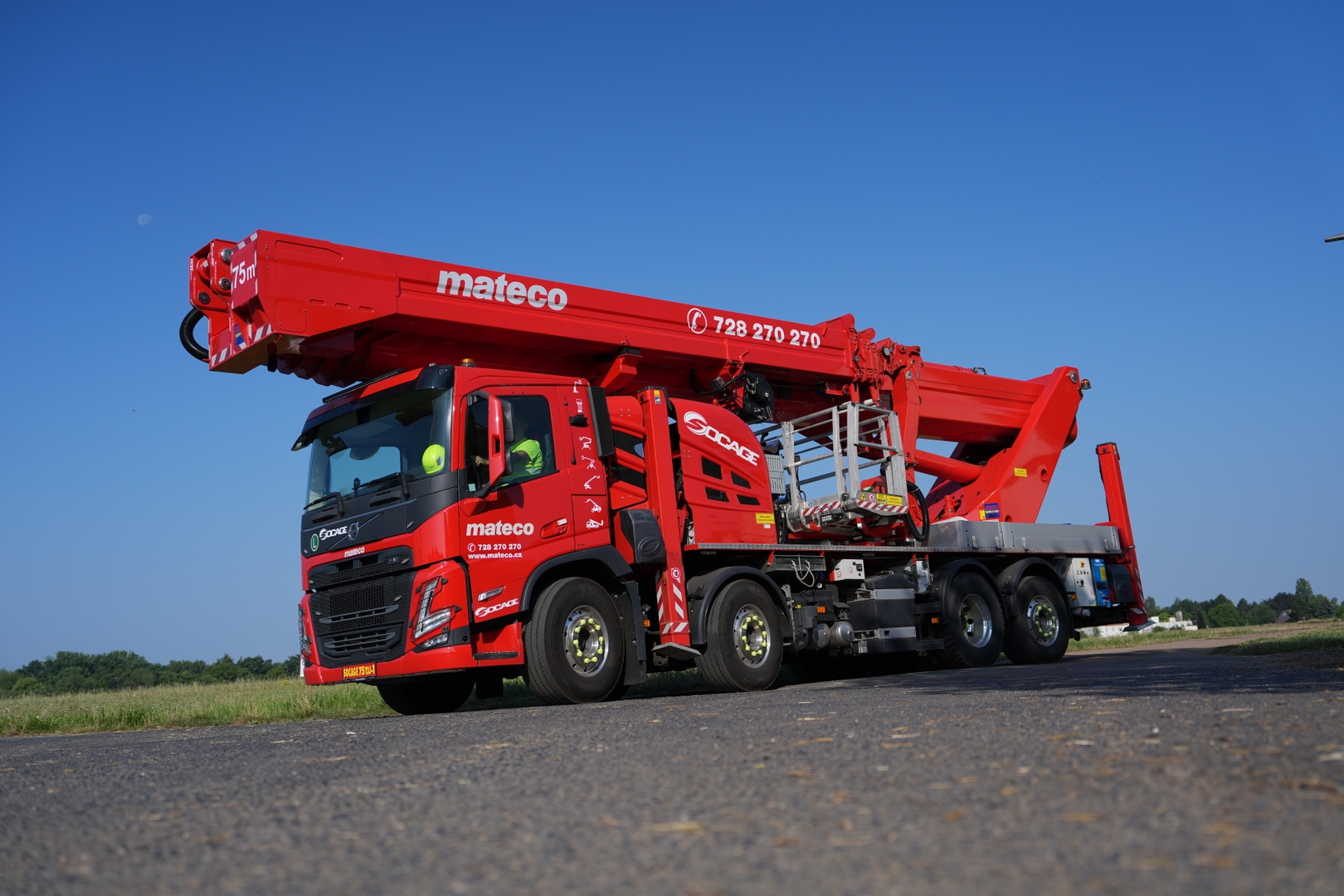

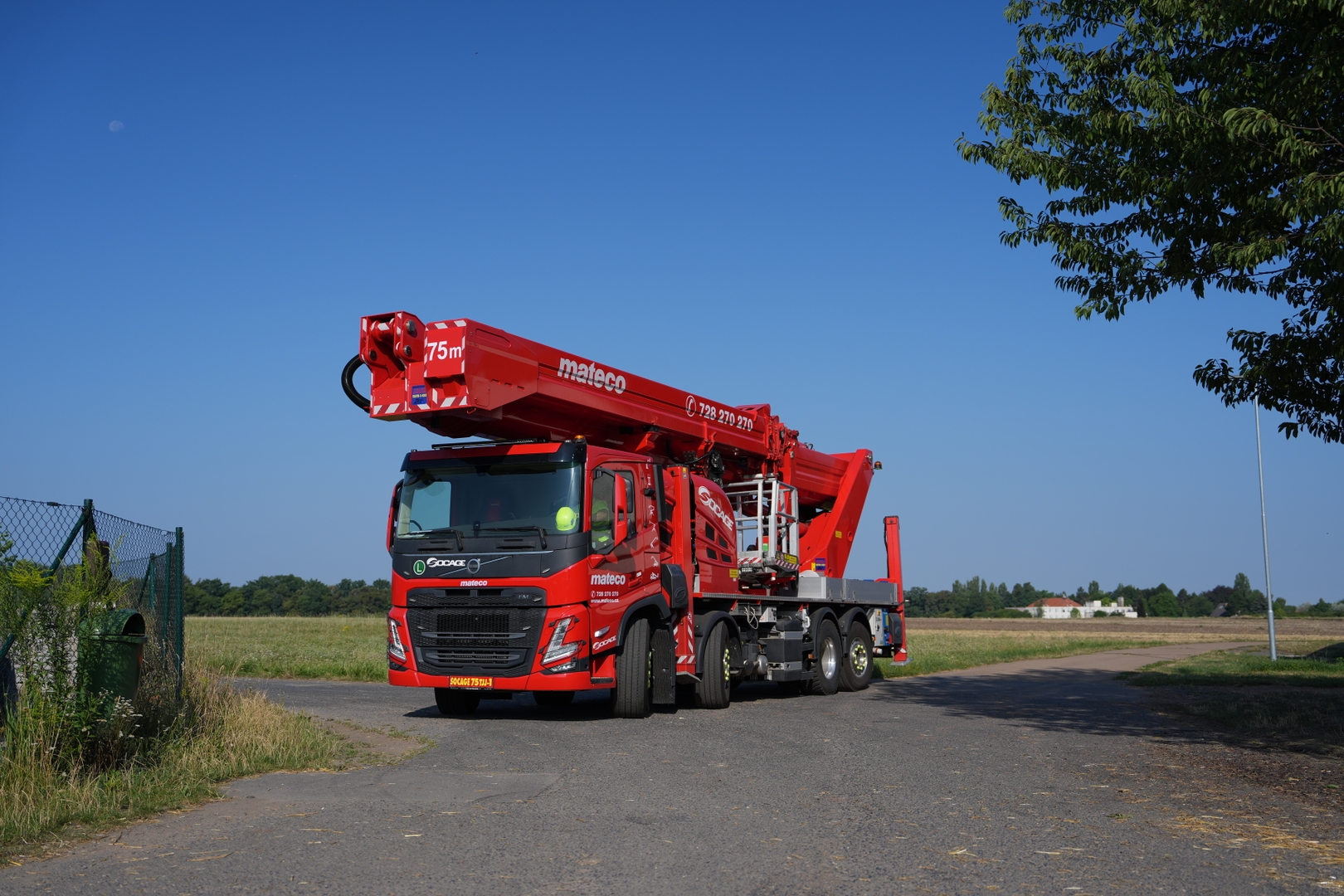

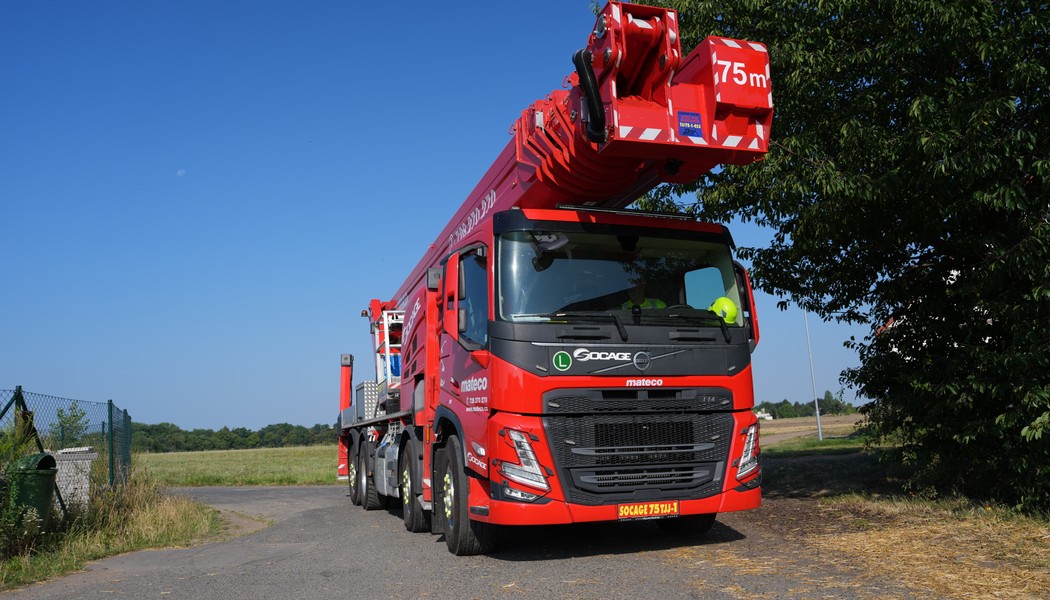

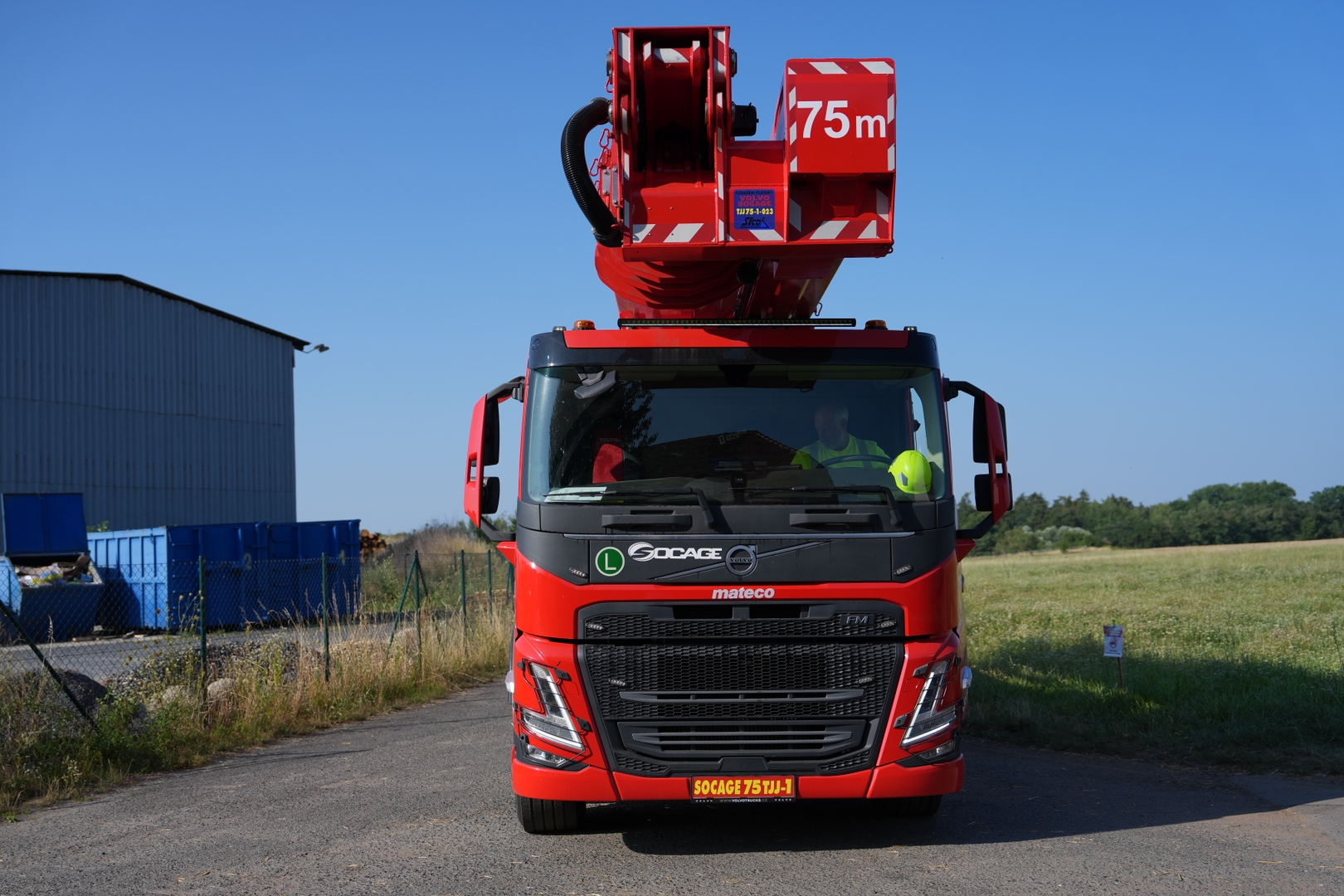

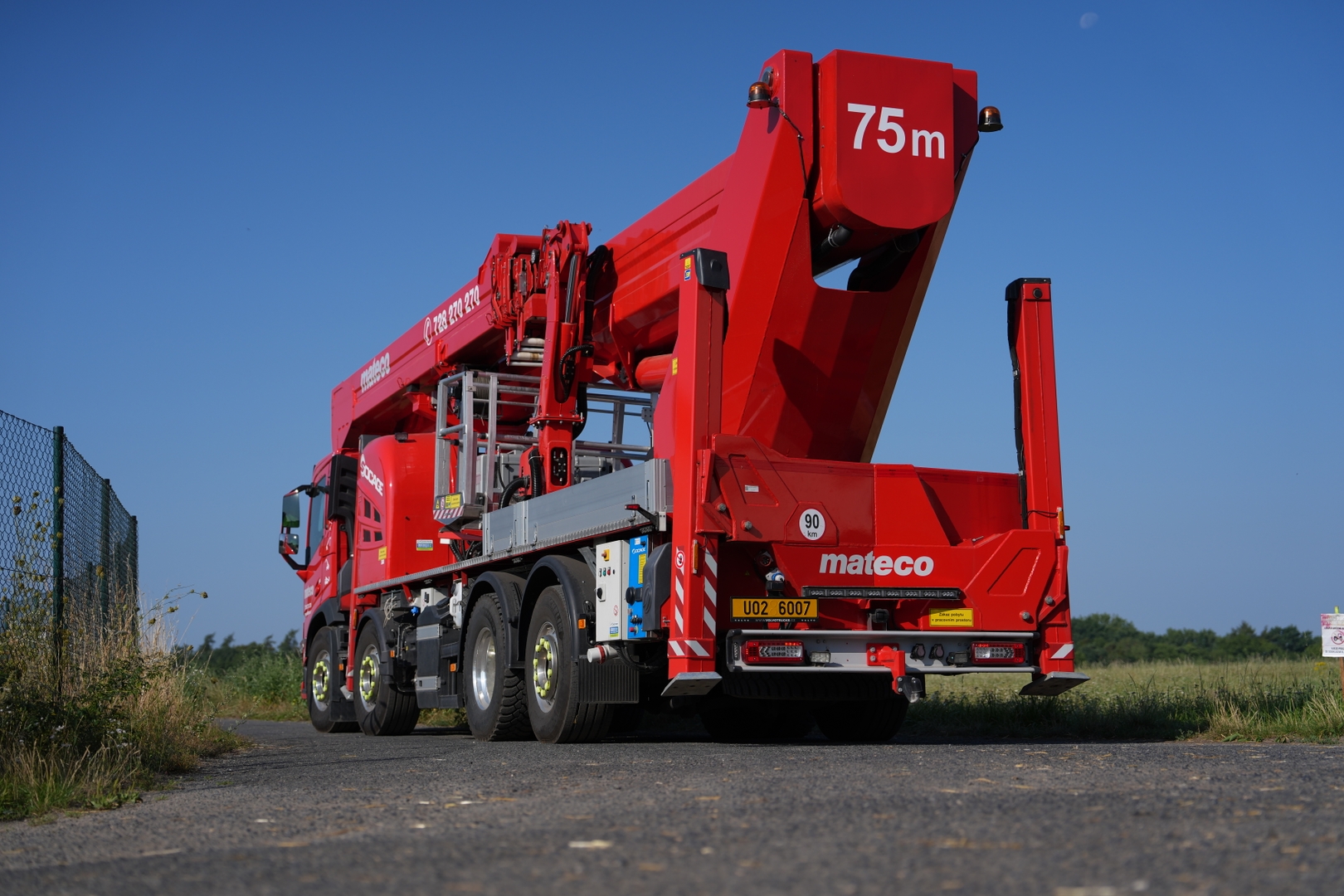

75TJJ VOLVO FM 500

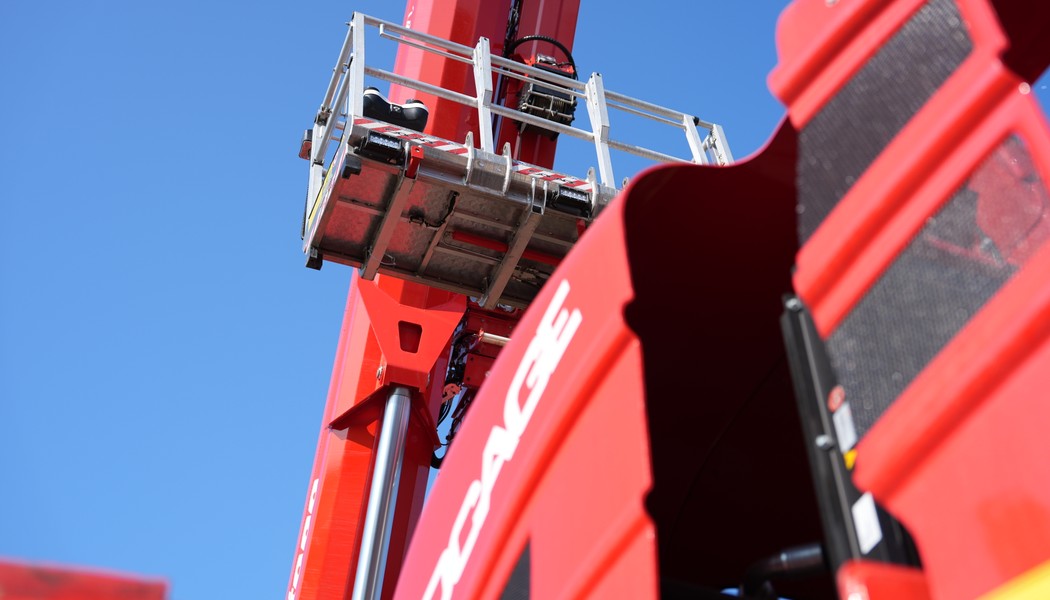

The 600 kg working basket capacity, extreme reach and multi-zone stabilization system make the Socage 75TJJ suitable for a wide range of applications from power grid maintenance work to building maintenance, film applications and bridge structure rehabilitation.
Preliminary presentation, exact technical info and photos soon. We expect to be operational during 04/2025.

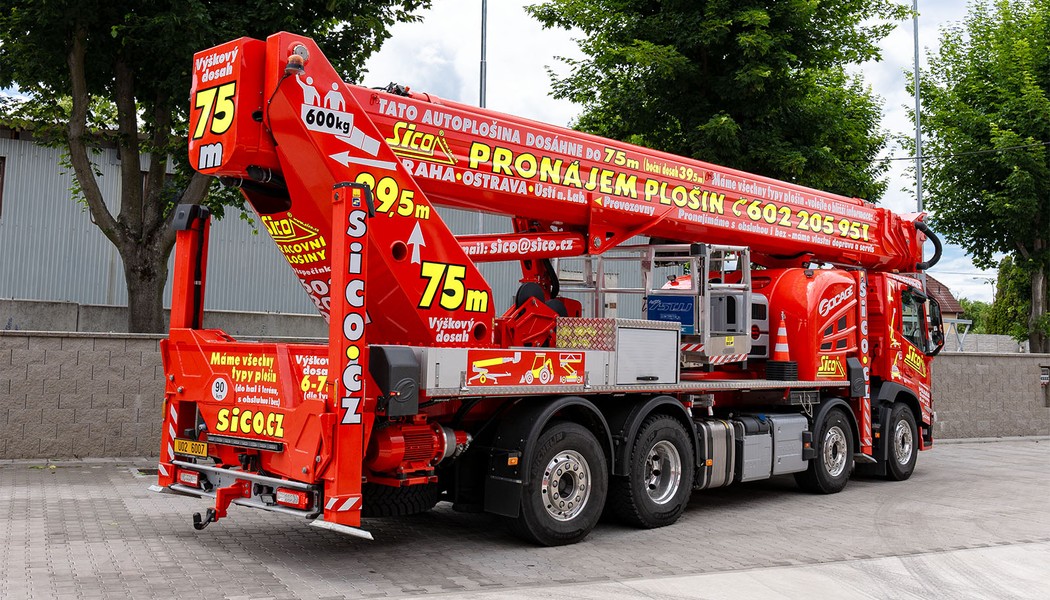

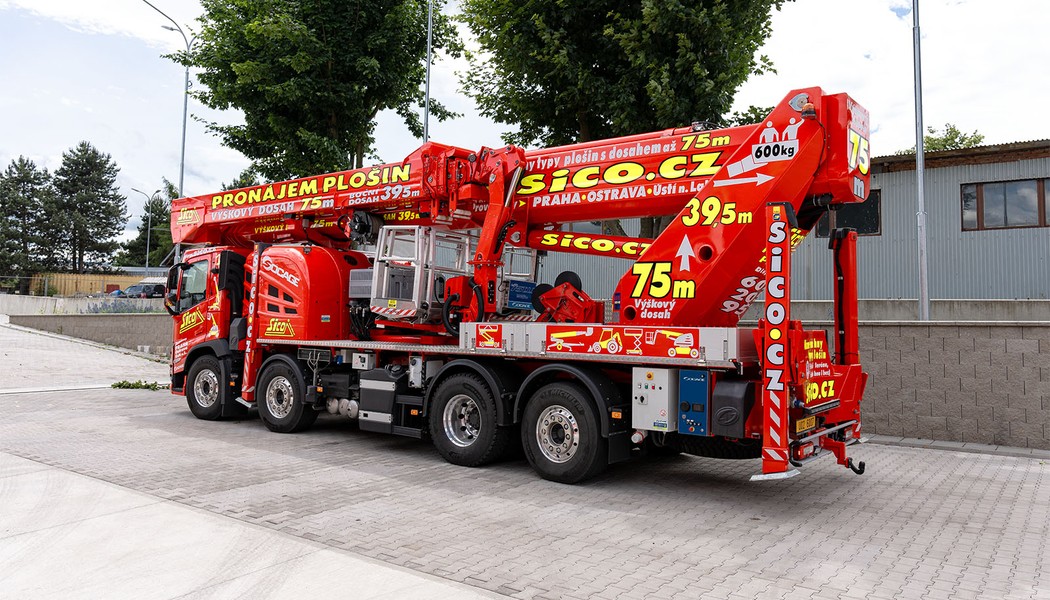

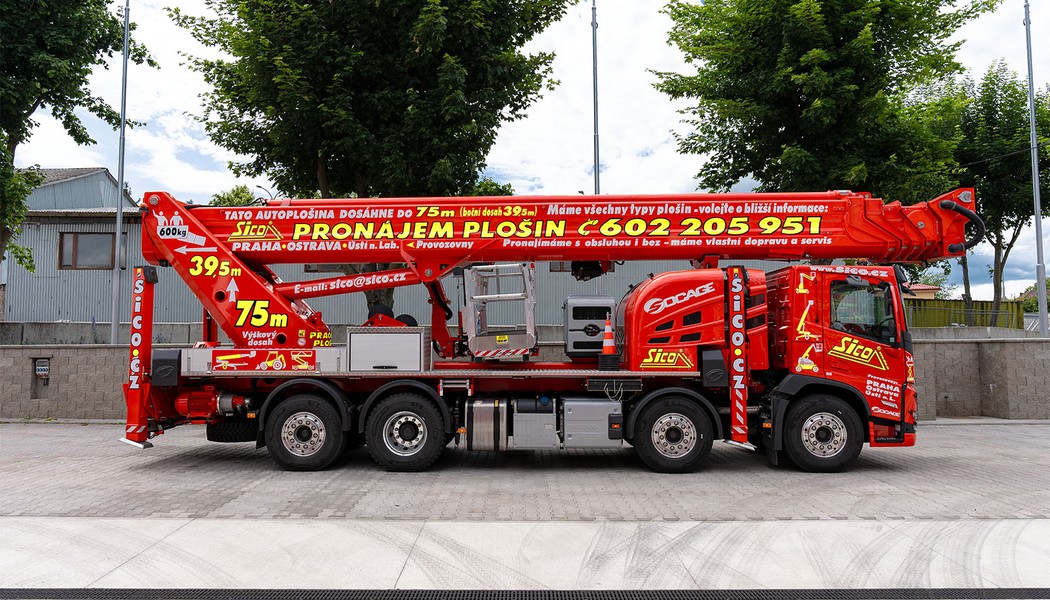

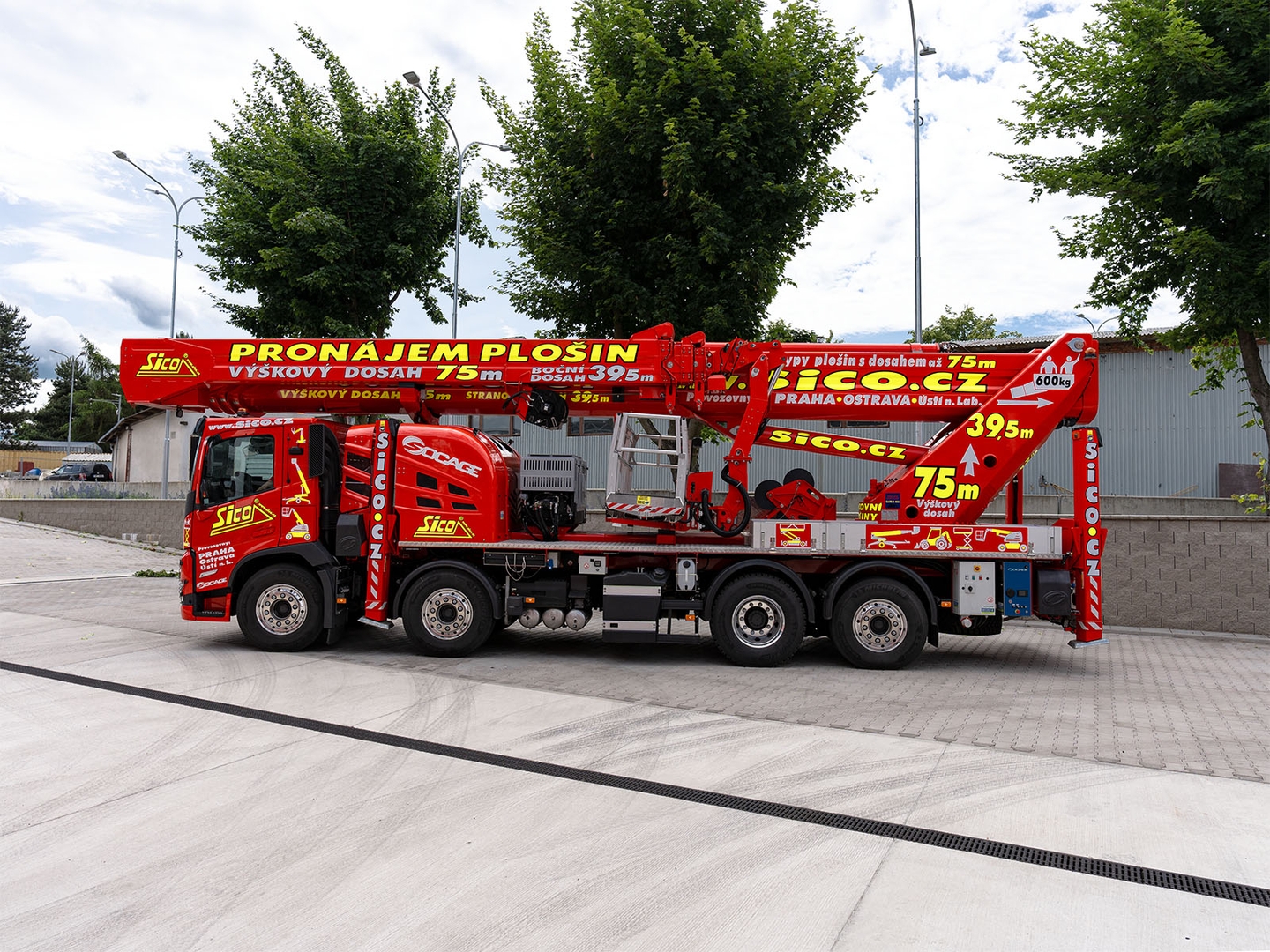

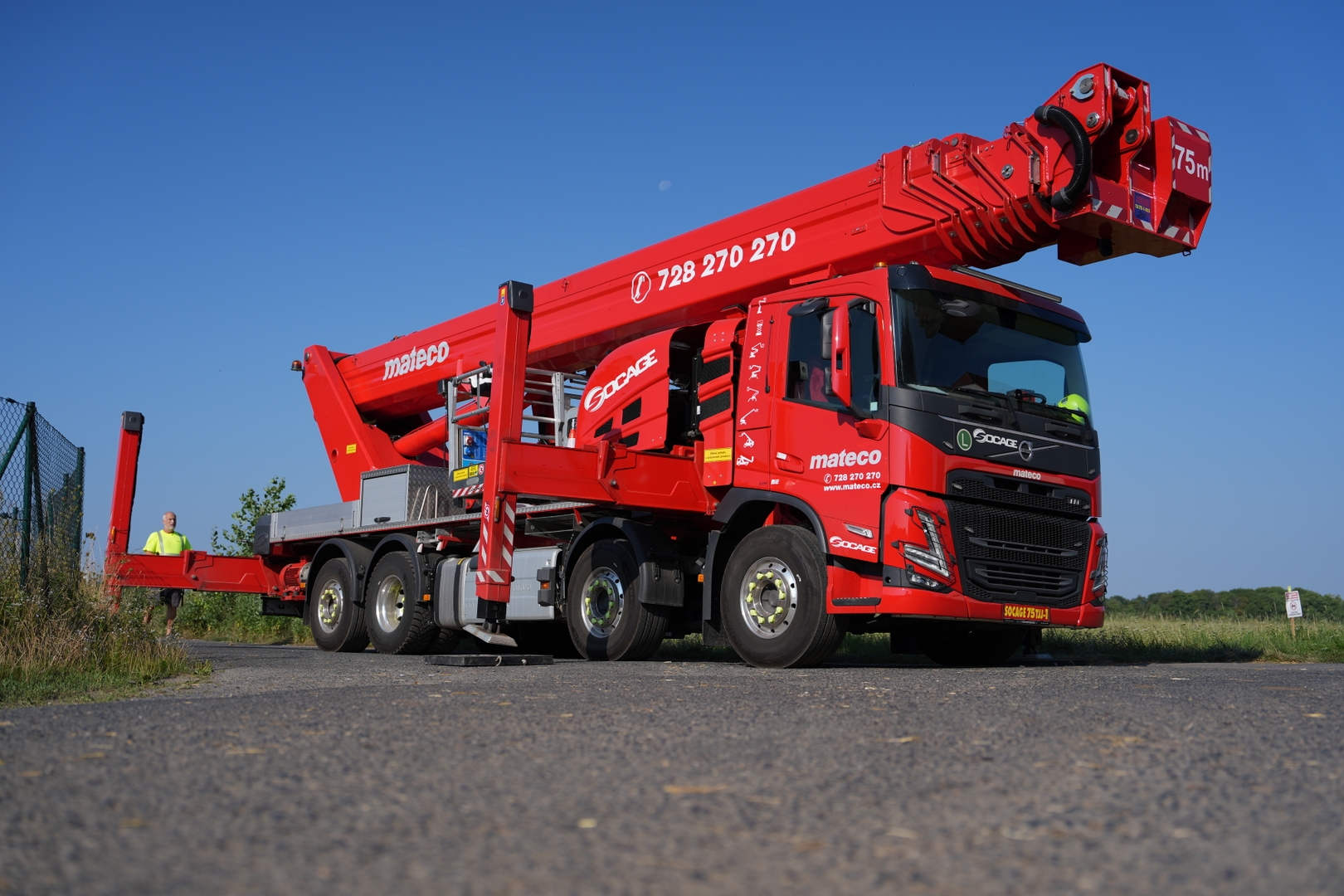

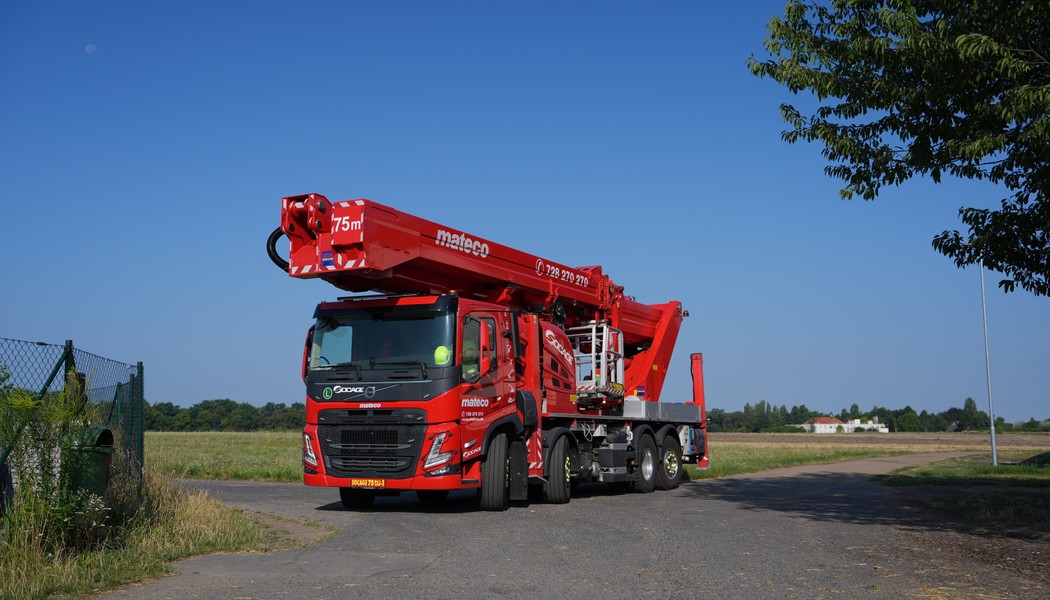

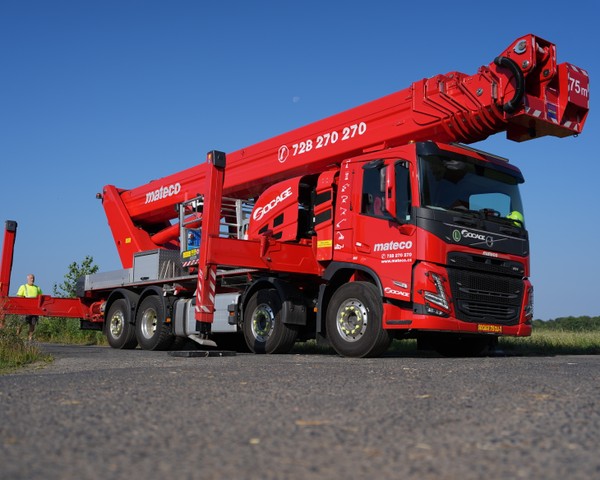

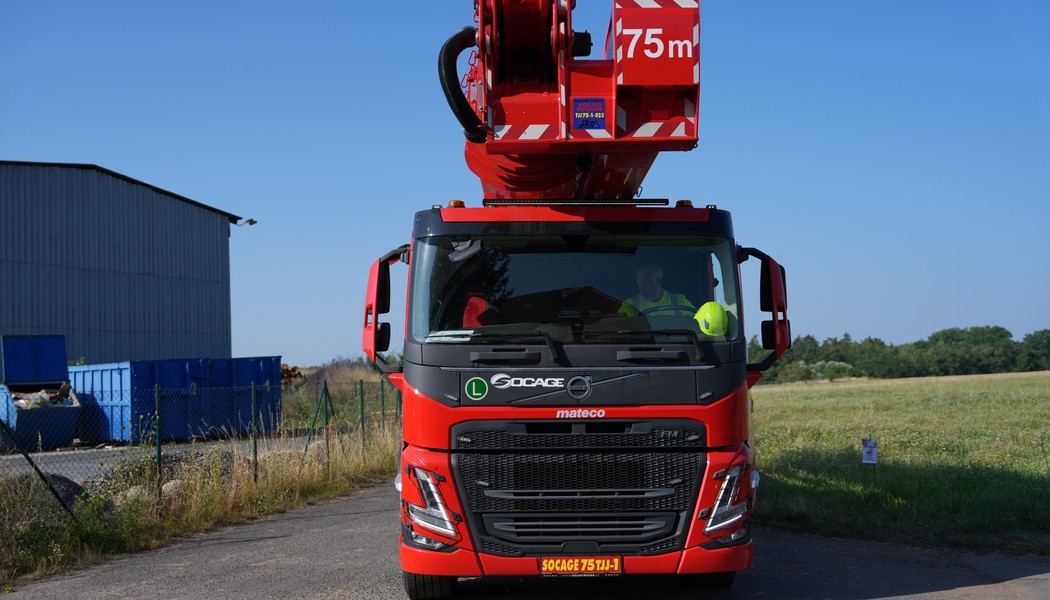

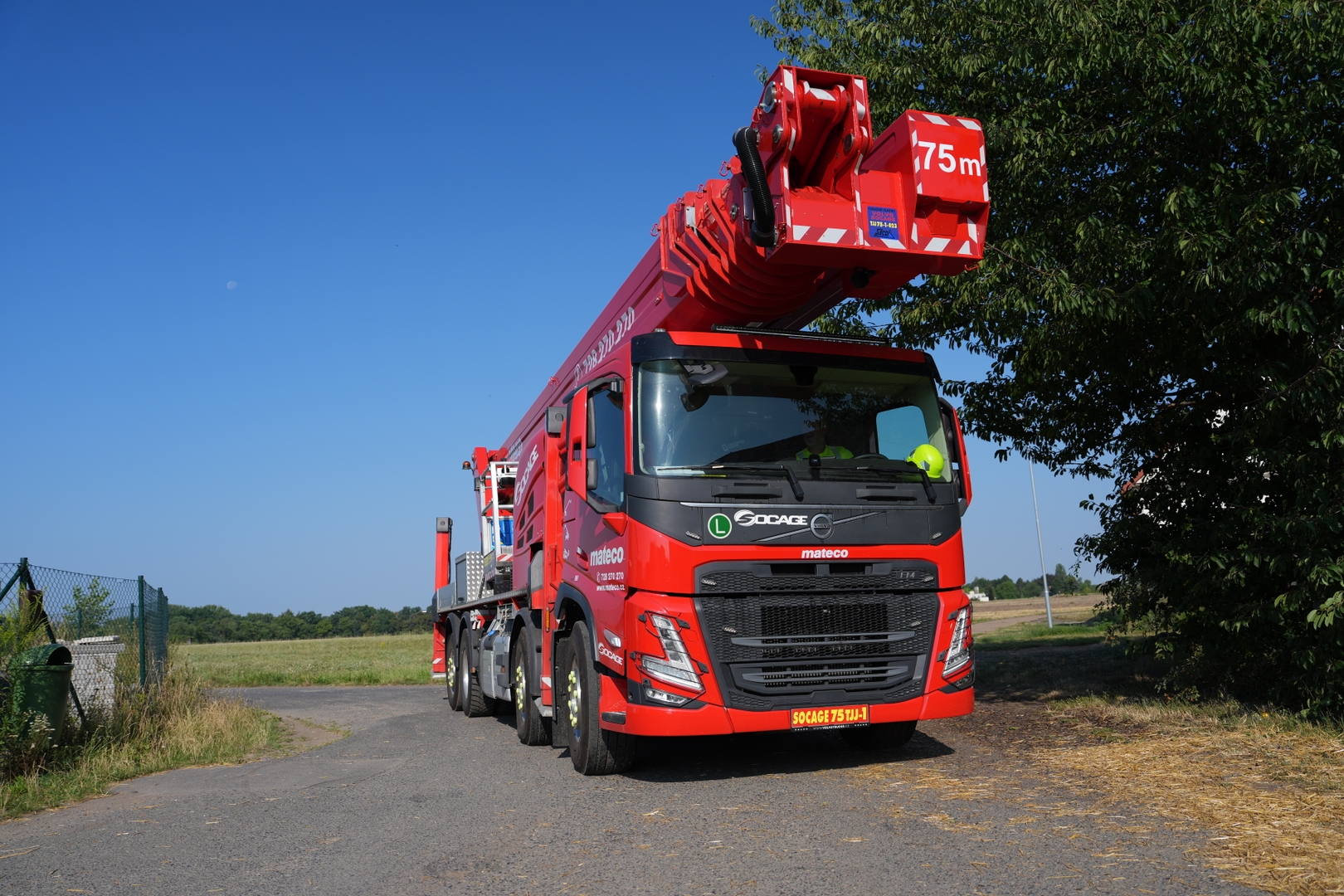

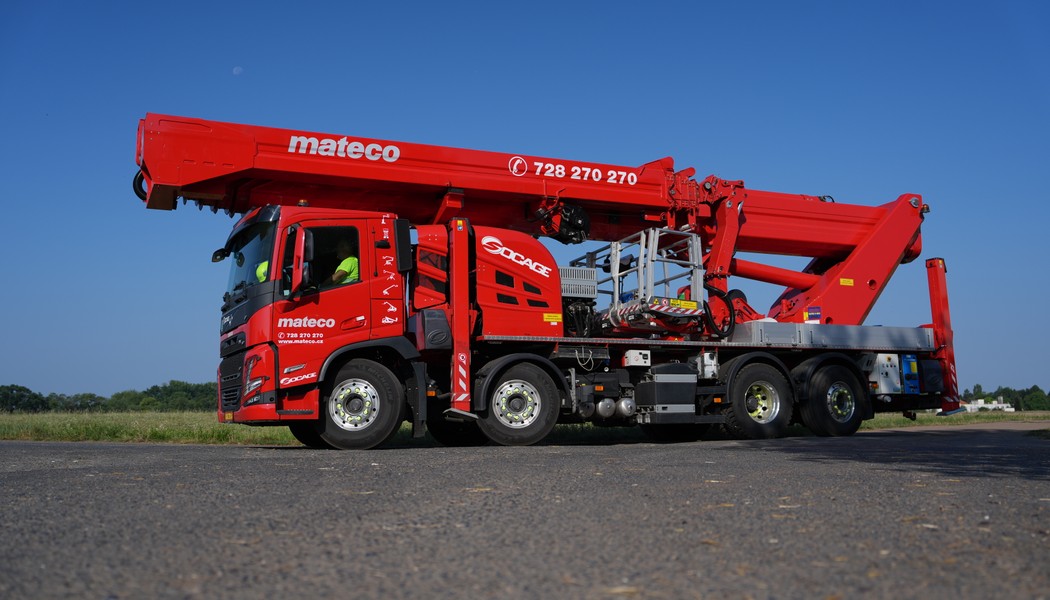

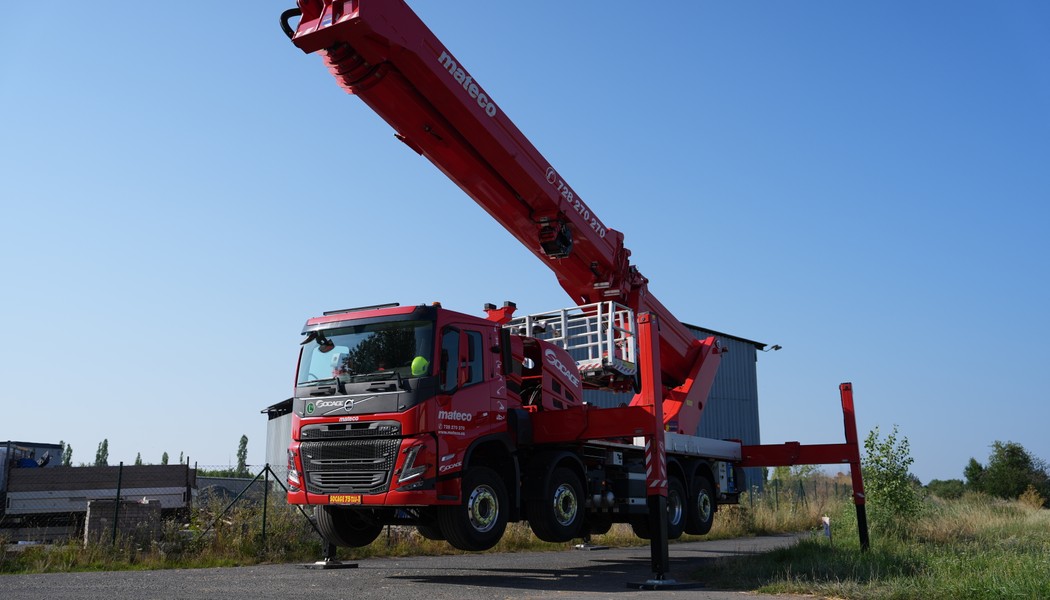

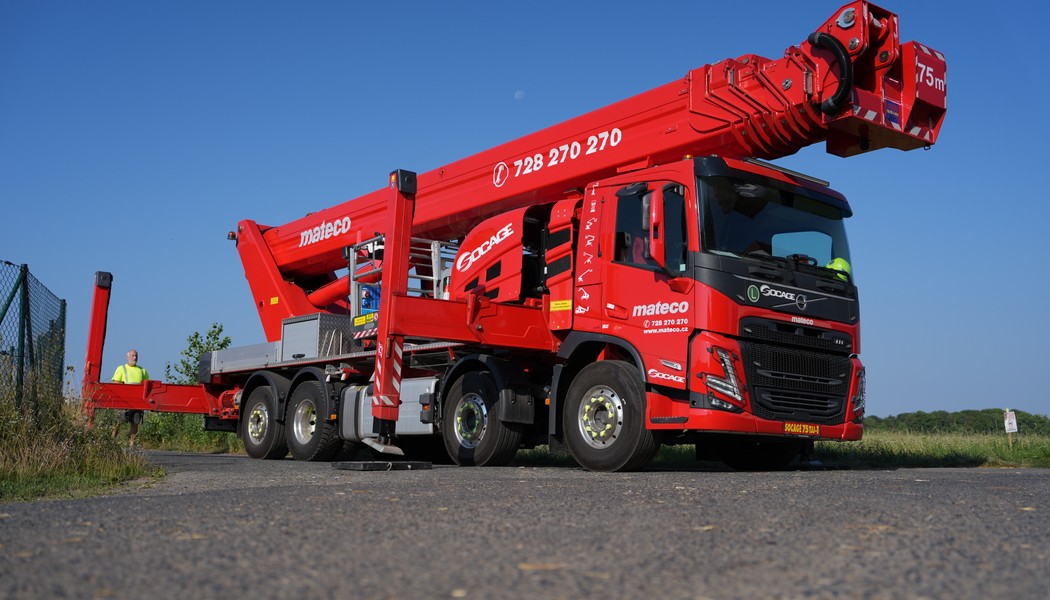

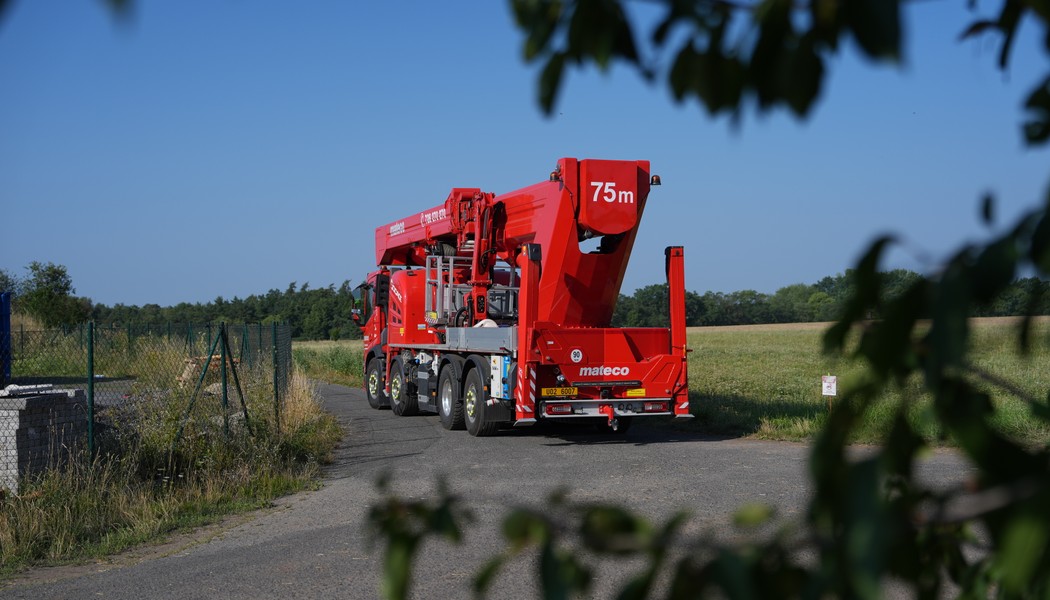

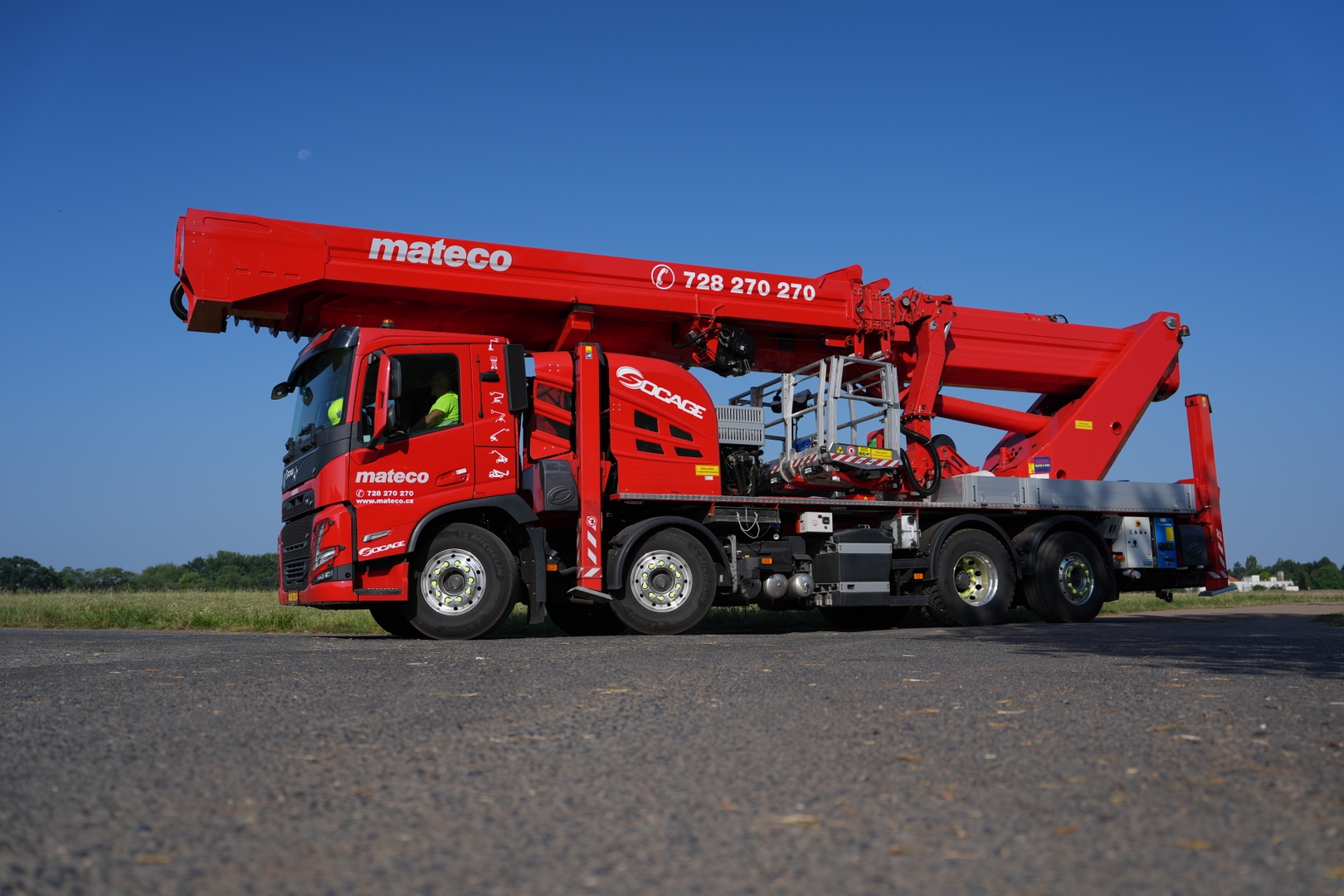

Socage 75TJJ - the ultimate performance car platform

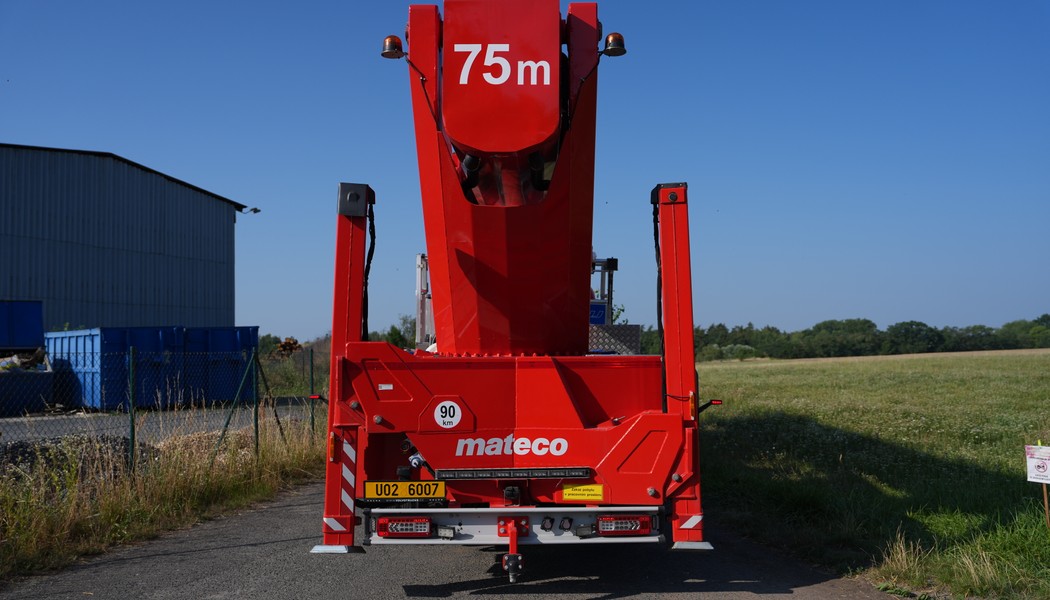

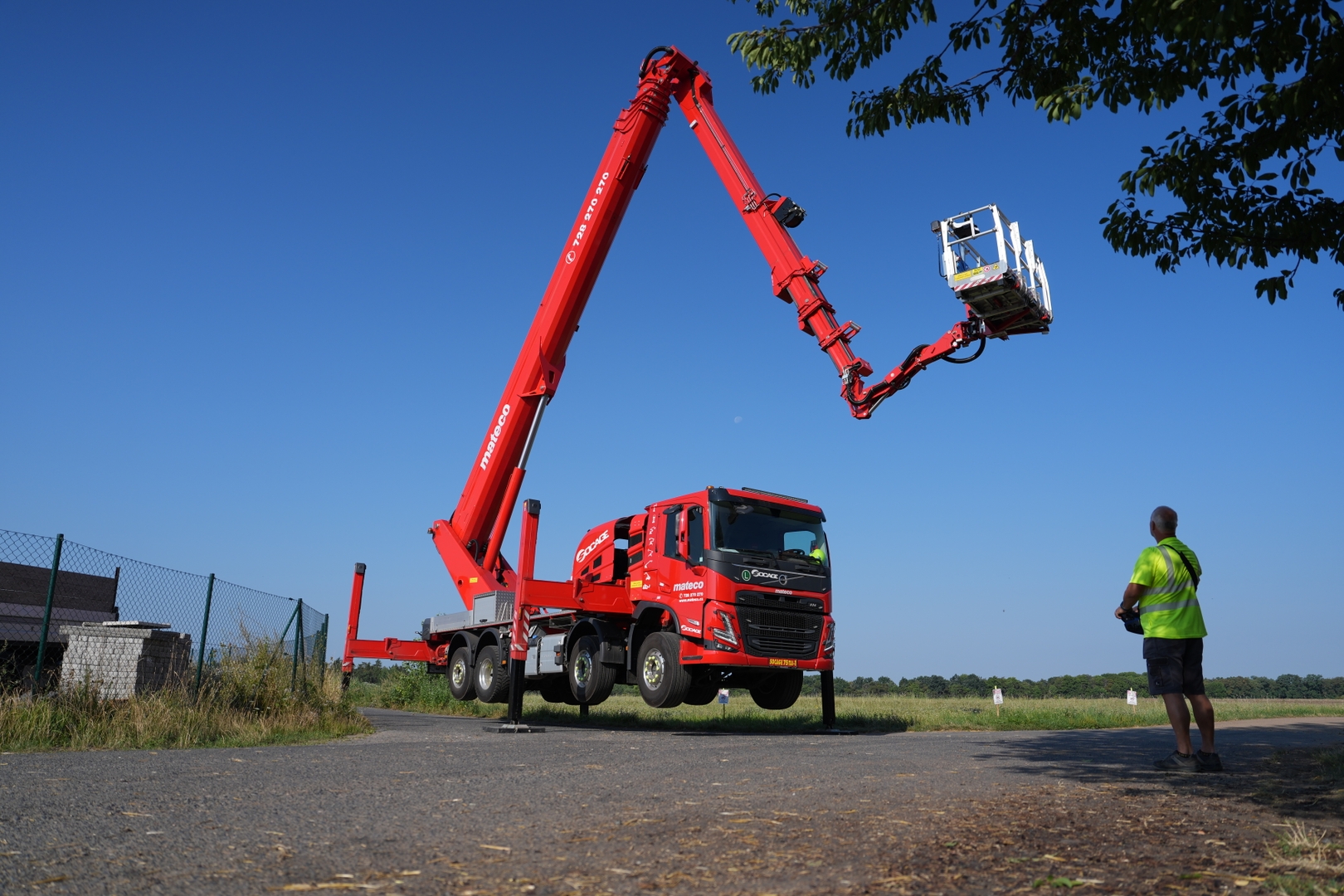

- 74.5 m max. working height
- 39.5 m lateral reach (100 kg in basket), 28 m lateral reach (600 kg in basket)
- 16 m range below ground level

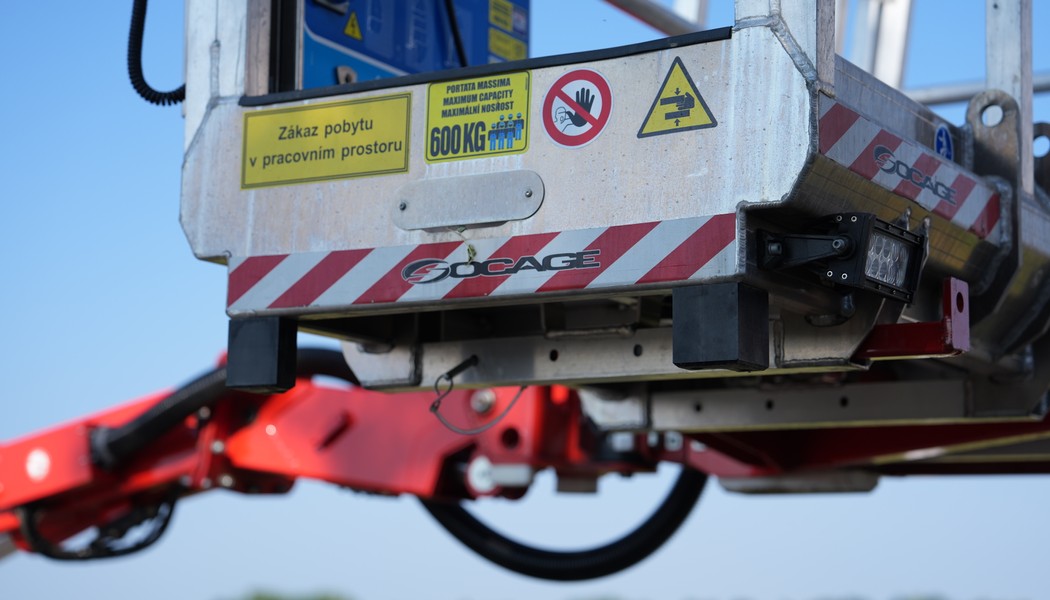

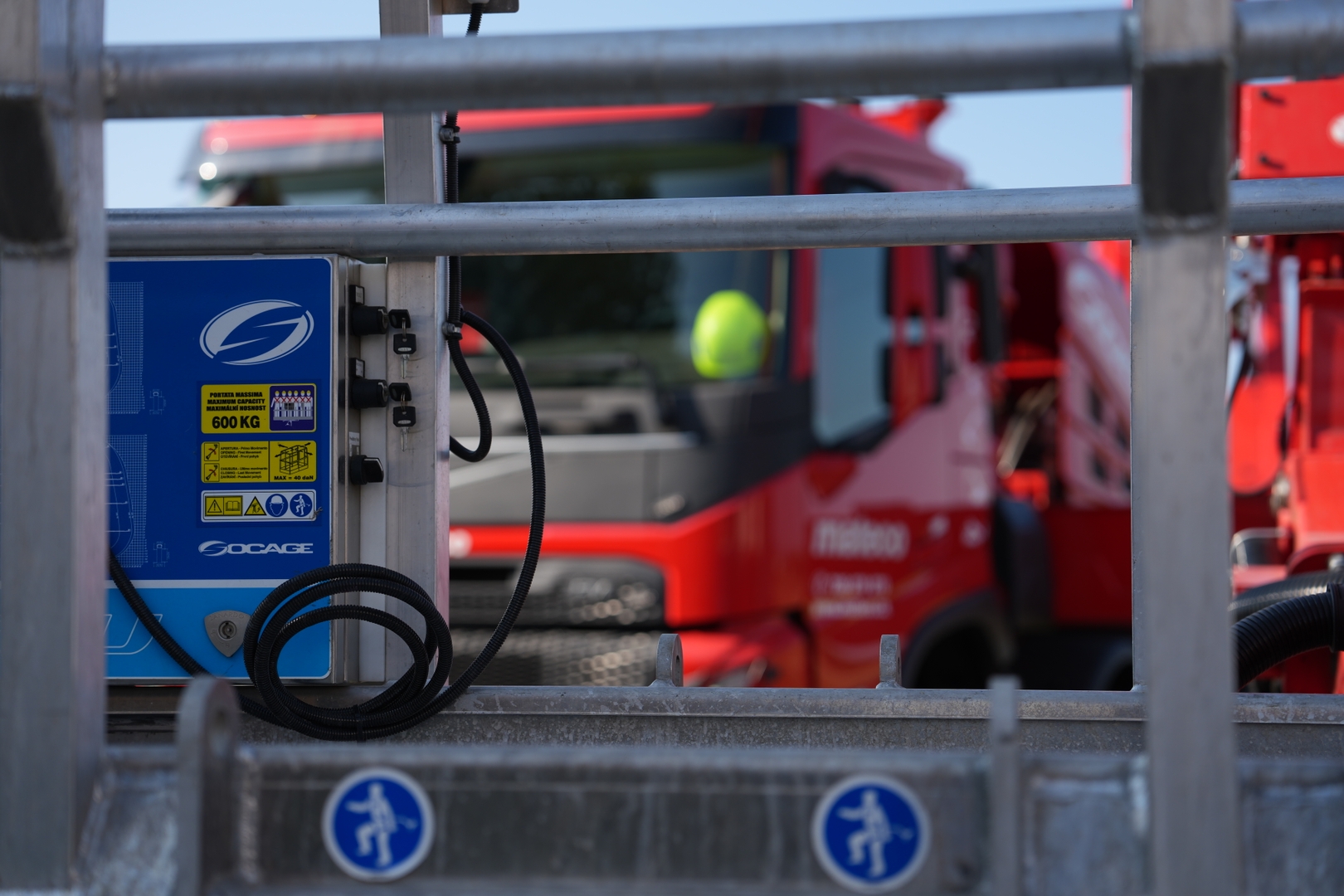

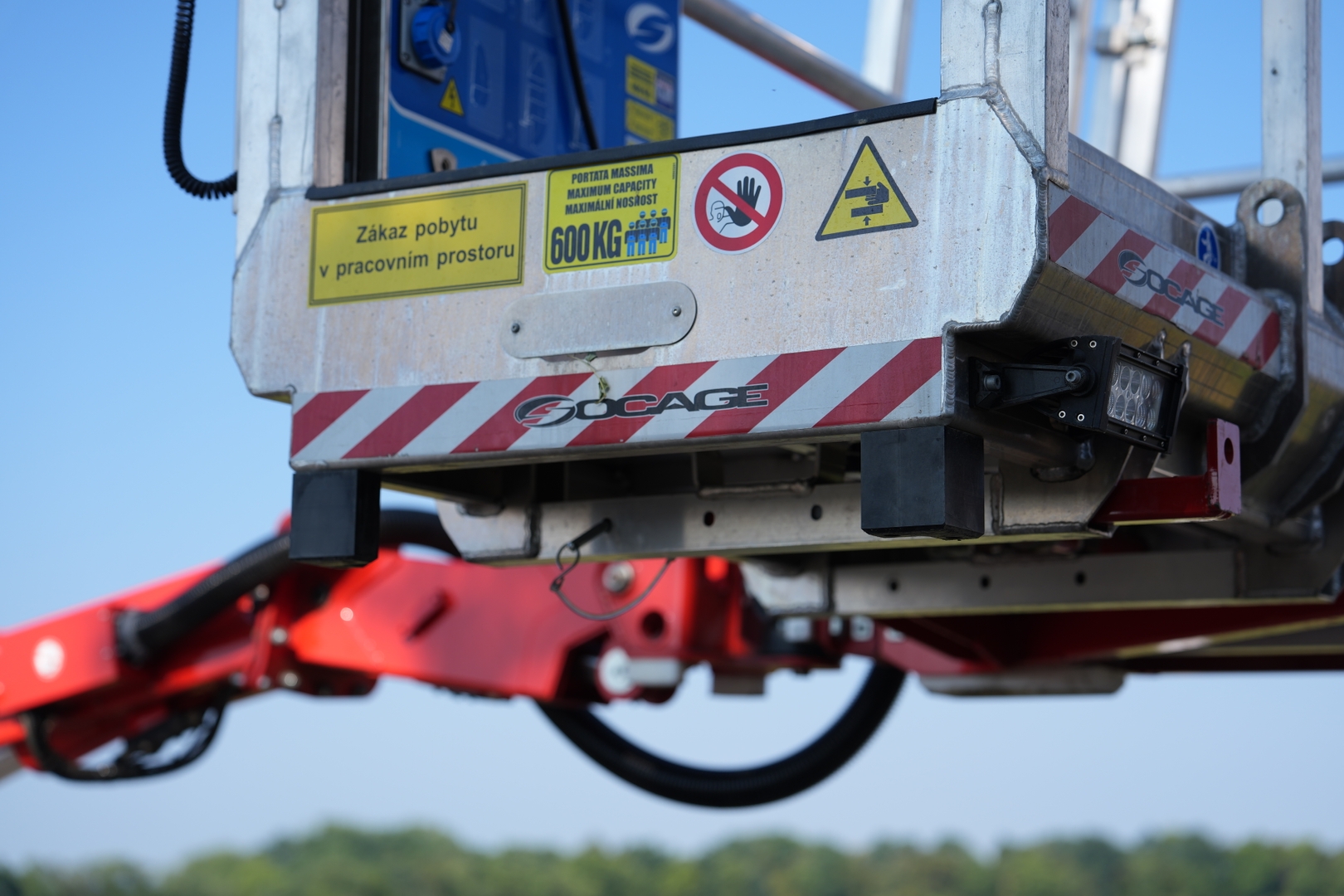

- basket capacity up to 600 kg

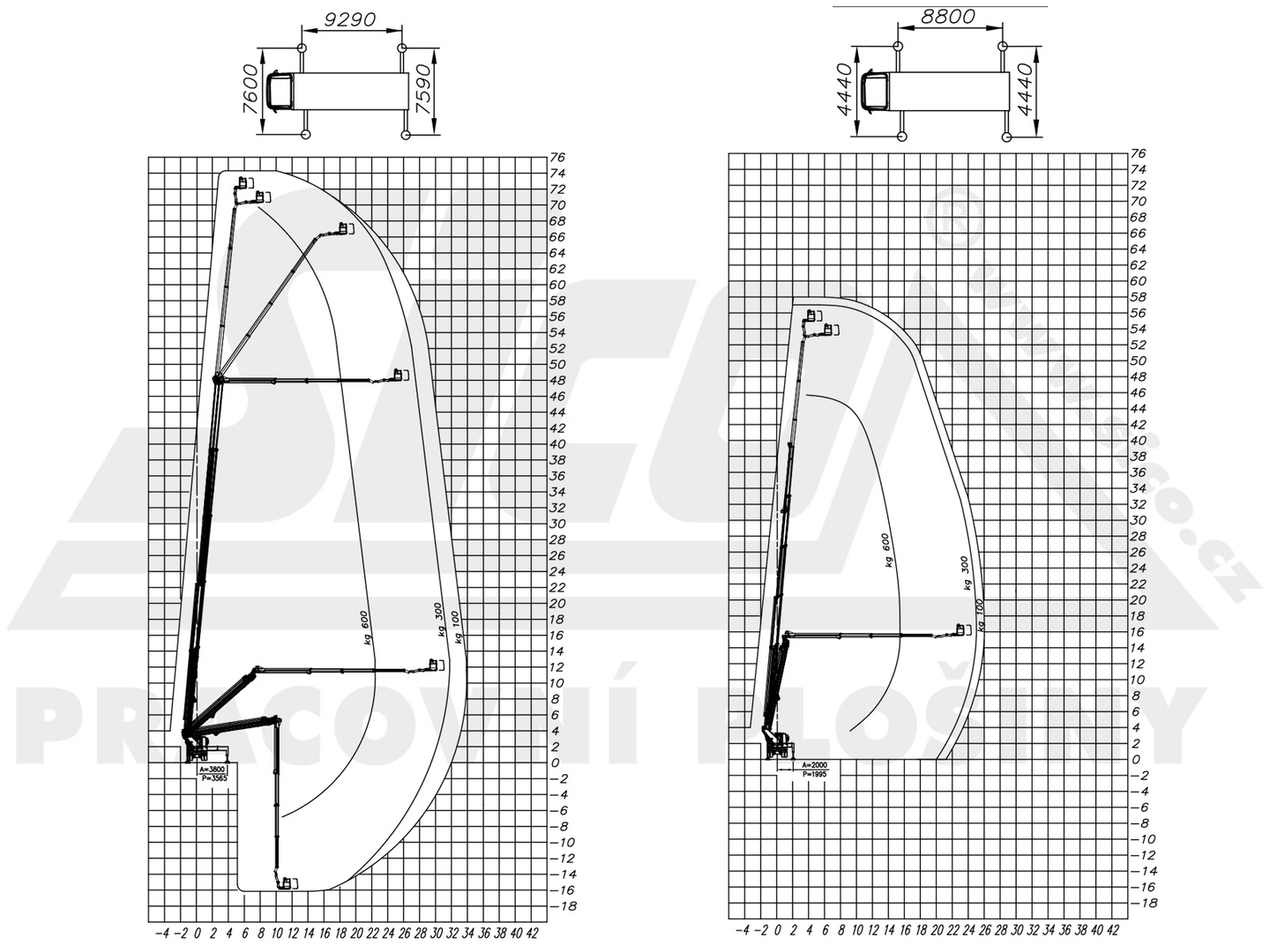

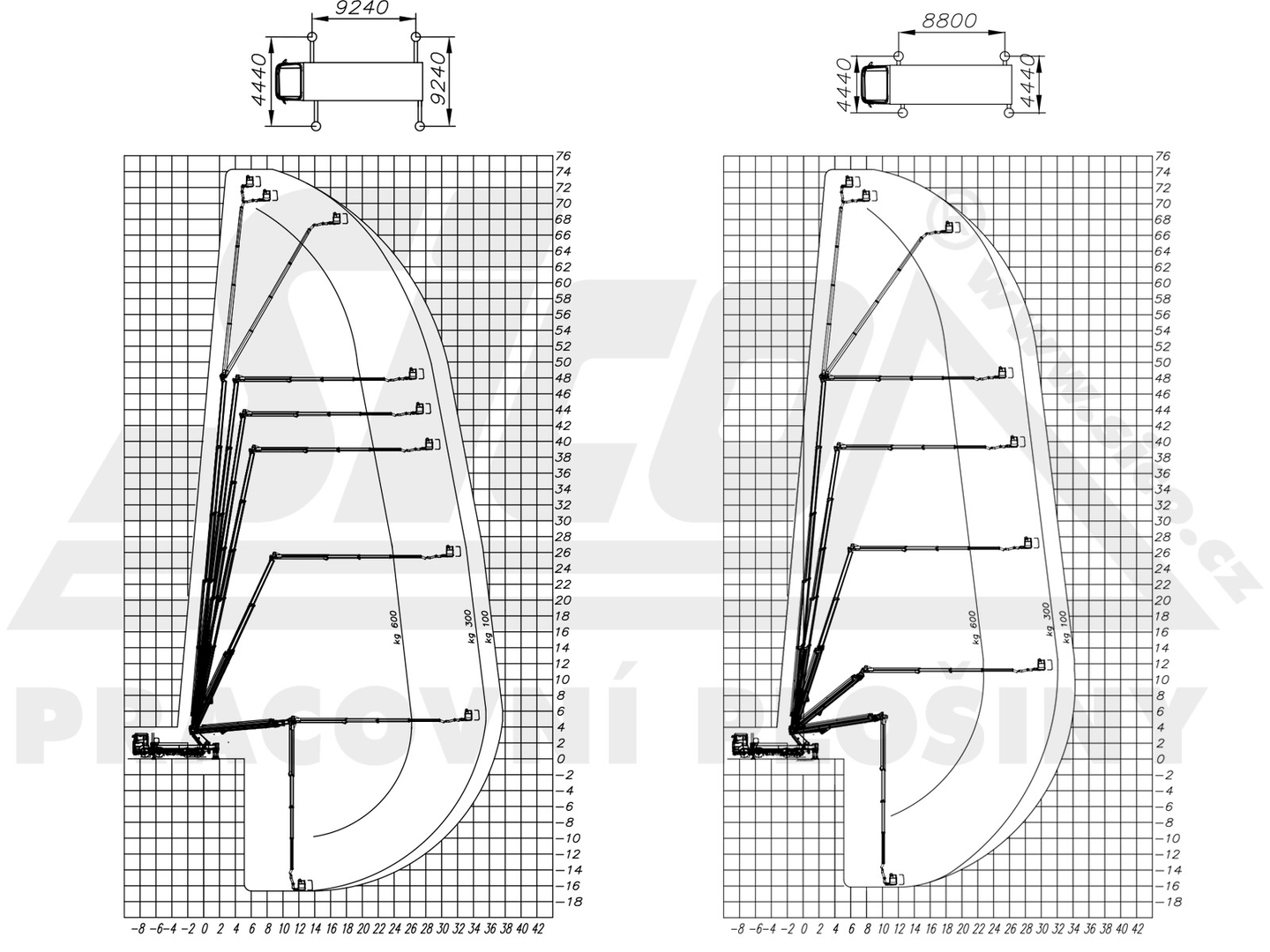

Refer to the working diagrams for specific reach, load capacity and support extension rates.

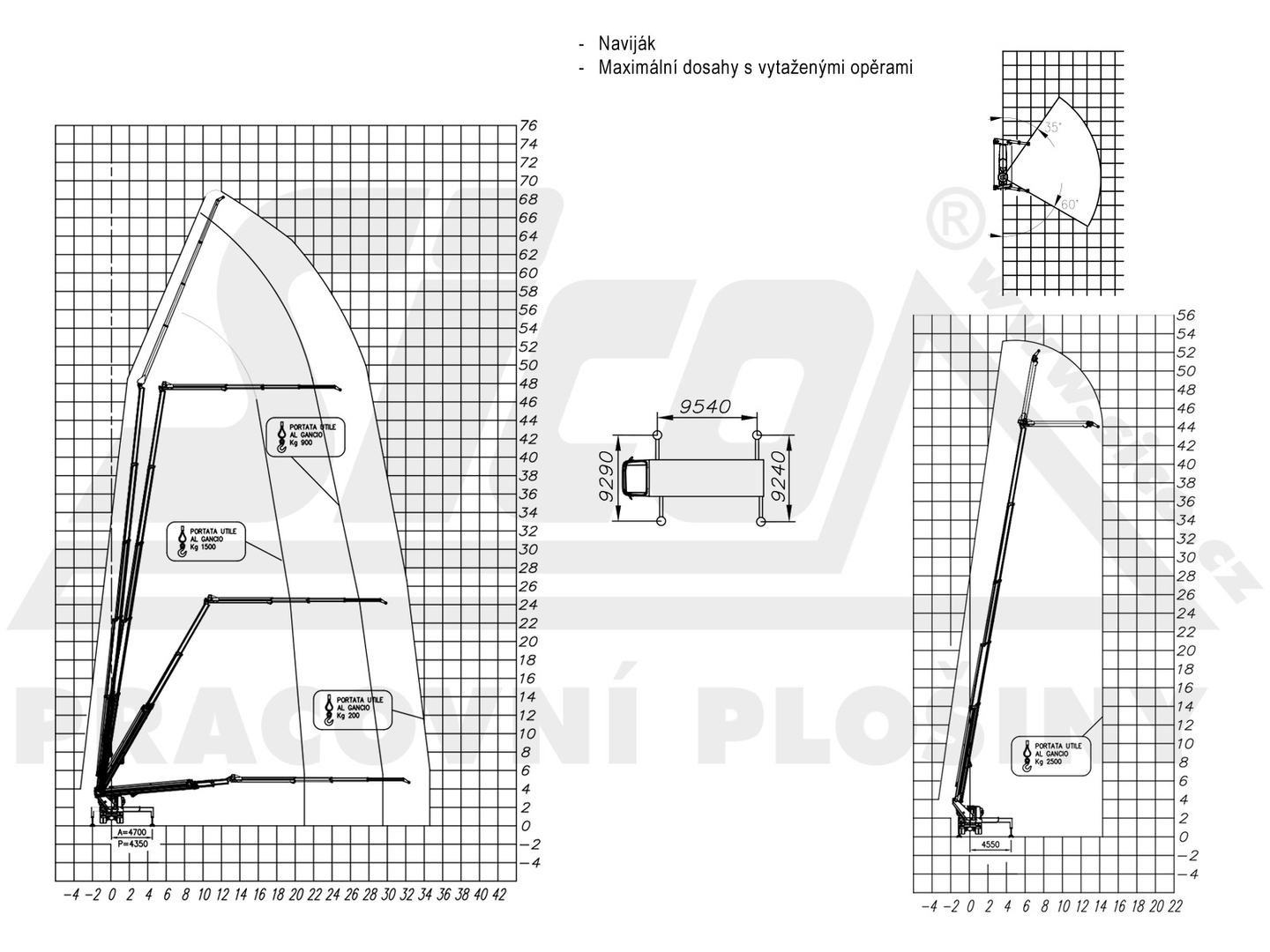

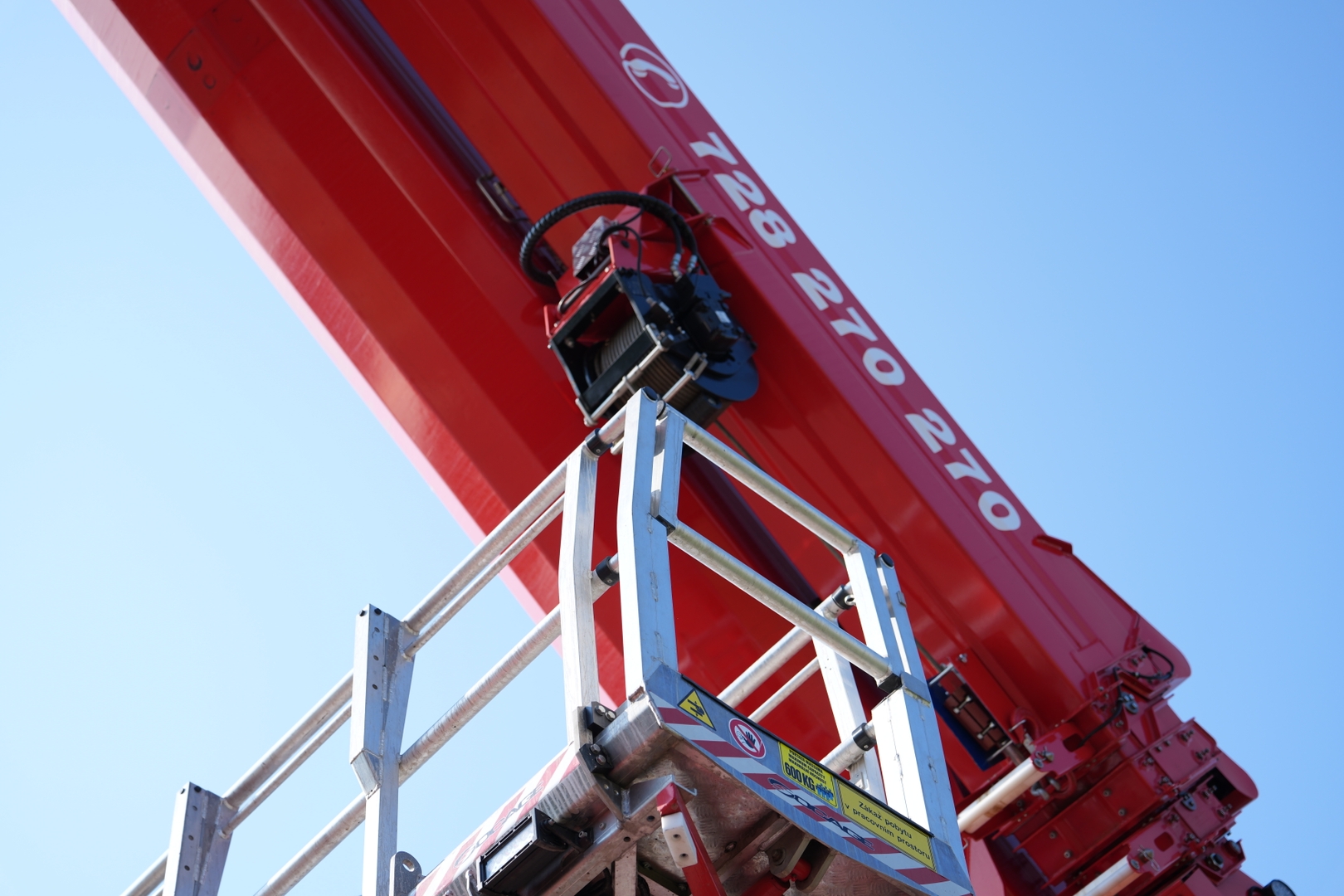

The Socage 75TJJ is a crane with a winch
- load capacity 2,5 t
- range 14+ m, height 44 m (max. height 52 m, limited lateral range)
- load capacity 1,5 t
- range up to 21 m, height up to 56 m
- load capacity 0,9 t
- range up to 29.5 m, height up to 66,5 m
- load capacity 0,2 t
- range up to 34.5 m, height up to 68 m

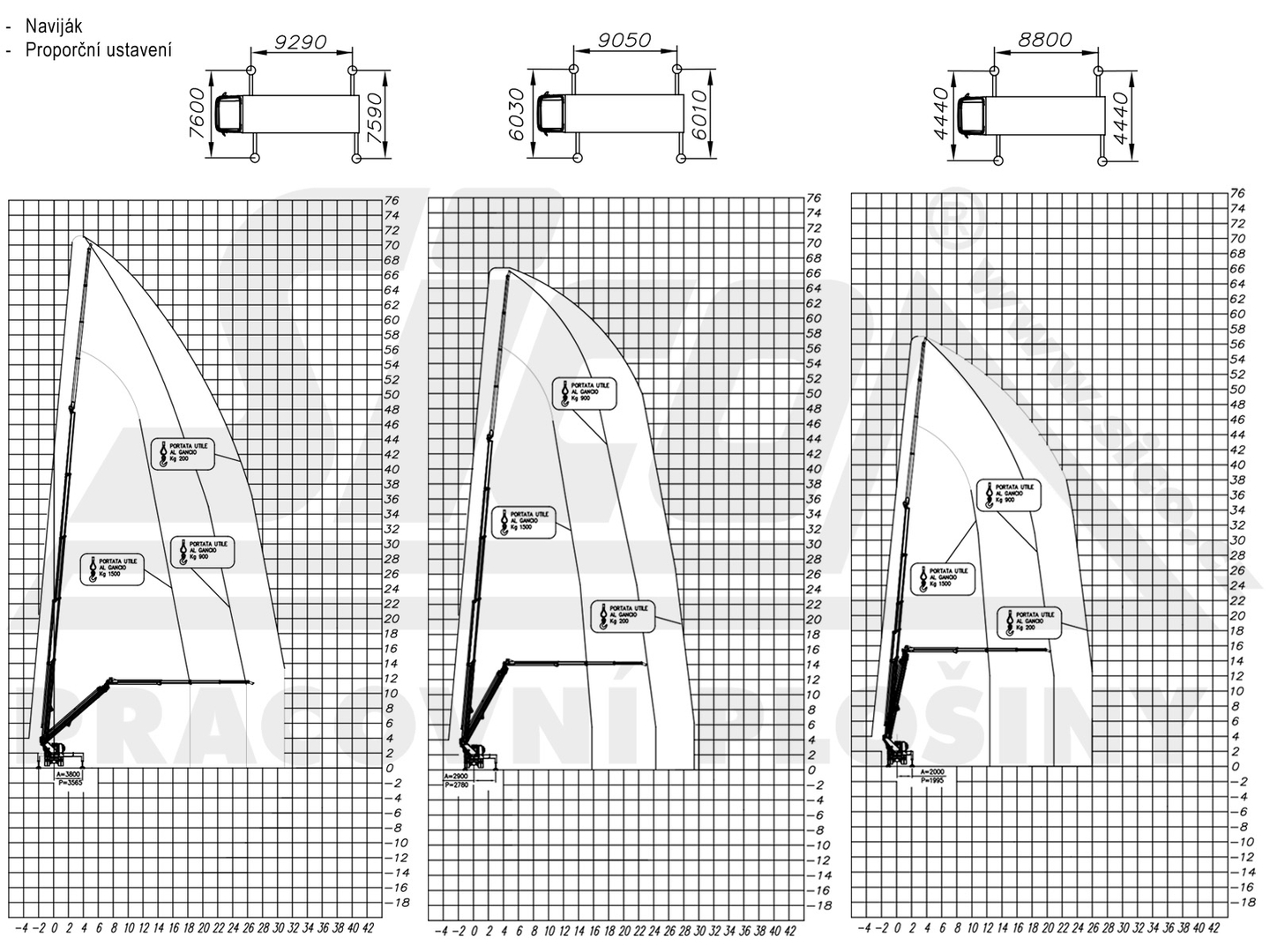

The data listed are using the maximum width of the machine. Refer to the working diagrams for specific reach, load capacity and support extension rates.

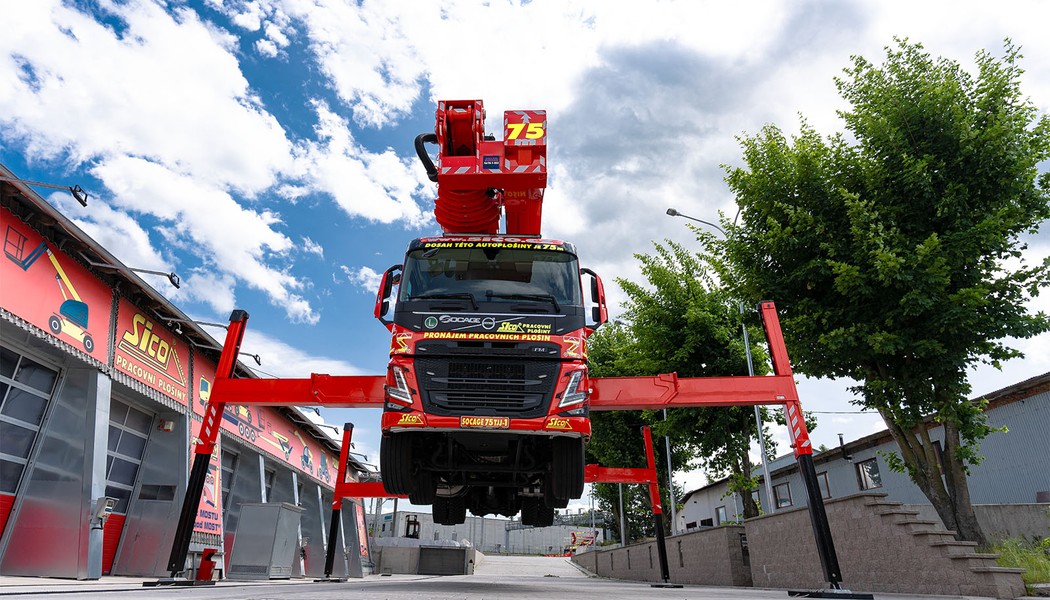

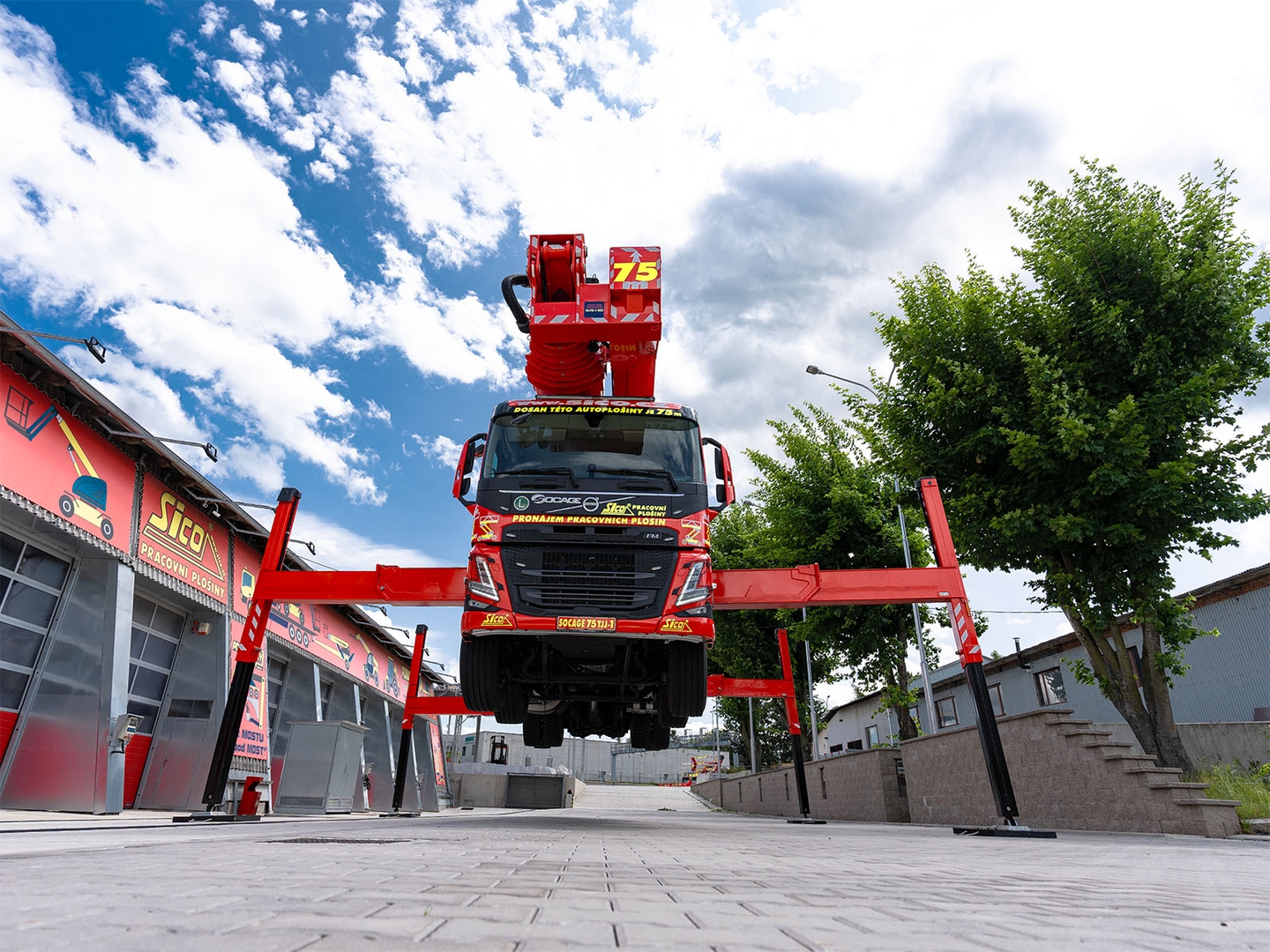

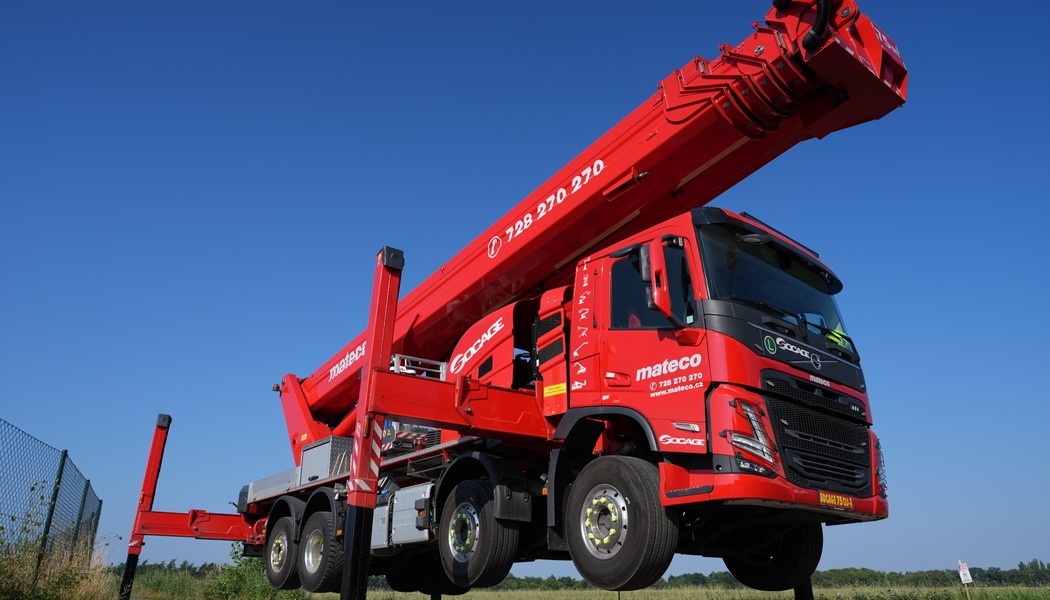

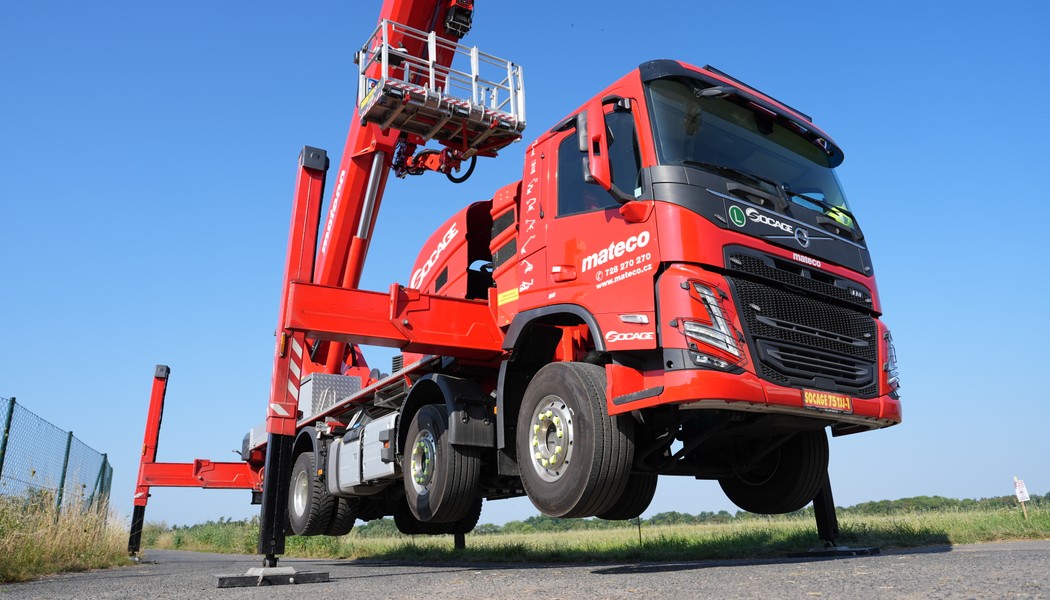

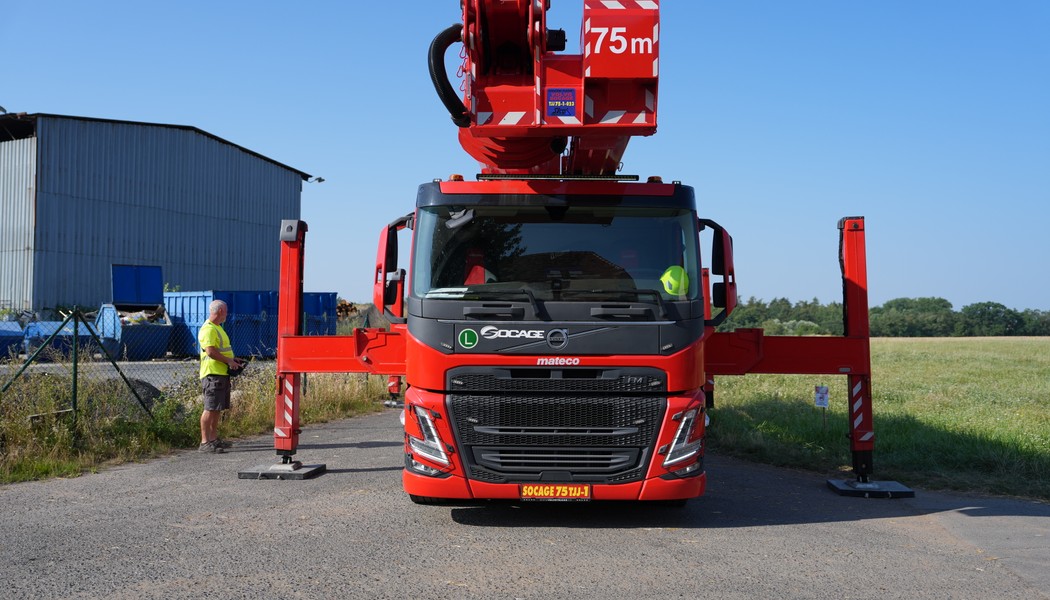

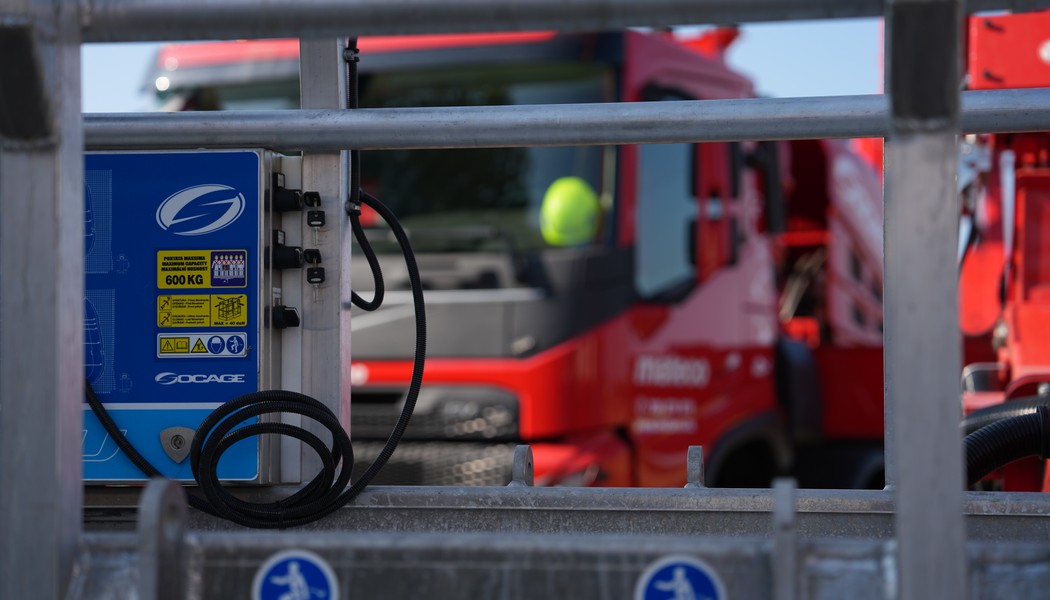

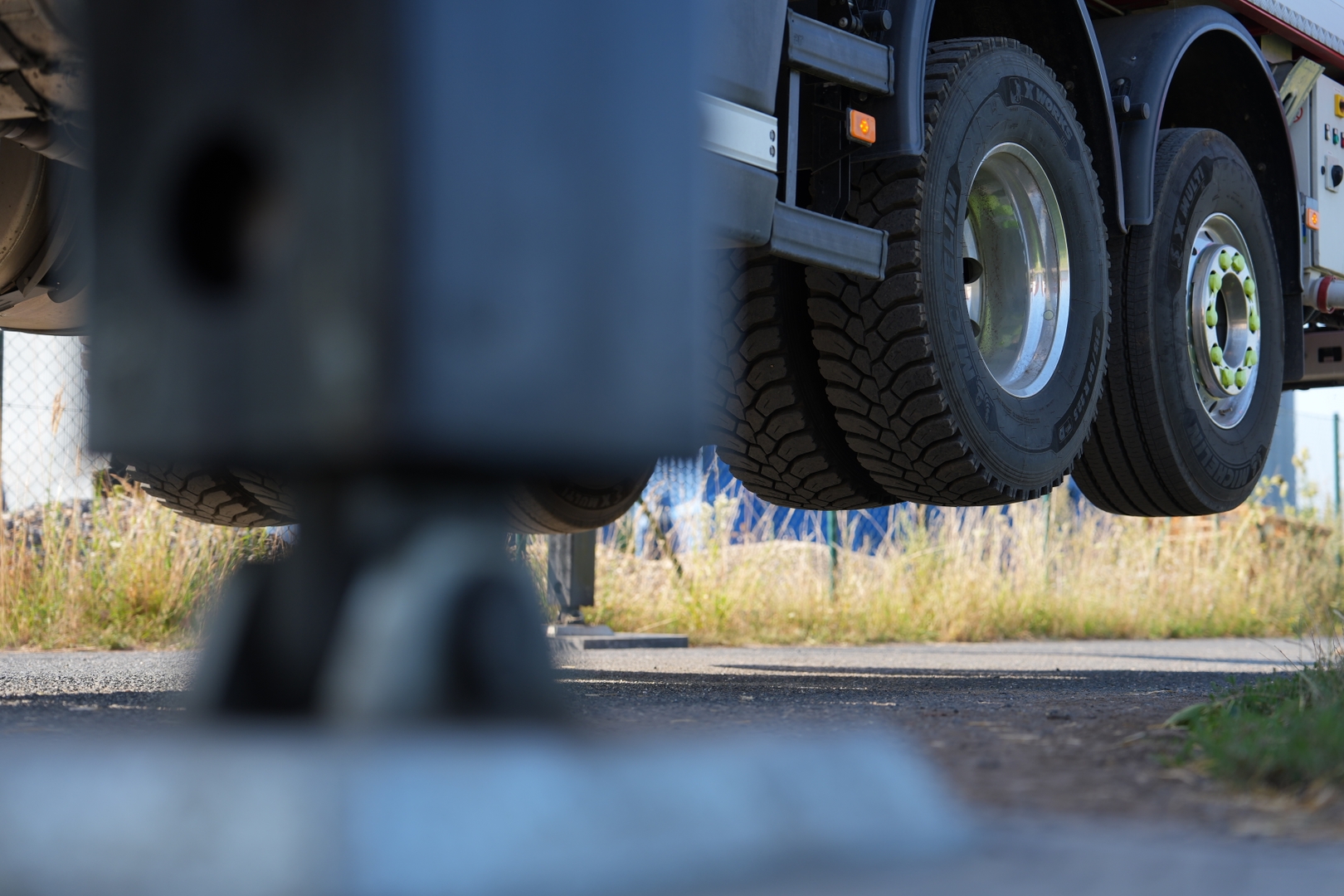

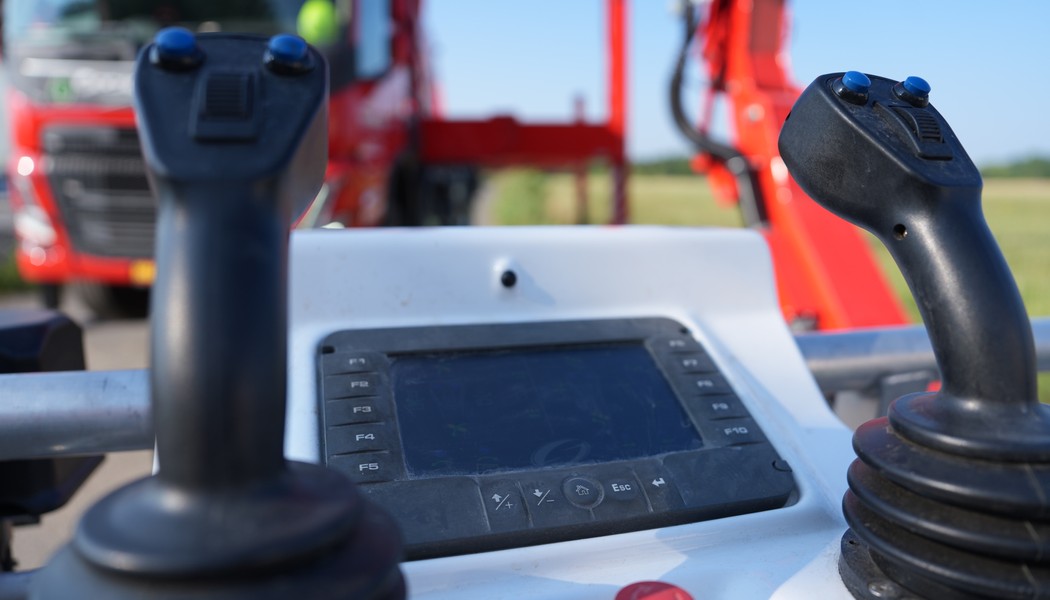

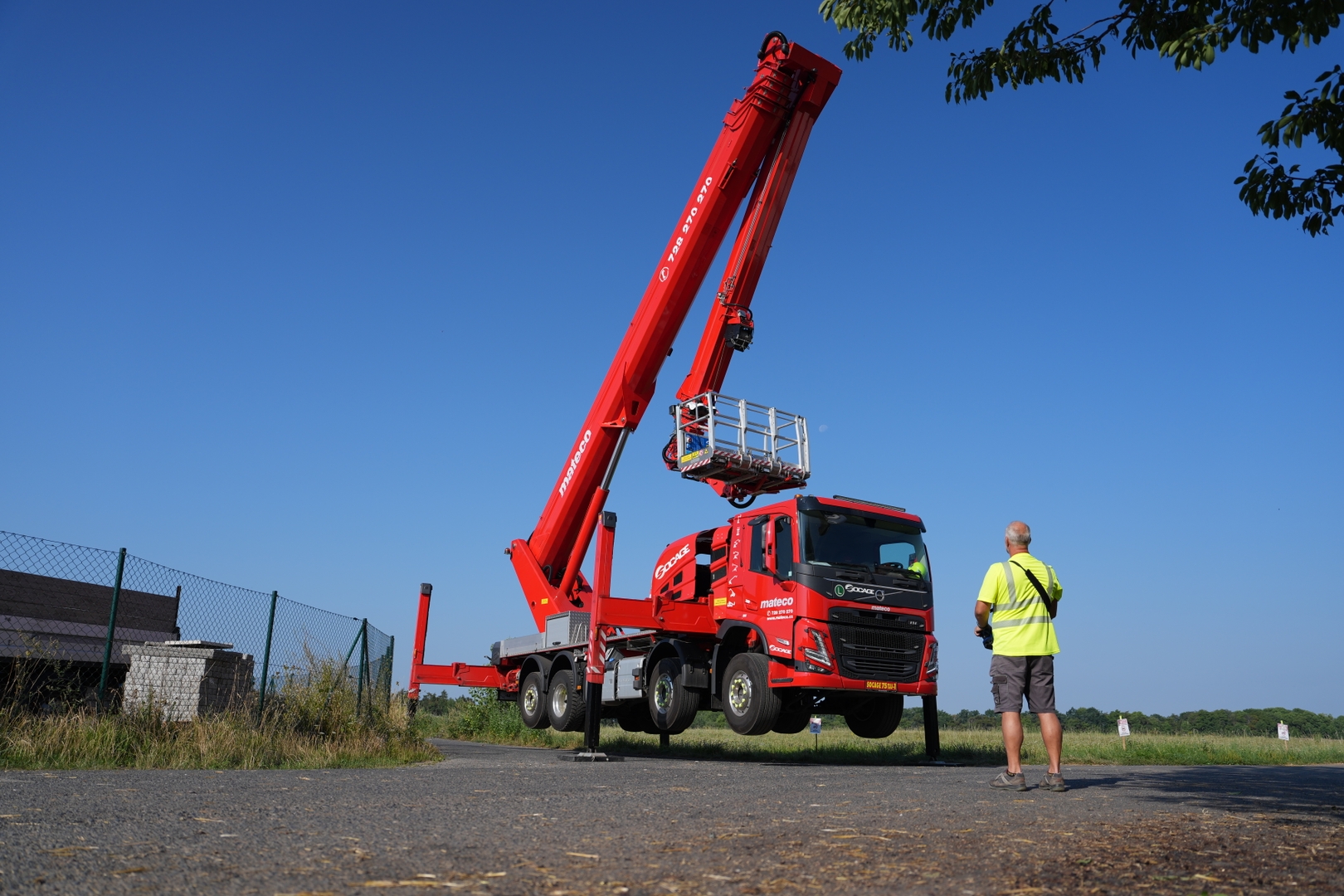

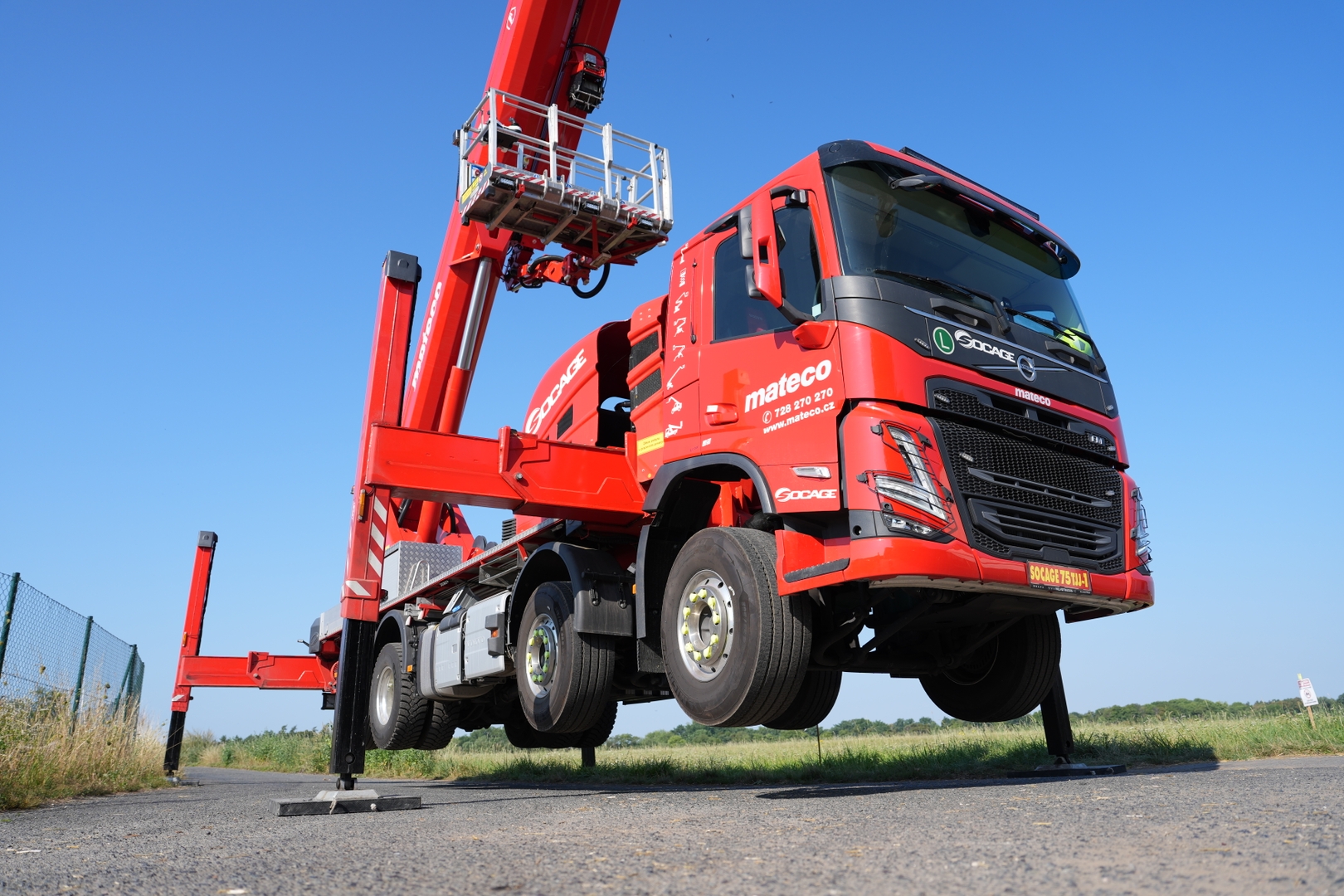

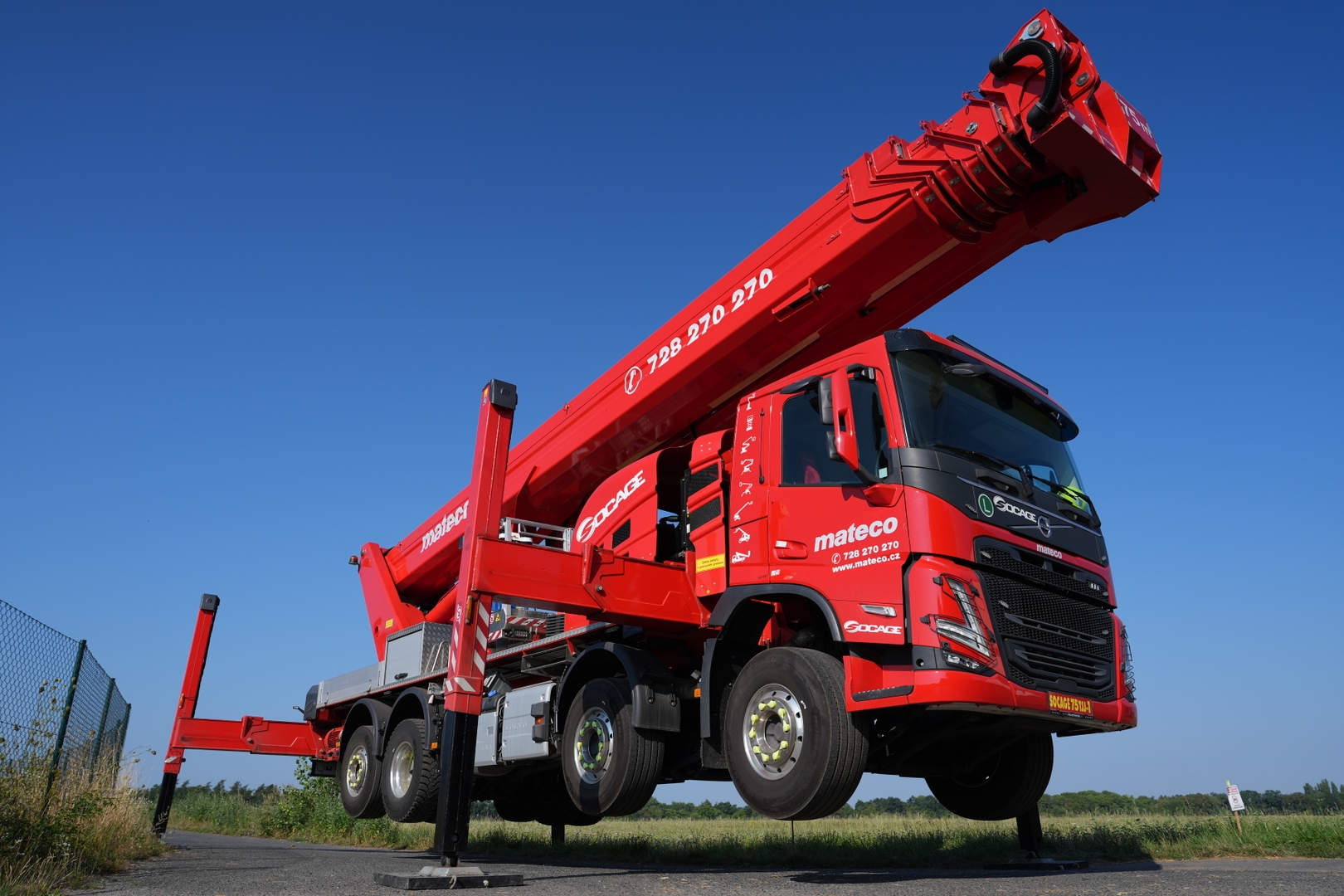

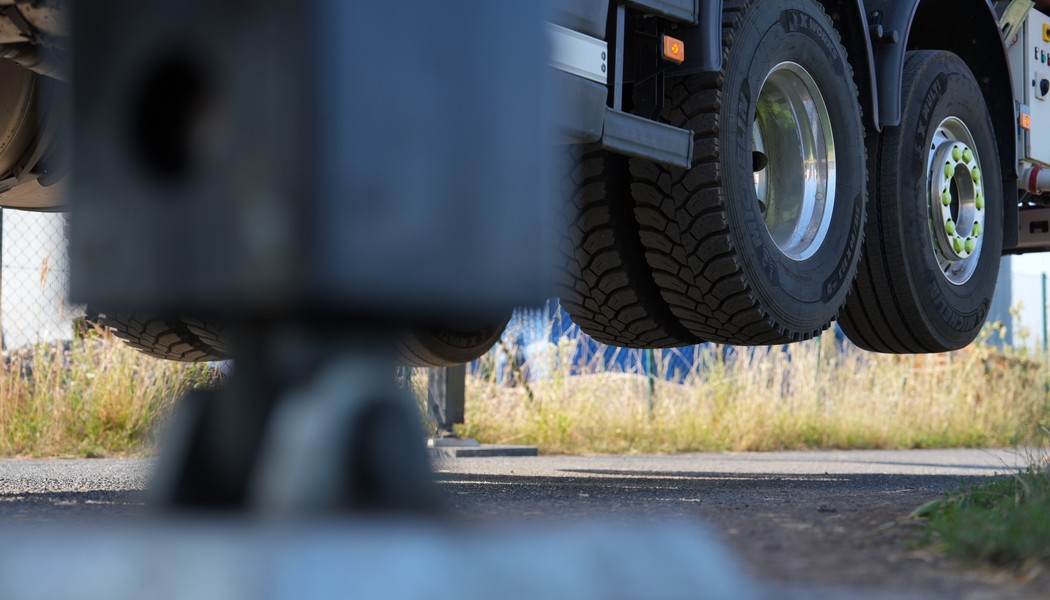

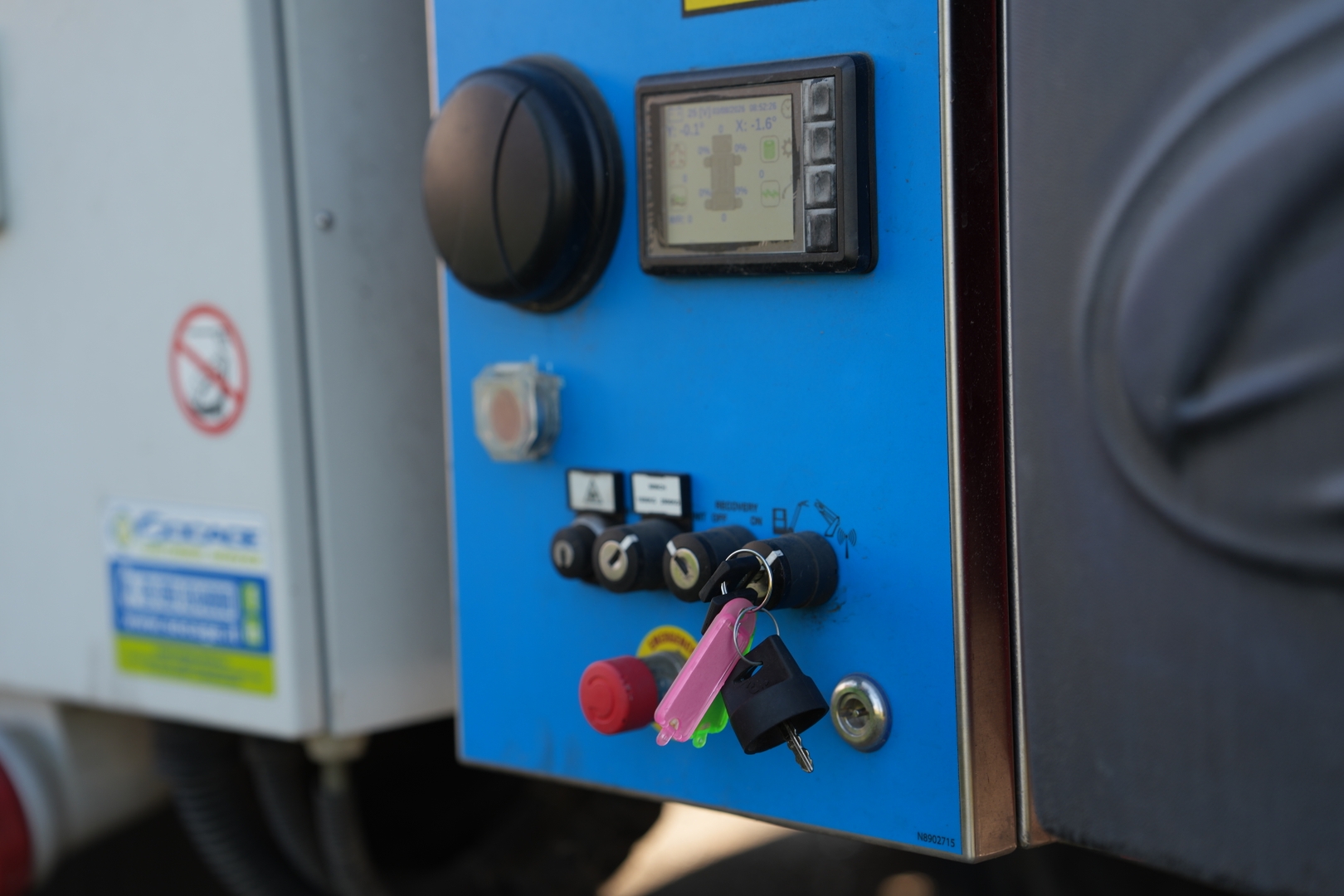

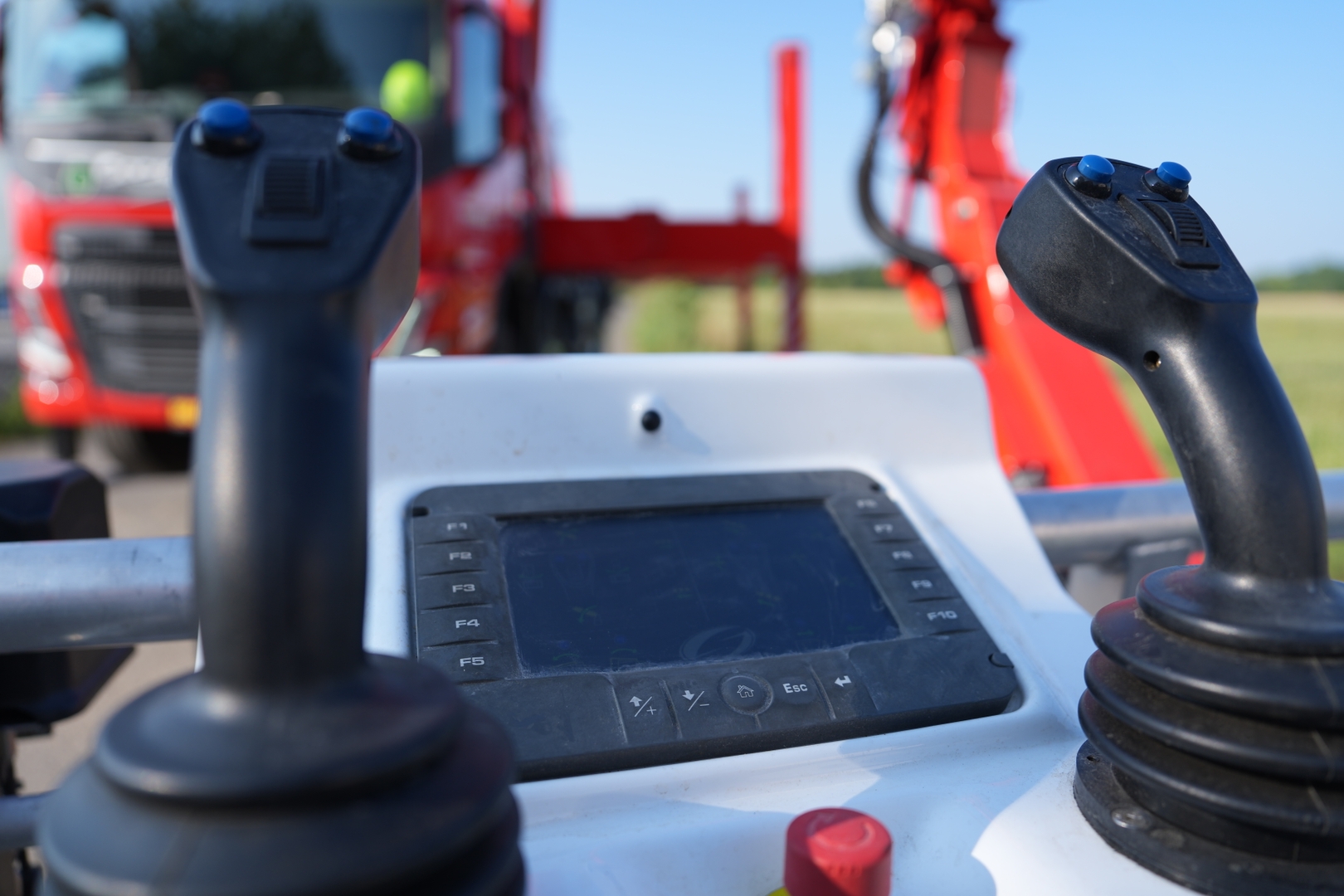

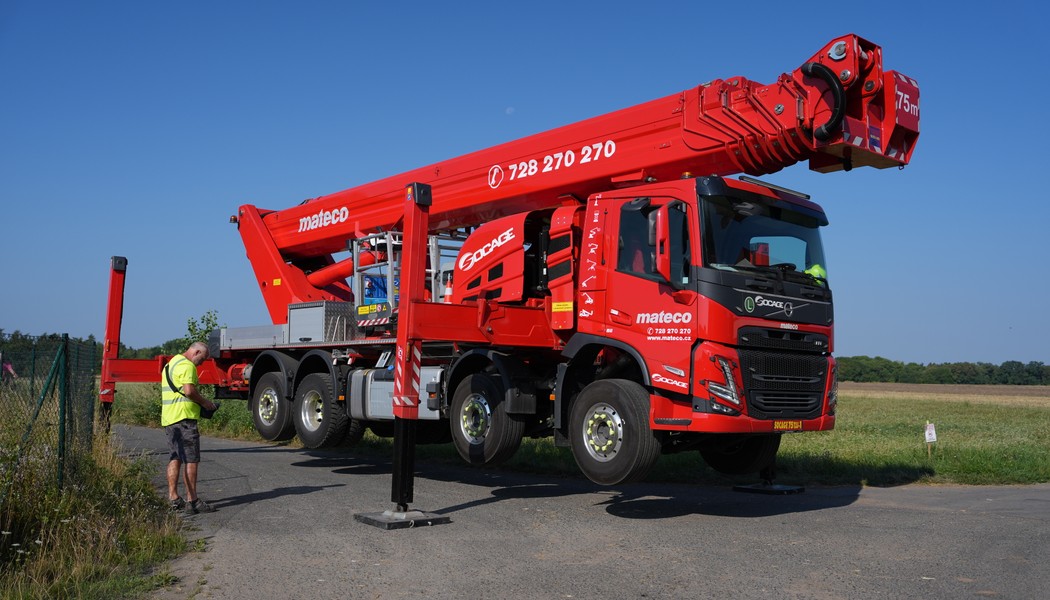

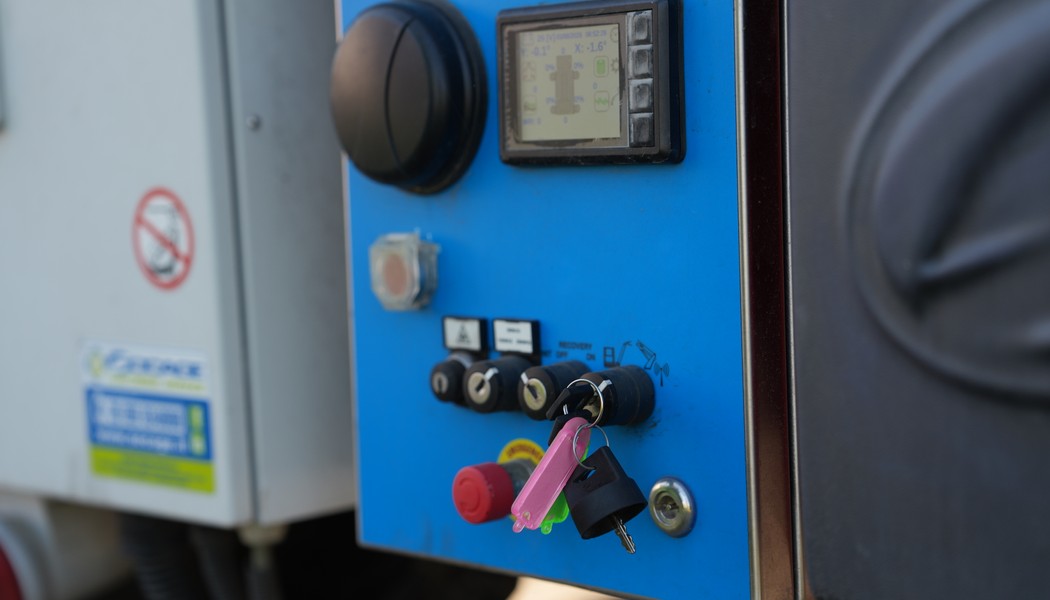

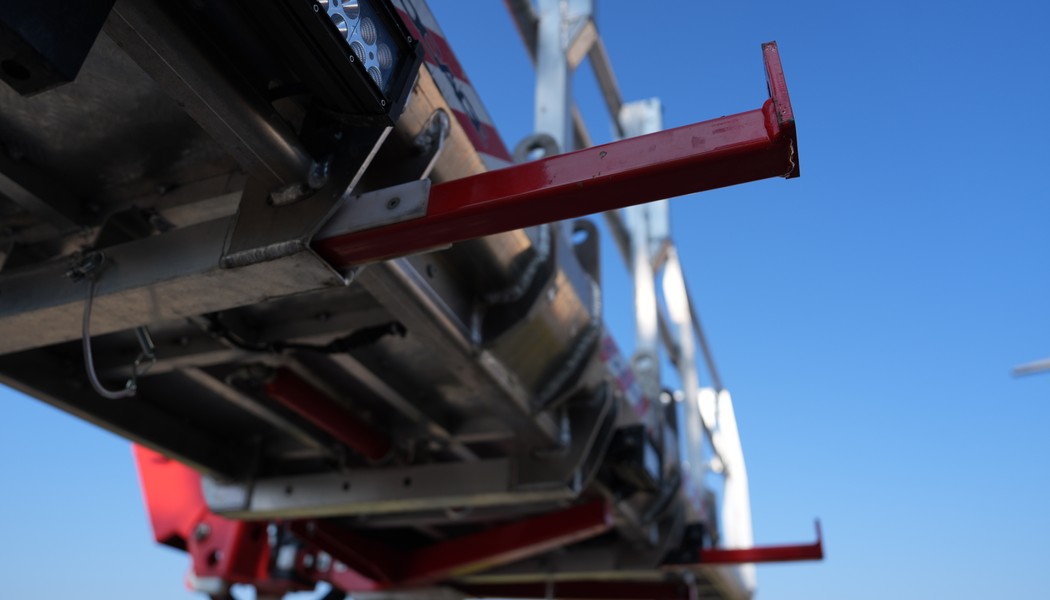

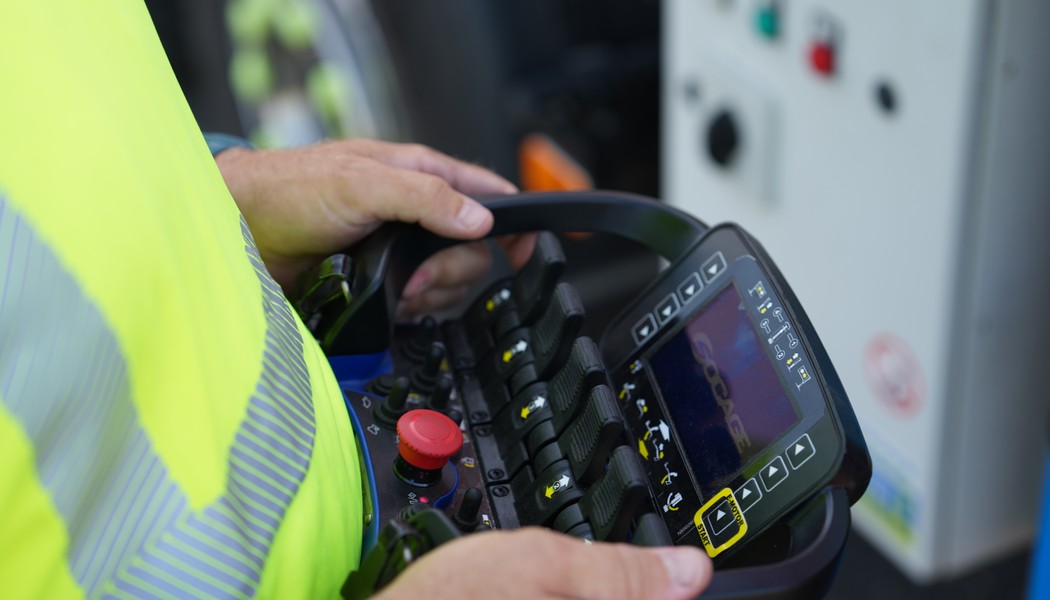

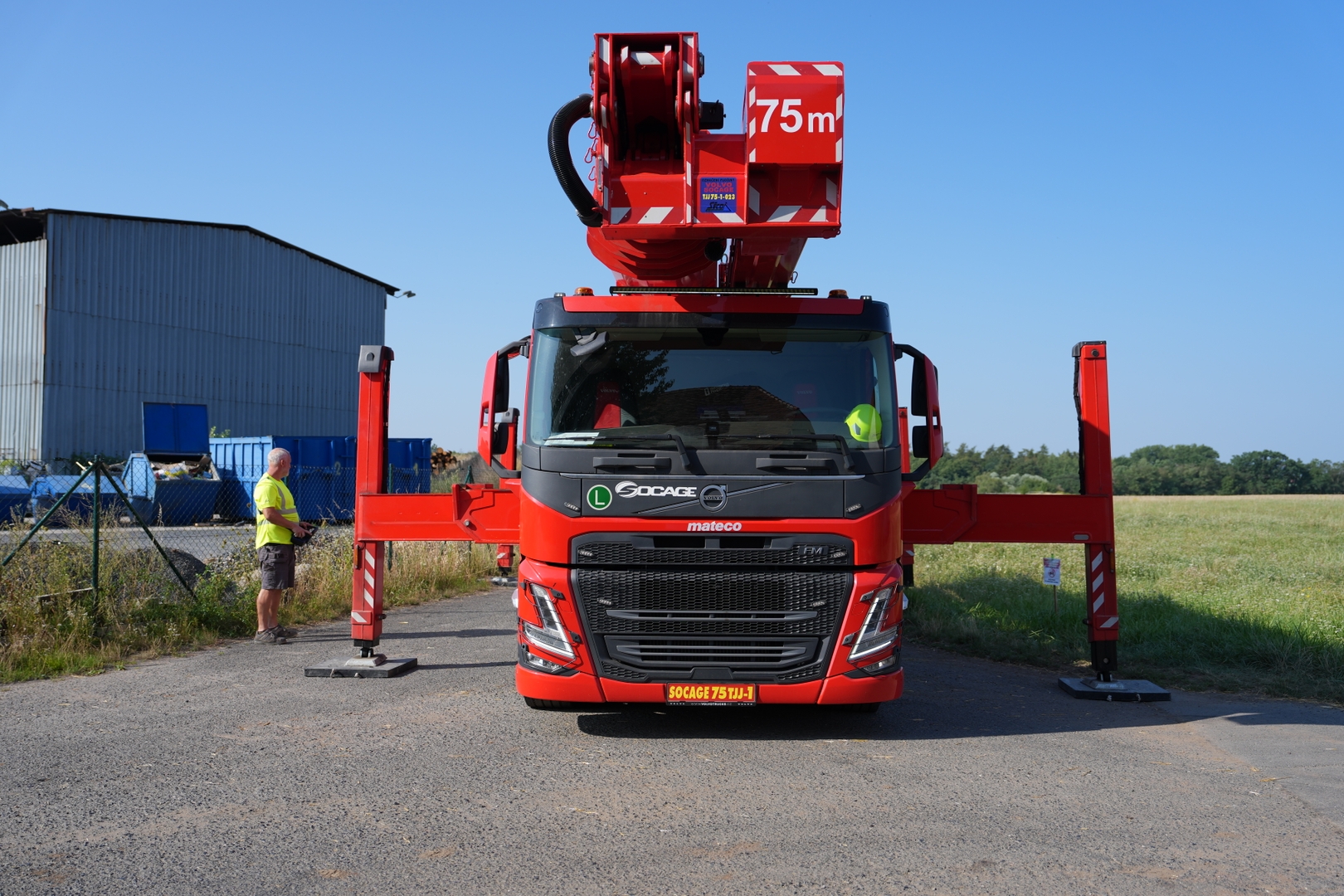

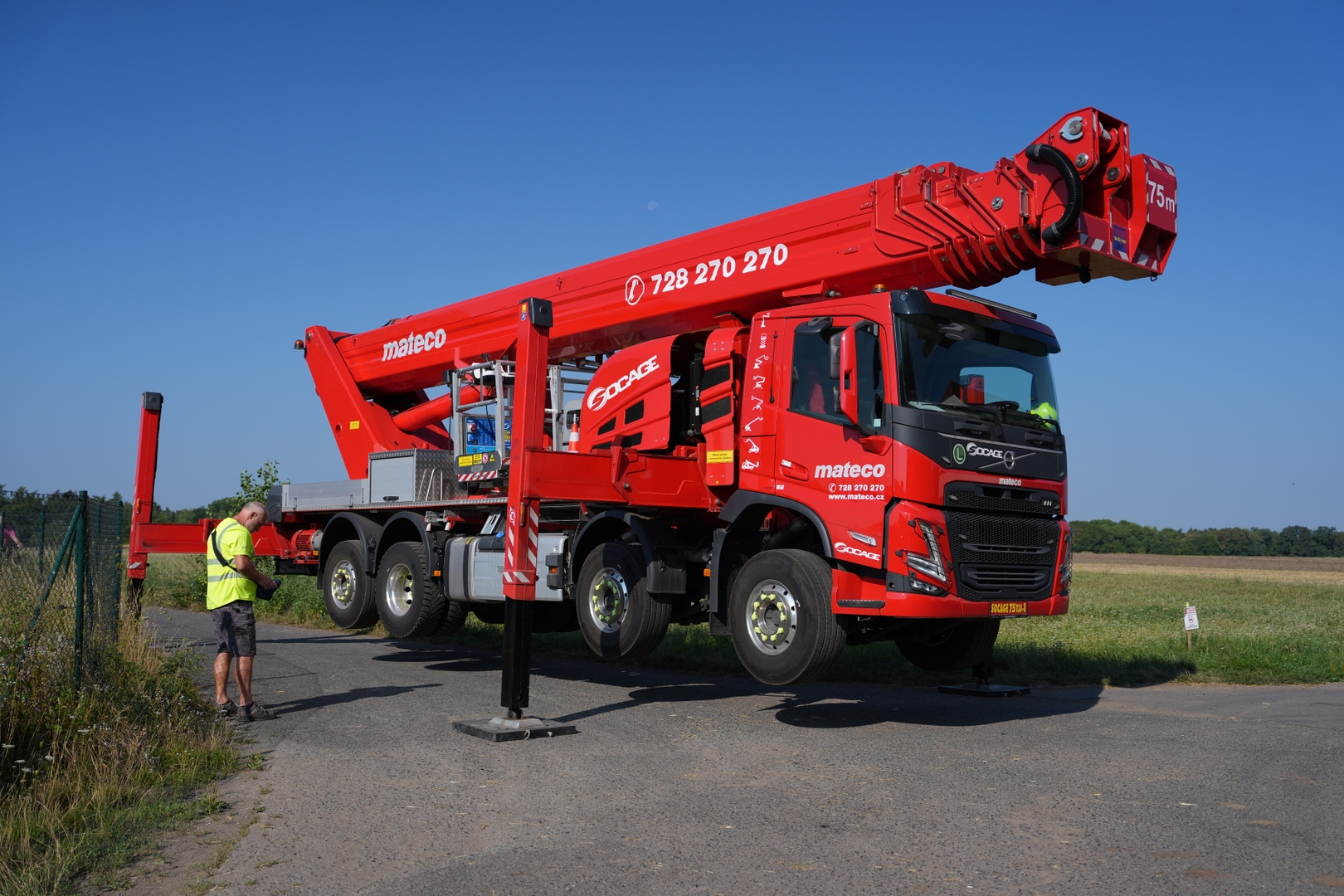

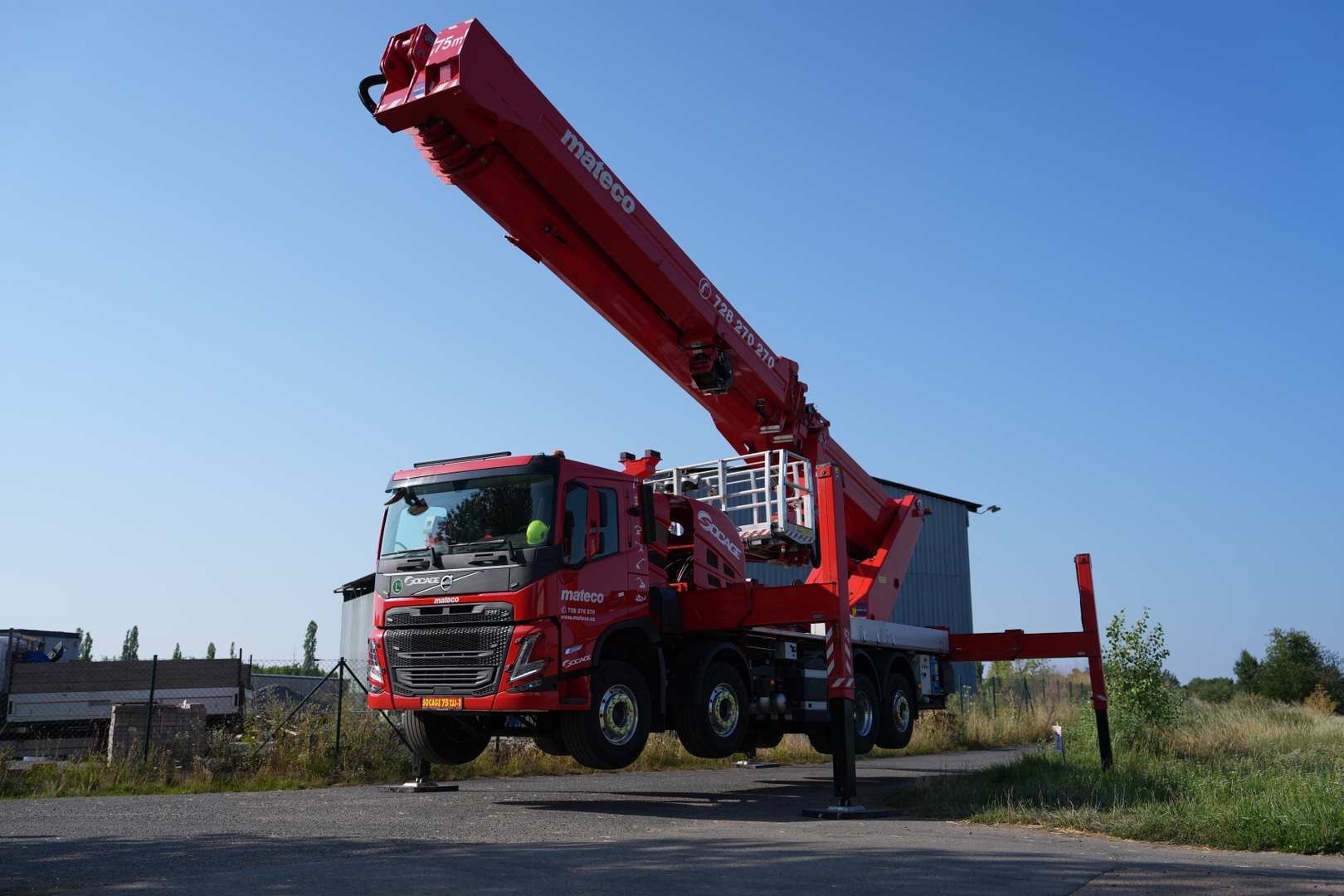

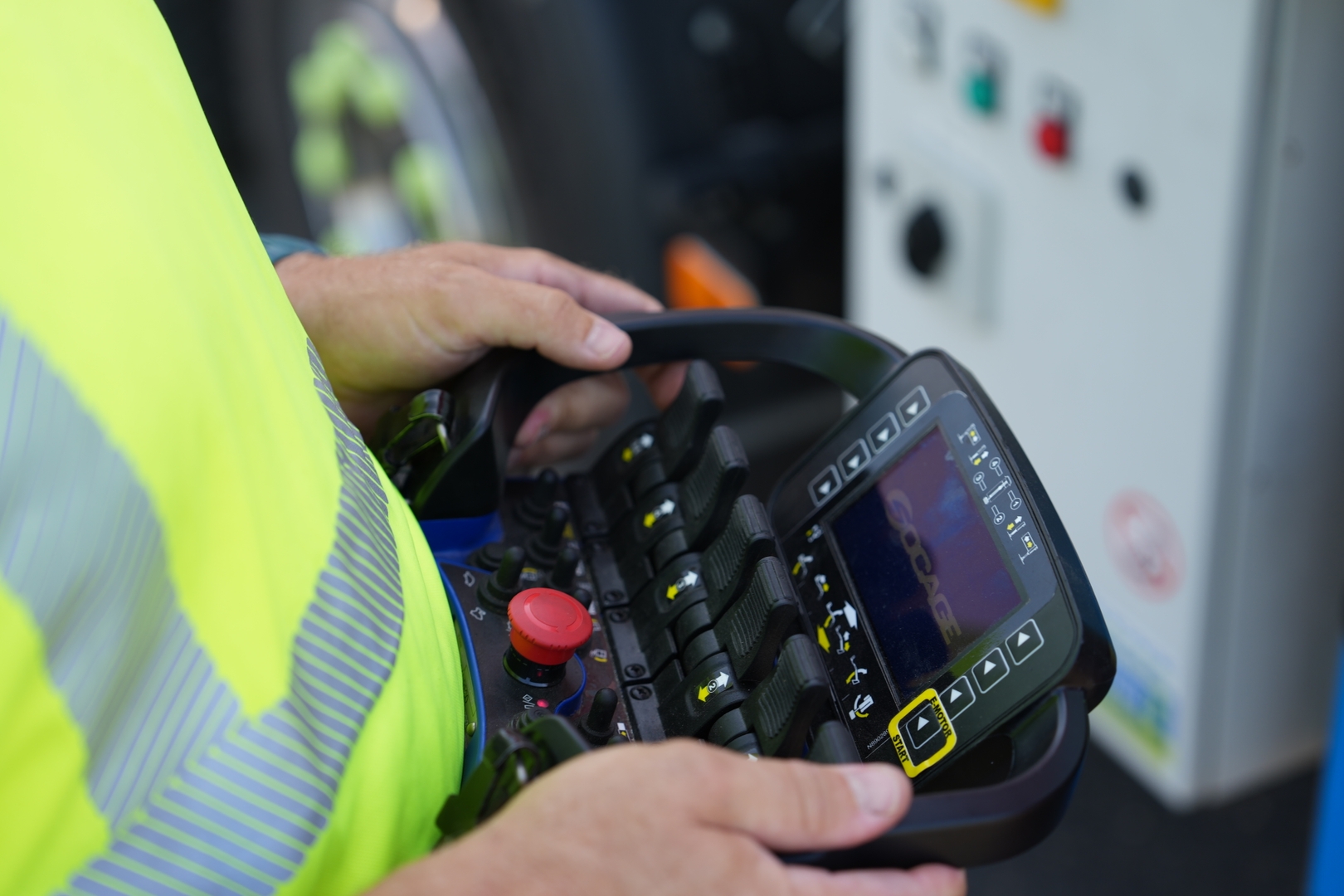

To reduce space requirements, the machine can be set up with the supports extended to one side only. Their high stroke allows safe positioning even on sloping terrain. Automatic stabilisation and automatic folding functions are available for easy operation. A built-in intercom will help communication between the workers in the basket and the technician at the truck.

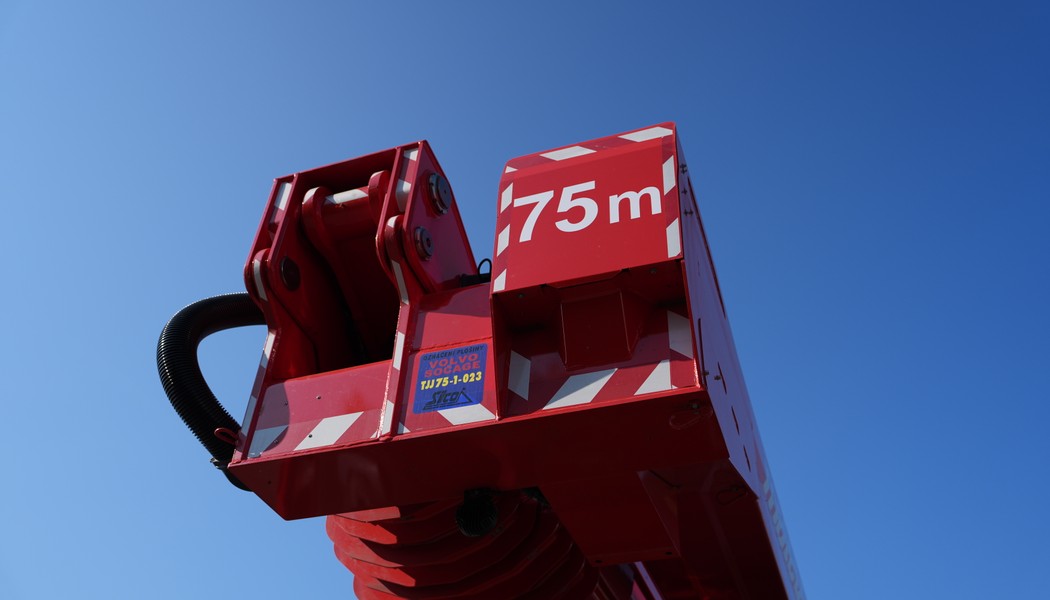

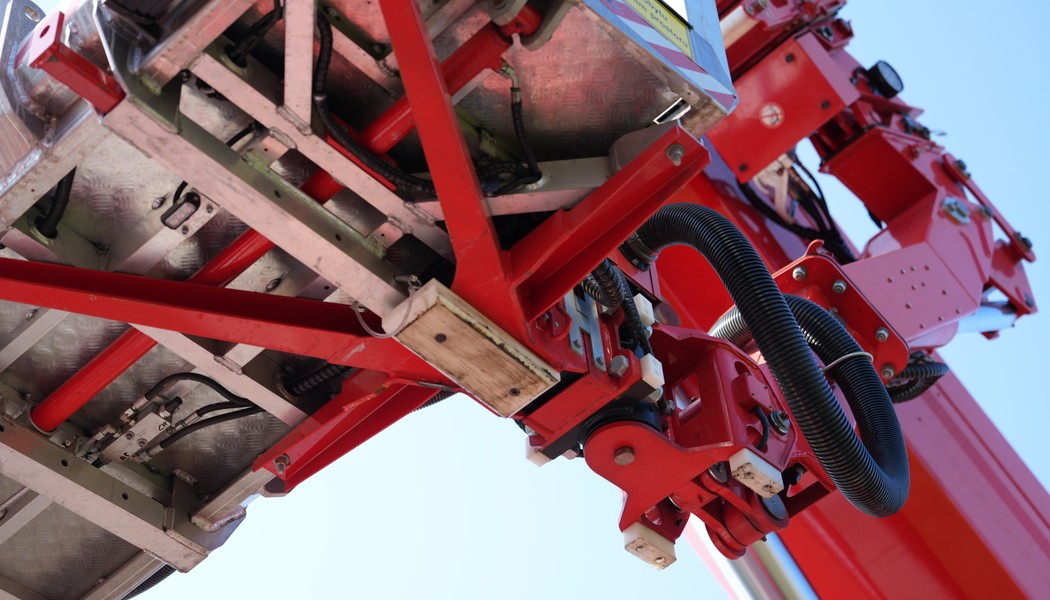

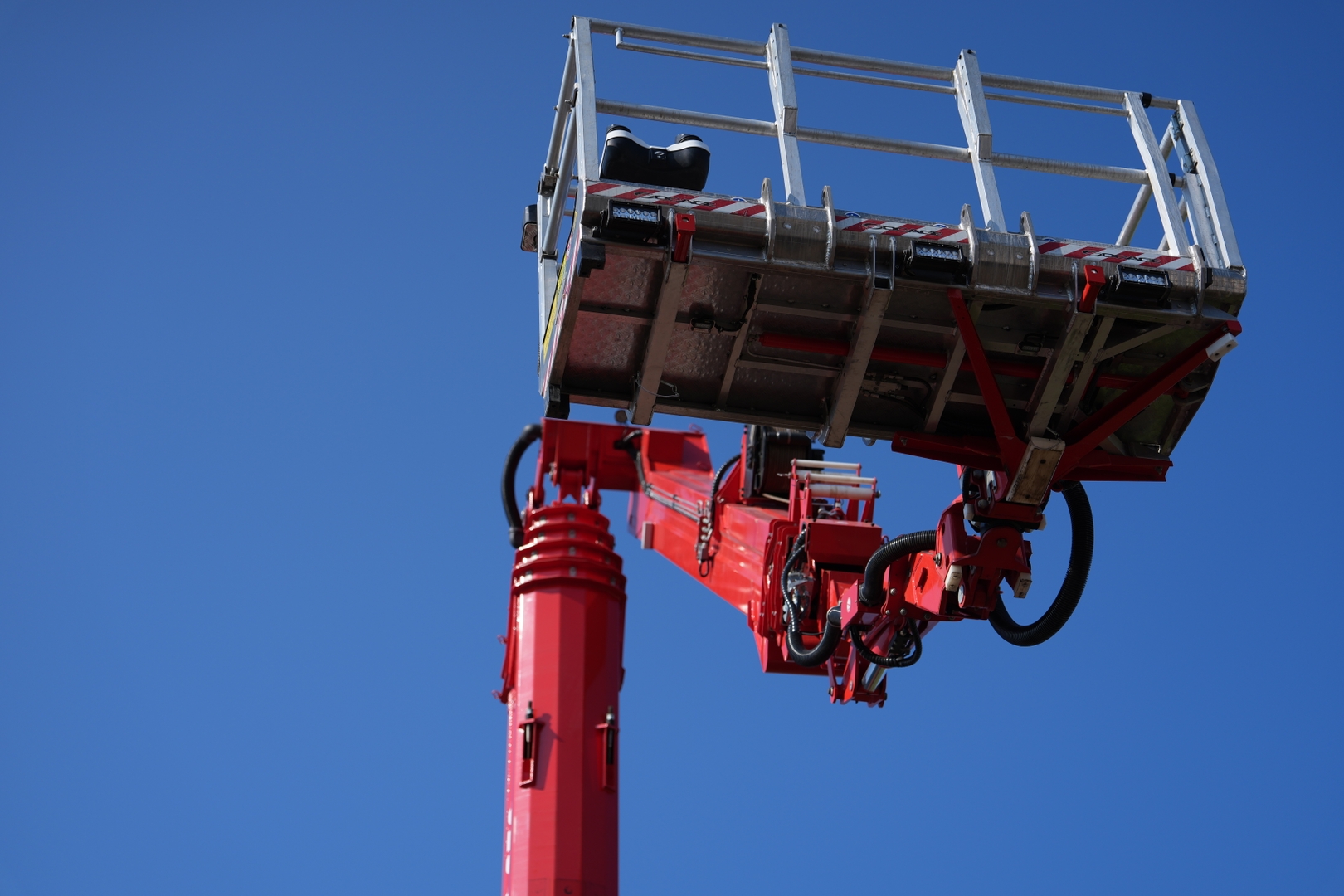

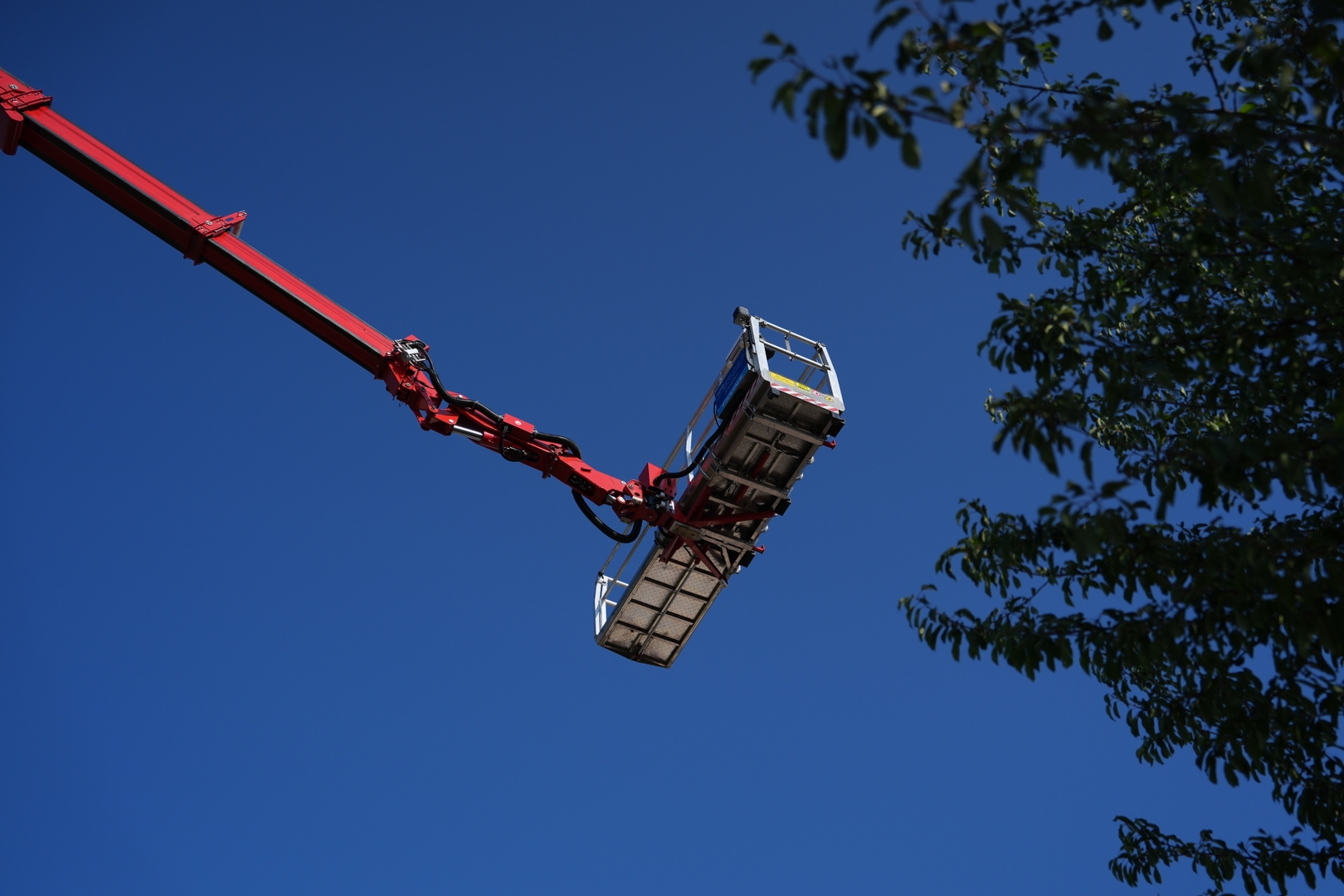

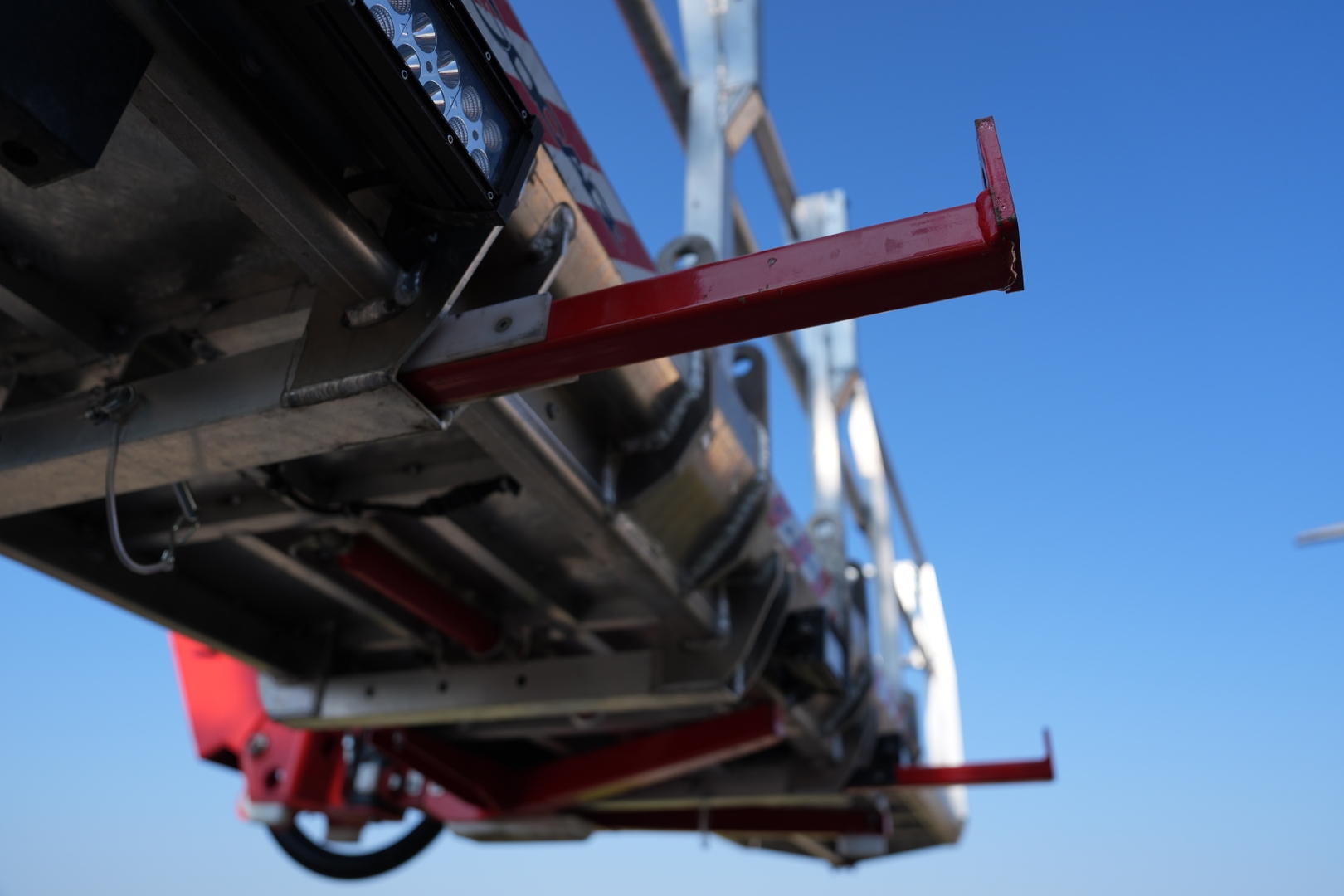

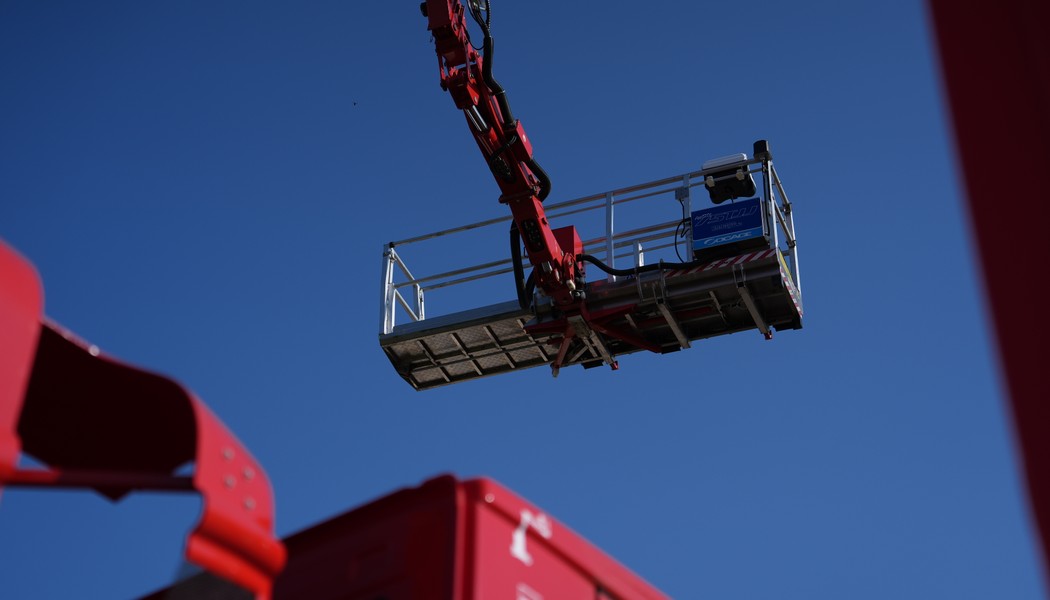

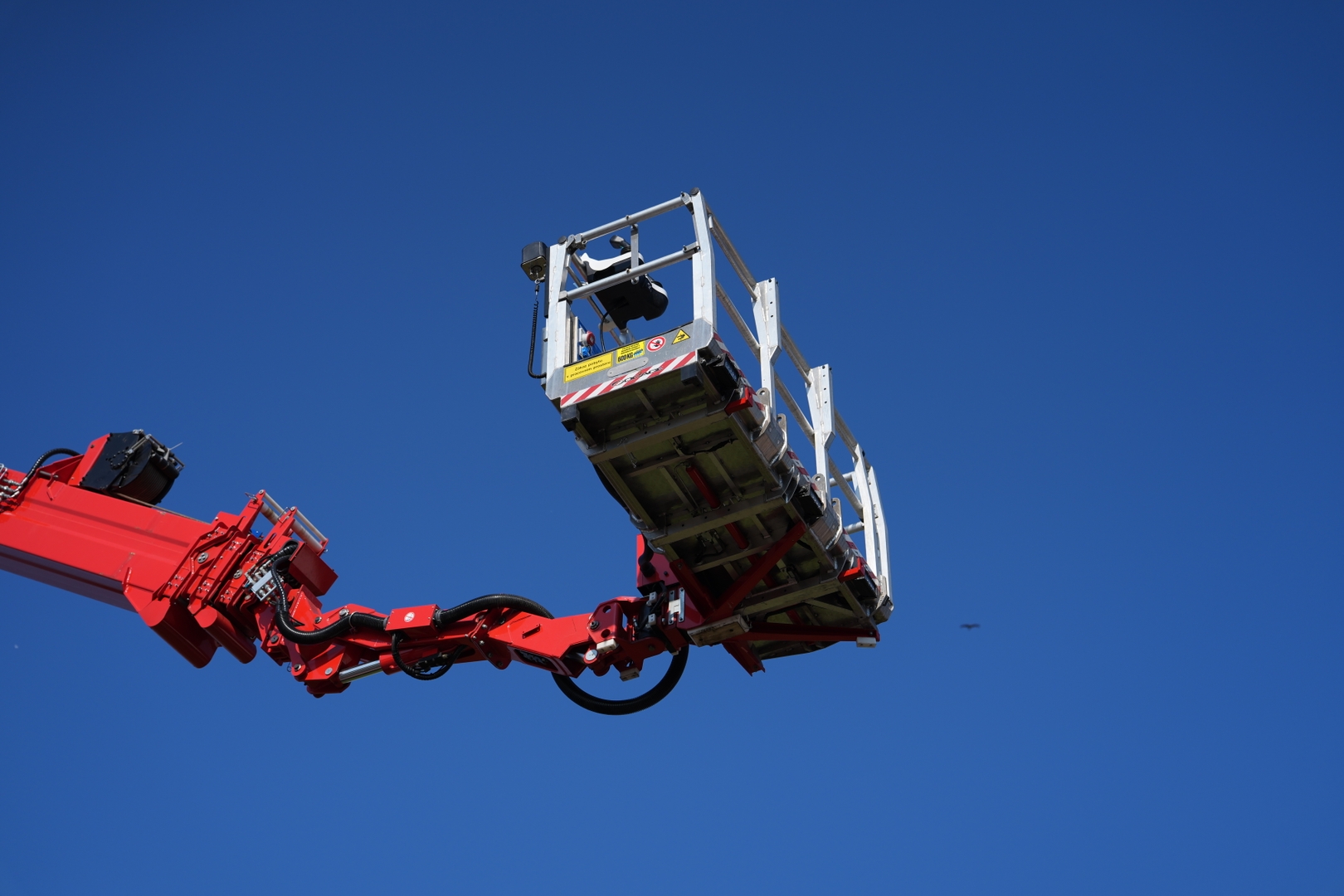

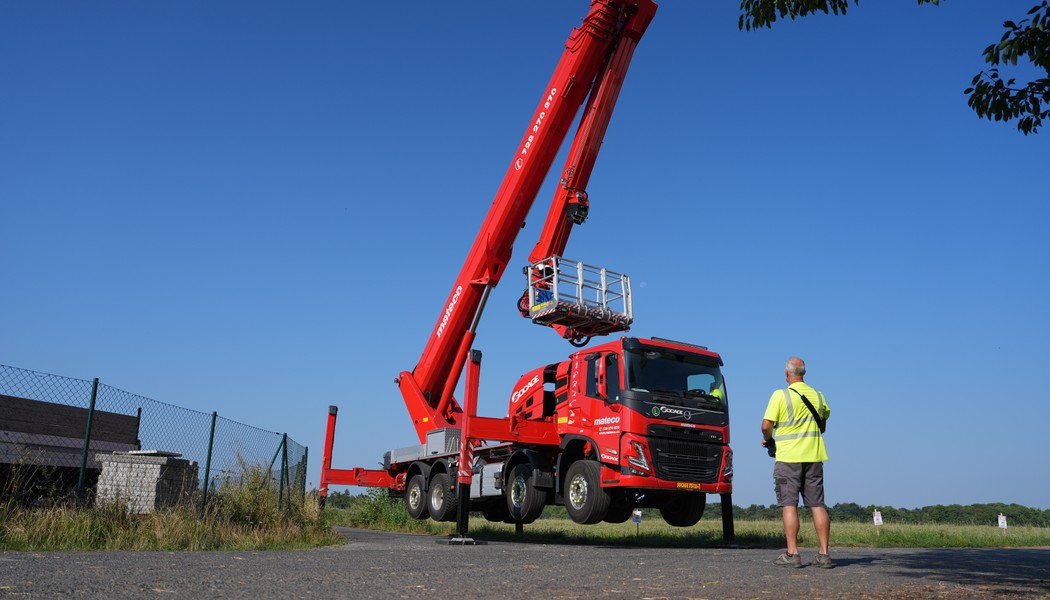

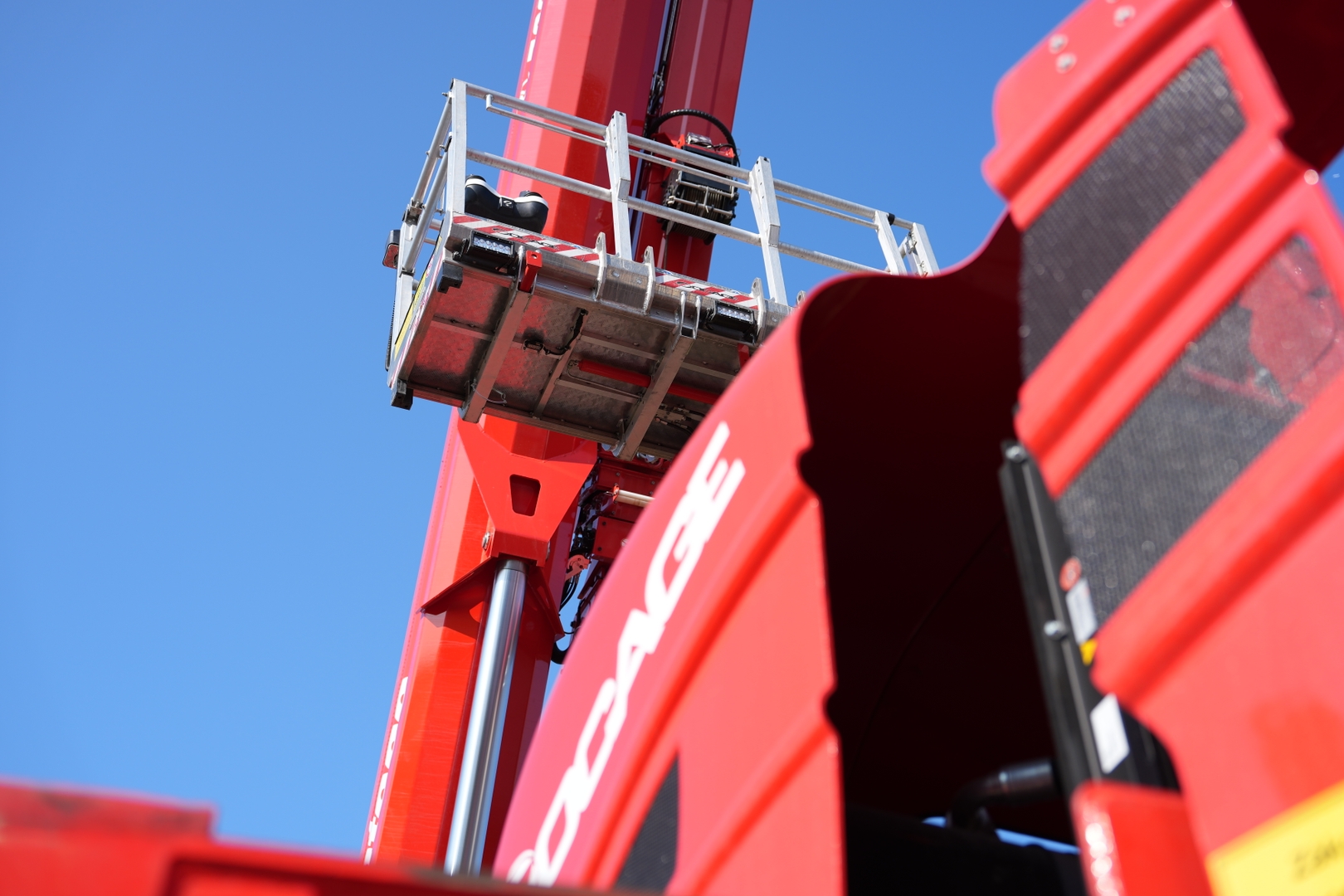

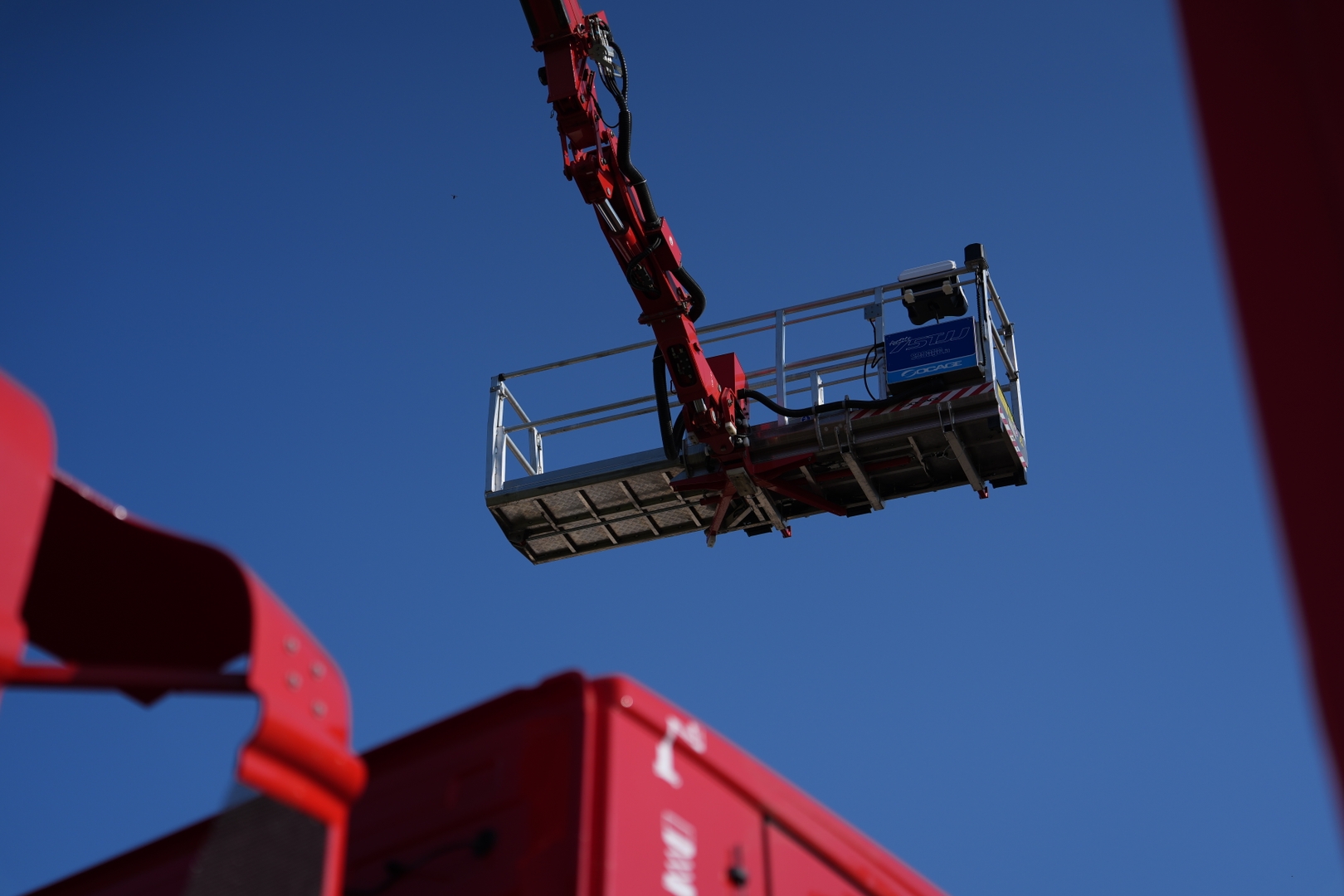

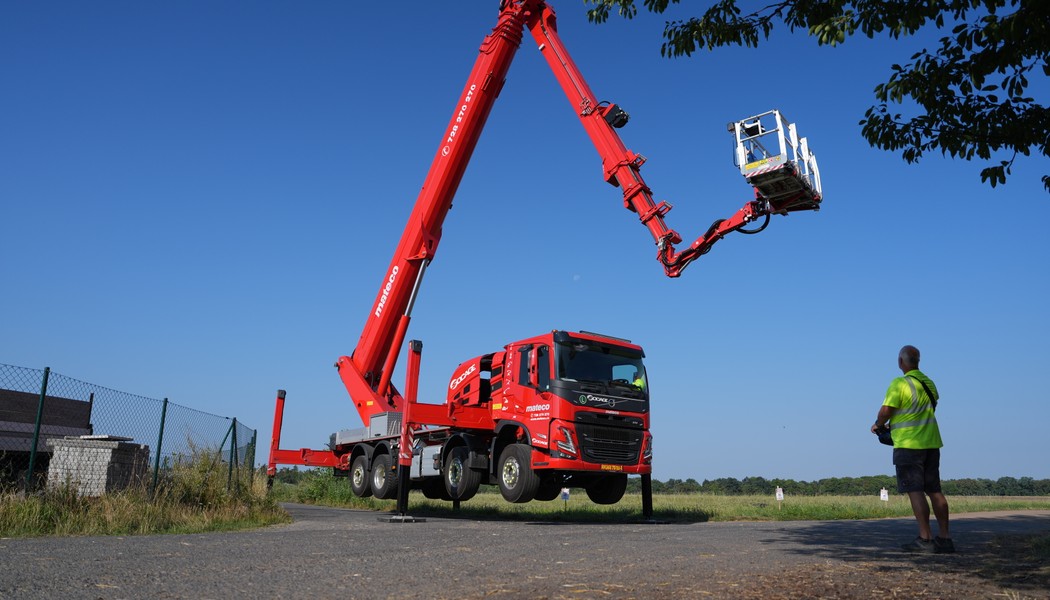

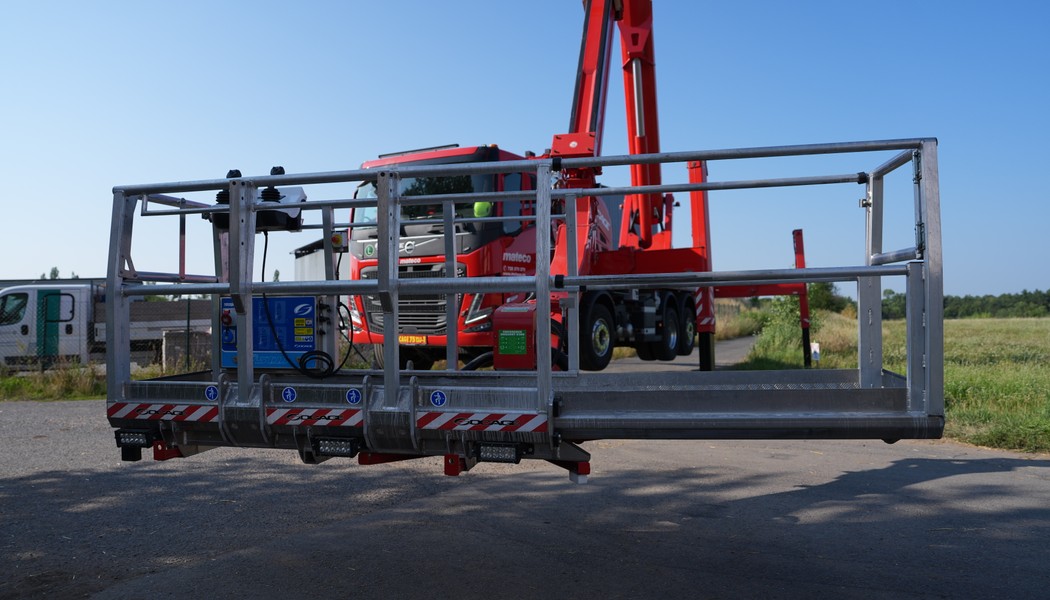

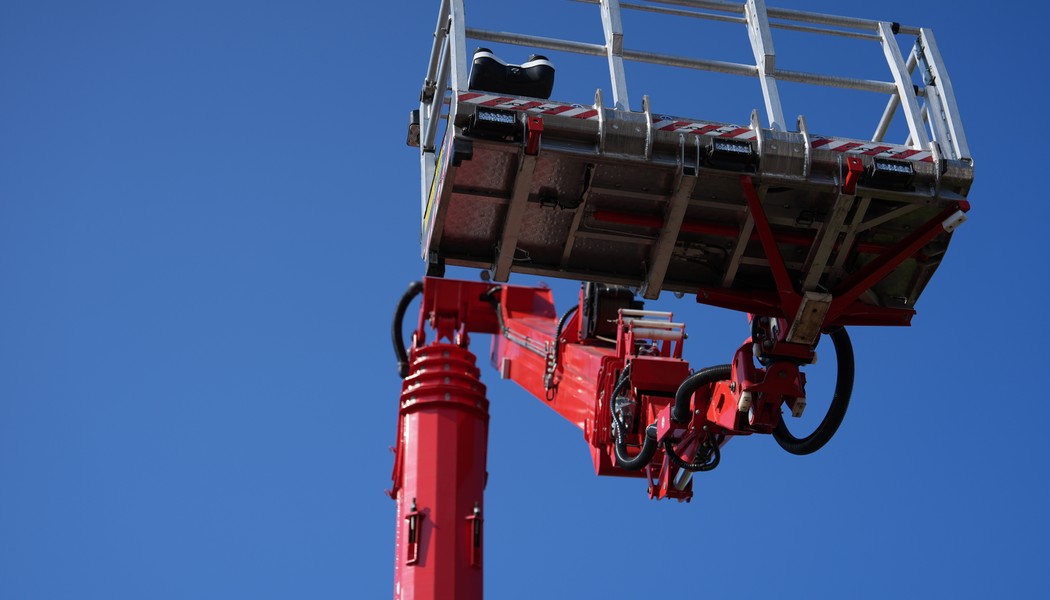

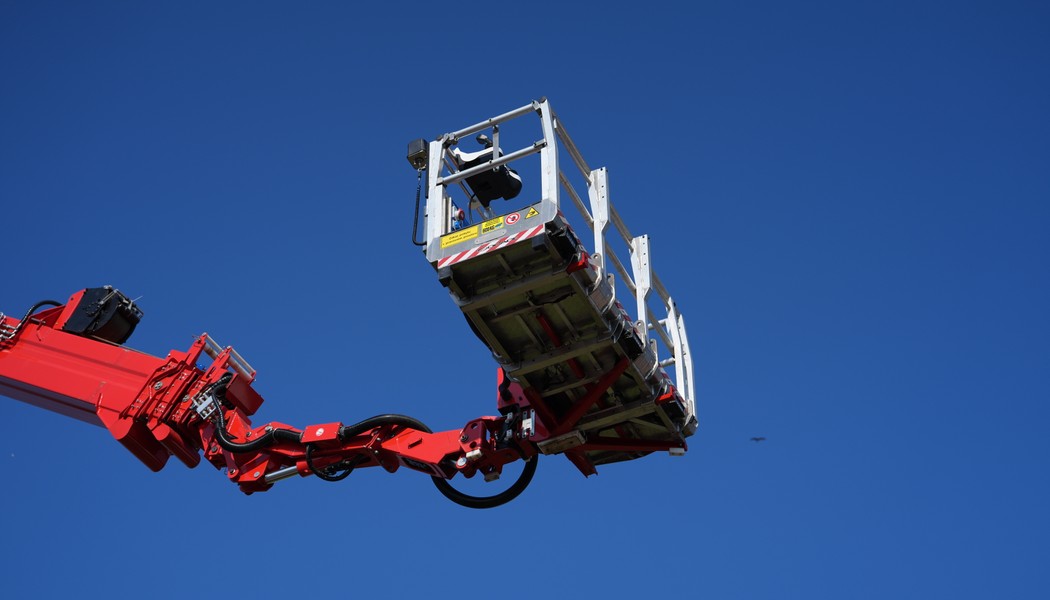

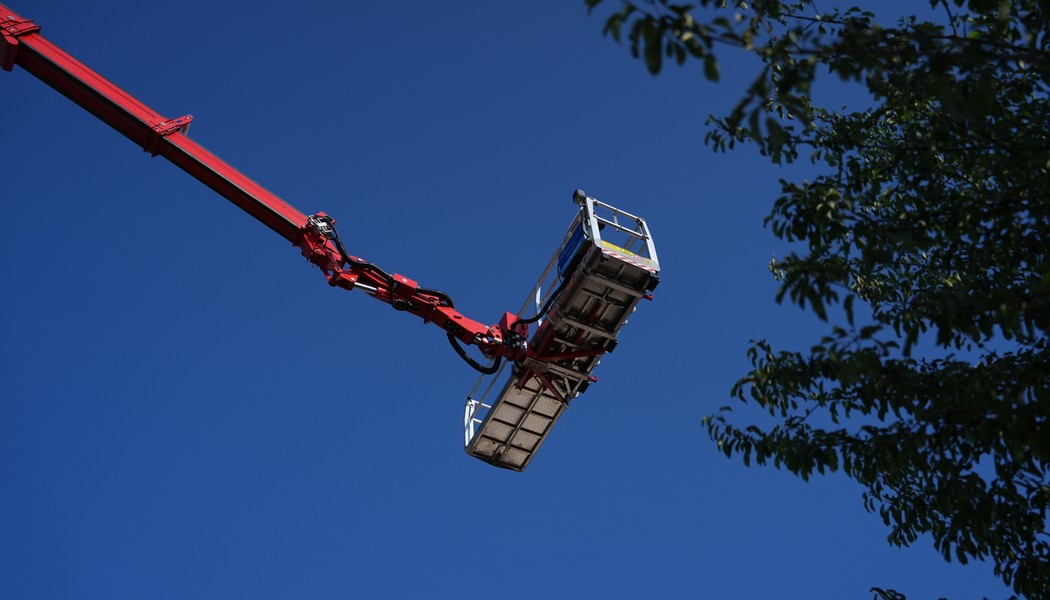

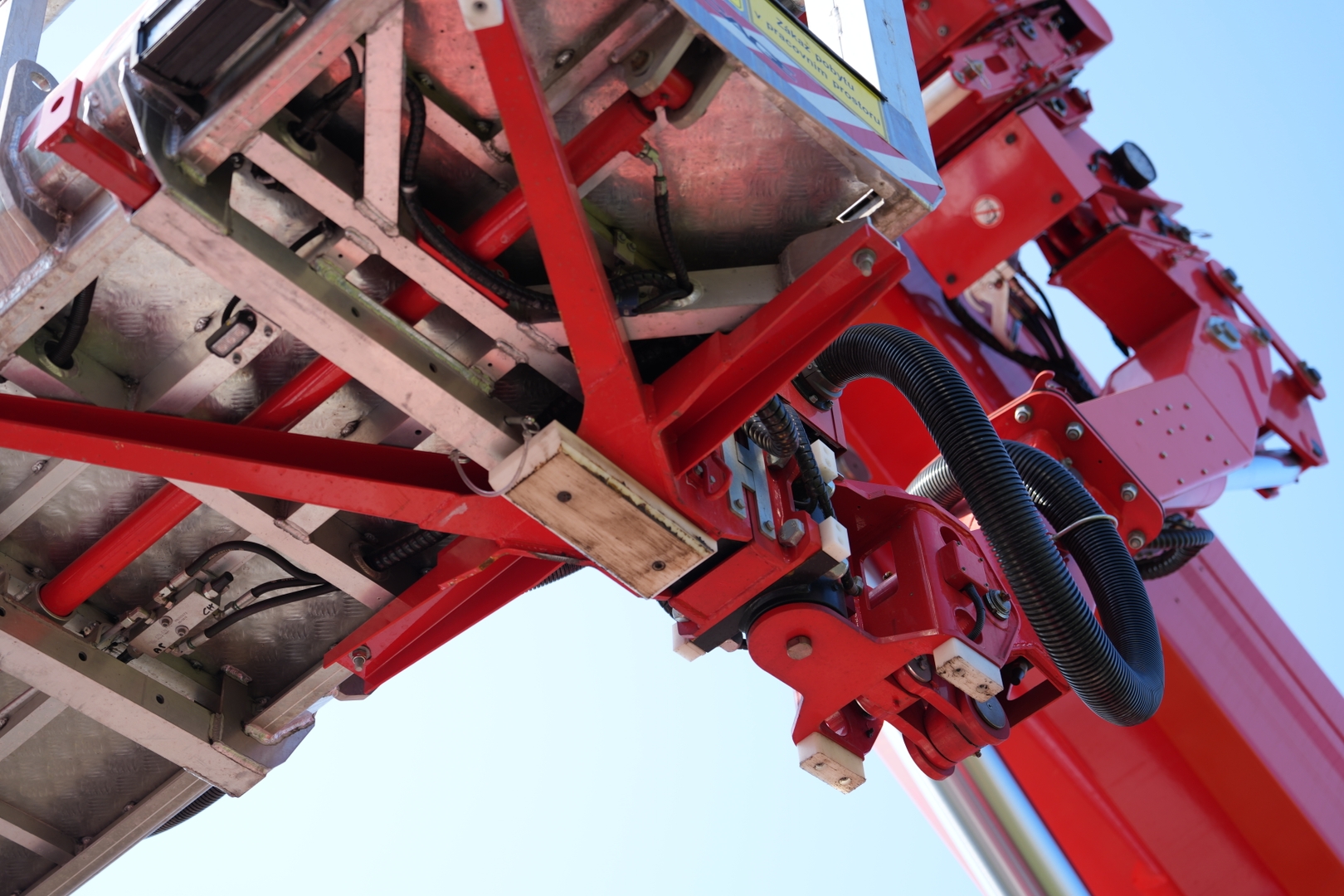

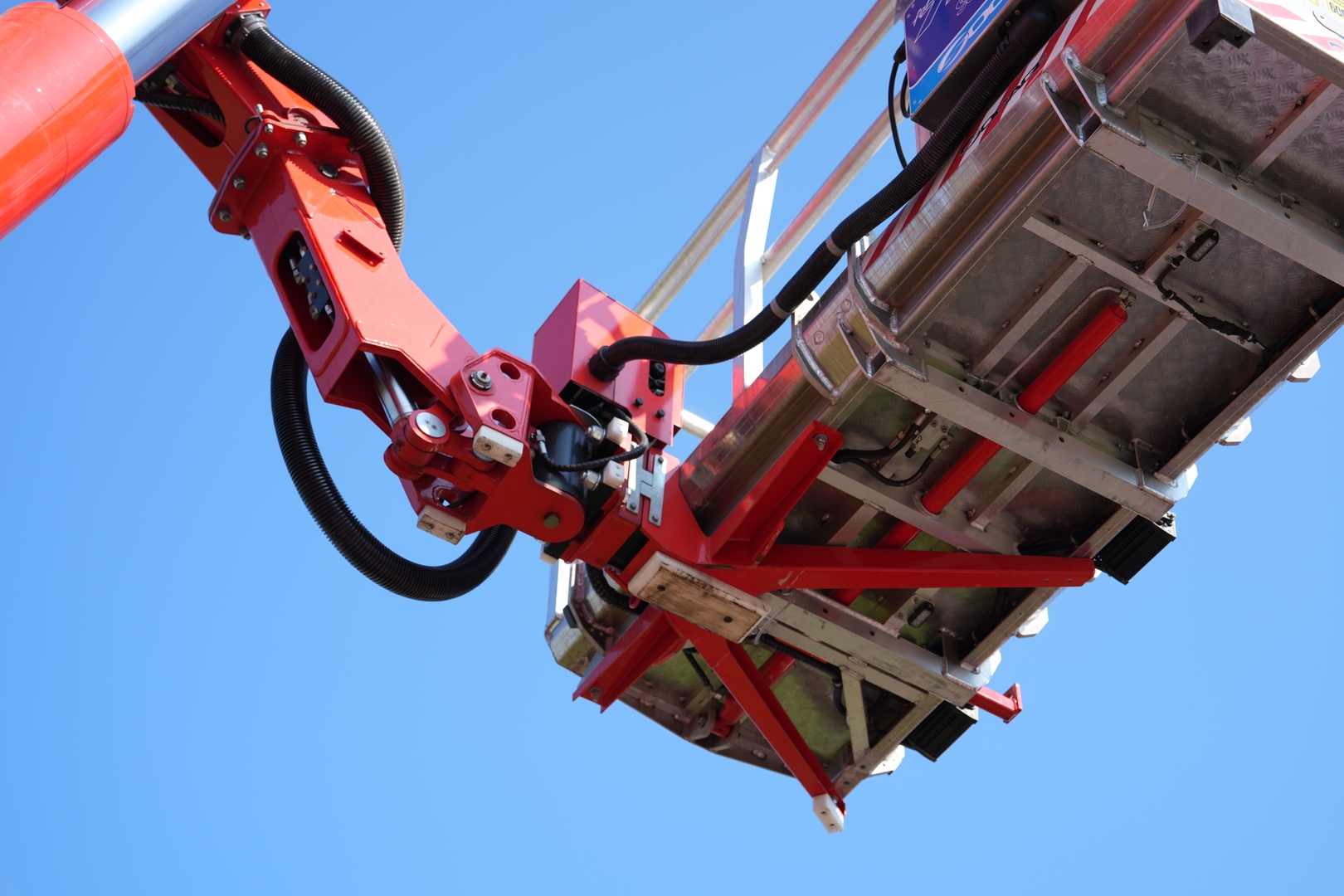

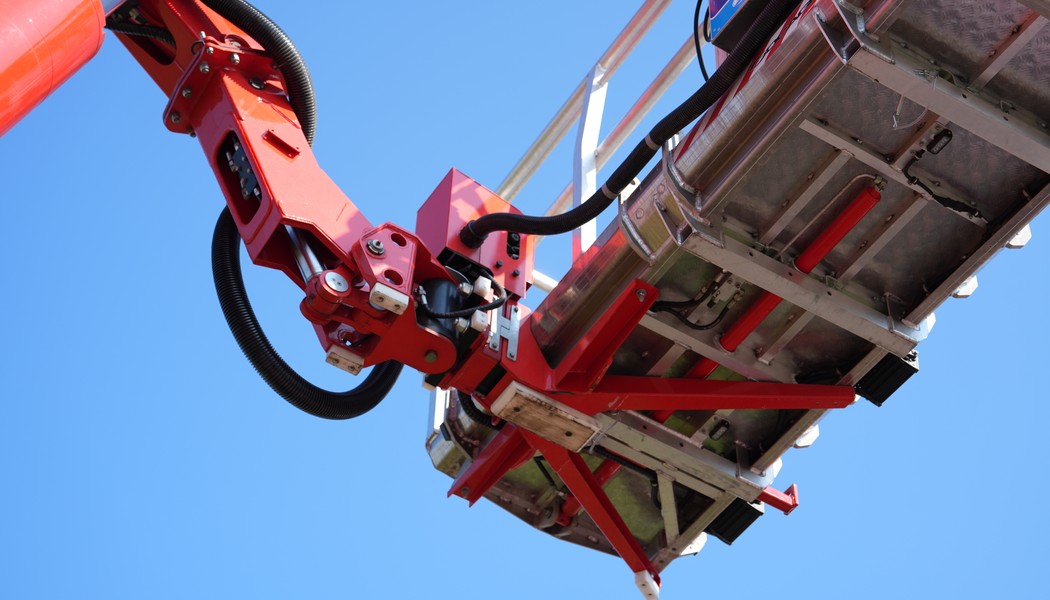

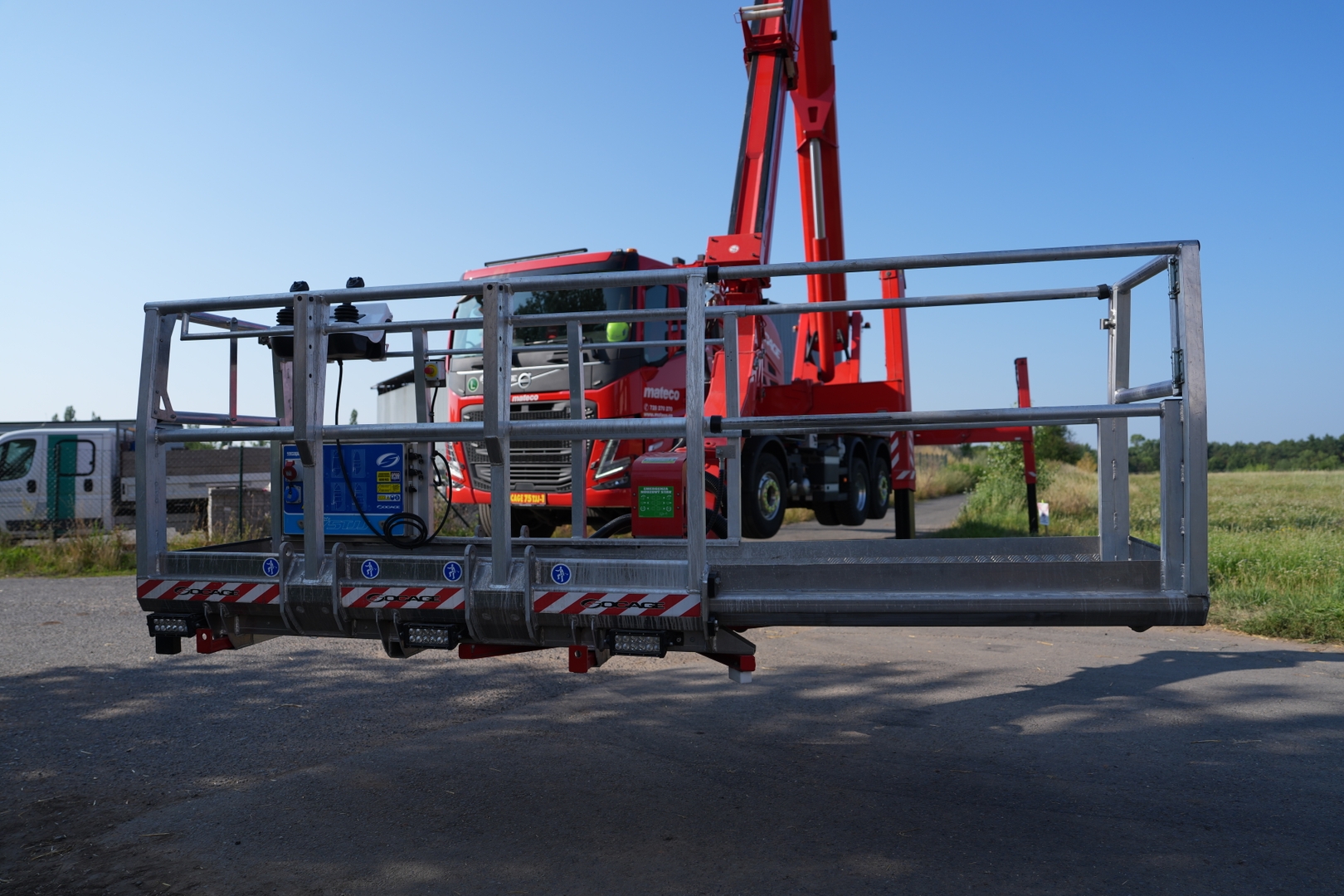

The 75TJJ body swivels 700°, the work basket (with extension function to 3.6 m) on a vertically movable JIB arm 2 x 180°.
The platform meets strict safety regulations and international standards.
