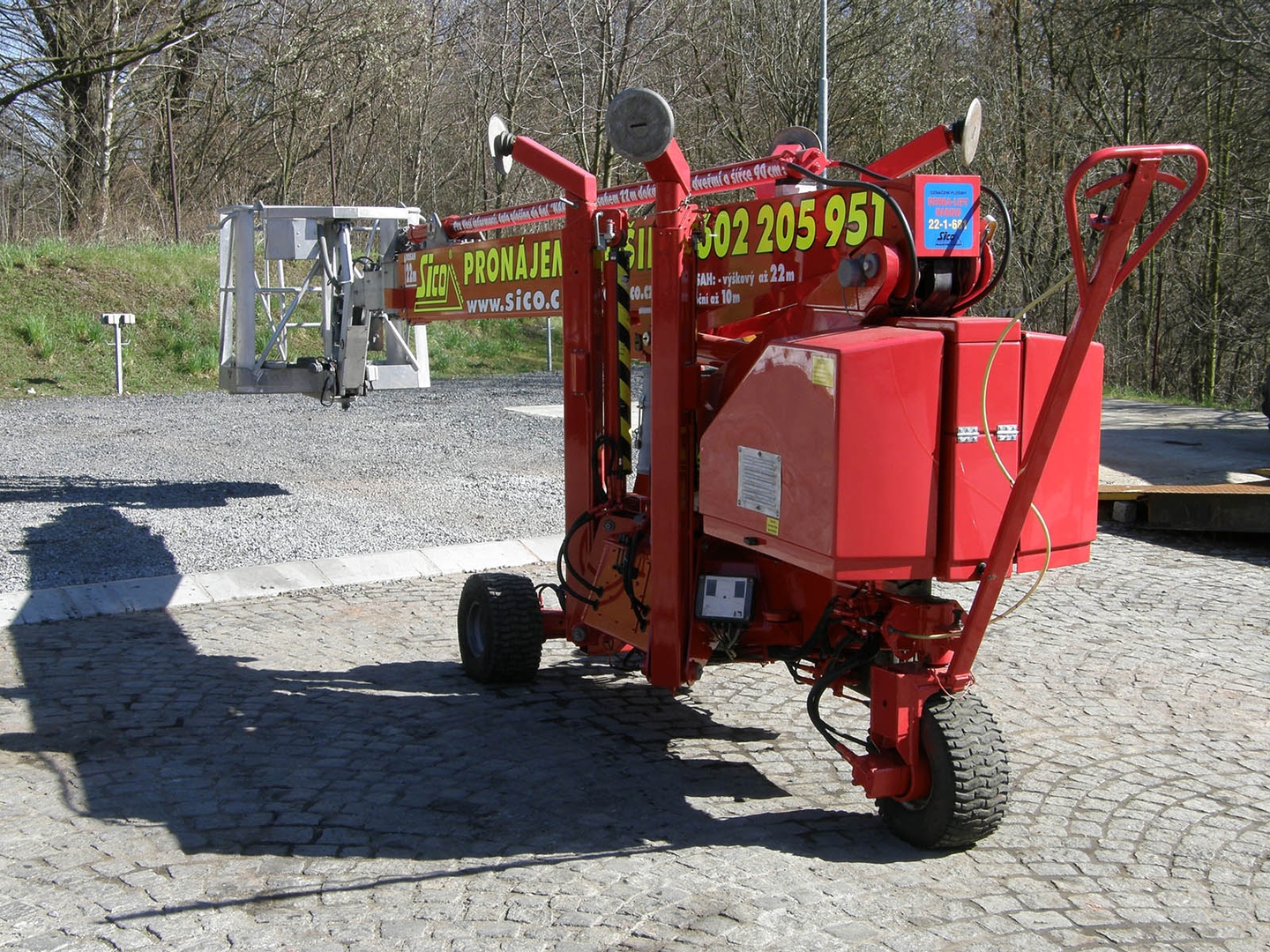

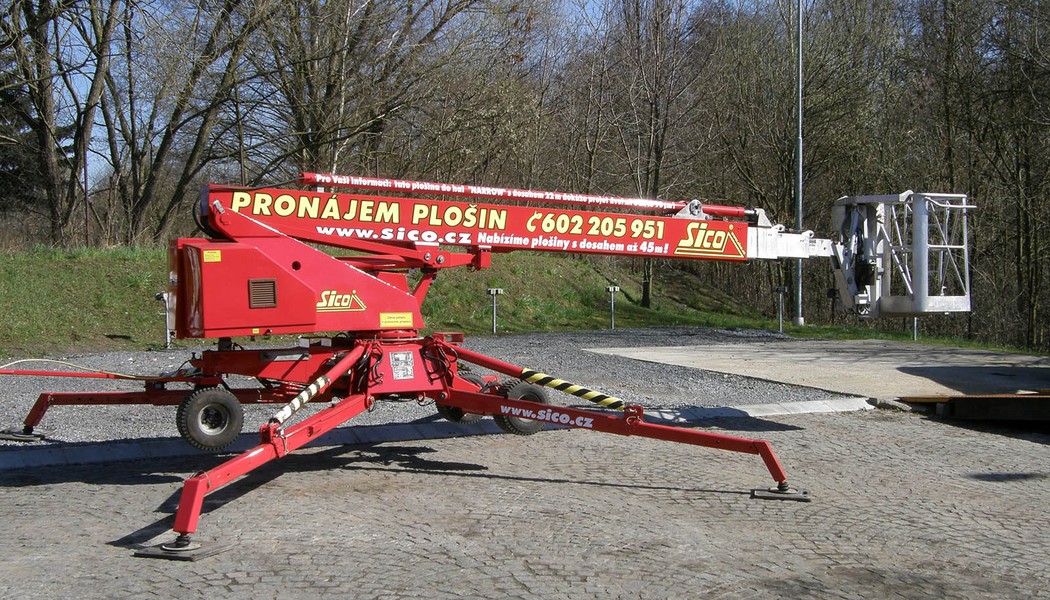

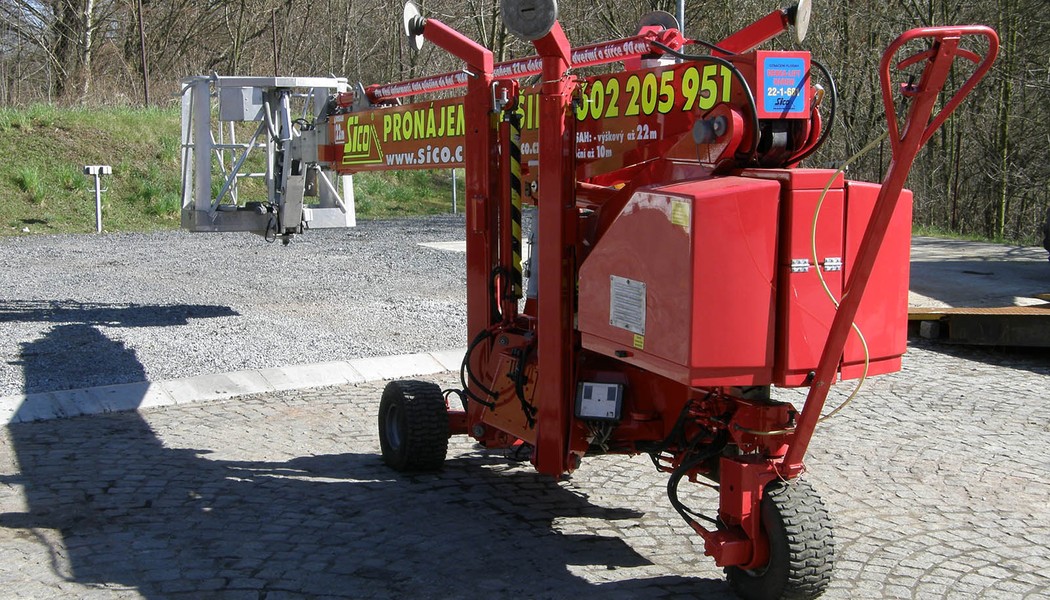

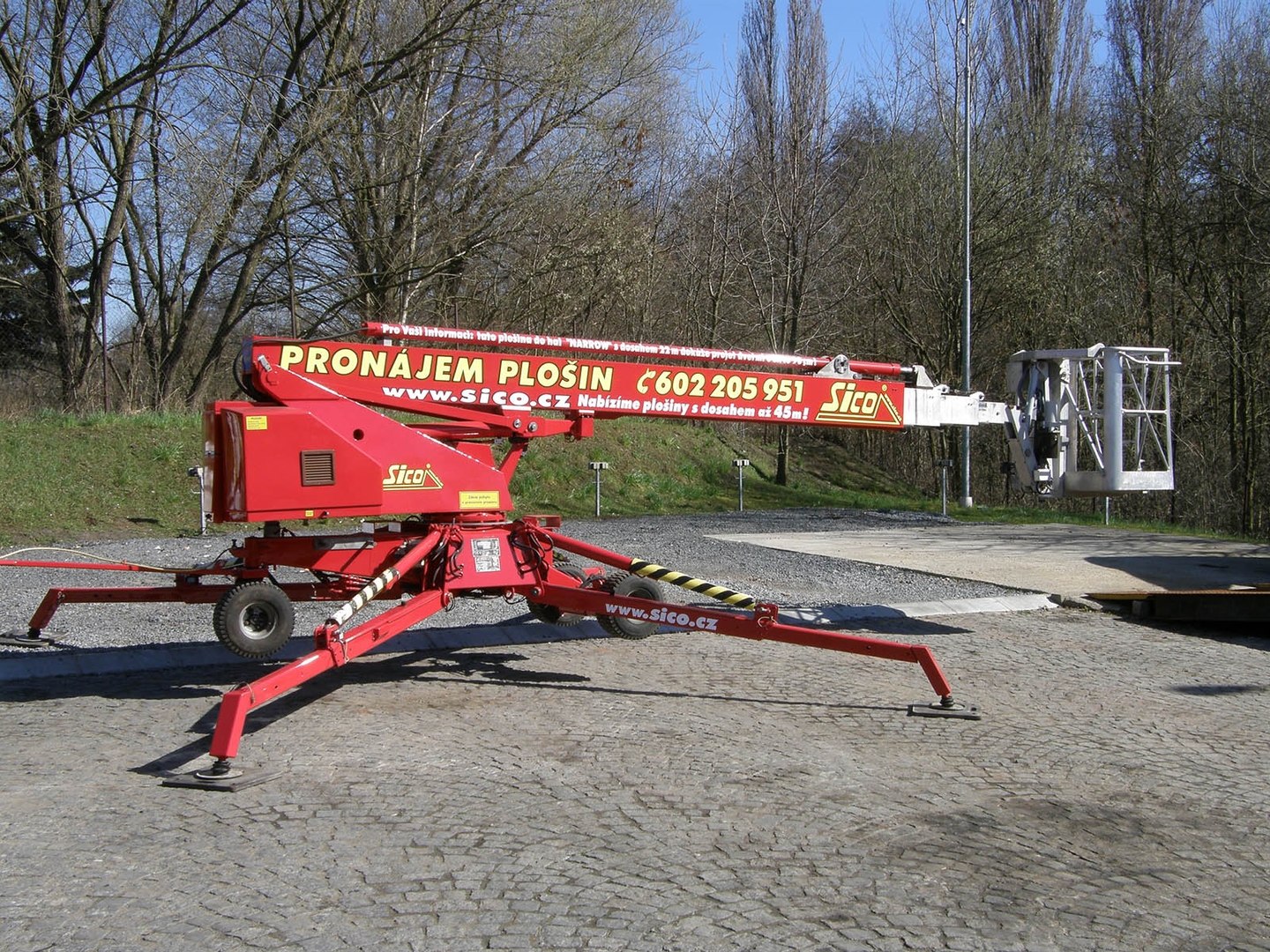

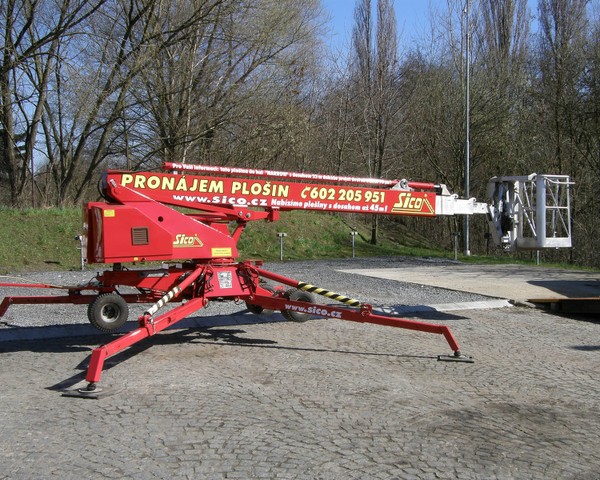

DL 22N

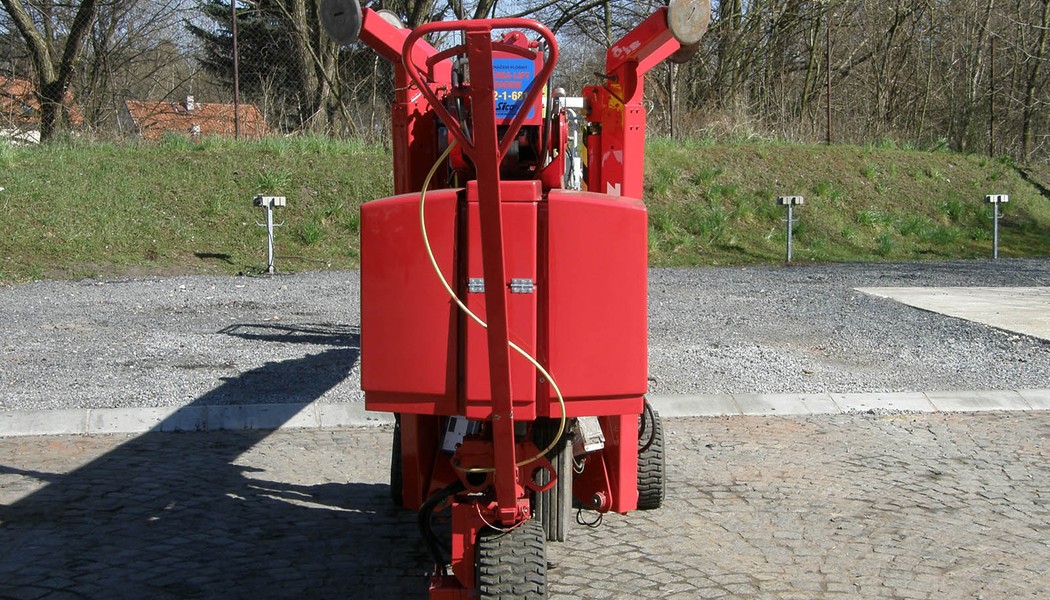

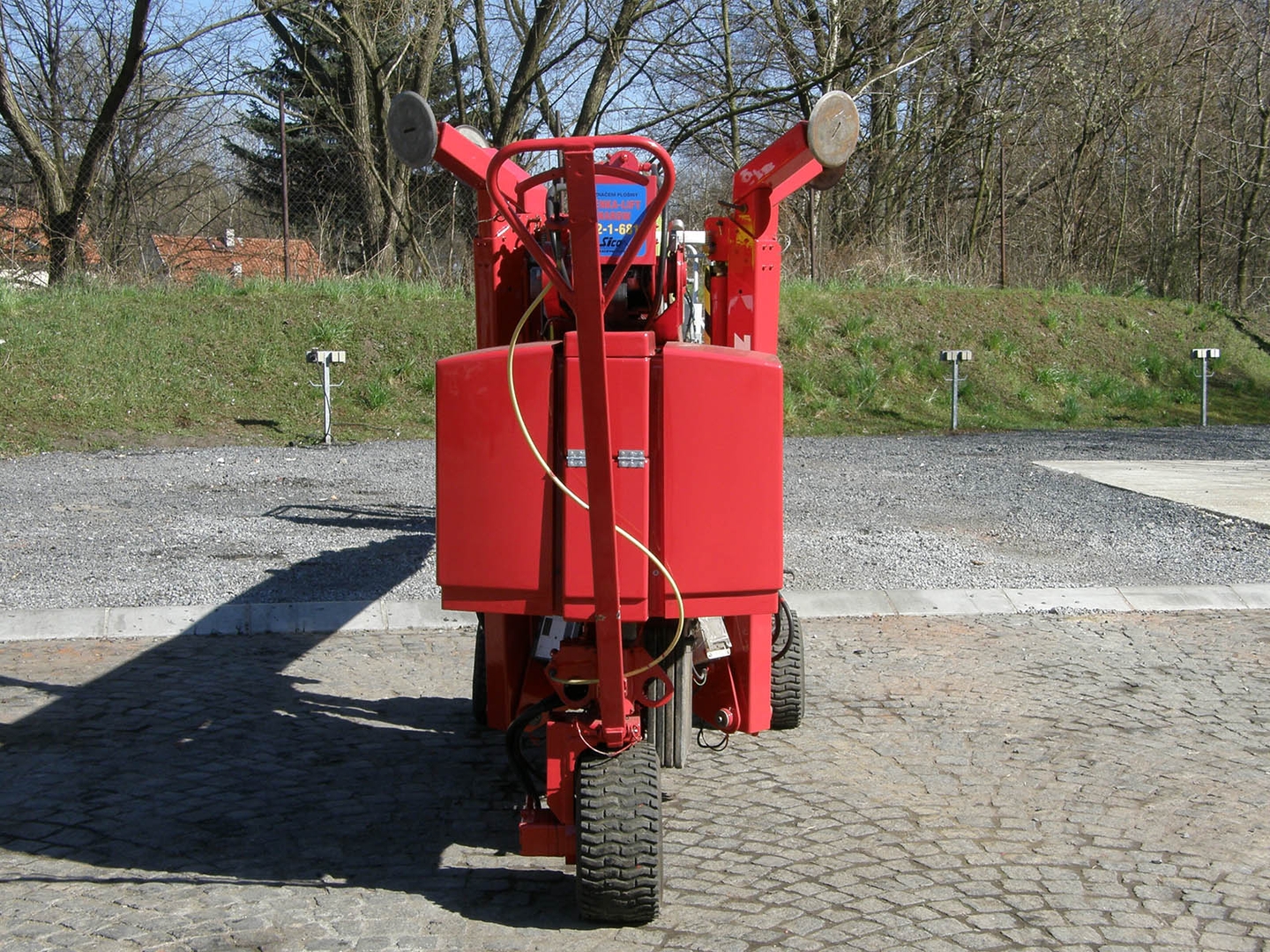

The machines of the "Narrow" series are exceptional in their permeability through cramped spaces. The detachable platform and variable axle track ensure a passable width of 89 centimeters.

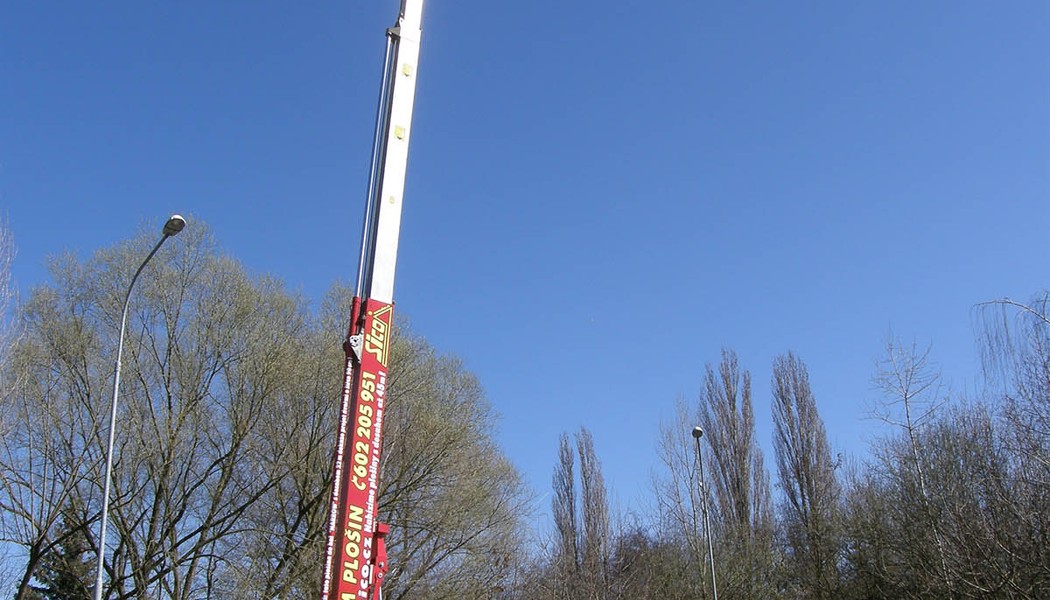

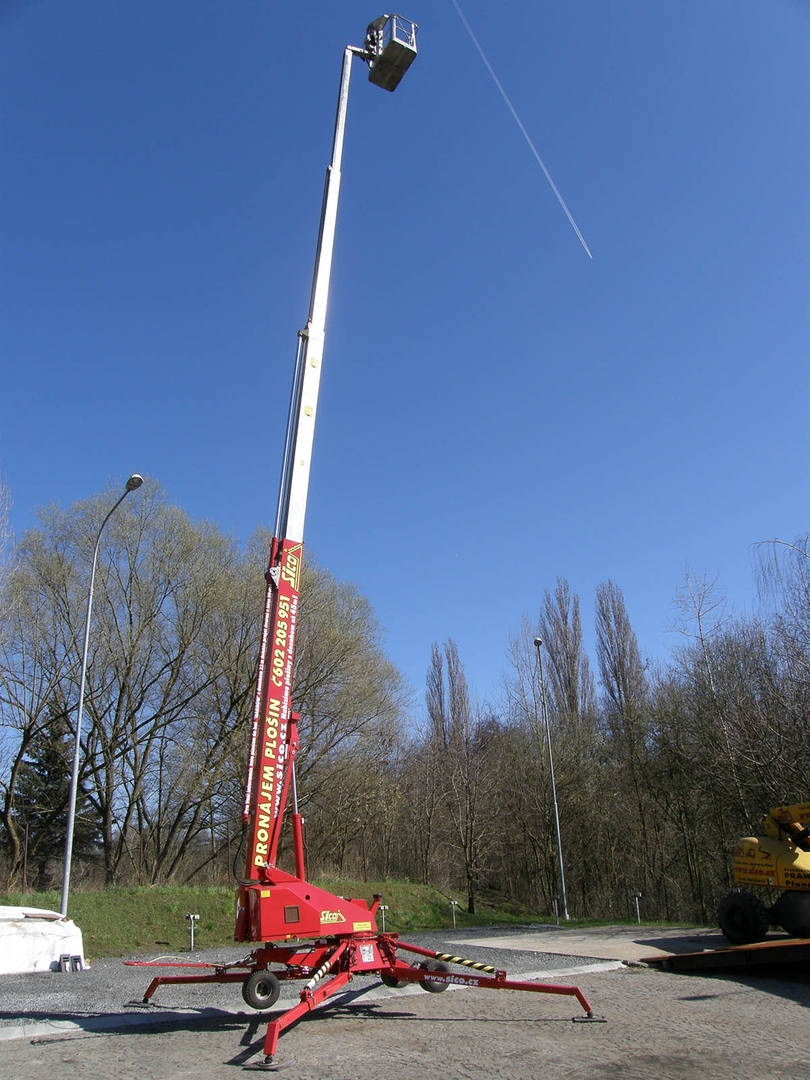

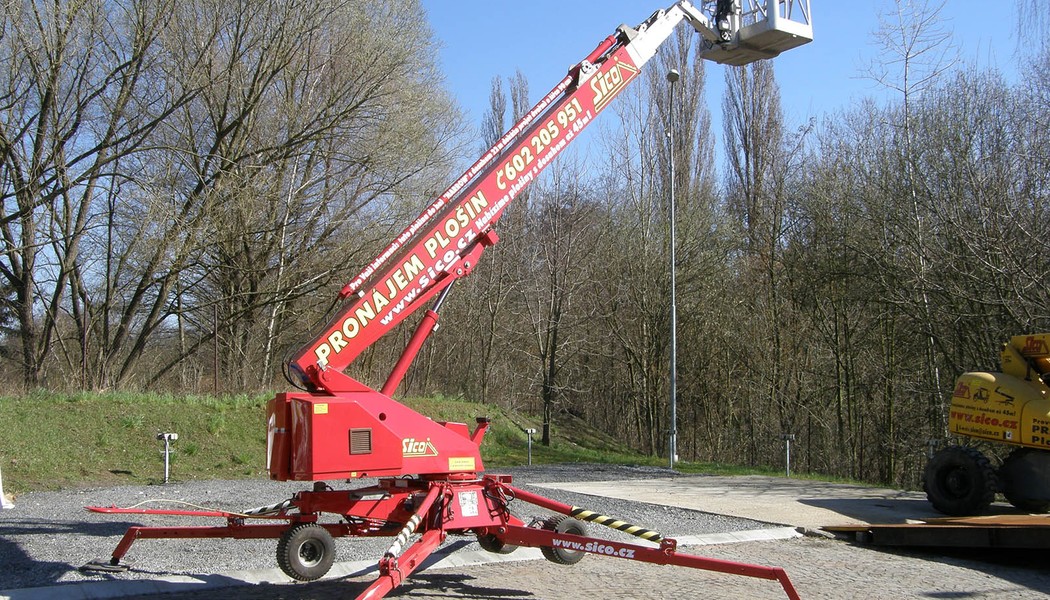

Perfect permeability in cramped places while maintaining a working height of up to 21,9 meters and a weight of less than 2,5 tons, this was the goal of engineers of Denka lift. The built-in automatic load torque limitation ensures optimal lateral reach depending on the load in the platform. At the maximum allowed load, the machine stops at 8,3 m, when using only 80 kg, the machine lets you to a distance of 11,8 m. Three-wheel drive is standard, which means that transport can be carried out without problems, even under difficult conditions, such as large climbs or soft ground. The solid telescopic construction and 4 supports, the double protection system of the electrical and hydraulic systems, the safety valves in case of hose rupture and all the movement functions secured by the pressure relief valves ensure maximum safety. DL 22N will help in places where the transport of other machines is difficult or impossible.
